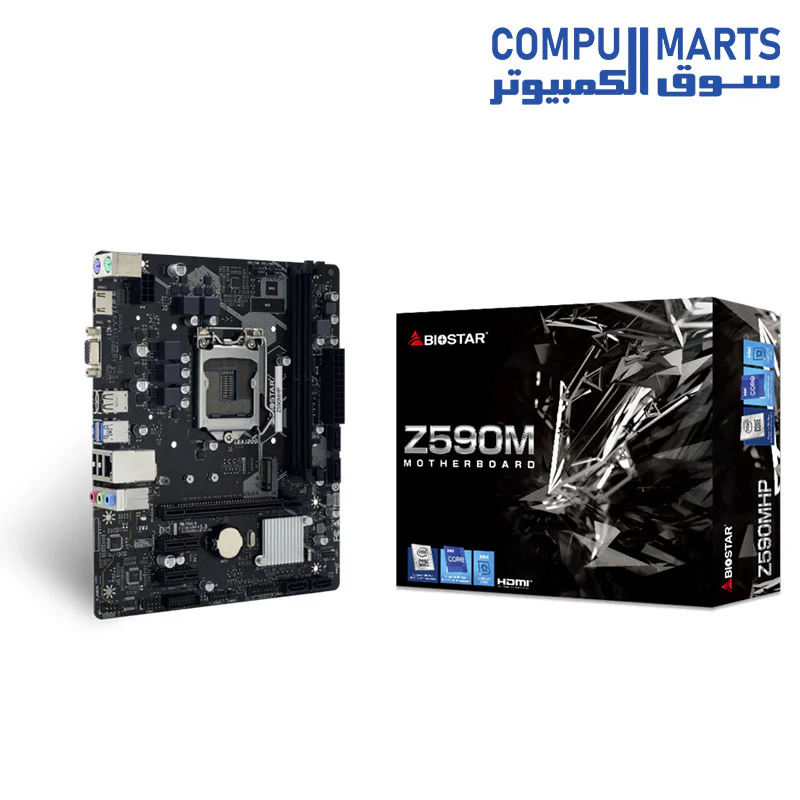

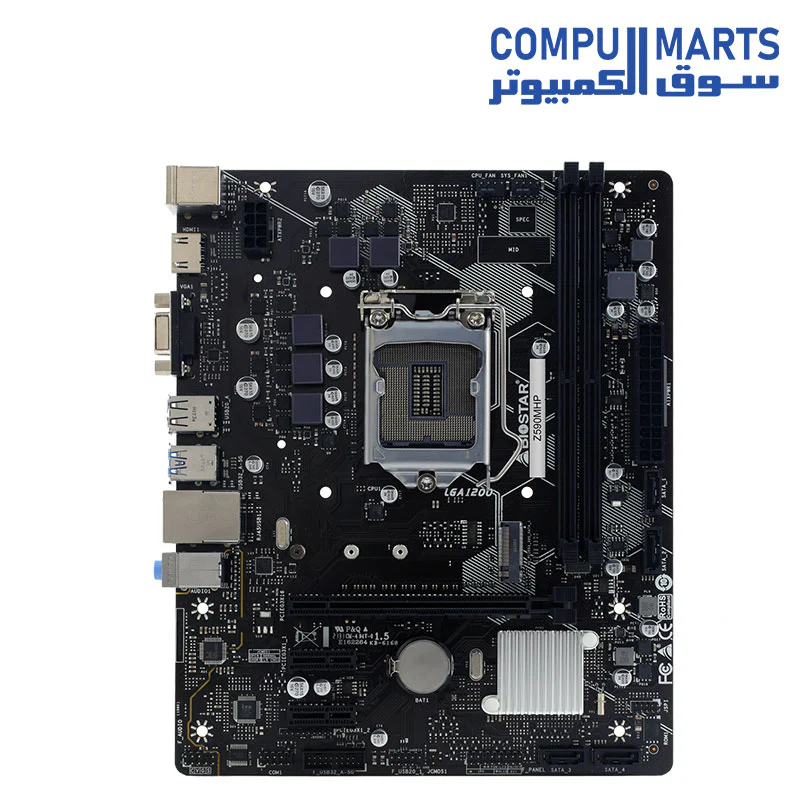

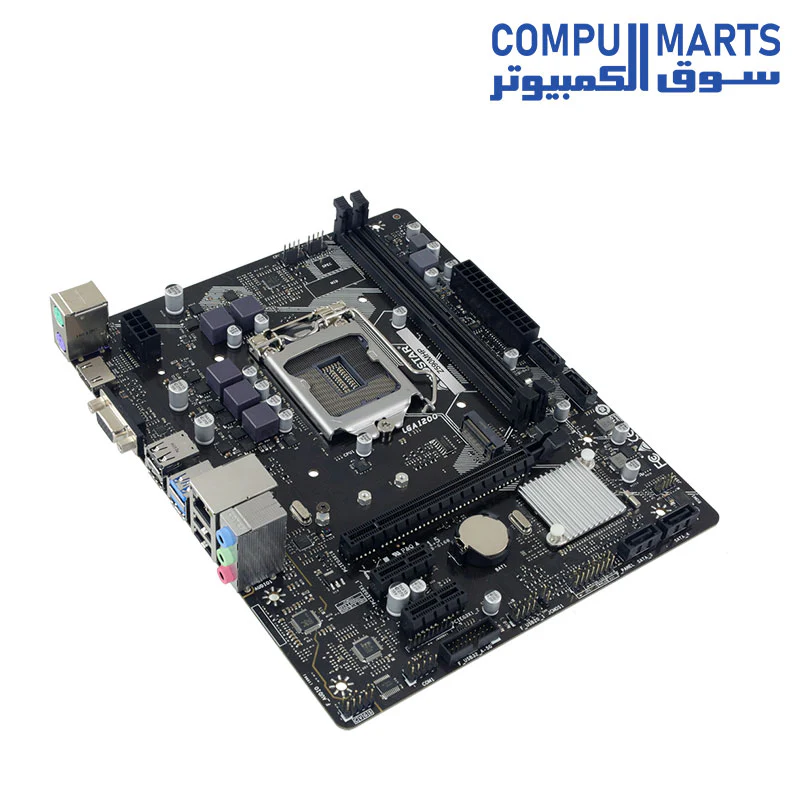

Biostar Z590MHP Intel Z590 LGA 1200 Motherboard

Chipset

Intel Z590

CPU SUPPORT

Socket 1200 for 10th / 11th Gen Intel Core, Pentium and Celeron processors

MEMORY

Supports Dual Channel DDR4 - 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32 GB DDR4 module

 Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

4 x SATA III Connector (6Gb/s)

Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

1 x M.2 (M Key) Socket:

Supports M.2 Type 2242/ 2260/ 2280 SSD module.

Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD

* When using SATA SSD module on PCIE-M2_1 slot, the SATA_1 connector will be disabled.

* Specifications vary by CPU types

LAN

Intel I219V

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

Realtek ALC897

7.1 Channels, High Definition Audio

USB

4 x USB 3.2 (Gen1) ports

(2 on rear I/Os and 2 via internal headers)

6 x USB 2.0 ports

(4 on rear I/Os and 2 via internal headers)

EXPANSION SLOT

2 x PCIe 3.0 x1 Slot

1 x PCle 3.0/ 4.0 x16 Slot (x16 mode)

*The PCle 4.0 only depends on Rocket Lake CPUs.

* Specifications vary by CPU types

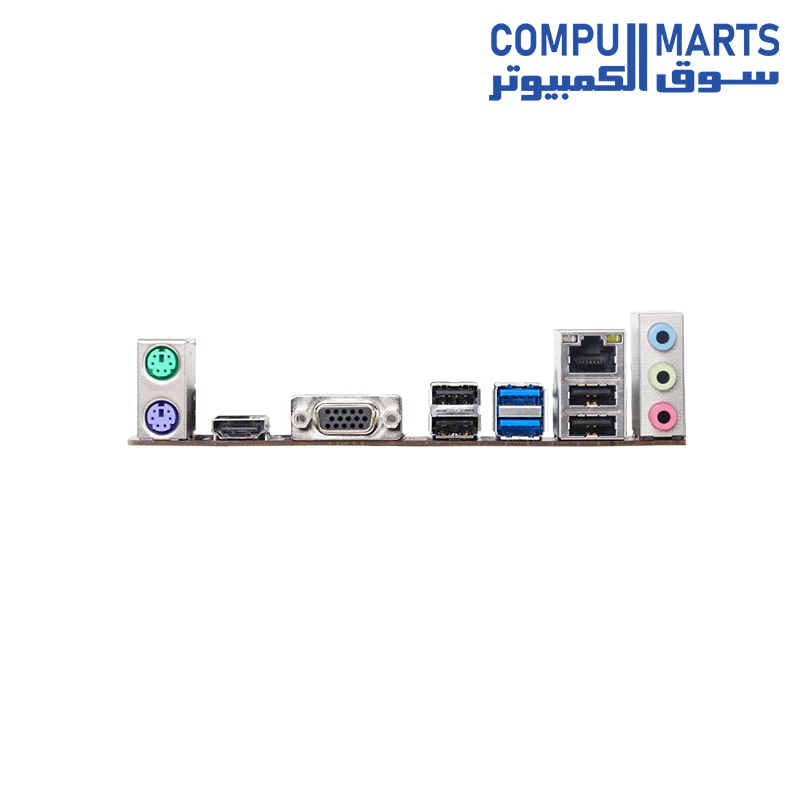

REAR I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x HDMI Port (HDMI1.4)

1 x VGA Port

2 x USB 3.2 (Gen1) Ports

4 x USB 2.0 Ports

1 x LAN port

3 x Audio Jack

INTERNAL I/O

4 x SATA III Connector (6Gb/s)

1 x USB 3.2 (Gen1) Header

(each header supports 2 USB 3.2 (Gen1) ports)

1 x USB 2.0 Header

(each header supports 2 USB 2.0 ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x COM Port Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION

Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )

OS SUPPORT

Supports Windows 10 (64bit) / 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide
