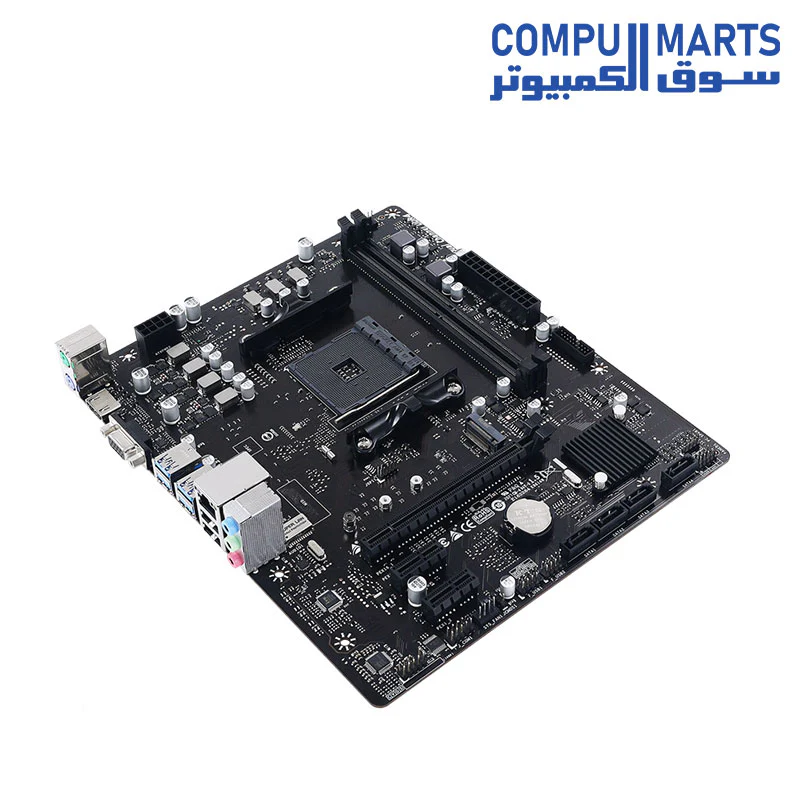

Biostar A520MH 3.0 AM4 Socket Micro ATX AMD Motherboard

Chipset

AMD A520

CPU SUPPORT

Socket AM4 support AMD 3rd Gen Ryzen  (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors

Support for future AMD Ryzen processors with BIOS update

 Please refer to www.biostar.com.tw for CPU support list.

MEMORY

3rd Gen AMD Ryzen Processors (Matisse CPUs)

Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866

3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)

Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports

AMD Ryzen 5000/5000 G/4000 G/3000 Processors

1 x M.2 (M Key) Socket (M2_PCIE_SATA1):

Supports M.2 Type 2242/ 2260/ 2280 SSD module

Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD

AMD A520 Chipset

4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10

Specifications vary by CPU types

LAN

Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Supports Super LAN Surge Protection

ALC887

7.1 Channels, High Definition Audio, Hi-Fi (Front)

6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers)

6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT

AMD Ryzen 5000/3000 Series Processors

1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)

or

AMD Ryzen 5000 G/4000 G Series Processors

1 x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode)

AMD A520 Chipset

2 x PCIe 3.0 x1 Slot

* According to different CPUs will have different speeds.

* Specifications vary by CPU types

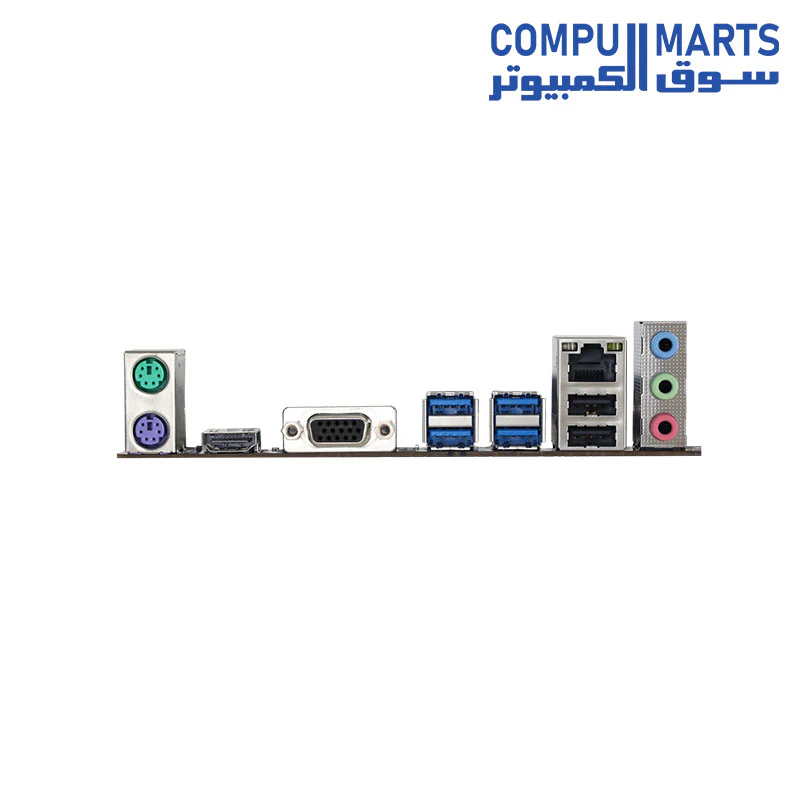

REAR I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x HDMI Port

1 x VGA Port

1 x LAN port

4 x USB 3.2 (Gen1) Ports

2 x USB 2.0 Ports

3 x Audio Jack

INTERNAL I/O

4 x SATA III (6.0Gb/s) Connectors

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x Internal Stereo Speaker Header

1 x COM Port Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION

Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )

OS SUPPORT

Supports Windows 10(64bit) / 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

FEATURES

Supports 100% Solid capacitor

BIO-FLASHER

A.I FAN

PCIe M.2 32Gb/s
