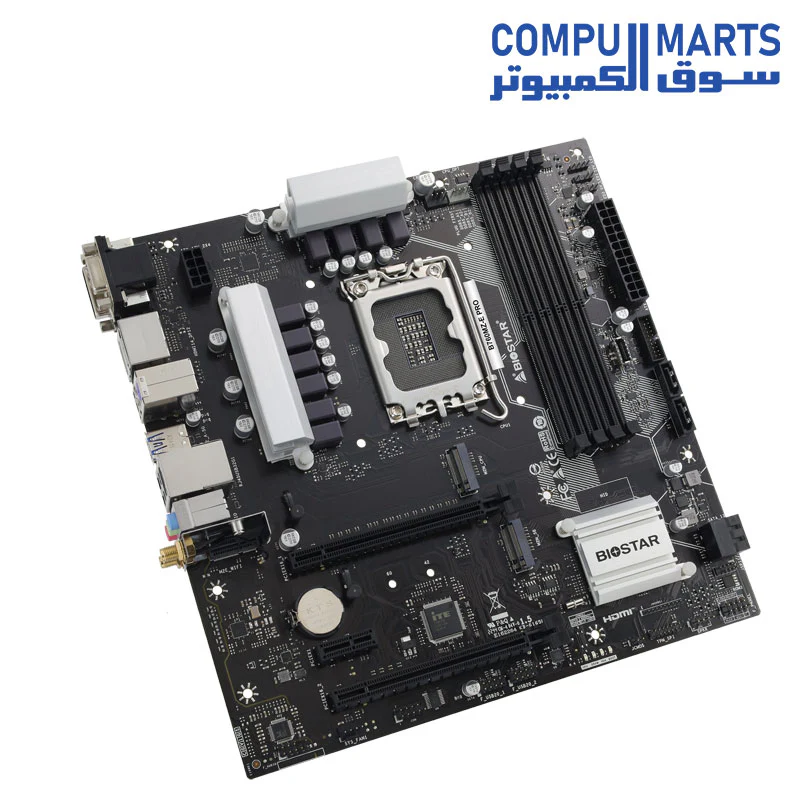

BIOSTAR B760MZ-E PRO Socket LGA1700 Motherboard

Chipset

Intel B760

CPU SUPPORT

Support for 12th / 13th /14th Generation Intel  Core  i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

MEMORY

Supports Dual Channel DDR5 - 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800

4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory

Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module

Support Intel  Extreme Memory Profile (XMP) memory modules

INTEGRATED VIDEO

Supports DX12

Supports HDCP

STORAGE

Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports

Intel 12th/13th/14th Processors

1 x M.2 (M Key) Socket (M2M_CPU):

Supports M.2 Type 2280 SSD module

Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD

Intel B760 Chipset

1 x M.2 (M Key) Socket (M2M_SB):

Supports M.2 Type 2242/2260/2280 SSD module

Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD

4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

* Specifications vary by CPU types

LAN

Realtek RTL8125B

10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

ALC897

7.1 Channels, High Definition Audio, Hi-Fi(Front)

USB

1 x USB 3.2 (Gen2) Type-C port (1 via internal header)

5 x USB 3.2 (Gen1) port (3 on rear I/Os and 2 via internal header)

6 x USB 2.0 port (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT

INTEL 12th/13th/14th Processors

1 x PCIe 4.0 x16 Slot (x16 mode)

INTEL B760 Chipset

1 x PCIe 3.0 x16 Slot (x4 mode)

1 x PCIe 3.0 x1 Slot

* Specifications vary by CPU types

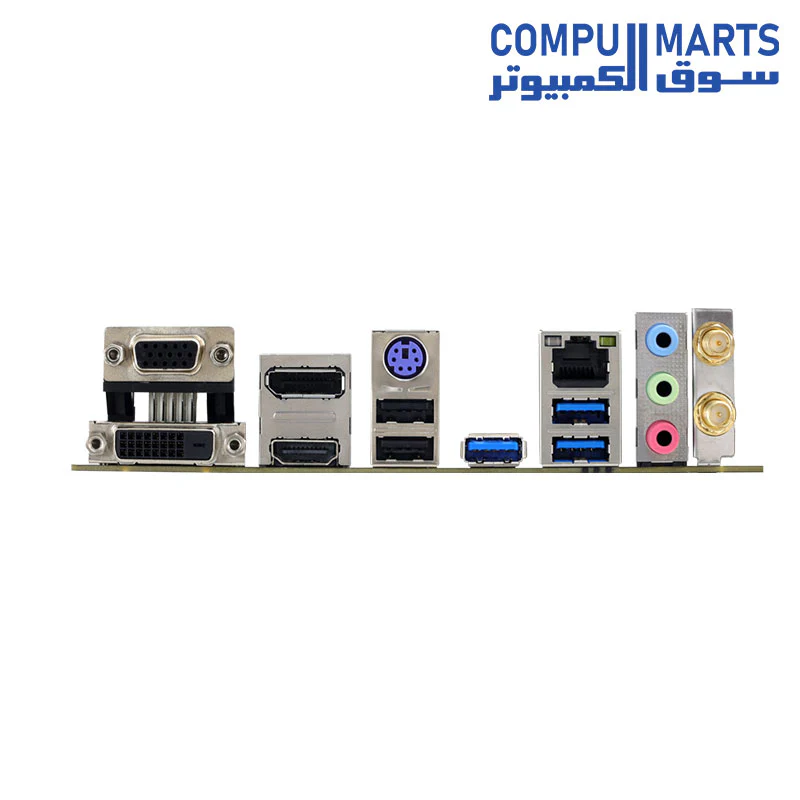

REAR I/O

2 x WIFI Antenna Port

1 x PS/2 Keyboard/ Mouse Port

1 x HDMI

1 x DP

1 x VGA

1 x DVI Port

3 x USB 3.2 (Gen1) Port

2 x USB 2.0 port

1 x LAN port

3 x Audio Jack

INTERNAL I/O

4 x SATA III Connector (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x CPU water cooling connector (CPU_OPT)

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

2 x LED Header (5V)

1 x LED Header (12V)

* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING

CPU / System Temperature Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION

Micro ATX Form Factor Dimension: 24.4 cm x 24.4cm ( W x L )

OS SUPPORT

Supports Windows Windows 10(64bit) / Windows 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

1 x M.2 Anchor

1 x WiFi antenna accessories

FEATURES

VIVID LED DJ

BIO-FLASHER

A.I FAN

LED ROCK ZONE
