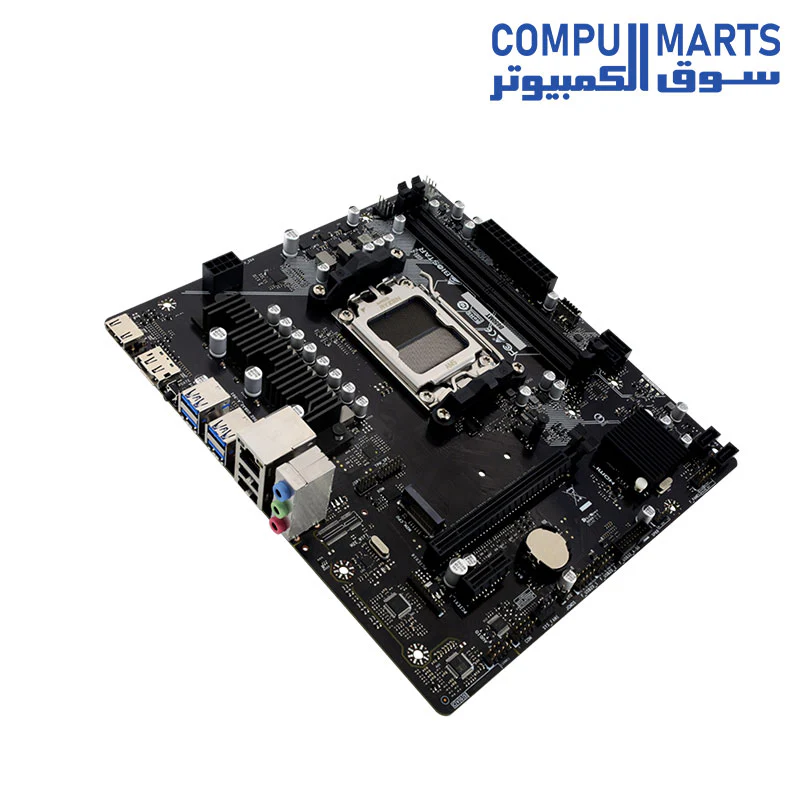

Biostar B650MT motherboard AMD B650 Socket AM5 micro ATX

Chipset

AMD B650

CPU SUPPORT

Socket AM5 support AMD Ryzen 7000 / 8000 / 9000 series Processors

Support for future AMD Ryzen processors with BIOS update

 Please refer to www.biostar.com.tw for CPU support list.

MEMORY

AMD Ryzen 7000 / 8000 / 9000 series Processors:

Supports Dual Channel DDR5 4800/ 5200/ 5400(OC)/ 5600(OC)/ 6000+(OC)

2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory

Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module

 Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports

AMD Ryzen 7000 / 8000 / 9000 Series Processors

1 x M.2 (Key M) Socket (M2M_CPU) :

Supports M.2 Type 2242/ 2260/ 2280 SSD module

Supports PCIe 4.0 x 4 (64Gb/s) - NVMe SSD

AMD B650 Chipset

4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10

* Specifications vary by CPU types

LAN

Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

ALC897

7.1 Channels, High Definition Audio, Hi-Fi

USB

1 x USB 3.2 Gen2 Type-C port (1 via internal headers)

6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)

6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT

AMD Ryzen 7000 / 8000 / 9000 Series Processors

1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode)

AMD B650 Chipset

1 x PCIe 3.0 x1 Slot

Specifications vary by CPU types

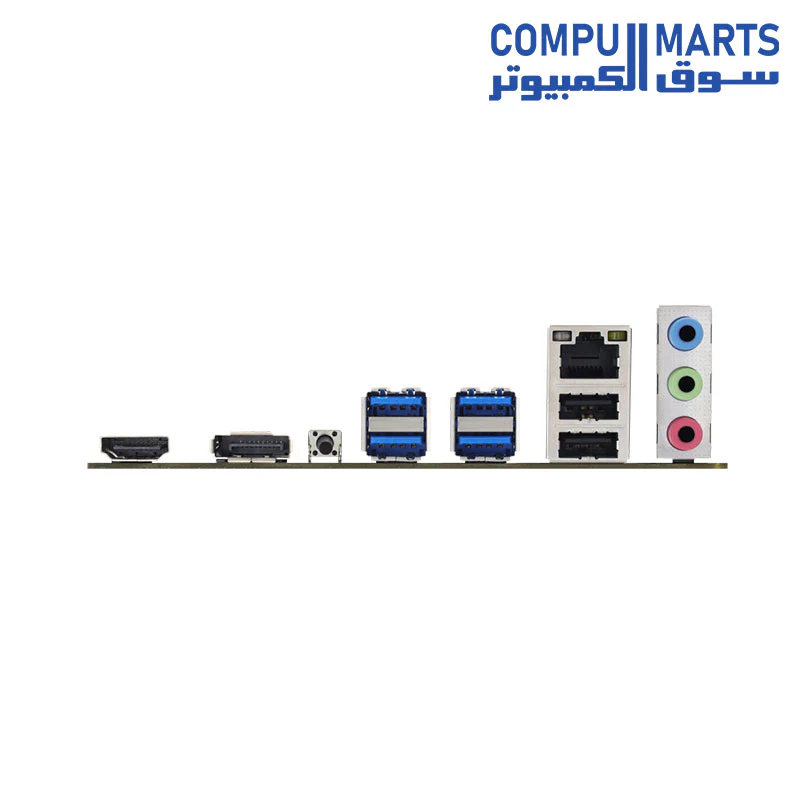

REAR I/O

1 x BIOS UPDATE Button

1 x HDMI Port (HDMI1.4)

1 x DP Port (DP1.2)

4 x USB 3.2 (Gen1) Type-A Ports

2 x USB 2.0 Type-A Ports

1 x Giga LAN port

3 x Audio Jack

INTERNAL I/O

4 x SATA III Connector (6Gb/s)

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x USB 3.2 (Gen2) Type-C Header

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x CPU water cooling connector (CPU_OPT)

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION

Micro ATX Form Factor Dimension: 22.1cm x 23.5cm ( W x L )

OS SUPPORT

Supports Windows 10(64bit)/ 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

1 x M.2 Anchor
