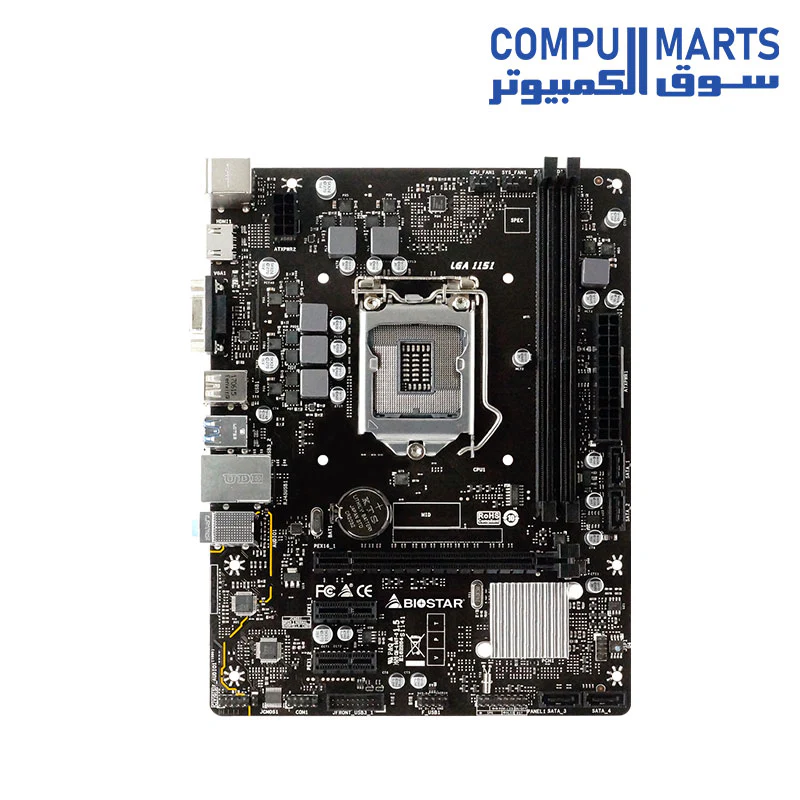

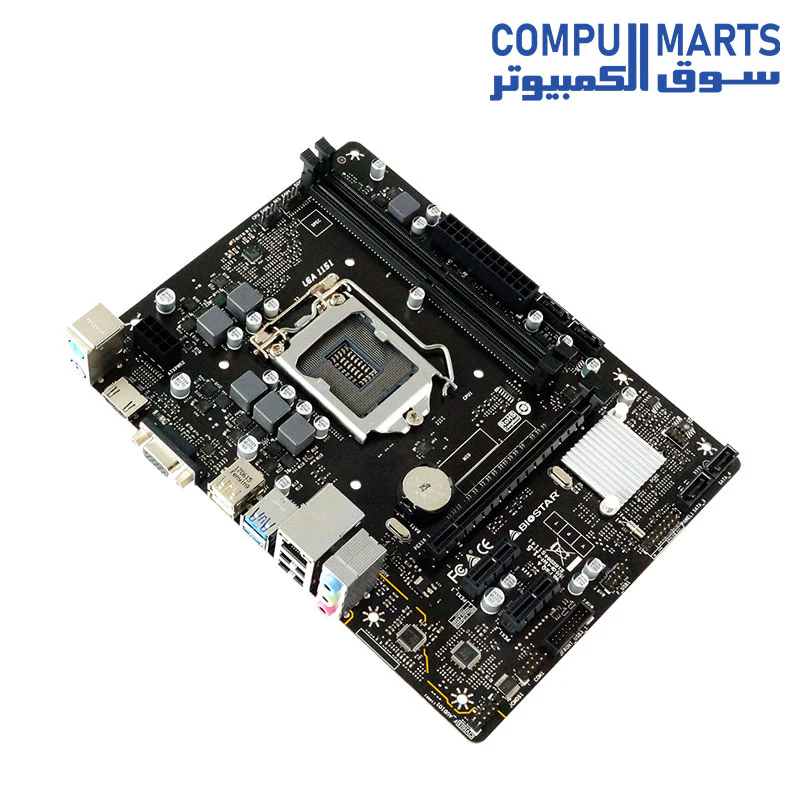

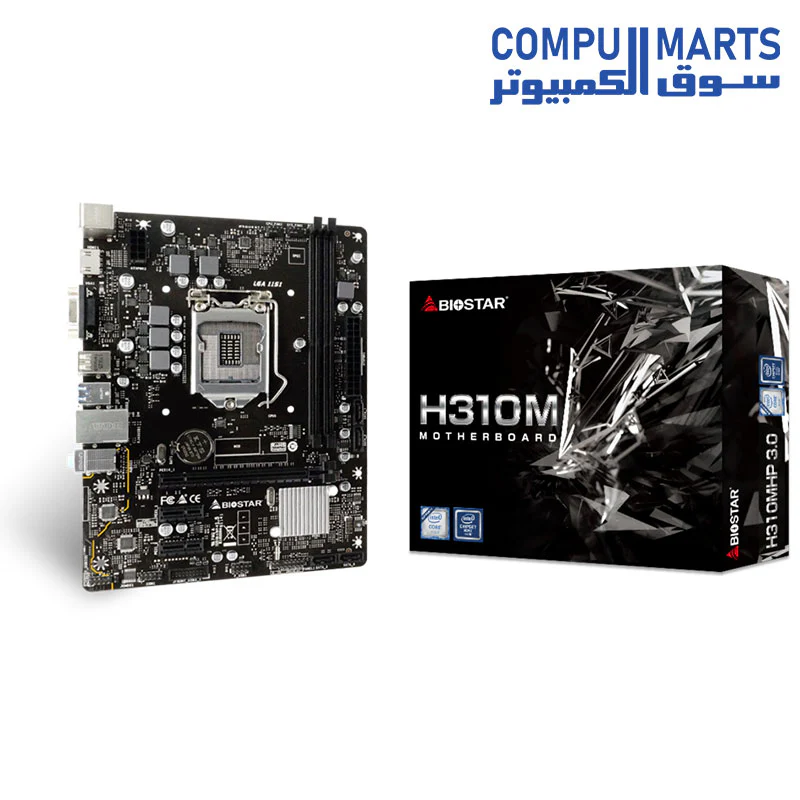

Biostar H310MHP 3.0 -Micro ATX Intel Motherboard, Socket 1151, Intel H310 Chipset

Chipset

Intel H310

CPU SUPPORT

Socket 1151 for 9^th / 8^th Gen Intel Core, Pentium and Celeron processors

9^th / 8^th Generation Intel Core  Processor Family only support 300-Series.

MEMORY

Supports Dual Channel DDR4 2666/ 2400/ 2133/ 1866

2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory

Each DIMM supports non-ECC 4/8/16GB DDR4 module

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

4 x SATA III Connectors (6Gb/s)

 Specifications vary by CPU types

LAN

Realtek LAN Chip

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

ALC897

7.1 Channels, High Definition Audio

Support HD Audio

USB

4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal header)

6 x USB 2.0 ports (4 on rear I/Os and 2 via internal header)

EXPANSION SLOT

2 x PCIe 2.0 x1 Slots

1 x PCIe 3.0 x16 Slot (x16 mode)

 Specifications vary by CPU types

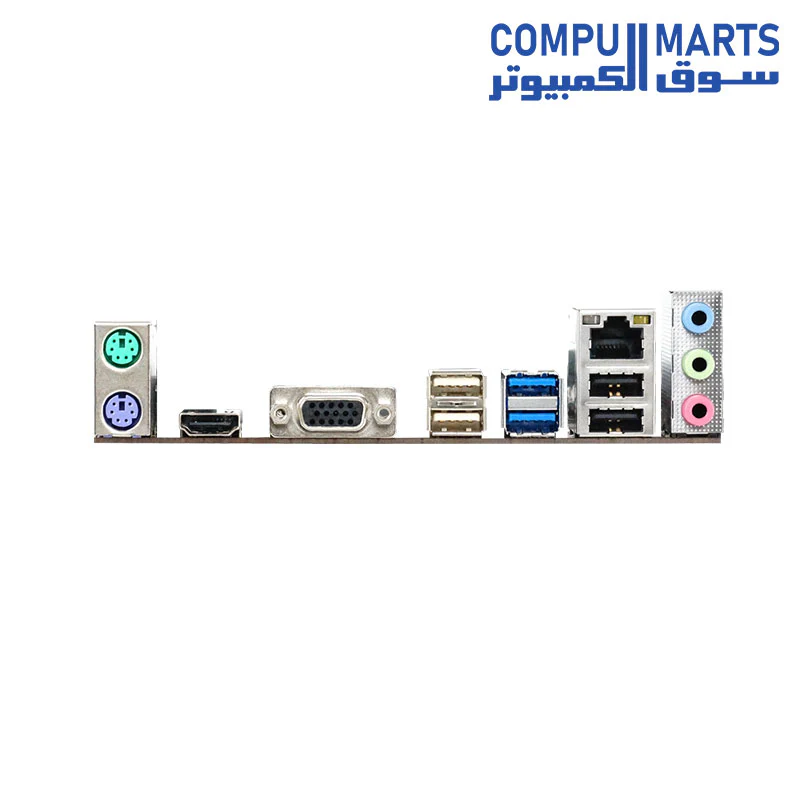

REAR I/O

1x PS/2 Mouse Port

1x PS/2 Keyboard Port

1 x HDMI Port

1 x VGA Port

1 x LAN Port

4 x USB 2.0 Ports

2 x USB 3.2(Gen1) Ports

3 x Audio Jack

INTERNAL I/O

4 x SATA III Connectors (6Gb/s)

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION

Micro ATX Form Factor Dimension: 17.1cm x 22.6cm ( W x L )

OS SUPPORT

Supports Windows 10(64bit) / 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

FEATURES

BIO-FLASHER
