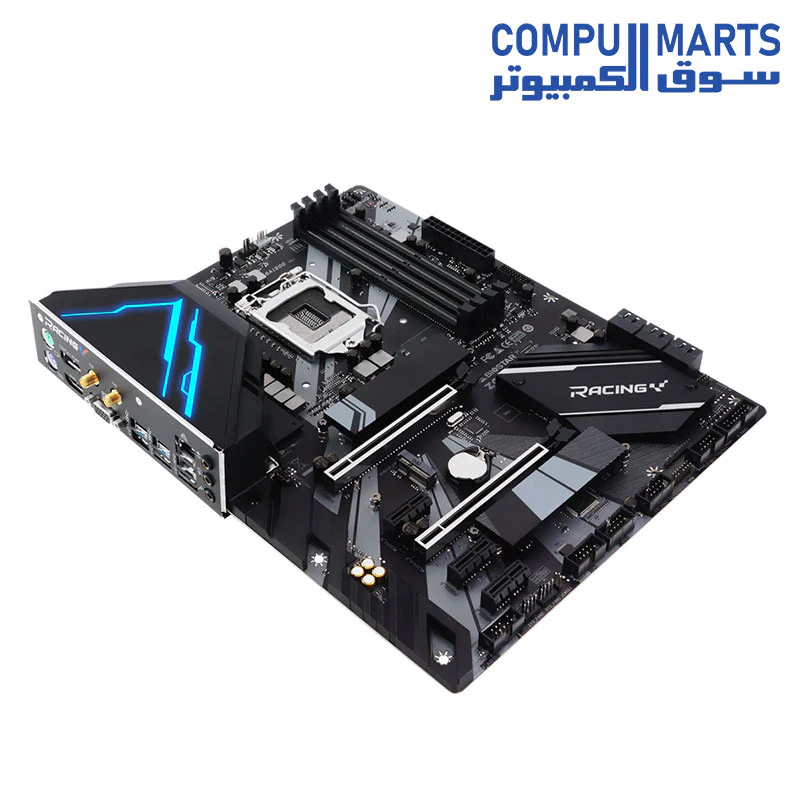

BIOSTAR Z490GTA GAMING MOTHERBOARD

Chipset

Intel Z490

CPU SUPPORT

Support for 10th/11th Generation Intel Core i9

processors/Intel Core i7 processors/Intel Core i5

processors/Intel Core i3 processors/Intel Pentium

processors/Intel Celeron processors in the LGA1200 package

MEMORY

Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933

Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC)

4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory

Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module

Support for Extreme Memory Profile (XMP) memory modules

INTEGRATED VIDEO

By CPU model

STORAGE

Total supports 2 x M.2 slots and 6 x SATA III(6Gb/s) ports

1 x M2_32G_1 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology

1 x M2_32G_2 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology

6 x SATA III (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

* When using SATA SSD module on M2M_32G_1 slot, the SATA_3U connector will be disabled.

* When using SATA SSD module on M2M_32G_2 slot, the SATA_3L connector will be disabled.

* Specifications vary by CPU types

LAN

Intel i219V; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Supports Super LAN Surge Protection

AUDIO CODEC

ALC1150 7.1 Channels, High Definition Audio

USB

6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header)

6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT

3 x PCIe 3.0 x 1 Slots

2 x PCIe 3.0 x 16 Slots(x 16 + x 4)

* Specifications vary by CPU types

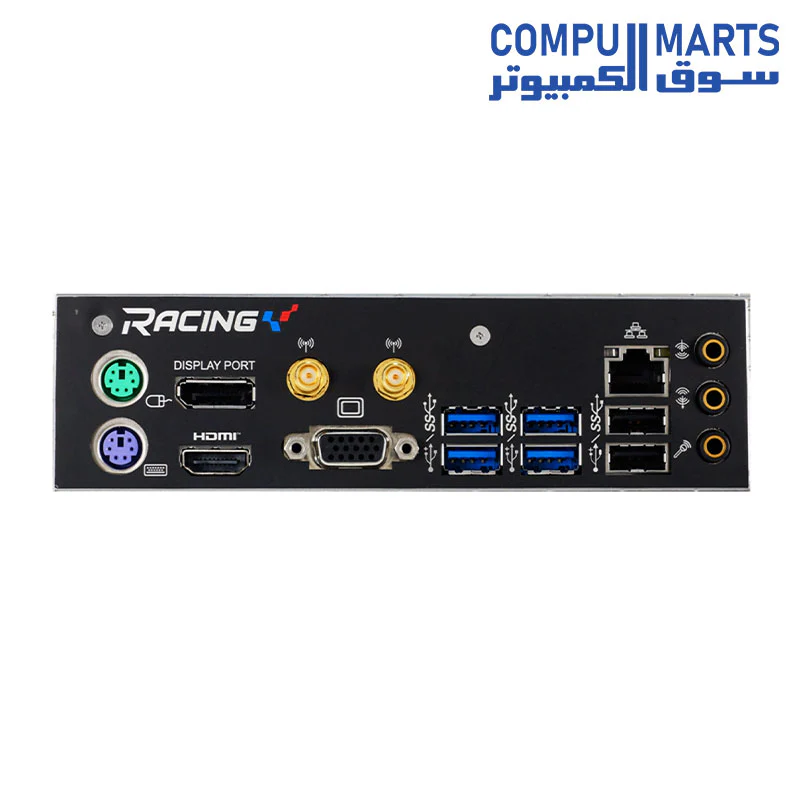

REAR I/O

2 x WiFi Antenna Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x HDMI Port

1 x DP Port

1 x VGA Port

4 x USB 3.2 (Gen1) ports

2 x USB 2.0 Ports

1 x LAN port

3 x Audio Jack

INTERNAL I/O

6 x SATA III Connectors (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type WiFi & Bluetooth module and Intel CNVi

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 4-Pin Power Connector

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x CPU water cooling connector (CPU_OPT)

2 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

1 x Thunderbolt 3 Header

2 x LED Header (5V)

1 x LED Header (12V)

* M.2 E Key wireless card is not provided.

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION

ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )

OS SUPPORT

Supports Windows 10 (64bit) /11(64bit)

※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE

BullGuard

ACCESSORIES

4 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x User Manual
