$219.49

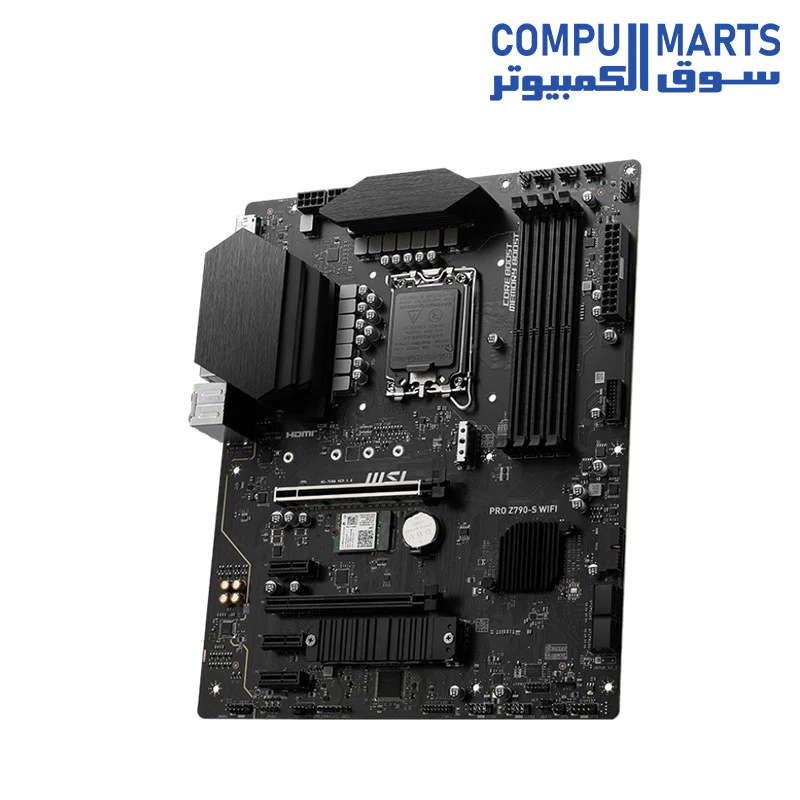

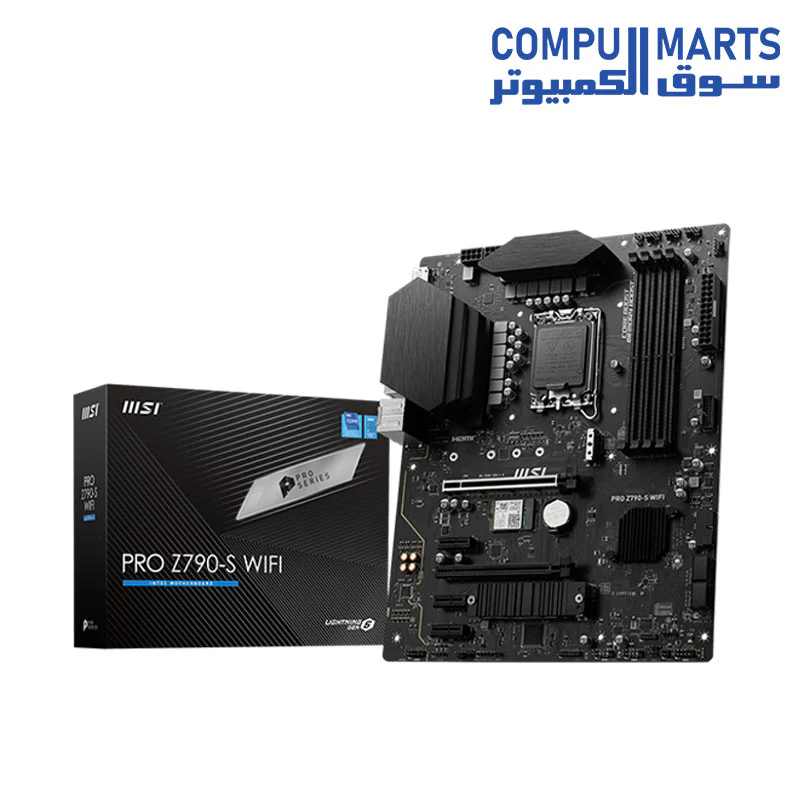

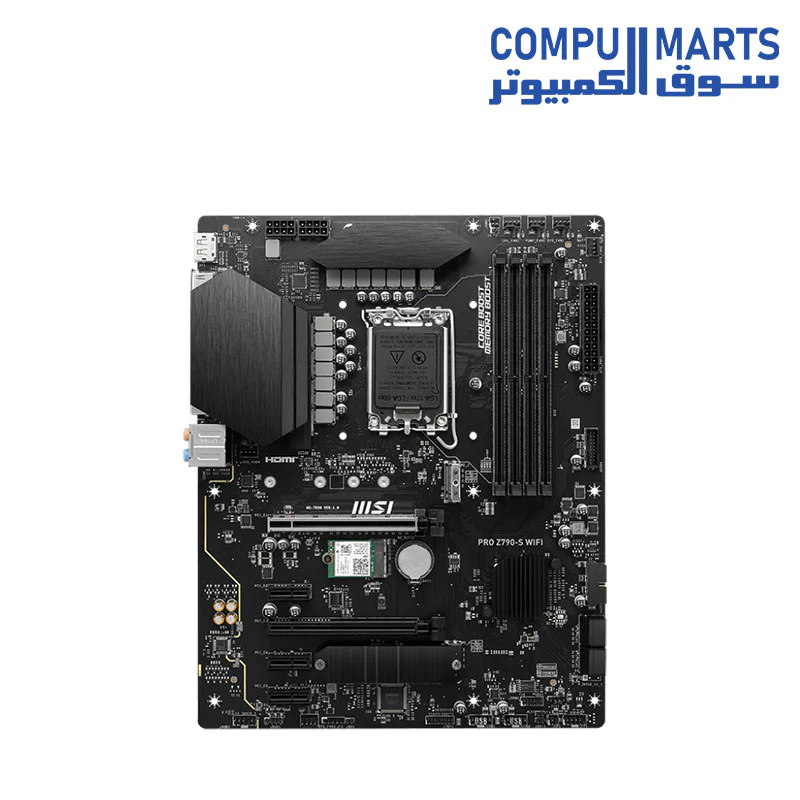

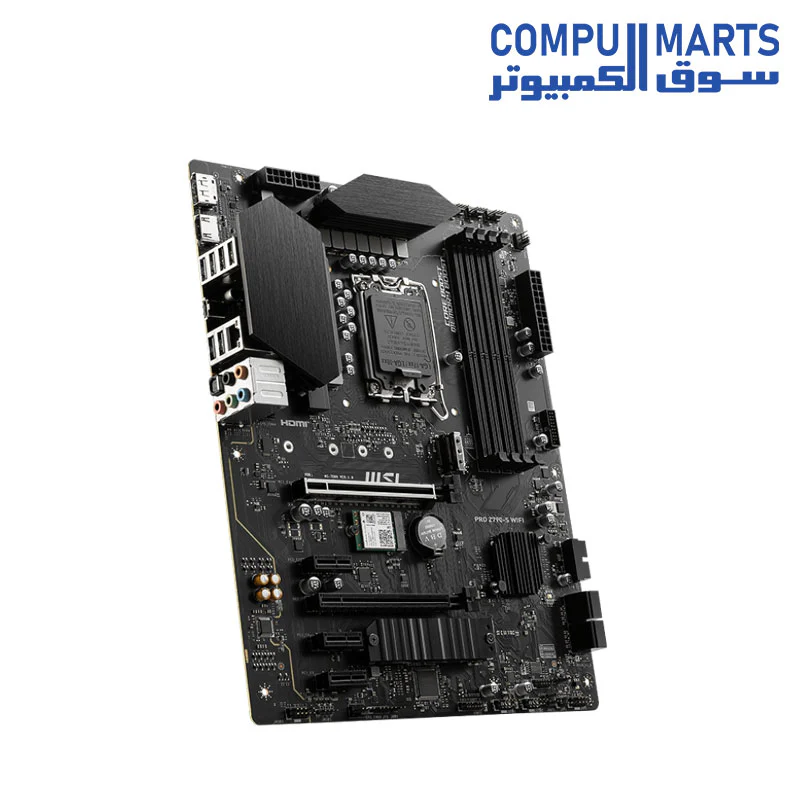

MSI PRO Z790-S WiFi ProSeries Motherboard – Intel LGA1700 – DDR5 – ATX – PCIe 5.0 – M.2 – WiFi – Supports 14th / 13th / 12th Gen Intel—
$219.49
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4x DDR5 DIMM, Max 256GB | Supports up to 8266MT/s (OC) | Dual Channel | Intel® XMP 3.0 |
| Power Design | Digital Twin 16+1+2 Phases VRM Solution with 8-Layer Low Loss PCB |
| Expansion Slots | 1x PCIe 5.0 x16 (UD Slot X), 2x PCIe 4.0 x16 (running at x4) |
| Storage Interface | 4x M.2 PCIe 4.0 x4 slots | 6x SATA 6Gb/s | RAID 0, 1, 5, 10 support |
| Display Output | 1x HDMI 2.0 (4K 60Hz), 1x DisplayPort 1.2 (4K 60Hz) |
| Thermal Solution | VRM Thermal Armor Advanced, M.2 Thermal Guard L, 2X Copper PCB |
| Connectivity | 2.5GbE LAN | Wi-Fi 6E 802.11ax | Bluetooth 5.3 |

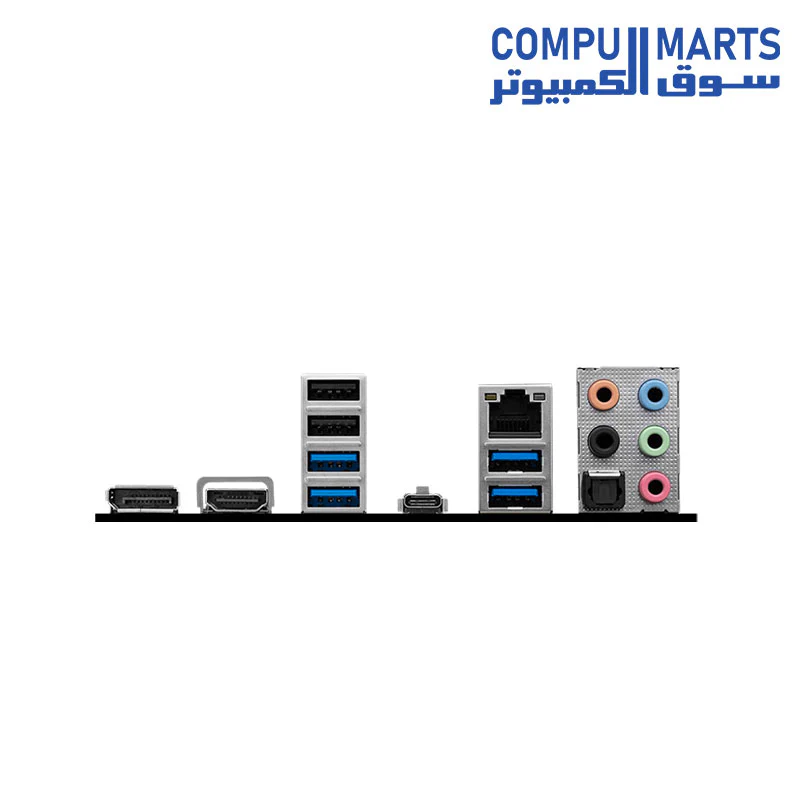

| USB (Rear) | 1x USB-C 20Gbps, 2x USB 3.2 Gen 2 (Red), 3x USB 3.2 Gen 1, 4x USB 2.0 |
| Audio | Realtek® ALC1220 Codec | High-Def Audio | WIMA & Audiophile Grade Capacitors |
| Special Features | EZ-Latch Click (Screwless Heatsinks), EZ-Latch Plus (M.2 Quick Release), UC BIOS |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4x DDR5 DIMM, Max 256GB | Supports up to 8266MT/s (OC) | Dual Channel | Intel® XMP 3.0 |
| Power Design | Digital Twin 16+1+2 Phases VRM Solution with 8-Layer Low Loss PCB |
| Expansion Slots | 1x PCIe 5.0 x16 (UD Slot X), 2x PCIe 4.0 x16 (running at x4) |
| Storage Interface | 4x M.2 PCIe 4.0 x4 slots | 6x SATA 6Gb/s | RAID 0, 1, 5, 10 support |
| Display Output | 1x HDMI 2.0 (4K 60Hz), 1x DisplayPort 1.2 (4K 60Hz) |
| Thermal Solution | VRM Thermal Armor Advanced, M.2 Thermal Guard L, 2X Copper PCB |
| Connectivity | 2.5GbE LAN | Wi-Fi 6E 802.11ax | Bluetooth 5.3 |
| USB (Rear) | 1x USB-C 20Gbps, 2x USB 3.2 Gen 2 (Red), 3x USB 3.2 Gen 1, 4x USB 2.0 |
| Audio | Realtek® ALC1220 Codec | High-Def Audio | WIMA & Audiophile Grade Capacitors |
| Special Features | EZ-Latch Click (Screwless Heatsinks), EZ-Latch Plus (M.2 Quick Release), UC BIOS |
