$259.57

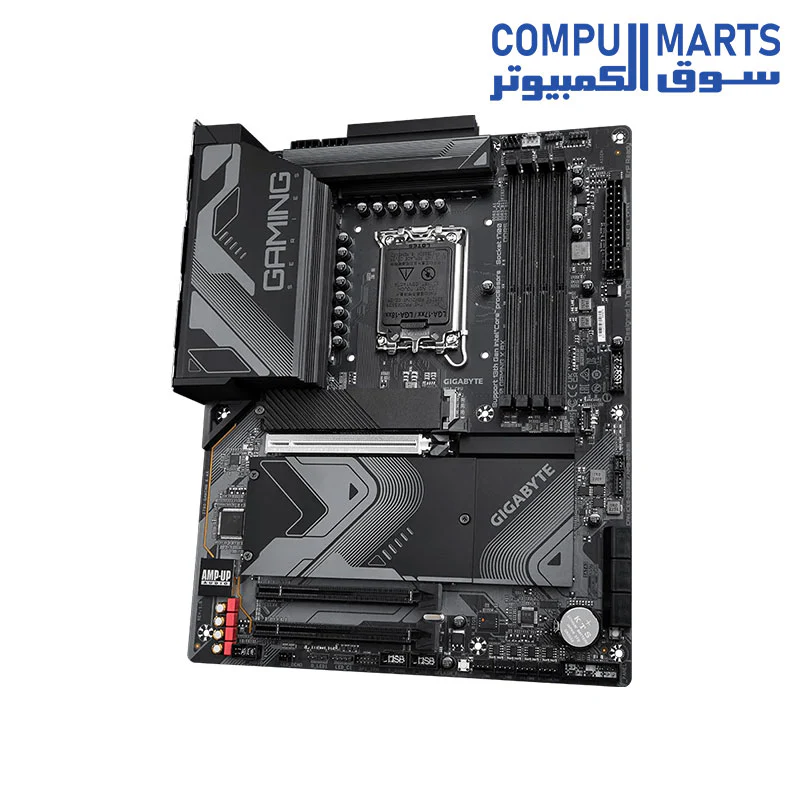

GIGABYTE Z790 GAMING X AX DDR5 LGA 1700 Motherboard—
$259.57
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA 1700 Socket: 14th, 13th & 12th Gen Intel® Core™ Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4x DDR5 DIMM (Up to 7600MHz OC / 192GB Max) | Dual Channel | XMP 3.0 |
| Power Design | Twin 16+2+1 Phases Digital VRM with 60A DrMOS |
| Expansion Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 1x PCIe 3.0 x4 |
| Storage | 4x M.2 PCIe 4.0 x4 Connectors | 6x SATA 6Gb/s | RAID 0, 1, 5, 10 |
| Wireless & Networking | Intel® Wi-Fi 6E AX211 | Bluetooth 5.3 | 2.5GbE LAN |

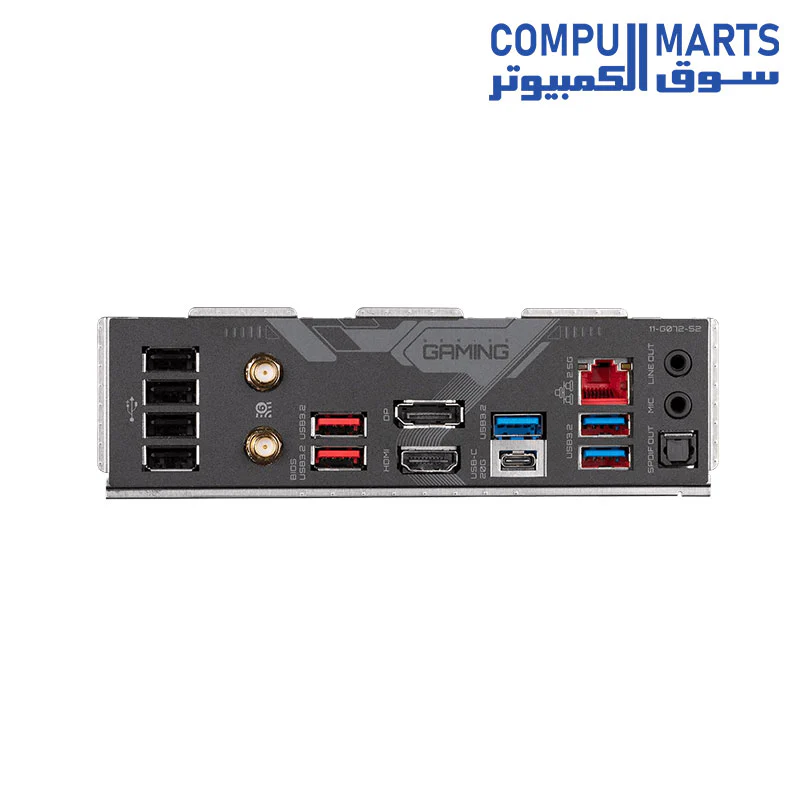

| Rear USB Ports | 1x USB-C 3.2 Gen 2x2 (20Gbps) | 2x USB 3.2 Gen 2 (Red) | 3x USB 3.2 Gen 1 | 4x USB 2.0 |
| Internal USB | 1x Front USB-C 3.2 Gen 2 (10Gbps) | 1x USB 3.2 Gen 1 Header | 2x USB 2.0 Headers |
| Display Output | 1x HDMI 2.0 (4K @ 60Hz) | 1x DisplayPort 1.2 (4K @ 60Hz) |
| Audio | Realtek® Audio CODEC | High Definition | 7.1-channel | S/PDIF Out |
| Thermal Solution | Fully Covered MOSFET Heatsinks | M.2 Thermal Guard | Smart Fan 6 |
| DIY Features | M.2 EZ-Latch Plus | PCIe EZ-Latch | Q-Flash Plus Button | Multi-Key |
| Form Factor | ATX (30.5cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA 1700 Socket: 14th, 13th & 12th Gen Intel® Core™ Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4x DDR5 DIMM (Up to 7600MHz OC / 192GB Max) | Dual Channel | XMP 3.0 |
| Power Design | Twin 16+2+1 Phases Digital VRM with 60A DrMOS |
| Expansion Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 1x PCIe 3.0 x4 |
| Storage | 4x M.2 PCIe 4.0 x4 Connectors | 6x SATA 6Gb/s | RAID 0, 1, 5, 10 |
| Wireless & Networking | Intel® Wi-Fi 6E AX211 | Bluetooth 5.3 | 2.5GbE LAN |
| Rear USB Ports | 1x USB-C 3.2 Gen 2x2 (20Gbps) | 2x USB 3.2 Gen 2 (Red) | 3x USB 3.2 Gen 1 | 4x USB 2.0 |
| Internal USB | 1x Front USB-C 3.2 Gen 2 (10Gbps) | 1x USB 3.2 Gen 1 Header | 2x USB 2.0 Headers |
| Display Output | 1x HDMI 2.0 (4K @ 60Hz) | 1x DisplayPort 1.2 (4K @ 60Hz) |
| Audio | Realtek® Audio CODEC | High Definition | 7.1-channel | S/PDIF Out |
| Thermal Solution | Fully Covered MOSFET Heatsinks | M.2 Thermal Guard | Smart Fan 6 |
| DIY Features | M.2 EZ-Latch Plus | PCIe EZ-Latch | Q-Flash Plus Button | Multi-Key |
| Form Factor | ATX (30.5cm x 24.4cm) |
