$229.03

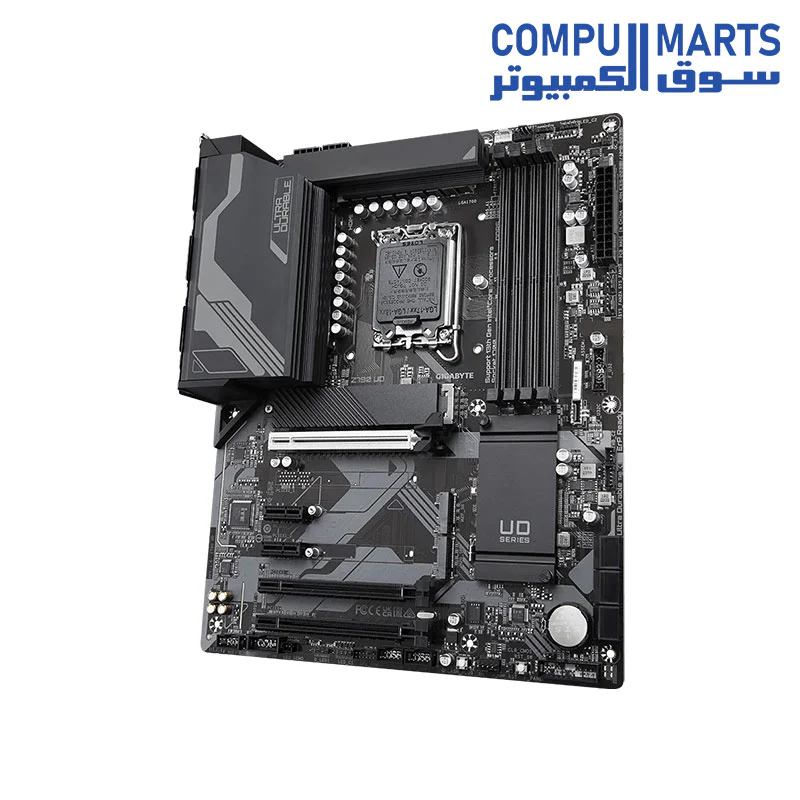

GIGABYTE Z790 UD DDR5 LGA 1700 Motherboard—
$229.03
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 Socket: 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold & Celeron® |
| Chipset | Intel® Z790 Express |
| Memory | 4x DDR5 DIMM (Up to 192GB), Supports up to 7600(O.C.), XMP 3.0 |
| VRM Design | Twin 16*+1+1 Phases Digital VRM Solution |
| Expansion Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 1x PCIe 3.0 x1 | 2x PCIe 3.0 x1 |
| Storage Interface | 3x M.2 PCIe 4.0 x4/x2 | 6x SATA 6Gb/s (RAID 0, 1, 5, 10 supported) |
| Rear USB | 1x USB-C 3.2 Gen 2x2 | 1x USB 3.2 Gen 2 | 4x USB 3.2 Gen 1 | 4x USB 2.0 |
| Front USB | 1x USB-C 3.2 Gen 1 | 1x USB 3.2 Gen 1 Header | 2x USB 2.0 Headers |
| Networking | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek® Audio CODEC, High Definition 7.1-channel, S/PDIF Out |
| Display Outputs | 1x HDMI 2.0 (4K@60Hz) | 1x DisplayPort 1.2 (4K@60Hz) |
| Cooling & Features | Smart Fan 6, Q-Flash Plus, PCIe EZ-Latch, M.2 Thermal Guard |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 Socket: 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold & Celeron® |
| Chipset | Intel® Z790 Express |
| Memory | 4x DDR5 DIMM (Up to 192GB), Supports up to 7600(O.C.), XMP 3.0 |
| VRM Design | Twin 16*+1+1 Phases Digital VRM Solution |
| Expansion Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 1x PCIe 3.0 x1 | 2x PCIe 3.0 x1 |
| Storage Interface | 3x M.2 PCIe 4.0 x4/x2 | 6x SATA 6Gb/s (RAID 0, 1, 5, 10 supported) |
| Rear USB | 1x USB-C 3.2 Gen 2x2 | 1x USB 3.2 Gen 2 | 4x USB 3.2 Gen 1 | 4x USB 2.0 |
| Front USB | 1x USB-C 3.2 Gen 1 | 1x USB 3.2 Gen 1 Header | 2x USB 2.0 Headers |
| Networking | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek® Audio CODEC, High Definition 7.1-channel, S/PDIF Out |
| Display Outputs | 1x HDMI 2.0 (4K@60Hz) | 1x DisplayPort 1.2 (4K@60Hz) |
| Cooling & Features | Smart Fan 6, Q-Flash Plus, PCIe EZ-Latch, M.2 Thermal Guard |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
