$190.86
MSI MAG B860M MORTAR WIFI – LGA1851 Micro-ATX DDR5 Motherboard, PCIe 5.0 x16, 1× M.2 Gen5 + 2× Gen4, Wi-Fi 7, 5G LAN, Thunderbolt 4—
$190.86
The Story
| Category | Specification Details |
|---|---|
| Chipset | Intel B860 |
| CPU Support | Supports Intel Core Ultra Processors (Series 2) |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 9200+ MT/s (OC) | Dual-Channel | CUDIMM & XMP 3.0 Support |
| Onboard Graphics | 1x HDMI 2.1 (8K 60Hz), 1x DisplayPort 1.4, 1x Thunderbolt 4 (DP 2.1 8K 60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset) |
| Storage | 3x M.2 slots (1x Gen5 x4, 2x Gen4 x4) | 4x SATA 6G | Supports RAID 0, 1, 5, 10 |
| Thunderbolt | 1x Rear Thunderbolt 4 (40Gbps) | Supports Daisy-chain & 15W Charging | Internal Thunderbolt 5 card connector |
| Ethernet | Intel Killer E5000 5Gbps LAN |
| Wireless & BT | Intel Killer Wi-Fi 7 BE1750x | Bluetooth 5.4 | Supports 6GHz band (320MHz) |

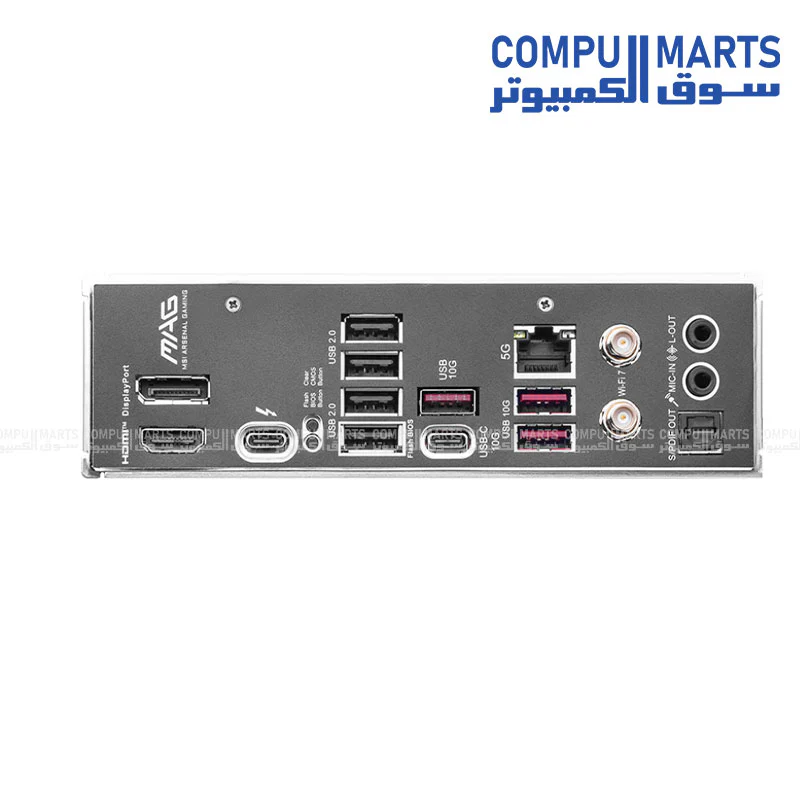

| USB Ports | Rear: 1x TB4 Type-C, 1x 10Gbps Type-C, 3x 10Gbps Type-A, 4x USB 2.0 | Front: 1x 10Gbps Type-C, 2x 5Gbps Type-A, 4x USB 2.0 |
| Audio | Realtek ALC897 Codec | 7.1-Channel HD Audio | S/PDIF Output |
| Form Factor / OS | Supports Windows 11 64-bit | Features EZ Debug & Memory Detection LEDs |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | Intel B860 |
| CPU Support | Supports Intel Core Ultra Processors (Series 2) |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 9200+ MT/s (OC) | Dual-Channel | CUDIMM & XMP 3.0 Support |
| Onboard Graphics | 1x HDMI 2.1 (8K 60Hz), 1x DisplayPort 1.4, 1x Thunderbolt 4 (DP 2.1 8K 60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset) |
| Storage | 3x M.2 slots (1x Gen5 x4, 2x Gen4 x4) | 4x SATA 6G | Supports RAID 0, 1, 5, 10 |
| Thunderbolt | 1x Rear Thunderbolt 4 (40Gbps) | Supports Daisy-chain & 15W Charging | Internal Thunderbolt 5 card connector |
| Ethernet | Intel Killer E5000 5Gbps LAN |
| Wireless & BT | Intel Killer Wi-Fi 7 BE1750x | Bluetooth 5.4 | Supports 6GHz band (320MHz) |
| USB Ports | Rear: 1x TB4 Type-C, 1x 10Gbps Type-C, 3x 10Gbps Type-A, 4x USB 2.0 | Front: 1x 10Gbps Type-C, 2x 5Gbps Type-A, 4x USB 2.0 |
| Audio | Realtek ALC897 Codec | 7.1-Channel HD Audio | S/PDIF Output |
| Form Factor / OS | Supports Windows 11 64-bit | Features EZ Debug & Memory Detection LEDs |
