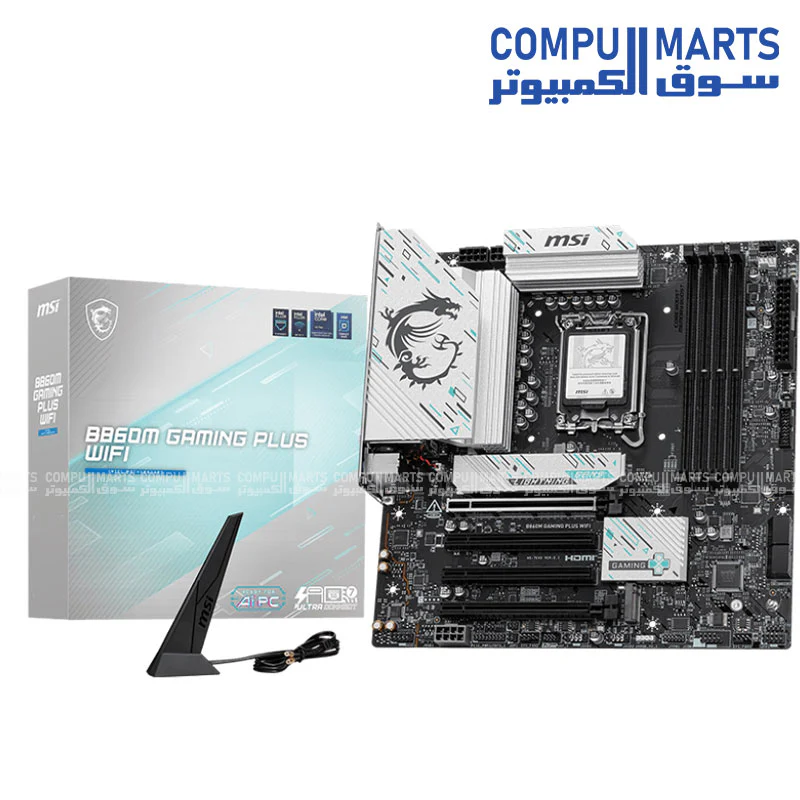

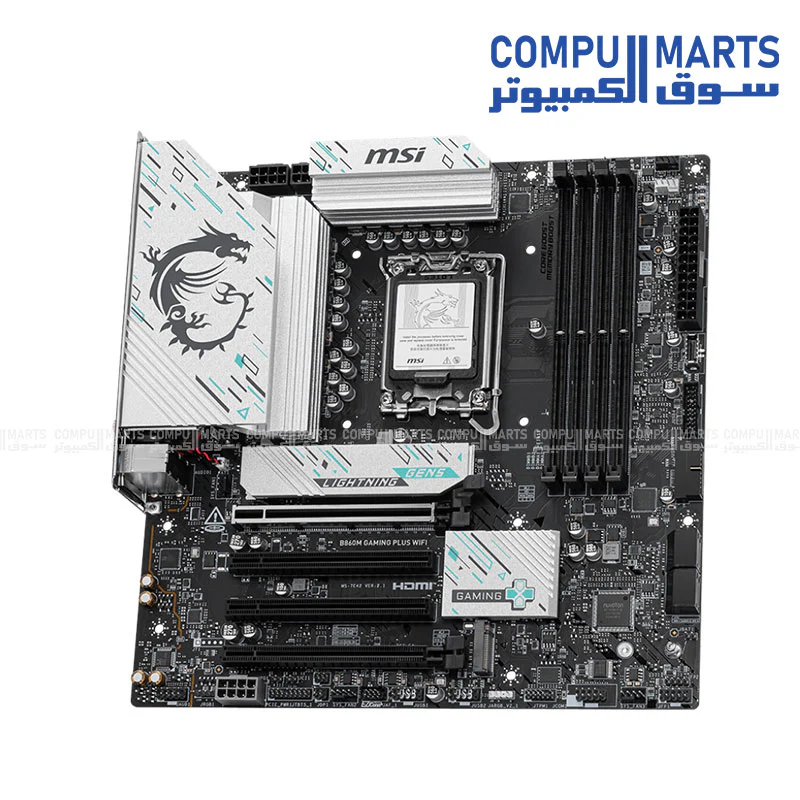

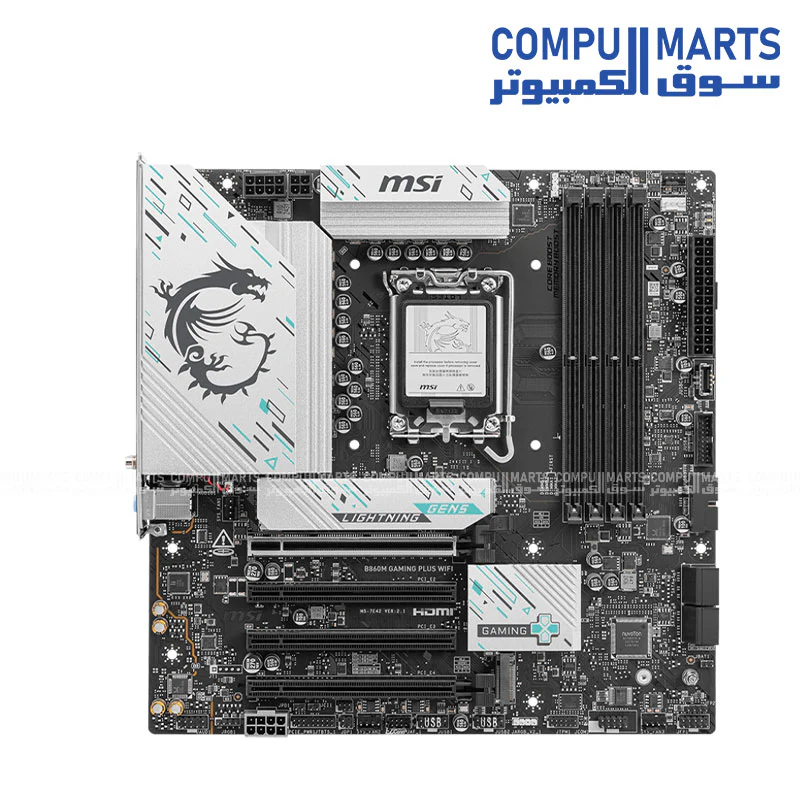

MSI B860M GAMING PLUS WIFI – LGA1851 Micro-ATX DDR5, PCIe 5.0 x16, M.2 Gen5 + Gen4, Wi-Fi 7, 5G LAN, Thunderbolt 4—
$181.32
The Story
| Category | Specification Details |
|---|---|
| CHIPSET | INTEL B860 |
| CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
| MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency: 1DPC 1R Max speed up to 8800+ MT/s, 1DPC 2R Max speed up to 7200+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM; The DIMM slots on this motherboard only have single-sided latches; Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. |
| ONBOARD GRAPHICS | 1x HDMI (Support HDMI 2.1, max 4K 60Hz); 1x DisplayPort (Support DisplayPort 1.4, max 4K 60Hz); 1x Type-C DisplayPort (Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20, max 4K@120Hz / 8K@60Hz) |
| SLOT | 4x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| AUDIO | Realtek ALC897 Codec; 7.1-Channel High Definition Audio |
| STORAGE | 3x M.2 (M.2_1 up to PCIe 5.0 x4 from CPU, M.2_2 up to PCIe 4.0 x4 from Chipset, M.2_3 up to PCIe 4.0 x2 from Chipset); 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| ONBOARD THUNDERBOLT | 1x Thunderbolt 4 ports (Rear); Supports up to 40Gbps transfer rate with Thunderbolt devices; Supports up to 20Gbps with USB4; Supports up to 10Gbps with USB 3.2; Supports up to 5V/3A, 15W power charging; Daisy-chain up to three Thunderbolt 4 or five Thunderbolt 3 devices; Supports up to 8K display |
| USB | Rear: 2x USB 2.0, 2x USB 5Gbps Type A, 1x USB 5Gbps Type C, 1x USB 10Gbps Type A; Front: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 10Gbps Type C |
| LAN | Intel Killer E5000 5Gbps LAN |
| INTERNAL IO | 1x Thunderbolt 5 card connector (JTBT5); 1x ATX_PWR; 2x CPU_PWR; 1x PCIE_PWR 8pin; 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 3x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector (JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector (JRGB); 1x TPM pin header; 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel Killer BE1750x Wi-Fi 7; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps; Supports 802.11 a/b/g/n/ac/ax/be; Supports Bluetooth 5.4, MLO, 4KQAM |
| LED FEATURE | 4x EZ Debug LED |

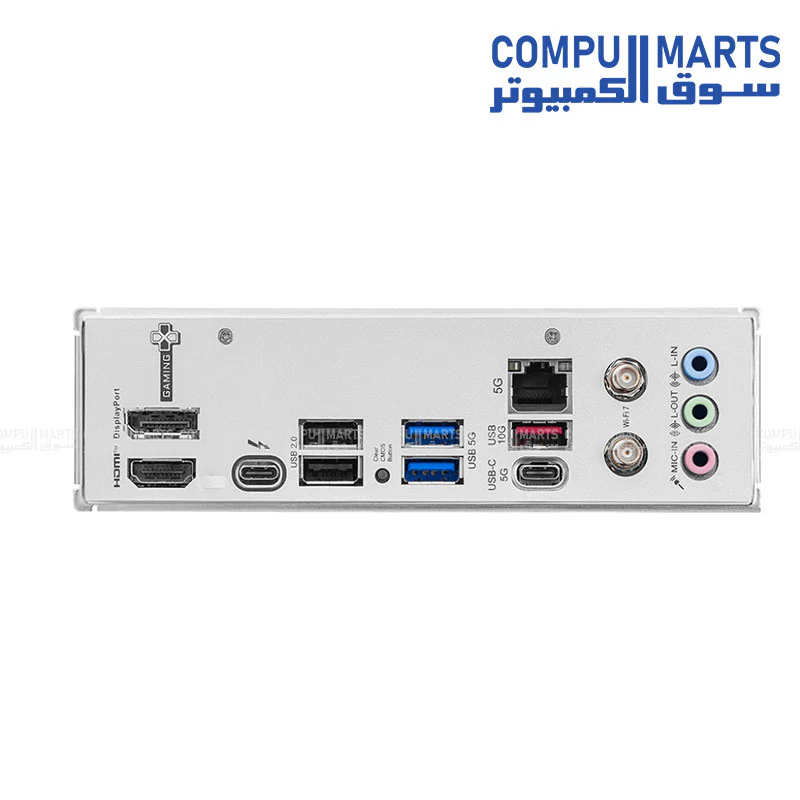

| BACK PANEL PORTS | Display Port, Clear CMOS Button, 5G LAN, Wi-Fi / Bluetooth, Audio Connectors, HDMI, Thunderbolt 4 40Gbps (Type-C), USB 2.0, USB 5Gbps (Type-A), USB 5Gbps (Type-C), USB 10Gbps (Type-A) |
| OPERATING SYSTEM | Support for Windows 11 64-bit |
