$85.89

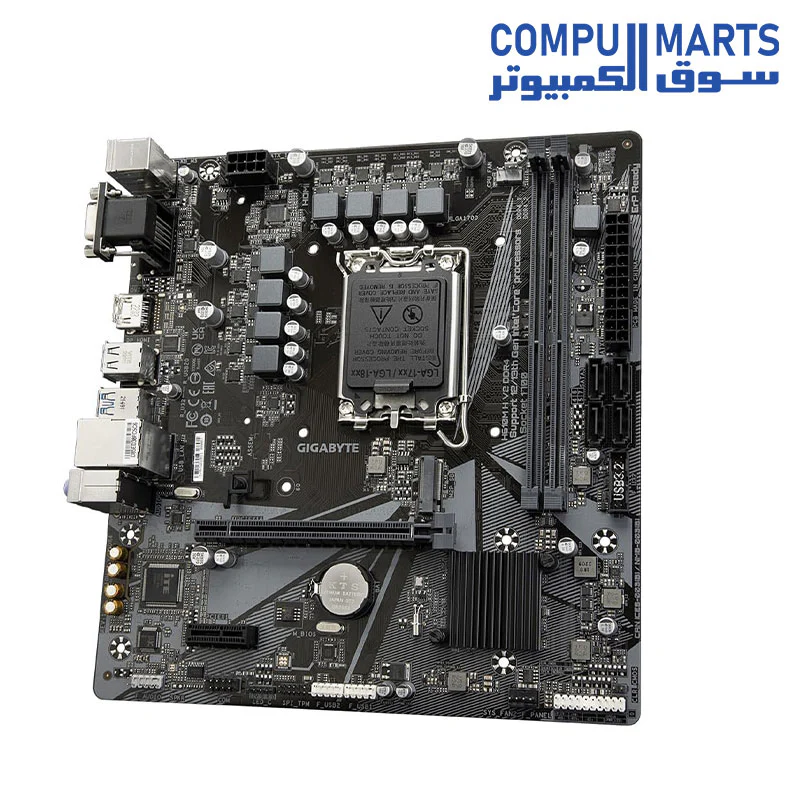

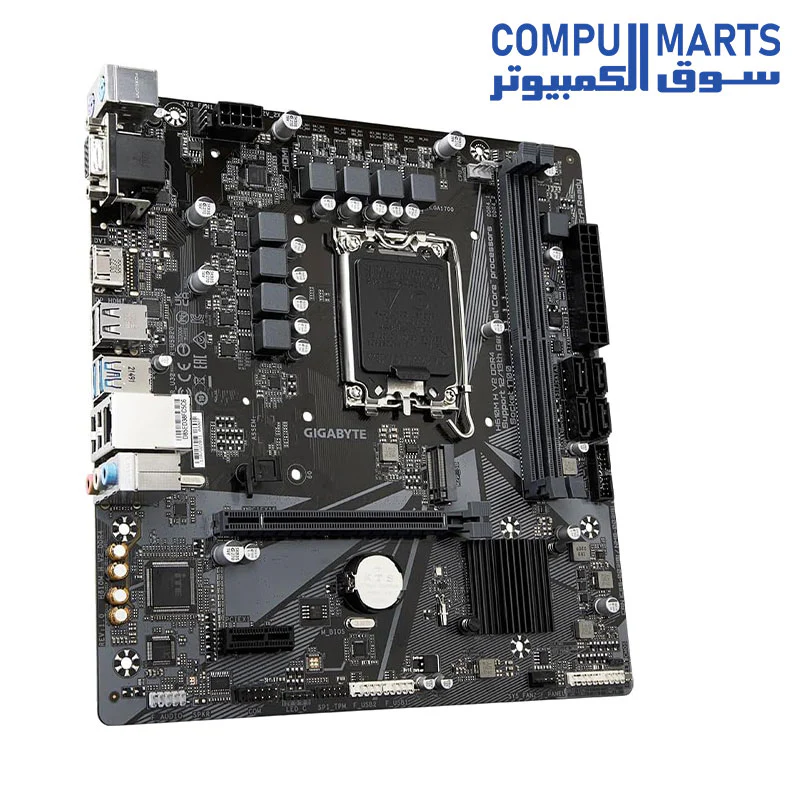

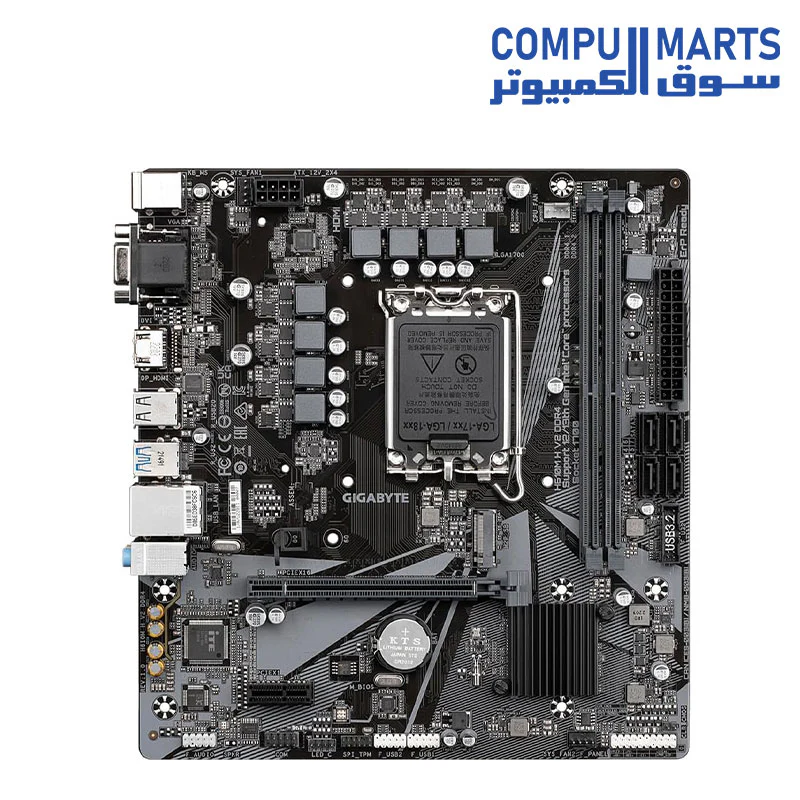

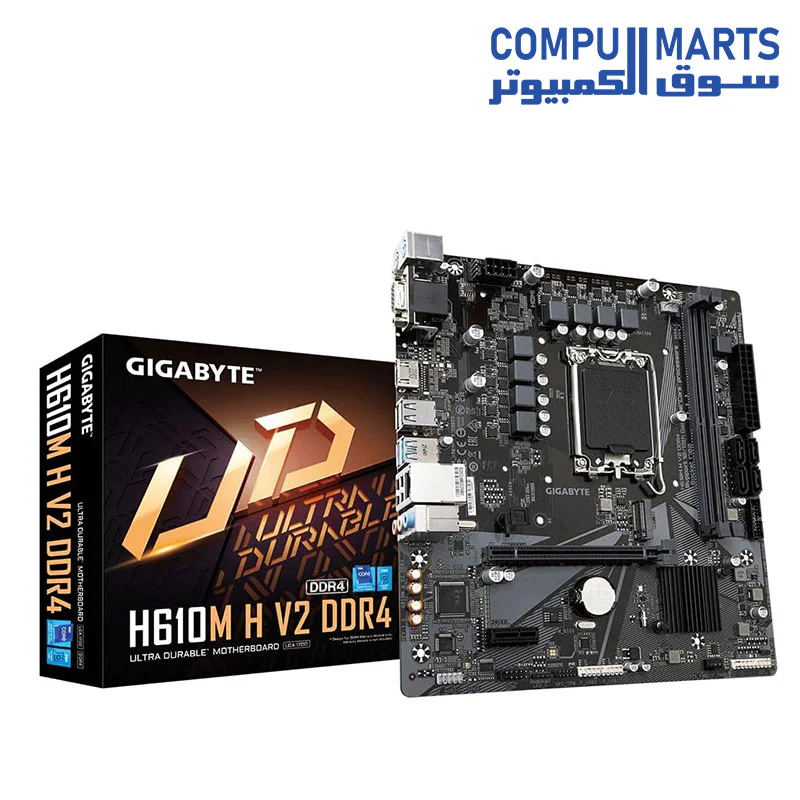

Motherboard GIGABYTE H610M H V2 DDR4 1.0 LGA 1700 mATX—
$85.89
The Story
| Category | Specification Details |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® H610 Express Chipset |
| Memory | 2 x DDR4 DIMM (Up to 64 GB); Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x D-Sub (1920x1200 @60 Hz); 1 x HDMI 2.1 (4096x2160 @60 Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU); 1 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 1 x M.2 connector (PCIe 3.0 x4/x2); 4 x SATA 6Gb/s |
| USB | 4 x USB 3.2 Gen 1 (2 Rear, 2 Internal); 8 x USB 2.0/1.1 (4 Rear, 4 Internal) |
| Internal I/O | 24-pin/8-pin Power, CPU/System Fan headers, RGB LED strip header, TPM header, Serial port header |
| Back Panel Connectors | PS/2 Keyboard/Mouse, D-Sub, HDMI, 2x USB 3.2 Gen 1, 4x USB 2.0, RJ-45, 3x Audio jacks |
| H/W Monitoring | Voltage, Temperature, Fan speed detection, Water cooling flow rate, Fan fail warning/control |
| BIOS | 128 Mbit flash; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, ACPI 5.0 |
| Unique Features | APP Center, Ambient LED, EasyTune, Smart Backup, Q-Flash, Xpress Install |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® H610 Express Chipset |
| Memory | 2 x DDR4 DIMM (Up to 64 GB); Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x D-Sub (1920x1200 @60 Hz); 1 x HDMI 2.1 (4096x2160 @60 Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU); 1 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 1 x M.2 connector (PCIe 3.0 x4/x2); 4 x SATA 6Gb/s |
| USB | 4 x USB 3.2 Gen 1 (2 Rear, 2 Internal); 8 x USB 2.0/1.1 (4 Rear, 4 Internal) |
| Internal I/O | 24-pin/8-pin Power, CPU/System Fan headers, RGB LED strip header, TPM header, Serial port header |
| Back Panel Connectors | PS/2 Keyboard/Mouse, D-Sub, HDMI, 2x USB 3.2 Gen 1, 4x USB 2.0, RJ-45, 3x Audio jacks |
| H/W Monitoring | Voltage, Temperature, Fan speed detection, Water cooling flow rate, Fan fail warning/control |
| BIOS | 128 Mbit flash; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, ACPI 5.0 |
| Unique Features | APP Center, Ambient LED, EasyTune, Smart Backup, Q-Flash, Xpress Install |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
