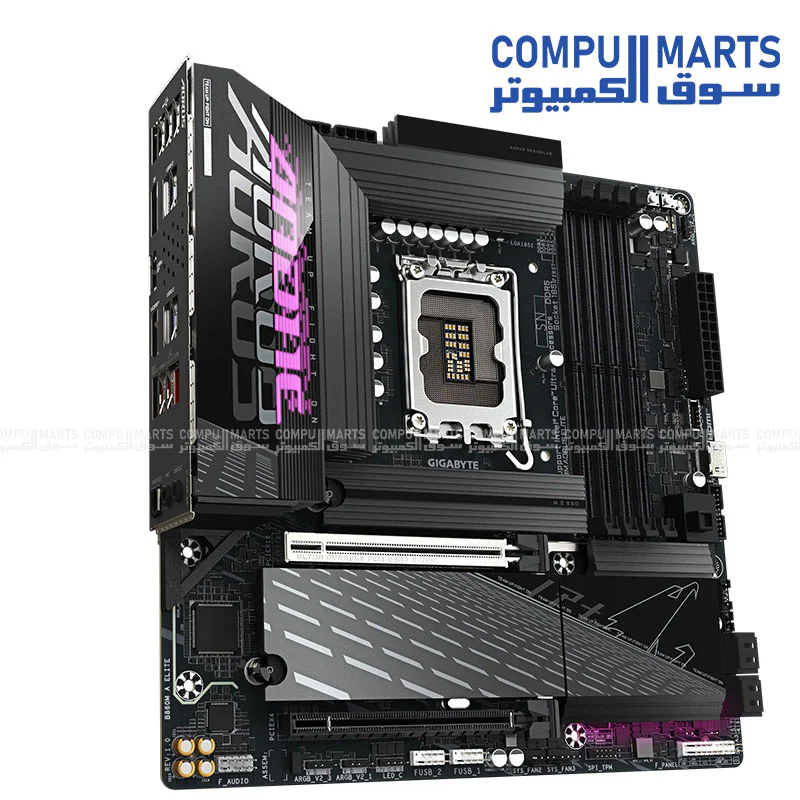

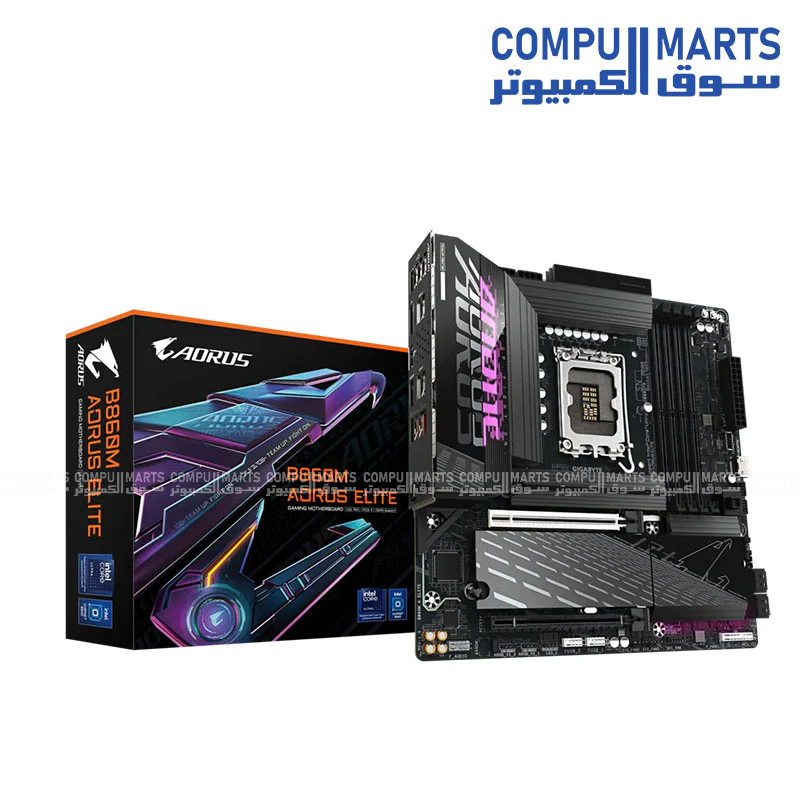

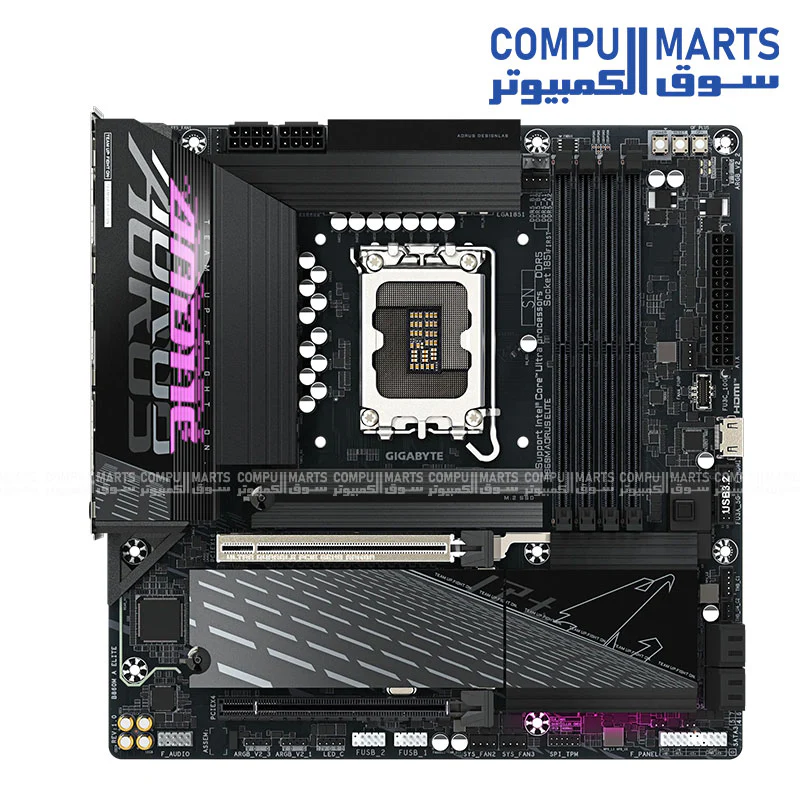

-70%Gigabyte B860M AORUS ELITE Motherboard – Intel LGA1851, DDR5, PCIe 5.0, 2.5GbE LAN—
$179.41
$53.82The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Supports up to DDR5 9200(O.C.); XMP & CUDIMM support |
| Onboard Graphics | 1 x USB4® Type-C (DP 2.1), 1 x DisplayPort 2.1, 1 x HDMI 2.1, 1 x Internal HDMI (1080p) |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel High Definition Audio; S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 running at x4 (Chipset) |
| Storage Interface | 1 x M.2 PCIe 5.0 x4; 2 x M.2 PCIe 4.0 x4; 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) |

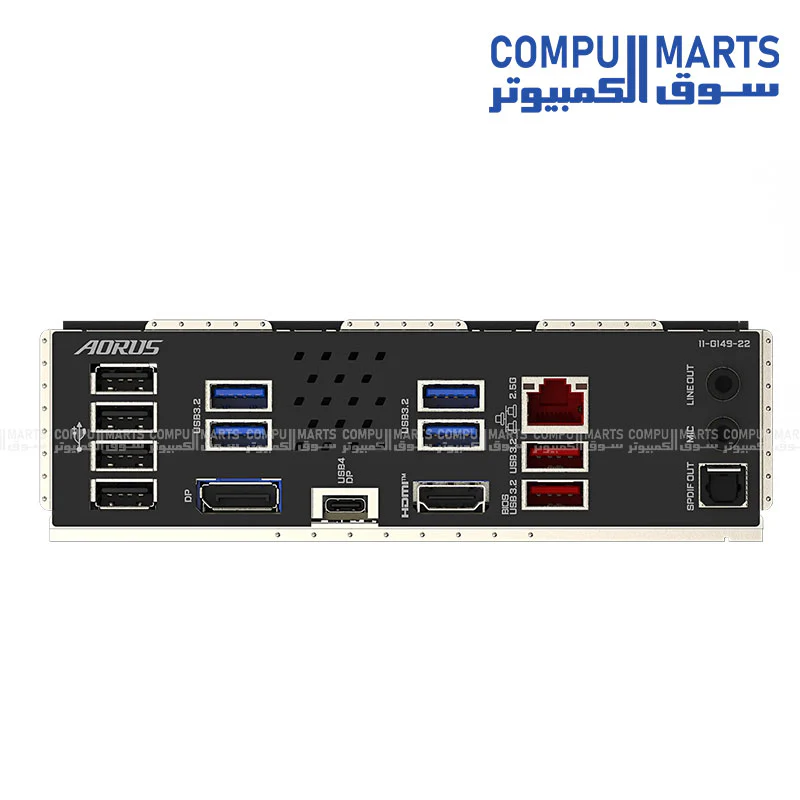

| USB (Rear) | 1 x USB4® Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB Type-C® (Gen 2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 headers |
| Internal I/O | 3 x ARGB Gen2, 1 x RGB LED, 2 x Thunderbolt™ headers, Q-Flash Plus button, Power/Reset buttons |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Supports up to DDR5 9200(O.C.); XMP & CUDIMM support |
| Onboard Graphics | 1 x USB4® Type-C (DP 2.1), 1 x DisplayPort 2.1, 1 x HDMI 2.1, 1 x Internal HDMI (1080p) |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel High Definition Audio; S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 running at x4 (Chipset) |
| Storage Interface | 1 x M.2 PCIe 5.0 x4; 2 x M.2 PCIe 4.0 x4; 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) |
| USB (Rear) | 1 x USB4® Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB Type-C® (Gen 2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 headers |
| Internal I/O | 3 x ARGB Gen2, 1 x RGB LED, 2 x Thunderbolt™ headers, Q-Flash Plus button, Power/Reset buttons |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
