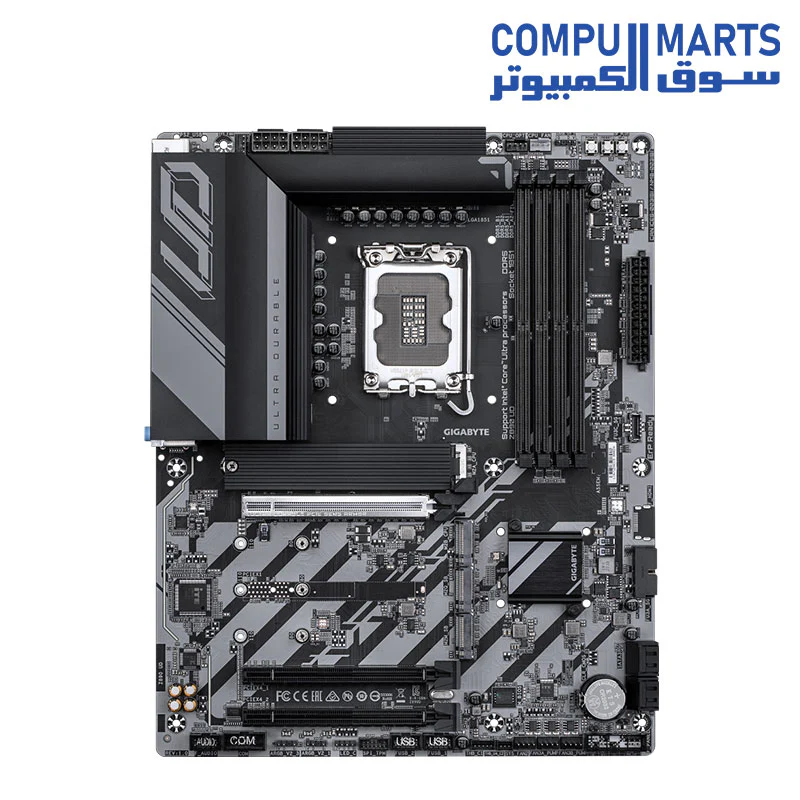

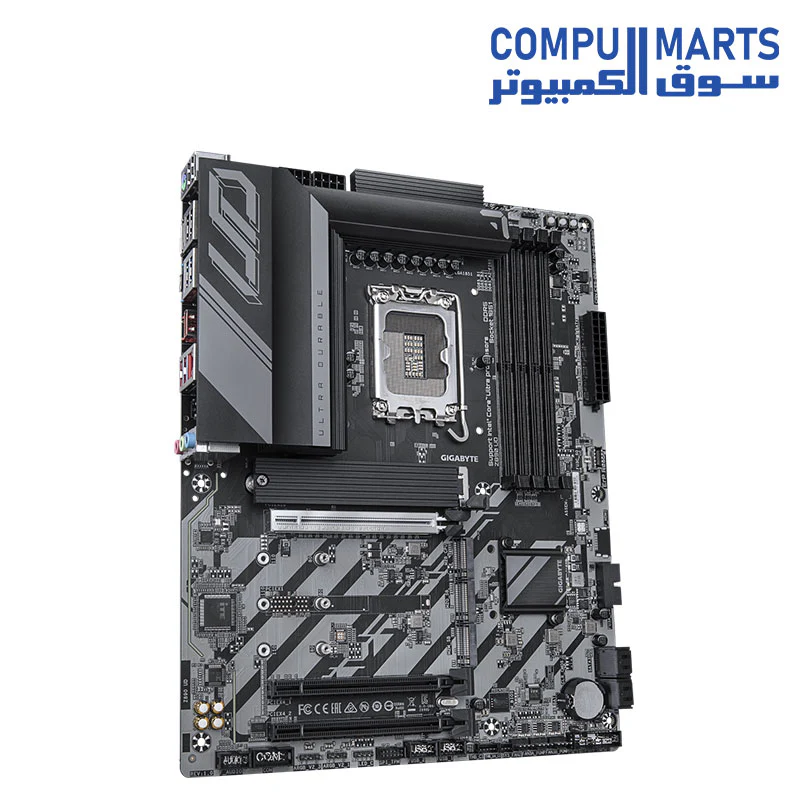

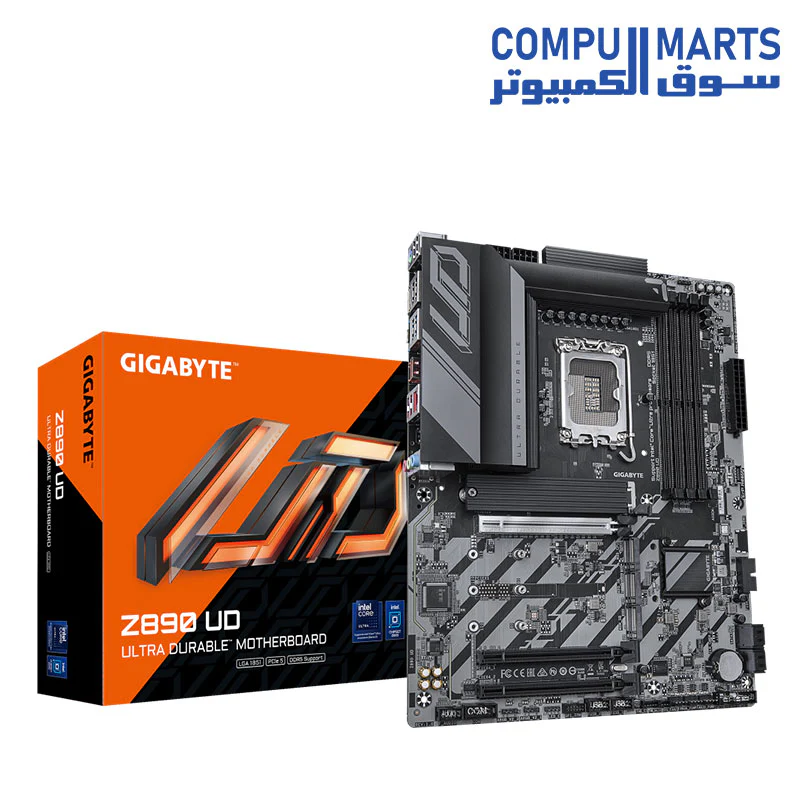

GIGABYTE Z890 UD 4xDDR5 LGA1851 ATX Motherboard—
$206.13
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (up to 256 GB); Support for up to DDR5 9200(O.C); Dual channel; XMP & CUDIMM support |
| Onboard Graphics | 1 x USB4® Type-C (DP 2.1, 4K@144Hz); 1 x DisplayPort (4K@144Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x16 (running at x4) (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4); 3 x M.2 (PCIe 4.0 x4); 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB Ports | 1 x USB4® Type-C; 1 x USB 3.2 Gen 2 Type-A; 7 x USB 3.2 Gen 1; 8 x USB 2.0/1.1 |
| Internal I/O | 2 x 8-pin ATX 12V; 1 x USB Type-C header; 2 x Thunderbolt™ add-in card connectors; Q-Flash Plus & Power/Reset buttons |

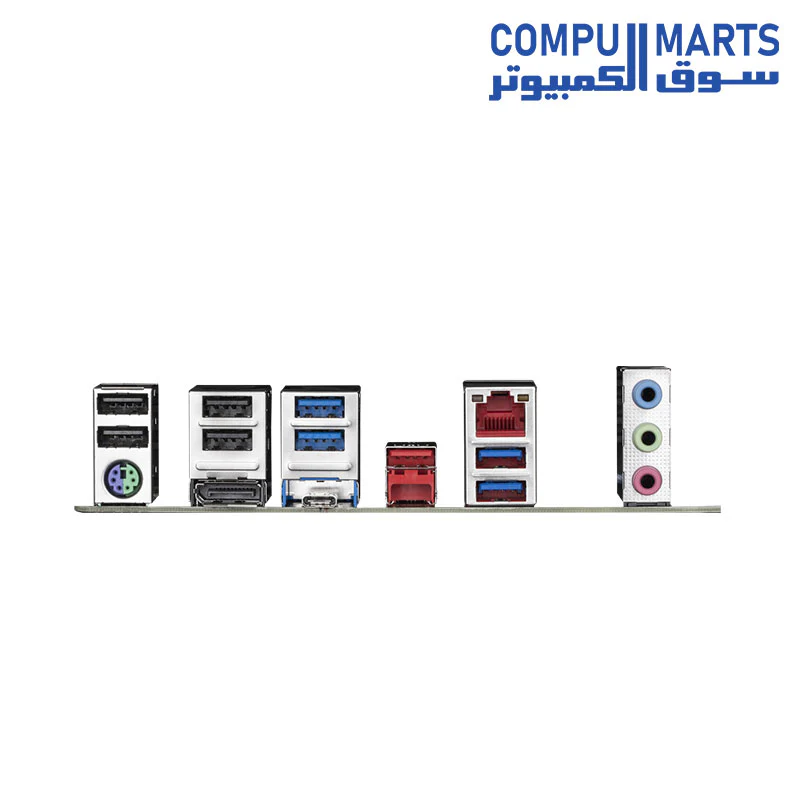

| Back Panel I/O | USB4® Type-C, DP, RJ-45, 3 x Audio Jacks, PS/2 Keyboard/Mouse port |
| Hardware Monitoring | Voltage, Temperature, Fan/Water cooling flow rate detection; Fan fail warning & speed control |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (up to 256 GB); Support for up to DDR5 9200(O.C); Dual channel; XMP & CUDIMM support |
| Onboard Graphics | 1 x USB4® Type-C (DP 2.1, 4K@144Hz); 1 x DisplayPort (4K@144Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x16 (running at x4) (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4); 3 x M.2 (PCIe 4.0 x4); 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB Ports | 1 x USB4® Type-C; 1 x USB 3.2 Gen 2 Type-A; 7 x USB 3.2 Gen 1; 8 x USB 2.0/1.1 |
| Internal I/O | 2 x 8-pin ATX 12V; 1 x USB Type-C header; 2 x Thunderbolt™ add-in card connectors; Q-Flash Plus & Power/Reset buttons |
| Back Panel I/O | USB4® Type-C, DP, RJ-45, 3 x Audio Jacks, PS/2 Keyboard/Mouse port |
| Hardware Monitoring | Voltage, Temperature, Fan/Water cooling flow rate detection; Fan fail warning & speed control |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11 64-bit |
