GIGABYTE Z890 AORUS PRO ICE WIFI7 DDR5 LGA1851 Motherboard
HomeStore

GIGABYTE Z890 AORUS PRO ICE WIFI7 DDR5 LGA1851 Motherboard

GIGABYTE Z890 AORUS PRO ICE WIFI7 DDR5 LGA1851 Motherboard

$117.38

Original: $391.26

-70%
GIGABYTE Z890 AORUS PRO ICE WIFI7 DDR5 LGA1851 Motherboard—

$391.26

$117.38

The Story

Category Specification Details
CPU Support LGA 1851 socket: Support for Intel Core Ultra Processors; L3 cache varies with CPU
Chipset Intel Z890 Express Chipset
Memory 4 x DDR5 DIMM (Up to 256 GB); Support up to DDR5 9500(O.C); Dual channel; XMP & CUDIMM support
Onboard Graphics 2 x Intel Thunderbolt 4 (DisplayPort/Thunderbolt video); 1 x Front HDMI port (1080p@30Hz); Triple-display support
Audio Realtek ALC1220 CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Intel Wi-Fi 7 BE200; 2.4/5/6 GHz; Bluetooth 5.4; 320MHz wireless standard support
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset); 1 x PCIe 4.0 x1 (Chipset)
Storage 1 x M.2 PCIe 5.0 x4; 4 x M.2 PCIe 4.0 x4; 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support
USB 2 x Thunderbolt 4 (Back); 1 x USB Type-C 3.2 Gen 2x2 (Front header); 2 x USB 3.2 Gen 2 (Back); 6 x USB 3.2 Gen 1
Back Panel I/O 2 x Thunderbolt 4; 2 x USB 3.2 Gen 2; 4 x USB 3.2 Gen 1; 4 x USB 2.0; 2 x Antenna connectors; 1 x RJ-45; Audio jacks
Internal I/O Q-Flash Plus button; Power/Reset buttons; 3 x Addressable RGB headers; Noise & Temp sensor headers

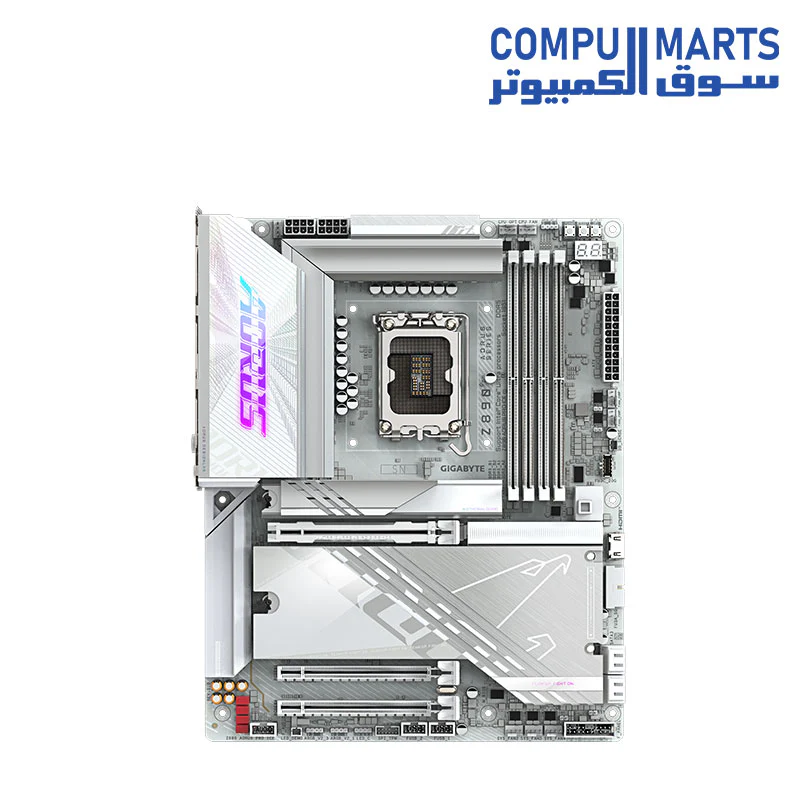

GIGABYTE Z890 AORUS PRO ICE WIFI7 DDR5 LGA1851 Motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

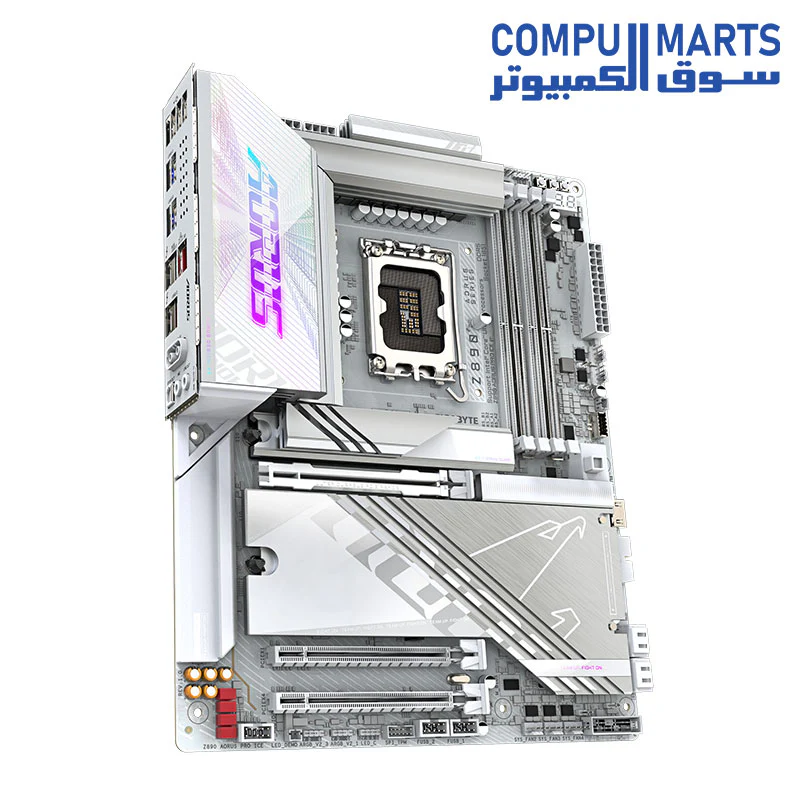

GIGABYTE Z890 AORUS PRO ICE WIFI7 DDR5 LGA1851 Motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

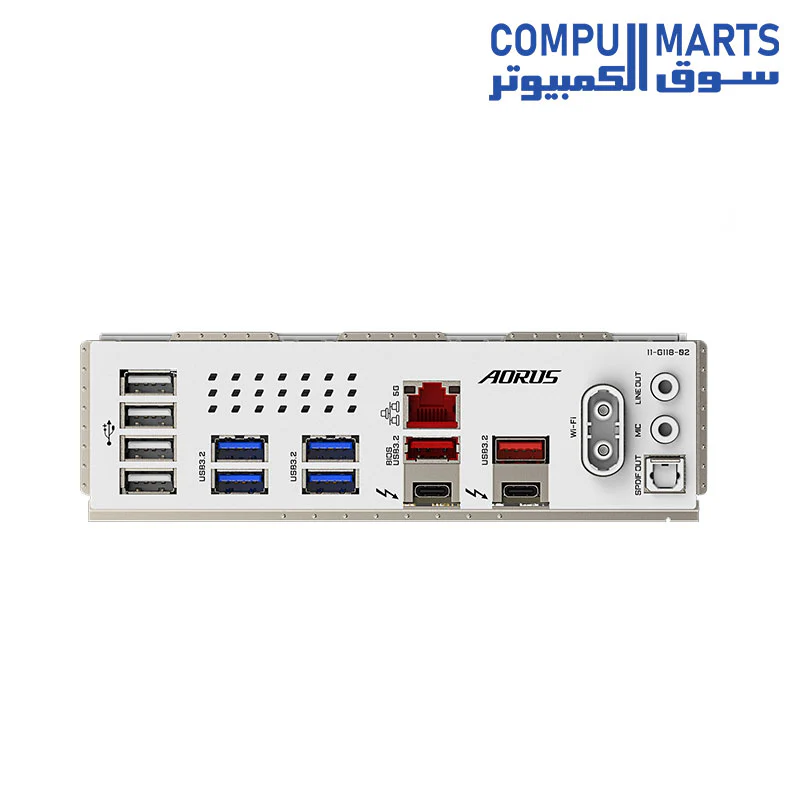

GIGABYTE Z890 AORUS PRO ICE WIFI7 DDR5 LGA1851 Motherboard - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU Support LGA 1851 socket: Support for Intel Core Ultra Processors; L3 cache varies with CPU
Chipset Intel Z890 Express Chipset
Memory 4 x DDR5 DIMM (Up to 256 GB); Support up to DDR5 9500(O.C); Dual channel; XMP & CUDIMM support
Onboard Graphics 2 x Intel Thunderbolt 4 (DisplayPort/Thunderbolt video); 1 x Front HDMI port (1080p@30Hz); Triple-display support
Audio Realtek ALC1220 CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Intel Wi-Fi 7 BE200; 2.4/5/6 GHz; Bluetooth 5.4; 320MHz wireless standard support
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset); 1 x PCIe 4.0 x1 (Chipset)
Storage 1 x M.2 PCIe 5.0 x4; 4 x M.2 PCIe 4.0 x4; 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support
USB 2 x Thunderbolt 4 (Back); 1 x USB Type-C 3.2 Gen 2x2 (Front header); 2 x USB 3.2 Gen 2 (Back); 6 x USB 3.2 Gen 1
Back Panel I/O 2 x Thunderbolt 4; 2 x USB 3.2 Gen 2; 4 x USB 3.2 Gen 1; 4 x USB 2.0; 2 x Antenna connectors; 1 x RJ-45; Audio jacks
Internal I/O Q-Flash Plus button; Power/Reset buttons; 3 x Addressable RGB headers; Noise & Temp sensor headers
