$87.03
Original: $290.11

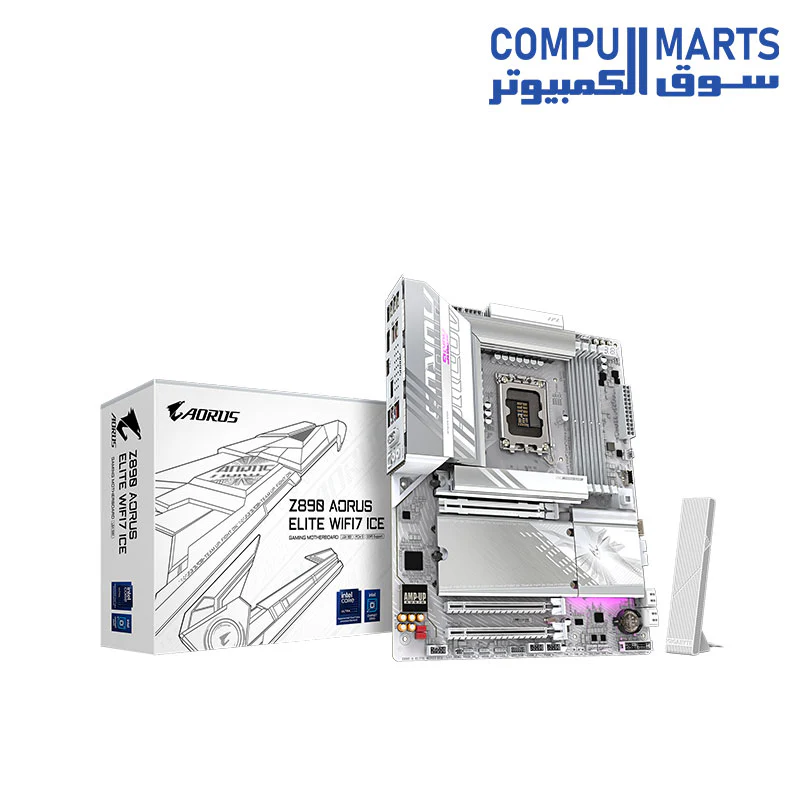

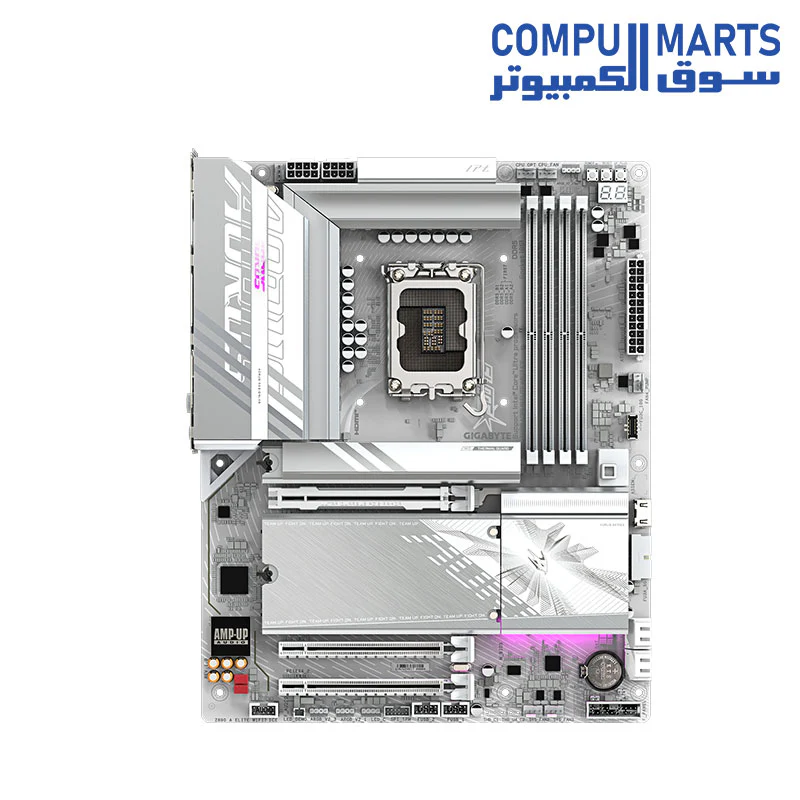

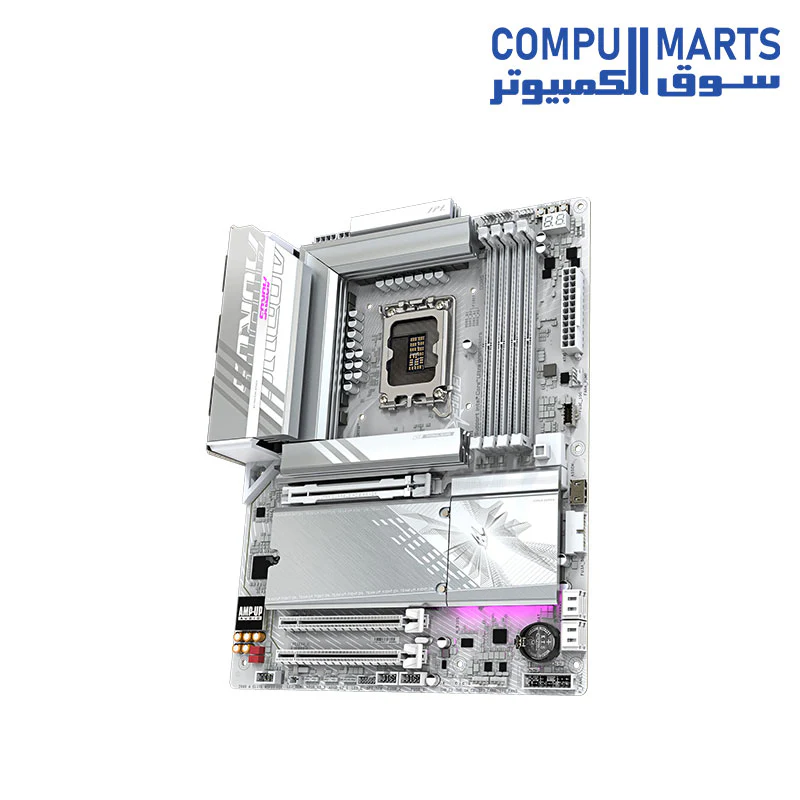

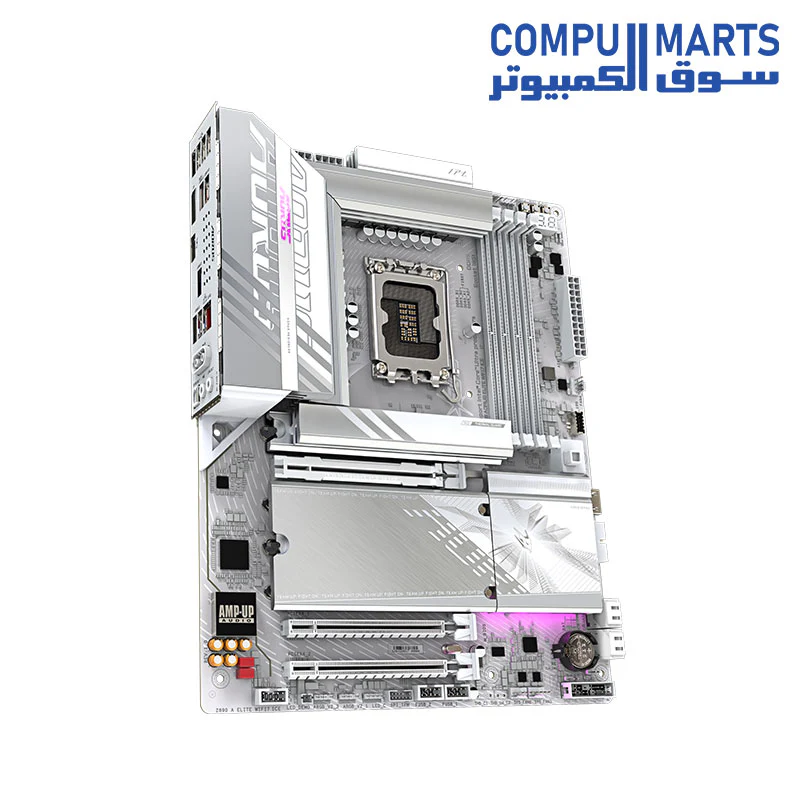

-70%GIGABYTE Z890 AORUS ELITE WIFI7 ICE DDR5 LGA1851 Motherboard—
$290.11
$87.03The Story
| Category | Specification Details |
|---|---|
| CPU Socket | LGA1851 - Supports Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory Support | DDR5 Up to 9200(O.C) MT/s | 4x DIMM slots (Max 256GB) | Dual Channel | XMP & CUDIMM Support |
| Graphics Interface | 1x HDMI (1.4) | 1x DisplayPort (2.1) | 1x Thunderbolt™ 4 (DP 2.1 support) | Triple Display support |
| Audio | Realtek® ALC1220 Codec | 2/4/5.1/7.1-channel | S/PDIF Out support |
| Network & Wireless | Realtek® 2.5GbE LAN | Wi-Fi 7 | Bluetooth 5.4 |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU) | 2x PCIe 4.0 x4 (Chipset) |
| M.2 Storage | 1x PCIe 5.0 x4/x2 | 2x PCIe 4.0 x4/x2 | 1x PCIe 4.0 x4/SATA support |
| SATA & RAID | 4x SATA 6Gb/s | RAID 0, 1, 5, 10 for NVMe/SATA |
| Rear USB Ports | 1x Thunderbolt™ 4 | 2x USB 3.2 Gen 2 | 3x USB 3.2 Gen 1 | 4x USB 2.0 |
| Front / Internal I/O | 1x USB 3.2 Gen 2 Type-C | 2x USB 3.2 Gen 1 | 4x USB 2.0 headers |
| Cooling Headers | 1x CPU Fan | 1x CPU Fan/Pump | 3x System Fan | 1x System Fan/Pump |
| RGB Lighting | 3x Addressable RGB Gen2 headers | 1x Standard RGB header |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
| OS Support | Windows 11 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Socket | LGA1851 - Supports Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory Support | DDR5 Up to 9200(O.C) MT/s | 4x DIMM slots (Max 256GB) | Dual Channel | XMP & CUDIMM Support |
| Graphics Interface | 1x HDMI (1.4) | 1x DisplayPort (2.1) | 1x Thunderbolt™ 4 (DP 2.1 support) | Triple Display support |
| Audio | Realtek® ALC1220 Codec | 2/4/5.1/7.1-channel | S/PDIF Out support |
| Network & Wireless | Realtek® 2.5GbE LAN | Wi-Fi 7 | Bluetooth 5.4 |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU) | 2x PCIe 4.0 x4 (Chipset) |
| M.2 Storage | 1x PCIe 5.0 x4/x2 | 2x PCIe 4.0 x4/x2 | 1x PCIe 4.0 x4/SATA support |
| SATA & RAID | 4x SATA 6Gb/s | RAID 0, 1, 5, 10 for NVMe/SATA |
| Rear USB Ports | 1x Thunderbolt™ 4 | 2x USB 3.2 Gen 2 | 3x USB 3.2 Gen 1 | 4x USB 2.0 |
| Front / Internal I/O | 1x USB 3.2 Gen 2 Type-C | 2x USB 3.2 Gen 1 | 4x USB 2.0 headers |
| Cooling Headers | 1x CPU Fan | 1x CPU Fan/Pump | 3x System Fan | 1x System Fan/Pump |
| RGB Lighting | 3x Addressable RGB Gen2 headers | 1x Standard RGB header |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
| OS Support | Windows 11 64-bit |
