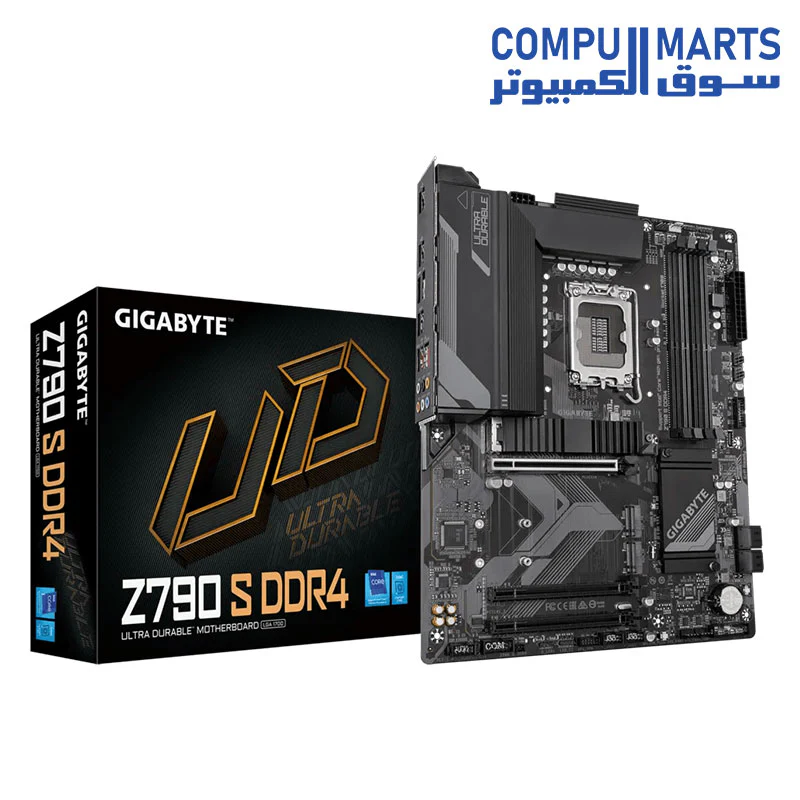

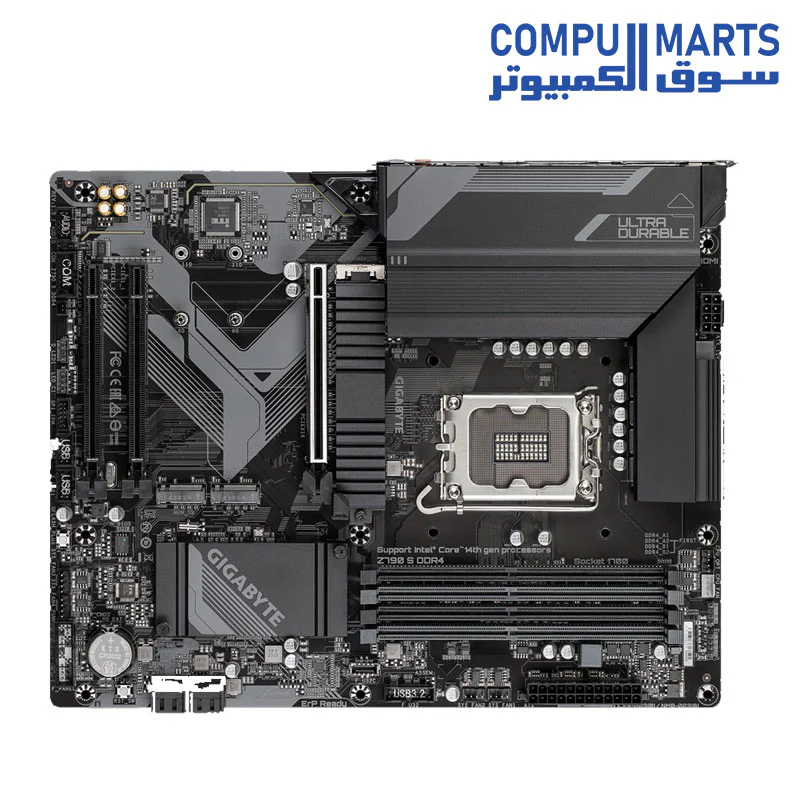

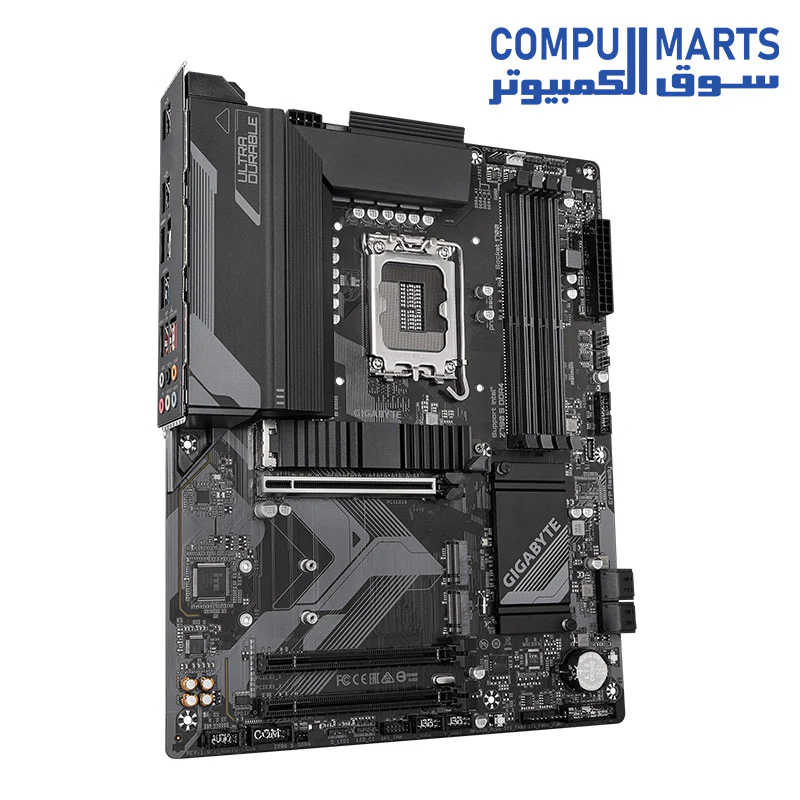

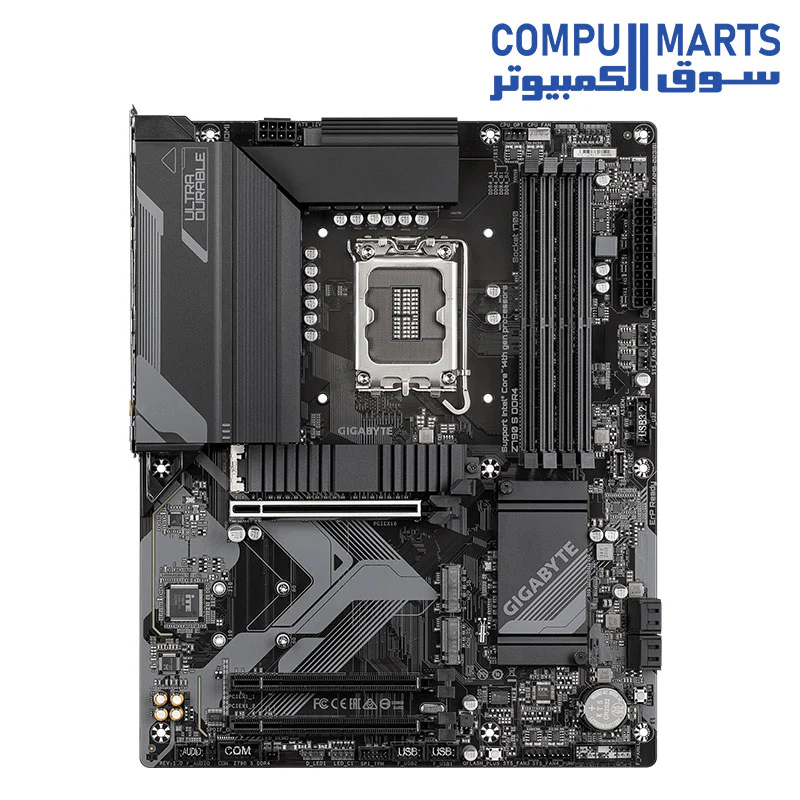

GIGABYTE Z790 S DDR4 Motherboard—
$219.49
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel Z790 Express Chipset |
| Memory | 4 x DDR4 DIMM (Up to 128 GB); Support up to DDR4 5333(O.C.); Dual Channel; XMP Support |
| Graphics | 1 x DisplayPort (4096x2304@60 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU); 2 x PCIe 3.0 x16 running at x1 (Chipset) |
| Storage | 3 x M.2 connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |

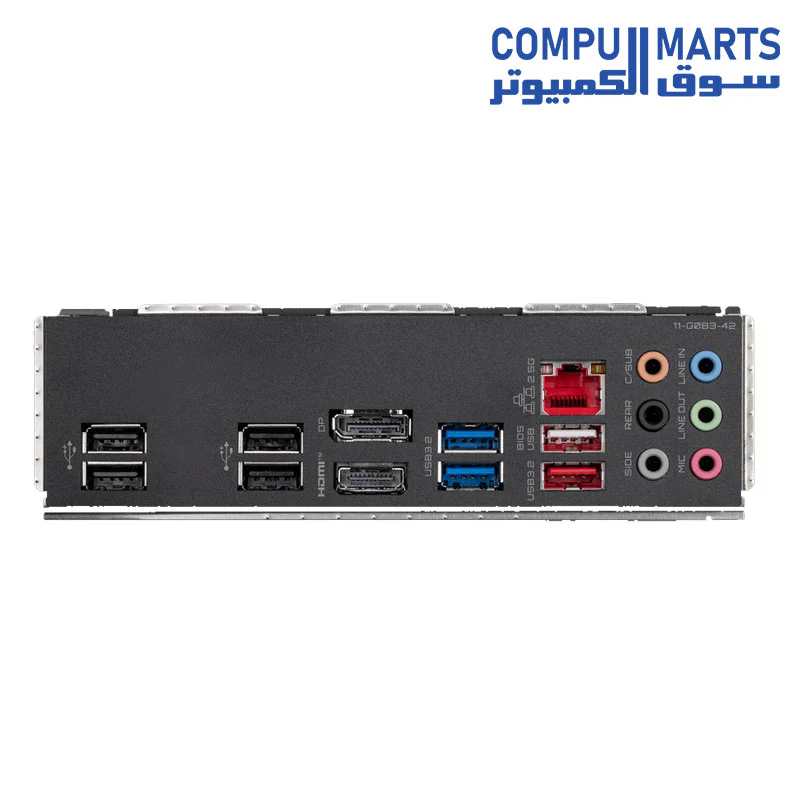

| USB (Rear) | 1 x USB 3.2 Gen 2 Type-A (Red); 2 x USB 3.2 Gen 1; 5 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB Type-C (USB 3.2 Gen 2); 1 x USB 3.2 Gen 1; 2 x USB 2.0/1.1 headers |
| Internal I/O | Q-Flash Plus button, Reset button, TPM header, Serial port header, RGB/Addressable LED headers |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel Z790 Express Chipset |
| Memory | 4 x DDR4 DIMM (Up to 128 GB); Support up to DDR4 5333(O.C.); Dual Channel; XMP Support |
| Graphics | 1 x DisplayPort (4096x2304@60 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU); 2 x PCIe 3.0 x16 running at x1 (Chipset) |
| Storage | 3 x M.2 connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB (Rear) | 1 x USB 3.2 Gen 2 Type-A (Red); 2 x USB 3.2 Gen 1; 5 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB Type-C (USB 3.2 Gen 2); 1 x USB 3.2 Gen 1; 2 x USB 2.0/1.1 headers |
| Internal I/O | Q-Flash Plus button, Reset button, TPM header, Serial port header, RGB/Addressable LED headers |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
