GIGABYTE Z790 EAGLE AX Motherboard – Intel LGA1700 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – Supports Intel 14th / 13th / 12th Gen
HomeStore

GIGABYTE Z790 EAGLE AX Motherboard – Intel LGA1700 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – Supports Intel 14th / 13th / 12th Gen

GIGABYTE Z790 EAGLE AX Motherboard – Intel LGA1700 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – Supports Intel 14th / 13th / 12th Gen

$204.22
GIGABYTE Z790 EAGLE AX Motherboard – Intel LGA1700 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – Supports Intel 14th / 13th / 12th Gen—
$204.22

The Story

Category Specification Details
CPU Support LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.
Chipset Intel® Z790 Express Chipset
Memory 4 x DDR5 DIMM (Up to 192 GB). Supports up to 7600(O.C.) MT/s with 14th/13th Gen CPUs. Dual channel architecture & XMP support.
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60 Hz), 1 x DisplayPort (4096x2304@60 Hz). HDCP 2.3 support.
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & BT Wi-Fi 6E (802.11ax) 2.4/5/6 GHz & Bluetooth 5.3 (Intel AX211 or Realtek RTL8852CE).
Expansion Slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x1.
Storage 3 x M.2 Socket 3 (PCIe 4.0 x4/x2 support), 4 x SATA 6Gb/s. RAID 0, 1, 5, 10 support.
USB 1 x USB-C® 3.2 Gen 2 (Back), 1 x USB-C® 3.2 Gen 1 (Internal), 1 x USB 3.2 Gen 2 (Red), 6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1.
Internal I/O 2 x 8-pin ATX 12V power, Q-Flash Plus button, Reset button, 2 x Thunderbolt™ add-in card connectors, RGB headers.

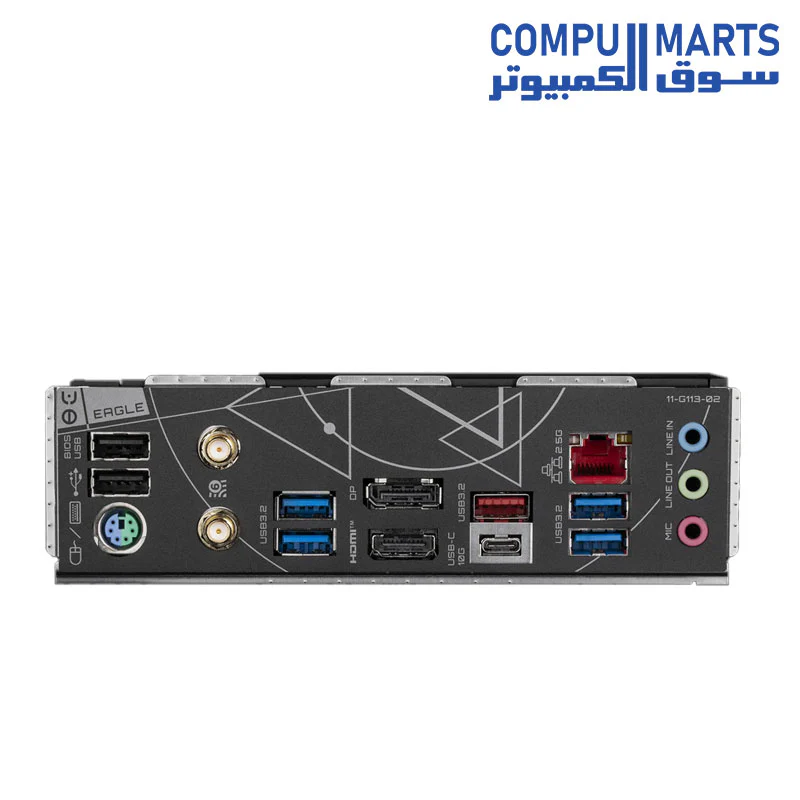

Back Panel PS/2, USB-C, HDMI, DP, RJ-45, 2 x SMA antenna (1T1R), 3 x Audio jacks.
BIOS 256 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, ACPI 5.0.
Form Factor ATX Form Factor (30.5cm x 24.4cm)

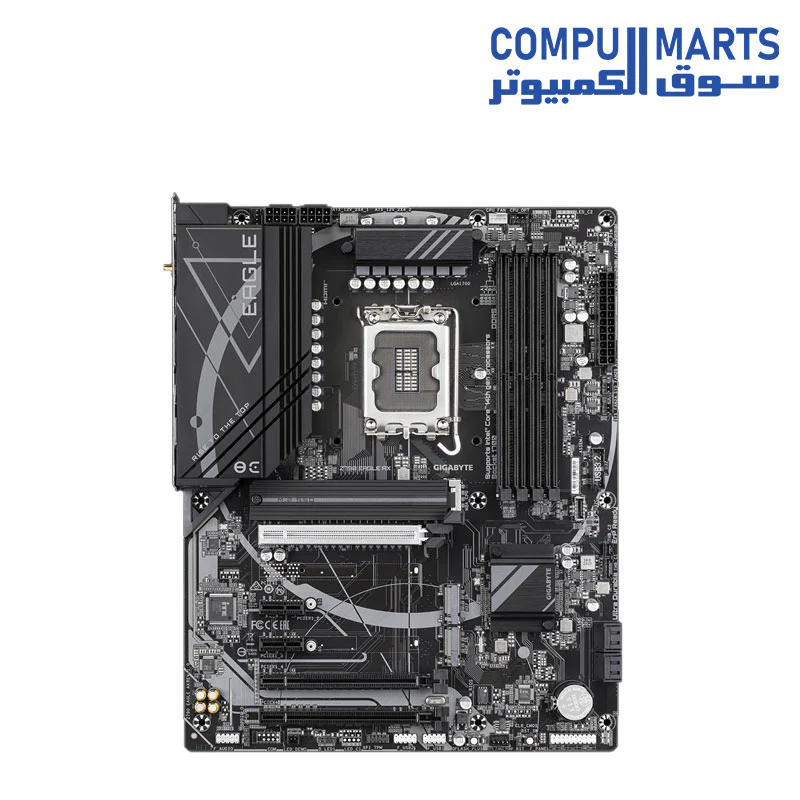

GIGABYTE Z790 EAGLE AX Motherboard – Intel LGA1700 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – Supports Intel 14th / 13th / 12th Gen - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

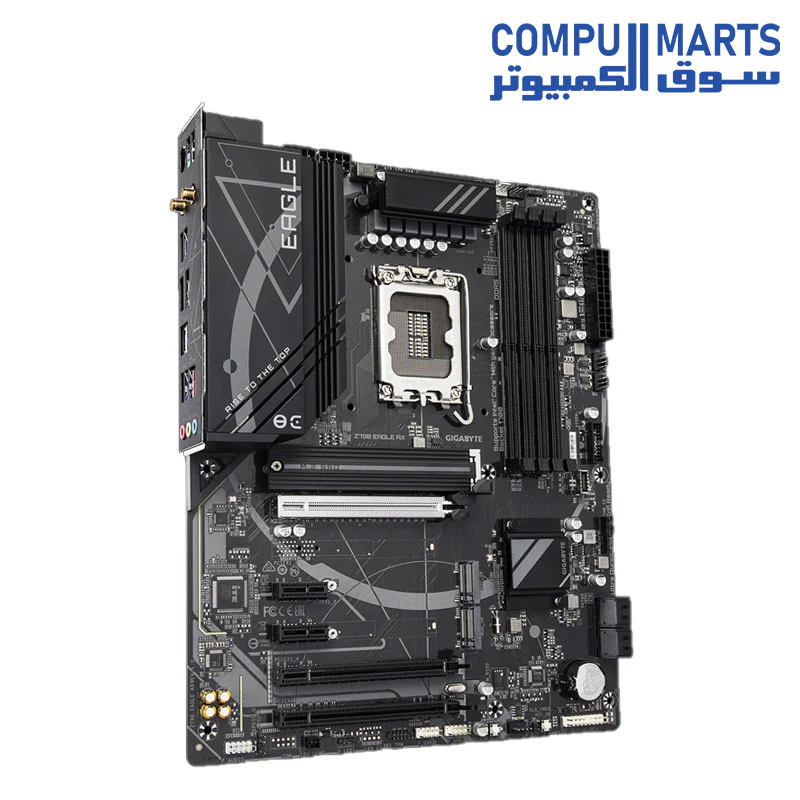

GIGABYTE Z790 EAGLE AX Motherboard – Intel LGA1700 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – Supports Intel 14th / 13th / 12th Gen - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

GIGABYTE Z790 EAGLE AX Motherboard – Intel LGA1700 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi – USB 3.2 – Supports Intel 14th / 13th / 12th Gen - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU Support LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.
Chipset Intel® Z790 Express Chipset
Memory 4 x DDR5 DIMM (Up to 192 GB). Supports up to 7600(O.C.) MT/s with 14th/13th Gen CPUs. Dual channel architecture & XMP support.
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60 Hz), 1 x DisplayPort (4096x2304@60 Hz). HDCP 2.3 support.
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & BT Wi-Fi 6E (802.11ax) 2.4/5/6 GHz & Bluetooth 5.3 (Intel AX211 or Realtek RTL8852CE).
Expansion Slots 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x1.
Storage 3 x M.2 Socket 3 (PCIe 4.0 x4/x2 support), 4 x SATA 6Gb/s. RAID 0, 1, 5, 10 support.
USB 1 x USB-C® 3.2 Gen 2 (Back), 1 x USB-C® 3.2 Gen 1 (Internal), 1 x USB 3.2 Gen 2 (Red), 6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1.
Internal I/O 2 x 8-pin ATX 12V power, Q-Flash Plus button, Reset button, 2 x Thunderbolt™ add-in card connectors, RGB headers.
Back Panel PS/2, USB-C, HDMI, DP, RJ-45, 2 x SMA antenna (1T1R), 3 x Audio jacks.
BIOS 256 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, ACPI 5.0.
Form Factor ATX Form Factor (30.5cm x 24.4cm)
