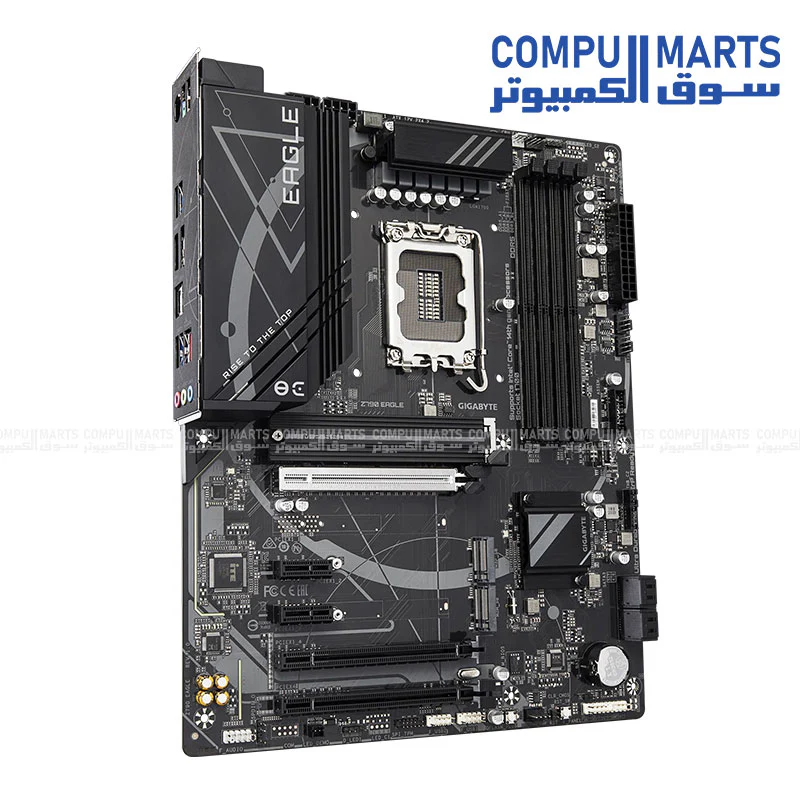

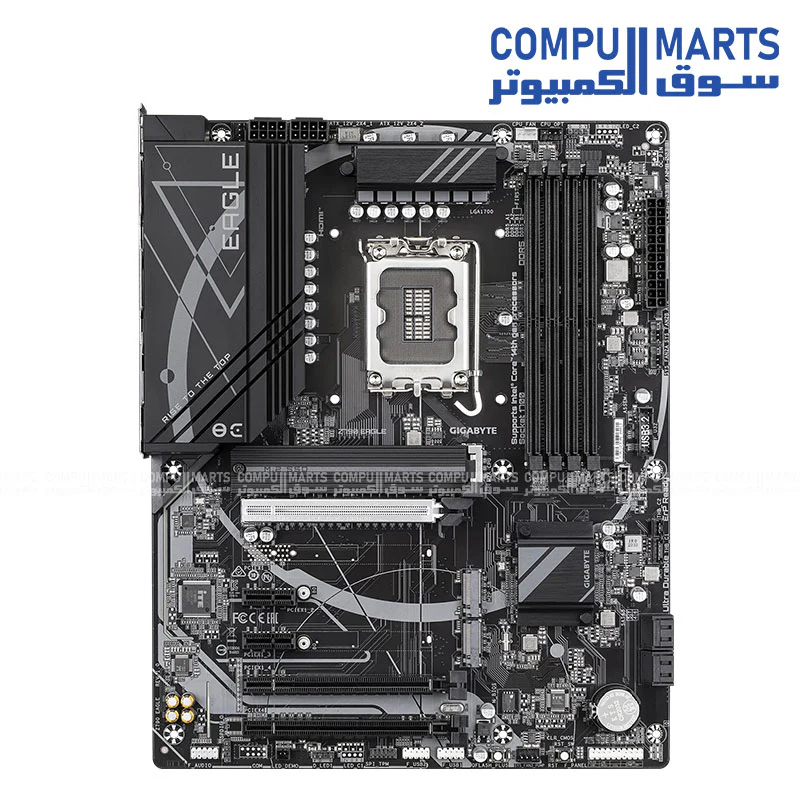

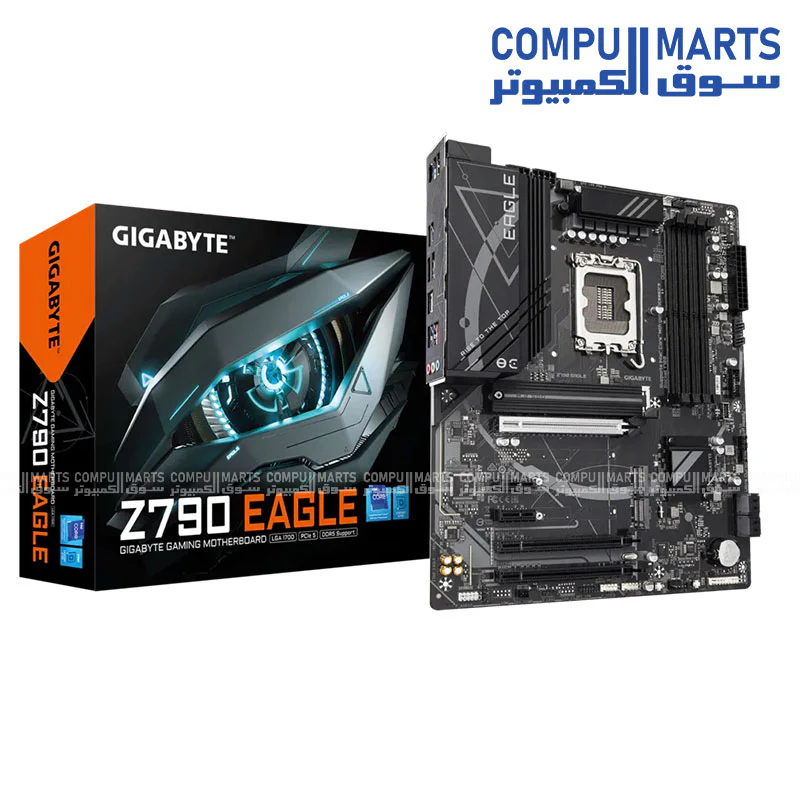

-70%GIGABYTE Z790 EAGLE (rev. 1.0) – LGA 1700, DDR5 OC, PCIe 5.0, USB‑C, 2.5 GbE LAN—
$179.41
$53.82The Story
| Category | Specification Details |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (up to 256 GB); Support up to DDR5 7600(O.C.); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DisplayPort 1.2 (4096x2304@60 Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4; 1 x PCIe 3.0 x1; 2 x PCIe 3.0 x1 |
| Storage Interface | 3 x M.2 connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB | 1 x USB Type-C® (3.2 Gen 2) back panel; 1 x USB 3.2 Gen 2 Type-A; 8 x USB 3.2 Gen 1 (4 back, 4 front); 8 x USB 2.0/1.1 |

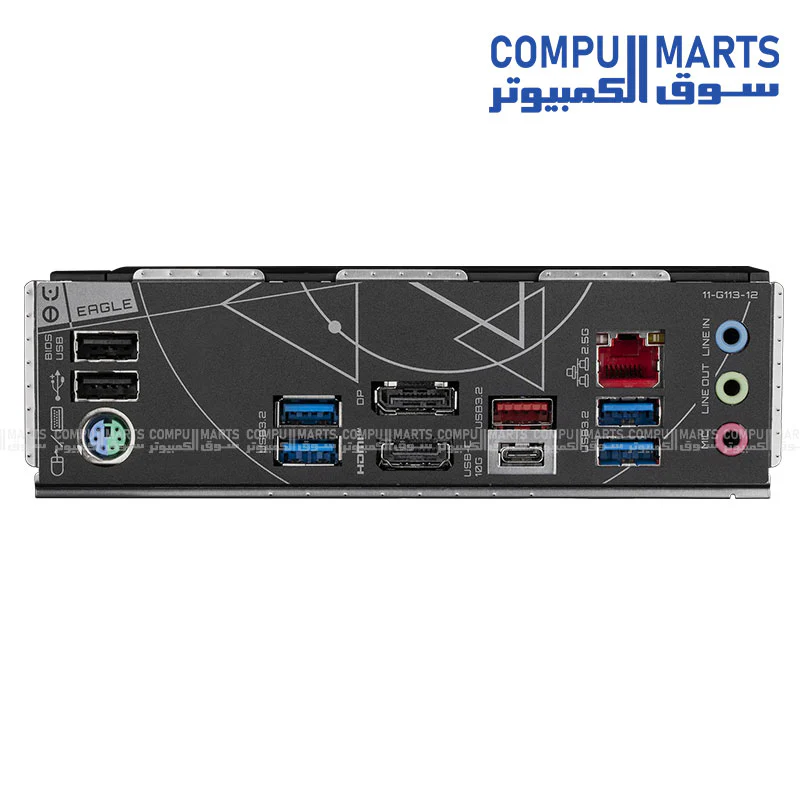

| Back Panel I/O | 1 x PS/2, 1 x USB-C®, 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x HDMI, 1 x DP, 1 x RJ-45, 3 x Audio jacks |
| Internal I/O | 2 x 8-pin ATX 12V; 1 x CPU Fan; 1 x Water Cooling Pump; 2 x Addressable LED headers; 2 x Thunderbolt™ headers; Q-Flash Plus button |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11/10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (up to 256 GB); Support up to DDR5 7600(O.C.); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DisplayPort 1.2 (4096x2304@60 Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4; 1 x PCIe 3.0 x1; 2 x PCIe 3.0 x1 |
| Storage Interface | 3 x M.2 connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB | 1 x USB Type-C® (3.2 Gen 2) back panel; 1 x USB 3.2 Gen 2 Type-A; 8 x USB 3.2 Gen 1 (4 back, 4 front); 8 x USB 2.0/1.1 |
| Back Panel I/O | 1 x PS/2, 1 x USB-C®, 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x HDMI, 1 x DP, 1 x RJ-45, 3 x Audio jacks |
| Internal I/O | 2 x 8-pin ATX 12V; 1 x CPU Fan; 1 x Water Cooling Pump; 2 x Addressable LED headers; 2 x Thunderbolt™ headers; Q-Flash Plus button |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11/10 64-bit |
