$188.95

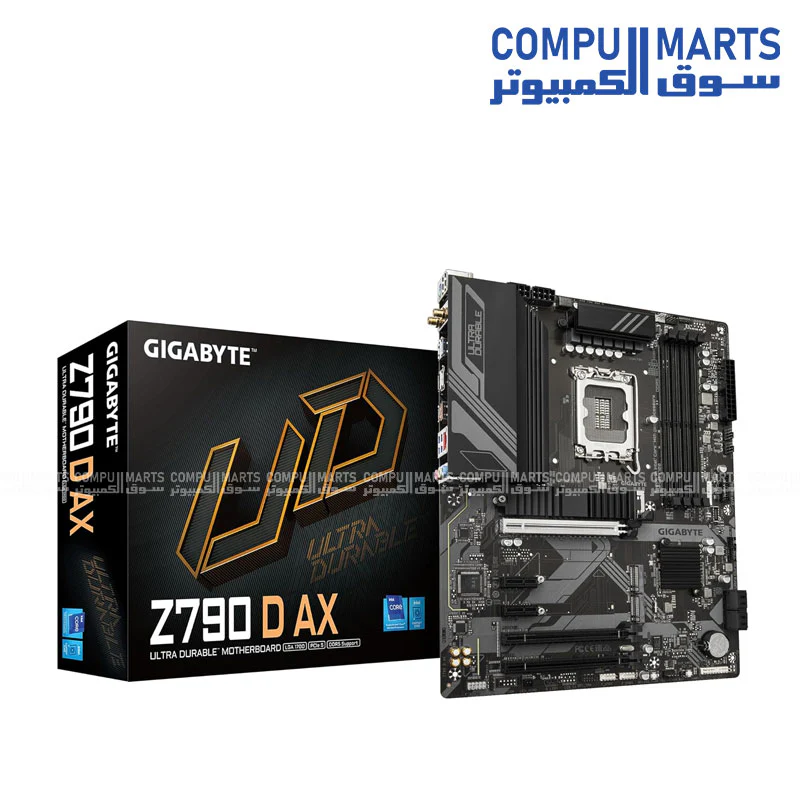

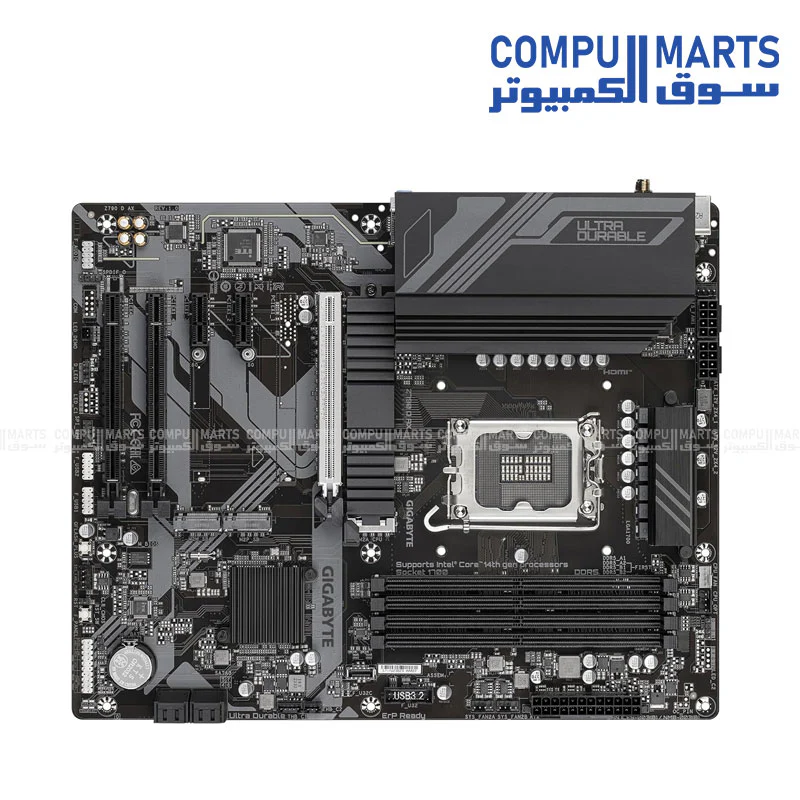

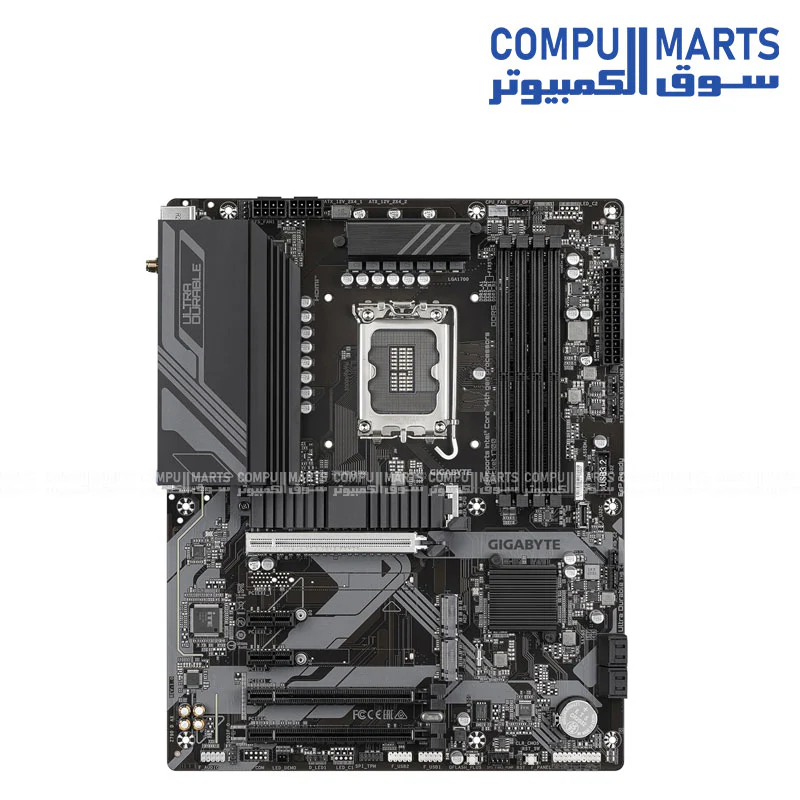

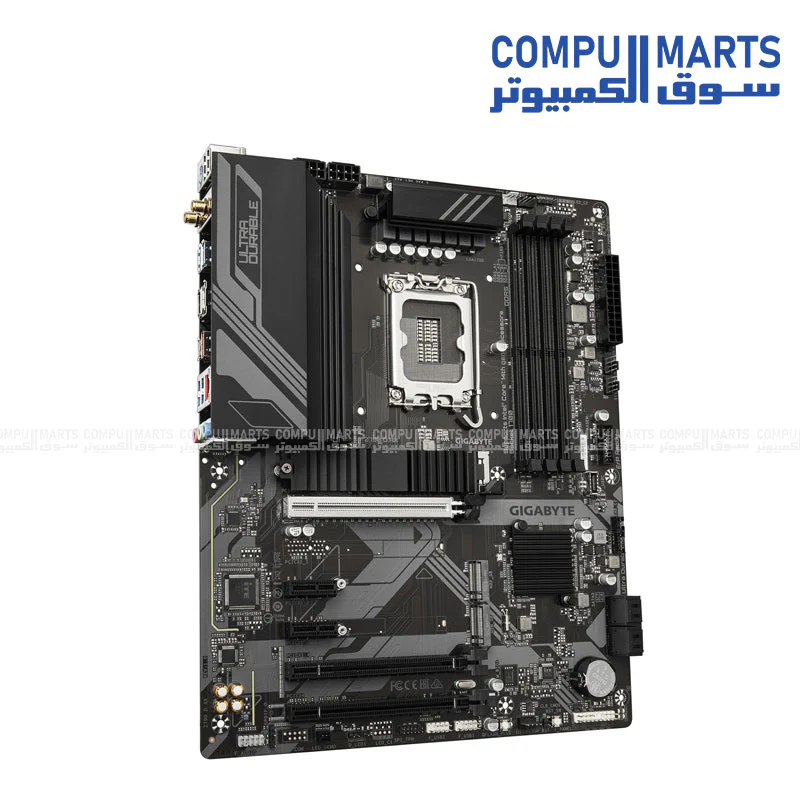

GIGABYTE Z790 D AX DDR5 ATX Motherboard – LGA 1700, PCIe 5.0, Wi‑Fi 6E—
$188.95
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (up to 256 GB). Supports up to DDR5 7600(O.C.). Dual channel architecture. Support for XMP and ECC Un-buffered modules. |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz), 1 x DisplayPort 1.2 (4096x2304@60 Hz). HDCP 2.3 support. |
| Audio | Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. Support for S/PDIF Out. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel® Wi-Fi 6E AX211. 2.4/5/6 GHz bands. BLUETOOTH 5.3. Support for 11ax 160MHz standard. |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU). 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x1 (Chipset). |
| Storage Interface | 3 x M.2 connectors (PCIe 4.0 x4/x2 support). 4 x SATA 6Gb/s. RAID 0, 1, 5, 10 support for NVMe and SATA. |
| USB | 1 x USB-C (3.2 Gen 2) & 1 x USB 3.2 Gen 2 (Red) on back panel. Internal USB-C (3.2 Gen 1) header. Multiple USB 3.2 Gen 1 and 2.0 ports. |
| Internal I/O | 24-pin ATX, 2 x 8-pin 12V. CPU/Water cooling pump headers. 2 x Addressable LED headers. 2 x Thunderbolt™ add-in card connectors. Q-Flash Plus button. |
| Back Panel | PS/2, USB-C, HDMI, DisplayPort, 2 x SMA antenna (2T2R), RJ-45, 3 x Audio jacks. |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (up to 256 GB). Supports up to DDR5 7600(O.C.). Dual channel architecture. Support for XMP and ECC Un-buffered modules. |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz), 1 x DisplayPort 1.2 (4096x2304@60 Hz). HDCP 2.3 support. |
| Audio | Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. Support for S/PDIF Out. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel® Wi-Fi 6E AX211. 2.4/5/6 GHz bands. BLUETOOTH 5.3. Support for 11ax 160MHz standard. |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU). 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 2 x PCIe 3.0 x1 (Chipset). |
| Storage Interface | 3 x M.2 connectors (PCIe 4.0 x4/x2 support). 4 x SATA 6Gb/s. RAID 0, 1, 5, 10 support for NVMe and SATA. |
| USB | 1 x USB-C (3.2 Gen 2) & 1 x USB 3.2 Gen 2 (Red) on back panel. Internal USB-C (3.2 Gen 1) header. Multiple USB 3.2 Gen 1 and 2.0 ports. |
| Internal I/O | 24-pin ATX, 2 x 8-pin 12V. CPU/Water cooling pump headers. 2 x Addressable LED headers. 2 x Thunderbolt™ add-in card connectors. Q-Flash Plus button. |
| Back Panel | PS/2, USB-C, HDMI, DisplayPort, 2 x SMA antenna (2T2R), RJ-45, 3 x Audio jacks. |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
