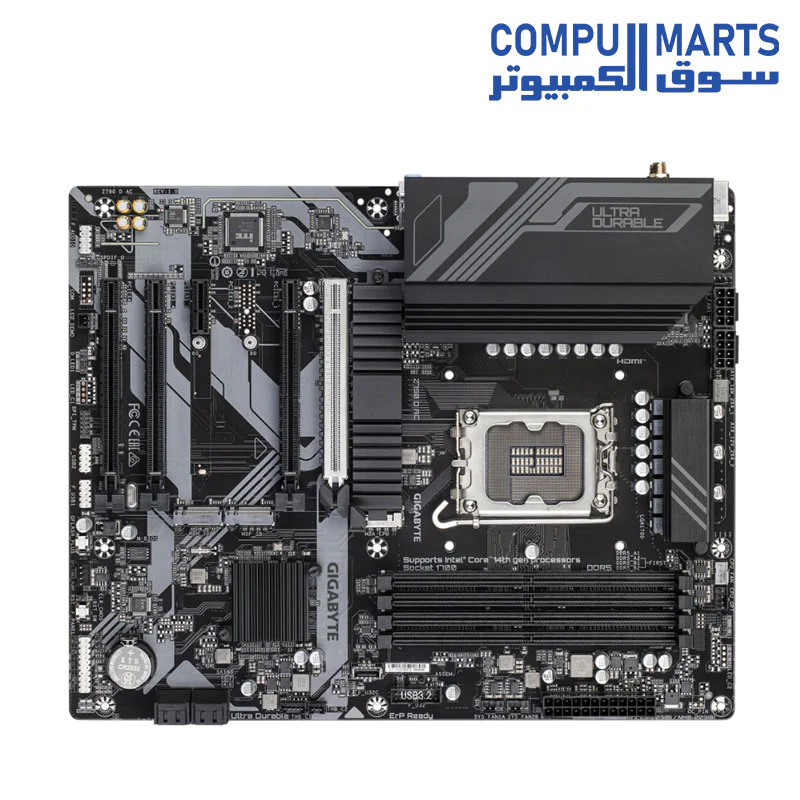

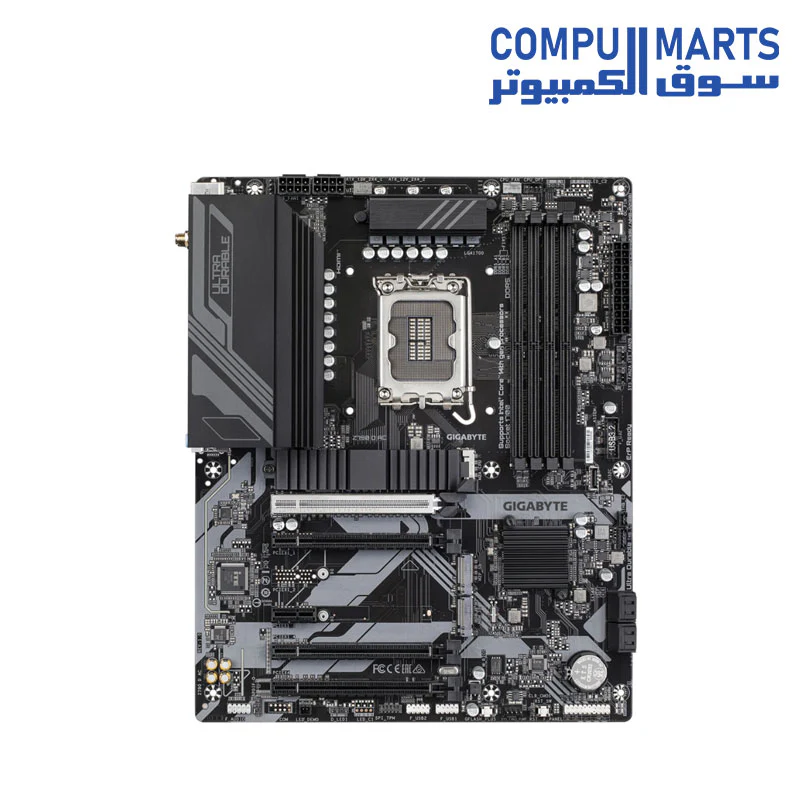

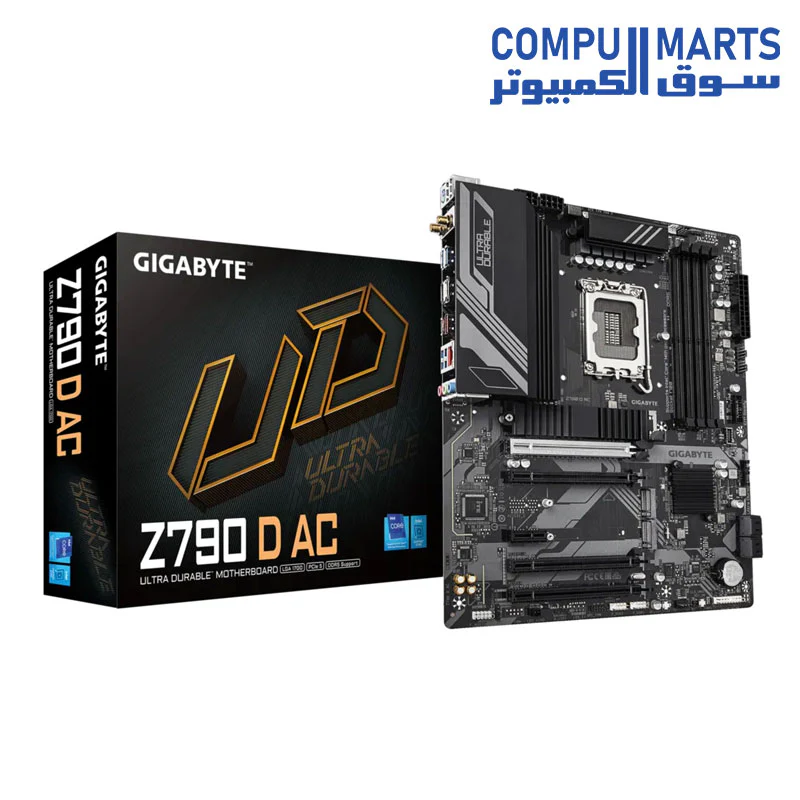

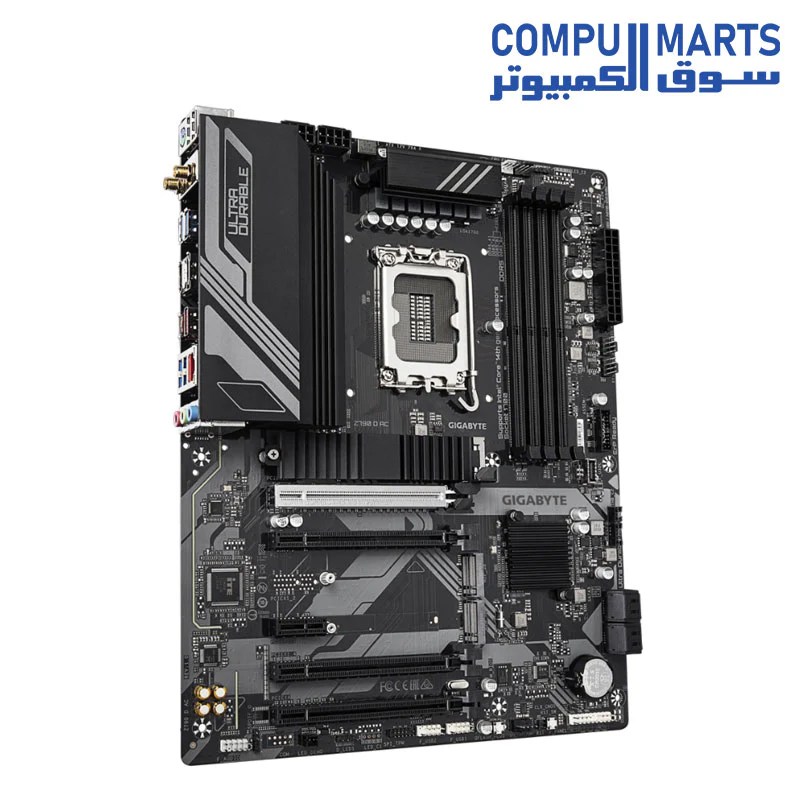

GIGABYTE Z790 D AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key
GIGABYTE Z790 D AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key
$200.40
GIGABYTE Z790 D AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key—
$200.40
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support for up to 7600(O.C.) MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DisplayPort 1.2 (4096x2304@60 Hz) |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel® Wi-Fi AC 9560; 802.11a/b/g/n/ac (2.4/5 GHz); Bluetooth 5.1 |
| Expansion Slots | 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4; 2 x PCIe 3.0 x1; 1 x PCIe 3.0 x1 |
| Storage Interface | 3 x M.2 (PCIe 4.0 x4/x2 support); 4 x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 5, 10 |
| USB (Back Panel) | 1 x USB-C (3.2 Gen 2); 1 x USB 3.2 Gen 2 (Red); 4 x USB 3.2 Gen 1; 2 x USB 2.0/1.1 |
| Internal I/O | 1 x USB-C (3.2 Gen 1); 2 x Thunderbolt™ headers; 2 x Addressable LED headers; Q-Flash Plus button |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support for up to 7600(O.C.) MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DisplayPort 1.2 (4096x2304@60 Hz) |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel® Wi-Fi AC 9560; 802.11a/b/g/n/ac (2.4/5 GHz); Bluetooth 5.1 |
| Expansion Slots | 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4; 2 x PCIe 3.0 x1; 1 x PCIe 3.0 x1 |
| Storage Interface | 3 x M.2 (PCIe 4.0 x4/x2 support); 4 x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 5, 10 |
| USB (Back Panel) | 1 x USB-C (3.2 Gen 2); 1 x USB 3.2 Gen 2 (Red); 4 x USB 3.2 Gen 1; 2 x USB 2.0/1.1 |
| Internal I/O | 1 x USB-C (3.2 Gen 1); 2 x Thunderbolt™ headers; 2 x Addressable LED headers; Q-Flash Plus button |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
