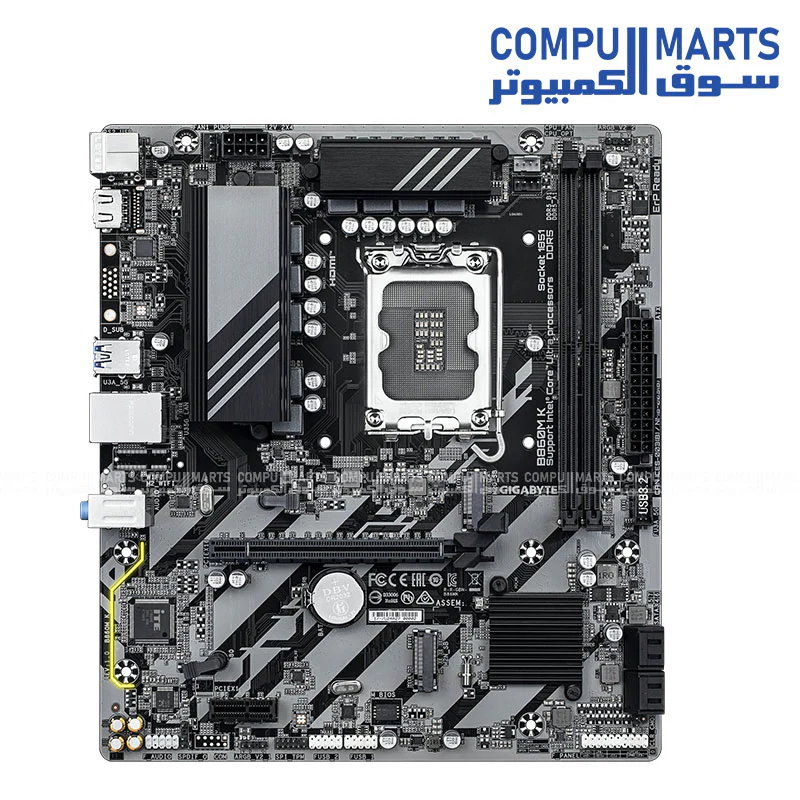

-70%GIGABYTE B860M K – Micro‑ATX Motherboard for Intel Ultra Series 2 | DDR5, PCIe 4.0, GbE LAN, RGB Fusion—
$102.11
$30.63The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 2 x DDR5 DIMM (Up to 128 GB); Support up to DDR5 8800(O.C.); Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 port (Max 4096 x 2160 @ 60 Hz); HDCP 2.3 support |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 | Chipset: 1 x PCIe 3.0 x1 |
| Storage Interface | 2 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB Ports | 6 x USB 3.2 Gen 1 (4 back, 2 internal); 6 x USB 2.0/1.1 (2 back, 4 internal) |
| Internal I/O | 24-pin ATX, 8-pin 12V, CPU Fan, Pump Header, 2x Addressable RGB Gen2, TPM header, Serial port |

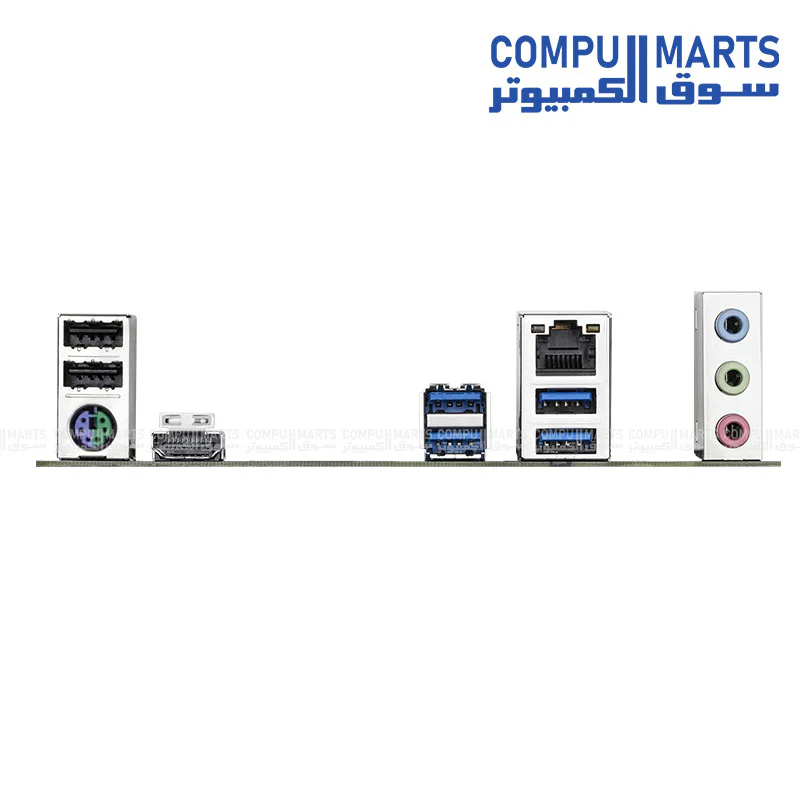

| Back Panel I/O | PS/2, HDMI, 4x USB 3.2 Gen 1, 2x USB 2.0, RJ-45 LAN, 3x Audio jacks |
| H/W Monitoring | Voltage, Temp, Fan speed, Water cooling flow rate, Fan fail warning |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| OS Support | Windows 11 64-bit (NPU support), Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 2 x DDR5 DIMM (Up to 128 GB); Support up to DDR5 8800(O.C.); Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 port (Max 4096 x 2160 @ 60 Hz); HDCP 2.3 support |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 | Chipset: 1 x PCIe 3.0 x1 |
| Storage Interface | 2 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB Ports | 6 x USB 3.2 Gen 1 (4 back, 2 internal); 6 x USB 2.0/1.1 (2 back, 4 internal) |
| Internal I/O | 24-pin ATX, 8-pin 12V, CPU Fan, Pump Header, 2x Addressable RGB Gen2, TPM header, Serial port |
| Back Panel I/O | PS/2, HDMI, 4x USB 3.2 Gen 1, 2x USB 2.0, RJ-45 LAN, 3x Audio jacks |
| H/W Monitoring | Voltage, Temp, Fan speed, Water cooling flow rate, Fan fail warning |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| OS Support | Windows 11 64-bit (NPU support), Windows 10 64-bit |
