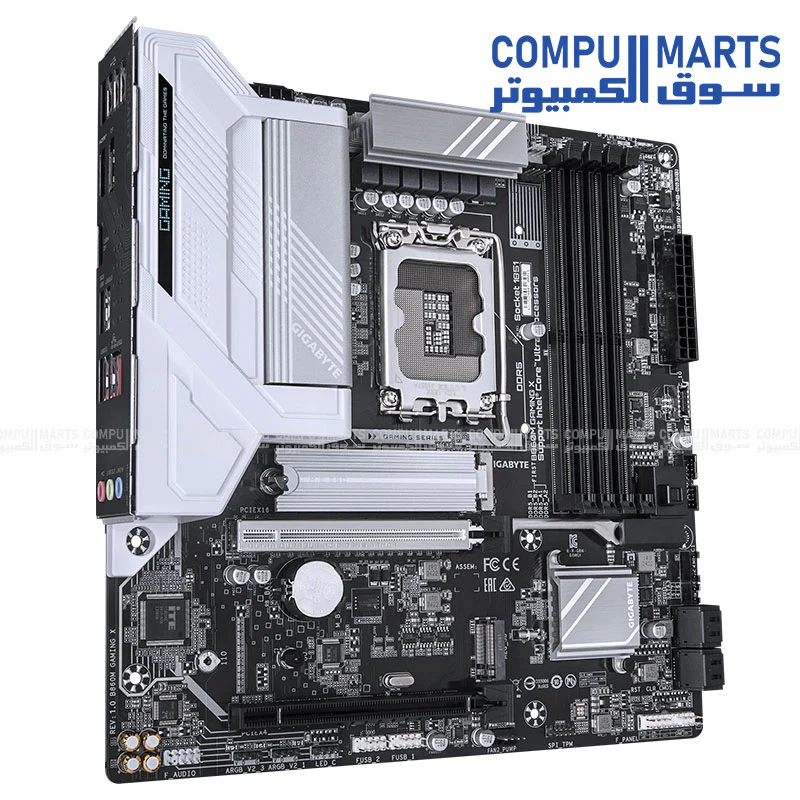

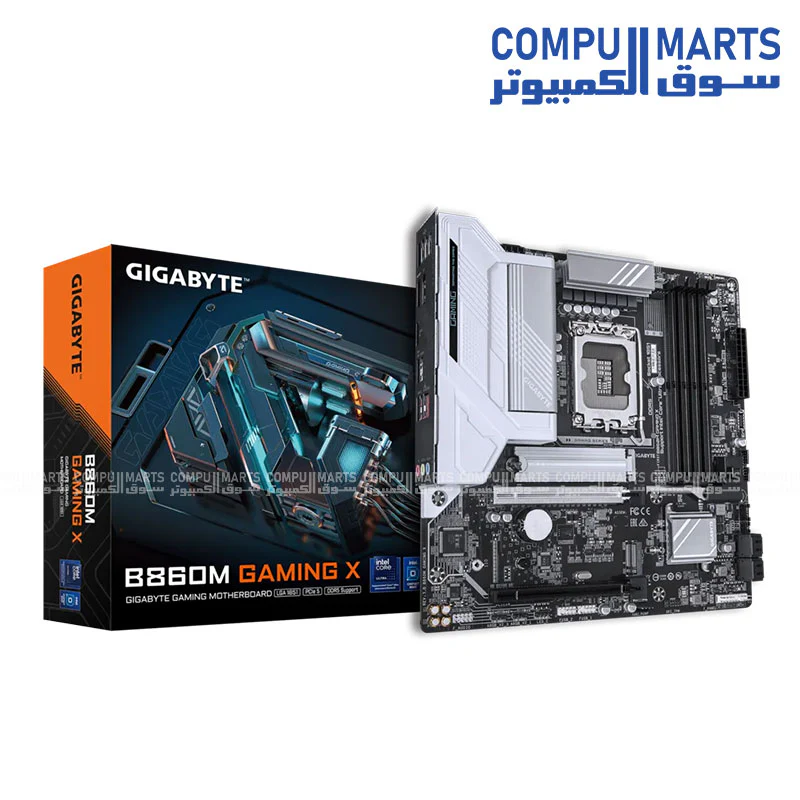

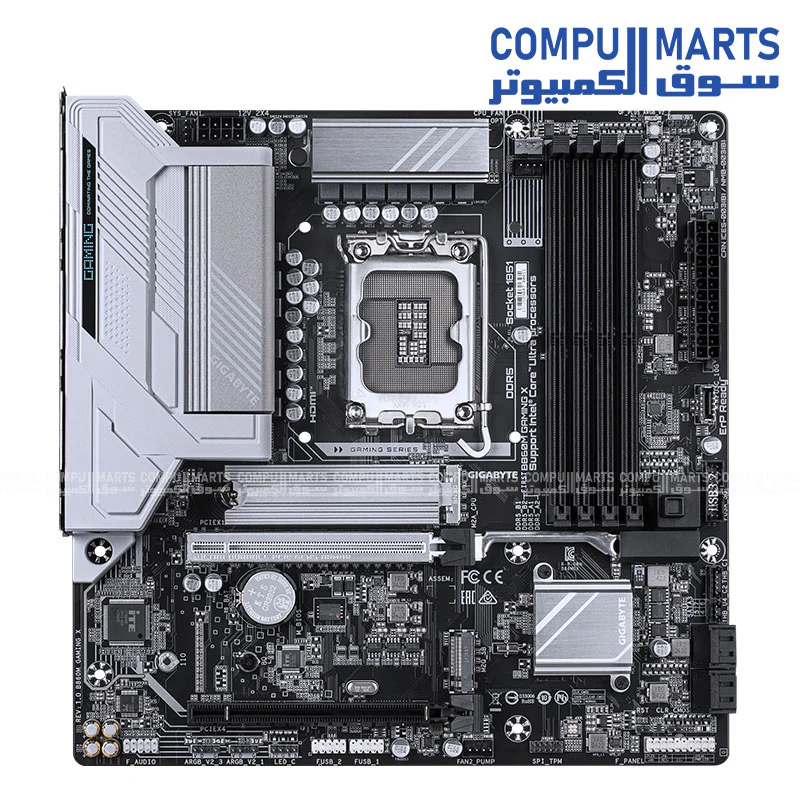

GIGABYTE B860M GAMING X – LGA 1851, DDR5, PCIe 5.0, USB4 Type‑C, 2.5 GbE LAN—
$160.32
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Supports up to DDR5 9200(O.C.) / 5600 MT/s; Dual channel; XMP Support |
| Onboard Graphics | 1 x USB4® (DP 2.1), 1 x DisplayPort 2.1, 1 x HDMI 2.1 (4K@60Hz); Supports up to triple-display |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 (runs at x4) (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2); 1 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 |
| USB Ports | 1 x USB4® Type-C; 1 x USB 3.2 Gen 2 Type-C (Internal); 5 x USB 3.2 Gen 1; 9 x USB 2.0/1.1 |
| Internal I/O | 3 x Addressable RGB Gen2; 1 x RGB LED; 2 x Thunderbolt™ add-in card connectors; Q-Flash Plus button |

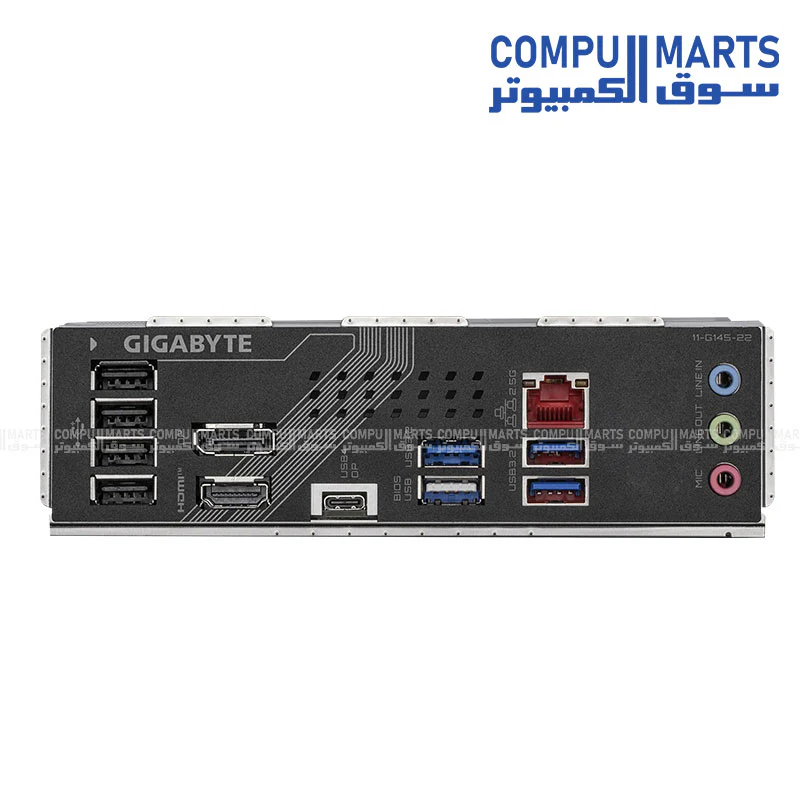

| Back Panel I/O | HDMI, DisplayPort, USB4® Type-C, 3 x USB 3.2 Gen 1, 5 x USB 2.0, RJ-45, 3 x Audio Jacks, 2 x Antenna connectors |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Supports up to DDR5 9200(O.C.) / 5600 MT/s; Dual channel; XMP Support |
| Onboard Graphics | 1 x USB4® (DP 2.1), 1 x DisplayPort 2.1, 1 x HDMI 2.1 (4K@60Hz); Supports up to triple-display |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 (runs at x4) (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2); 1 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 |
| USB Ports | 1 x USB4® Type-C; 1 x USB 3.2 Gen 2 Type-C (Internal); 5 x USB 3.2 Gen 1; 9 x USB 2.0/1.1 |
| Internal I/O | 3 x Addressable RGB Gen2; 1 x RGB LED; 2 x Thunderbolt™ add-in card connectors; Q-Flash Plus button |
| Back Panel I/O | HDMI, DisplayPort, USB4® Type-C, 3 x USB 3.2 Gen 1, 5 x USB 2.0, RJ-45, 3 x Audio Jacks, 2 x Antenna connectors |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit |
