GIGABYTE B860M EAGLE V2 – LGA 1851, DDR5 Up to 9066MT/s, PCIe 5.0, USB4 Type-C, 2.5 GbE LAN
HomeStore

GIGABYTE B860M EAGLE V2 – LGA 1851, DDR5 Up to 9066MT/s, PCIe 5.0, USB4 Type-C, 2.5 GbE LAN

GIGABYTE B860M EAGLE V2 – LGA 1851, DDR5 Up to 9066MT/s, PCIe 5.0, USB4 Type-C, 2.5 GbE LAN

$127.88
GIGABYTE B860M EAGLE V2 – LGA 1851, DDR5 Up to 9066MT/s, PCIe 5.0, USB4 Type-C, 2.5 GbE LAN—
$127.88

The Story

Category Specification Details
CPU Support LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset Intel® B860 Express Chipset
Memory 2 x DDR5 DIMM (Up to 128 GB); Supports up to DDR5 9066(O.C.) / 6400 / 5600 MT/s; XMP Support
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60Hz); 1 x DisplayPort 2.1 (3840x2160@144Hz)
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 (running at x4) (Chipset)
Storage Interface 1 x M.2 PCIe 5.0 x4/x2 (CPU); 1 x M.2 PCIe 4.0 x4/x2 (Chipset); 4 x SATA 6Gb/s; RAID 0/1/5/10
USB (Back Panel) 3 x USB 3.2 Gen 1; 3 x USB 2.0/1.1
USB (Internal) 1 x USB Type-C (3.2 Gen 1); 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1
Back Panel I/O PS/2, HDMI, DisplayPort, RJ-45, 3 x Audio Jacks, 6 x USB ports
Special Features Q-Flash Plus, GIGABYTE Control Center (GCC), Addressable RGB Gen2 support
Form Factor Micro ATX Form Factor (24.4cm x 22.5cm)
OS Support Windows 11 64-bit / Windows 10 64-bit (NPU driver requires Win 11)

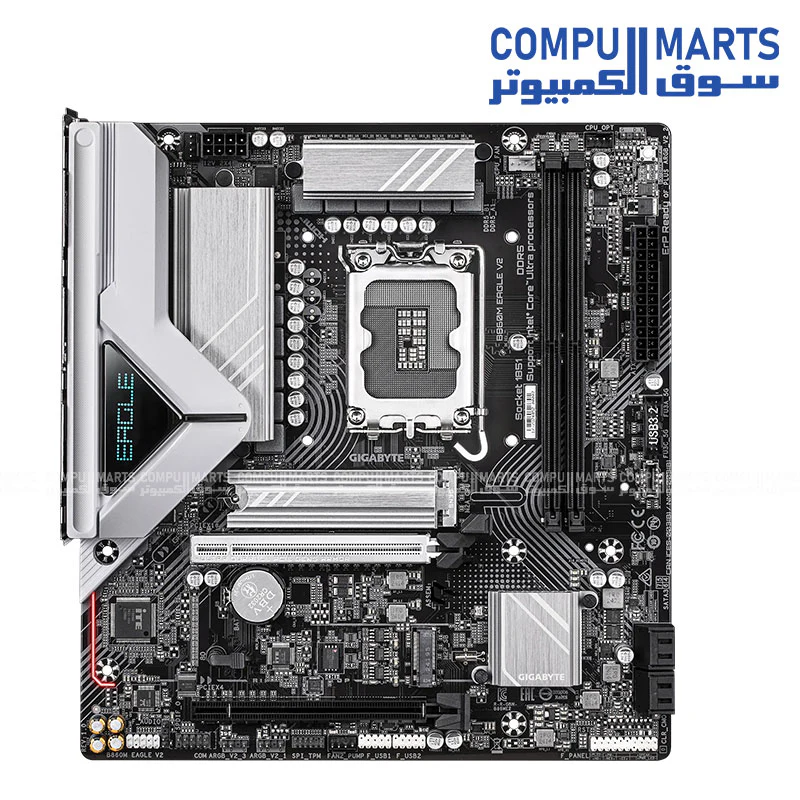

GIGABYTE B860M EAGLE V2 – LGA 1851, DDR5 Up to 9066MT/s, PCIe 5.0, USB4 Type-C, 2.5 GbE LAN - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

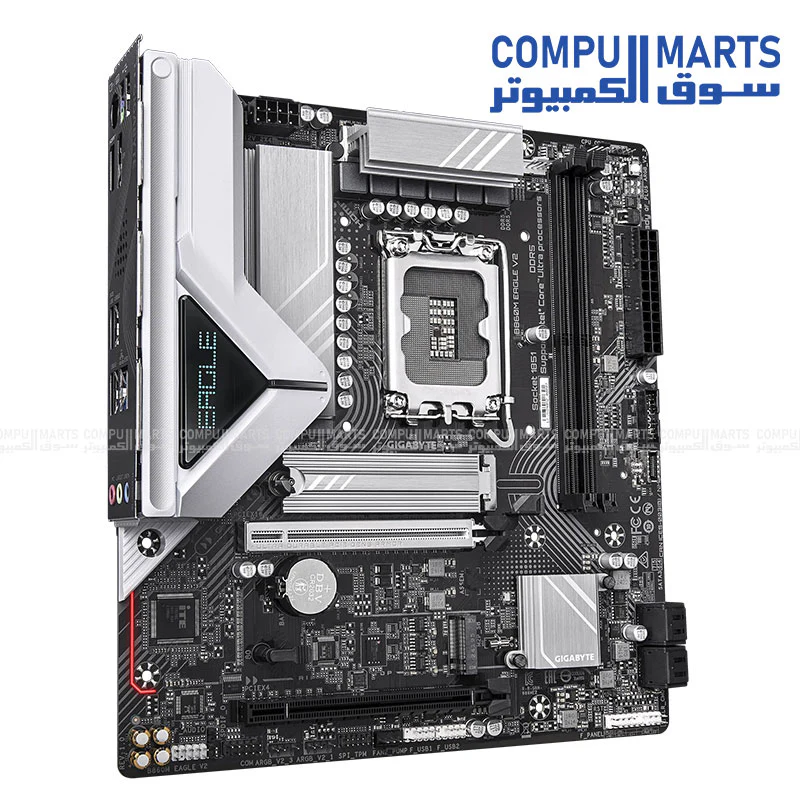

GIGABYTE B860M EAGLE V2 – LGA 1851, DDR5 Up to 9066MT/s, PCIe 5.0, USB4 Type-C, 2.5 GbE LAN - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

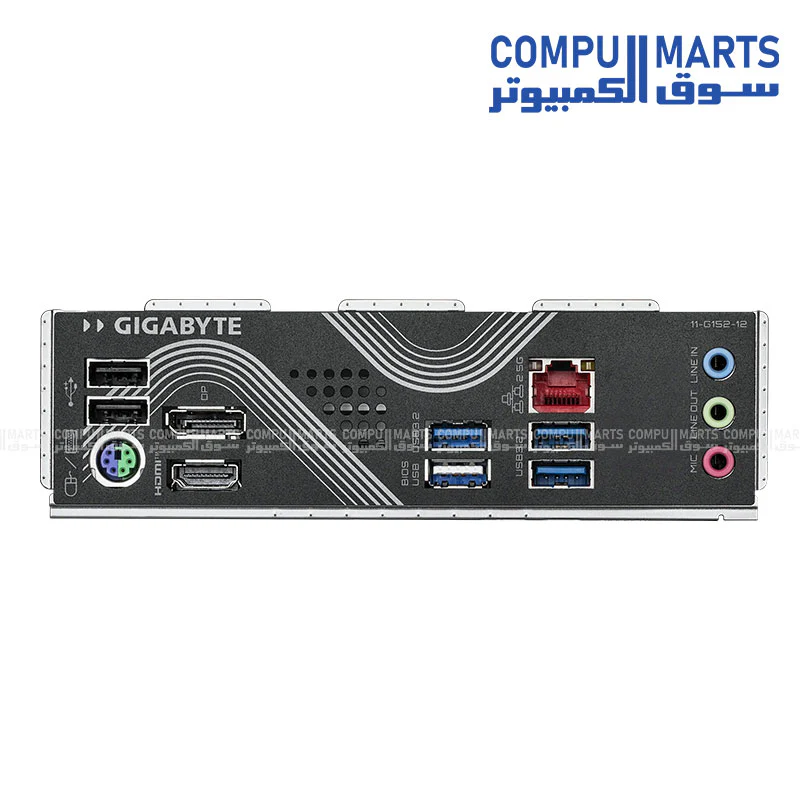

GIGABYTE B860M EAGLE V2 – LGA 1851, DDR5 Up to 9066MT/s, PCIe 5.0, USB4 Type-C, 2.5 GbE LAN - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU Support LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset Intel® B860 Express Chipset
Memory 2 x DDR5 DIMM (Up to 128 GB); Supports up to DDR5 9066(O.C.) / 6400 / 5600 MT/s; XMP Support
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60Hz); 1 x DisplayPort 2.1 (3840x2160@144Hz)
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 (running at x4) (Chipset)
Storage Interface 1 x M.2 PCIe 5.0 x4/x2 (CPU); 1 x M.2 PCIe 4.0 x4/x2 (Chipset); 4 x SATA 6Gb/s; RAID 0/1/5/10
USB (Back Panel) 3 x USB 3.2 Gen 1; 3 x USB 2.0/1.1
USB (Internal) 1 x USB Type-C (3.2 Gen 1); 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1
Back Panel I/O PS/2, HDMI, DisplayPort, RJ-45, 3 x Audio Jacks, 6 x USB ports
Special Features Q-Flash Plus, GIGABYTE Control Center (GCC), Addressable RGB Gen2 support
Form Factor Micro ATX Form Factor (24.4cm x 22.5cm)
OS Support Windows 11 64-bit / Windows 10 64-bit (NPU driver requires Win 11)
