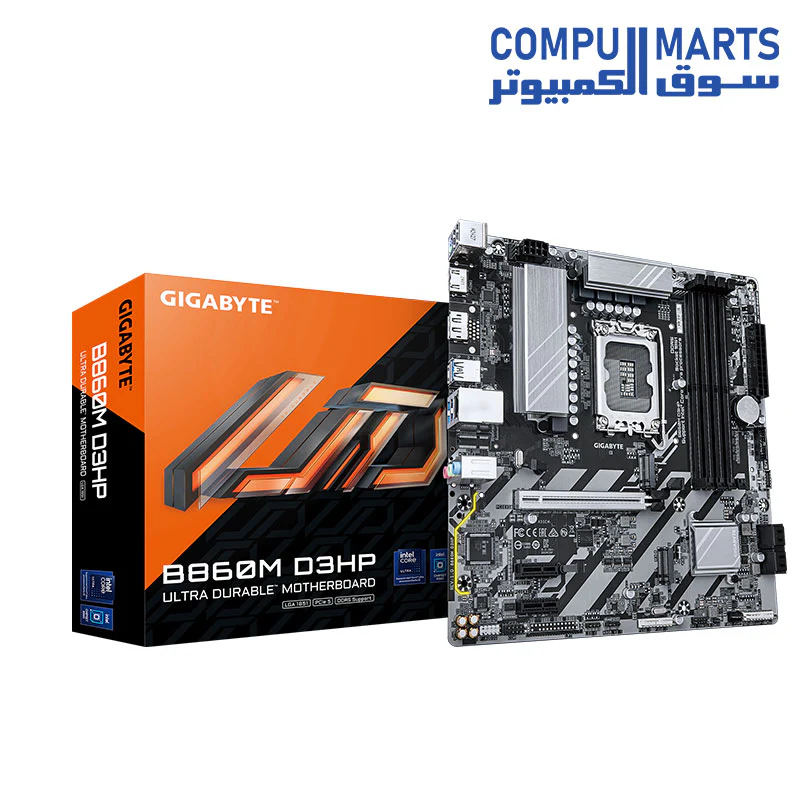

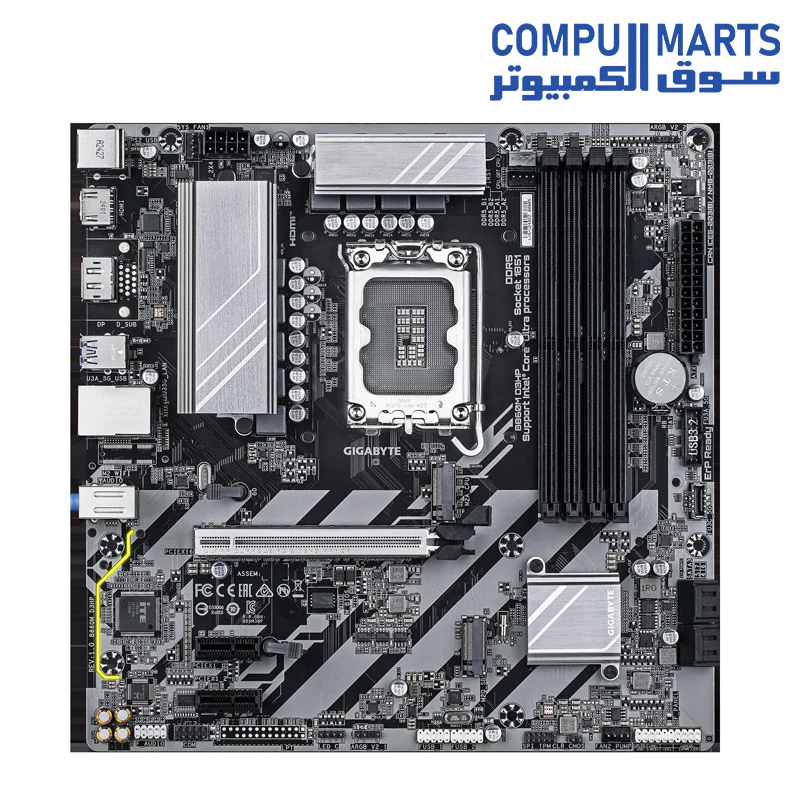

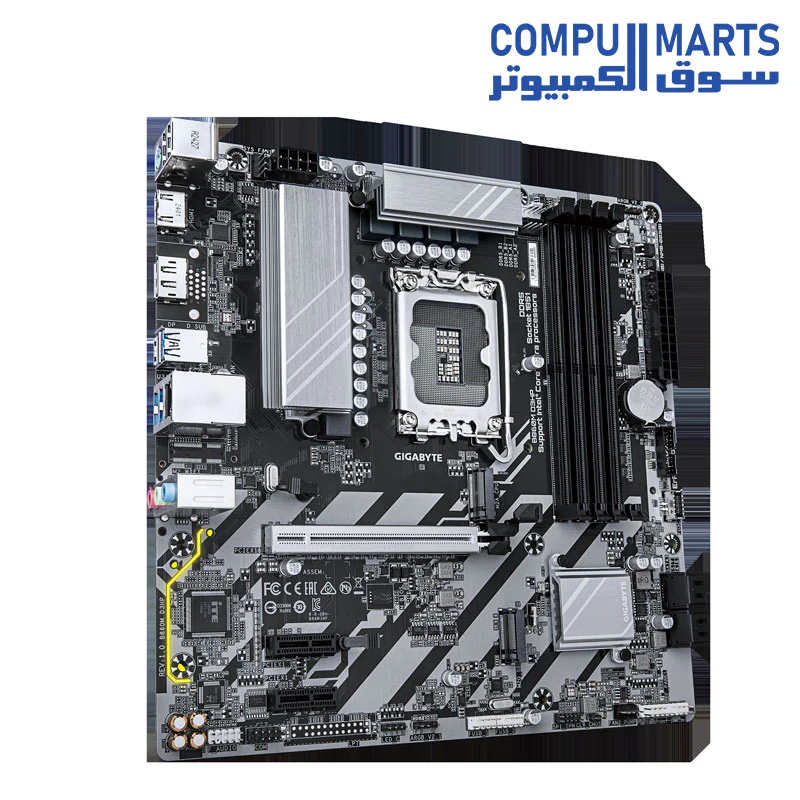

GIGABYTE B860M D3HP Motherboard – Intel LGA1851 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – HDMI / DisplayPort – USB 3.2 – For Intel Core Ultra Processors
GIGABYTE B860M D3HP Motherboard – Intel LGA1851 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – HDMI / DisplayPort – USB 3.2 – For Intel Core Ultra Processors
$38.36
Original: $127.88
-70%GIGABYTE B860M D3HP Motherboard – Intel LGA1851 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – HDMI / DisplayPort – USB 3.2 – For Intel Core Ultra Processors—
$127.88
$38.36The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Supports Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (Up to 256GB); Supports up to DDR5 9066(O.C.) / 5600 MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz); 1 x DisplayPort 2.1 (3840x2160@144Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2 (1 CPU, 1 Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 |
| USB Connectivity | 1 x USB Type-C (3.2 Gen 1); 5 x USB 3.2 Gen 1 (3 Back, 2 Internal); 7 x USB 2.0/1.1 |
| Audio & Networking | Realtek® Audio CODEC (7.1-channel); Realtek® GbE LAN chip (1 Gbps) |
| Internal I/O | 2 x ARGB Gen2, 1 x RGB header, 2 x Water cooling pump headers, Q-Flash button |

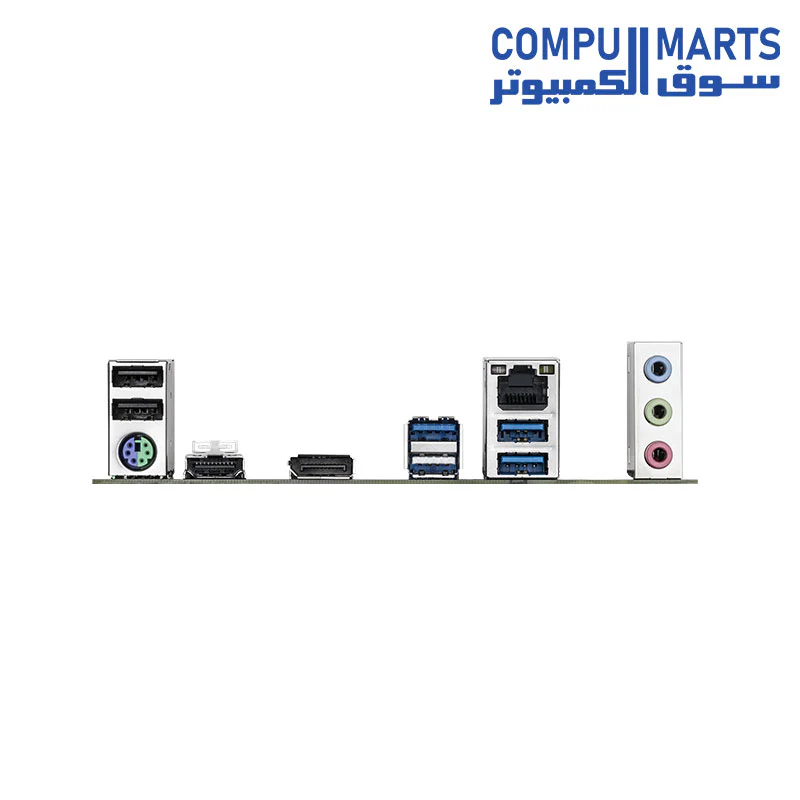

| Back Panel I/O | DisplayPort, HDMI, RJ-45, 3 x USB 3.2, 3 x USB 2.0, PS/2 Port, 3 x Audio Jacks |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Supports Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (Up to 256GB); Supports up to DDR5 9066(O.C.) / 5600 MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz); 1 x DisplayPort 2.1 (3840x2160@144Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2 (1 CPU, 1 Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 |
| USB Connectivity | 1 x USB Type-C (3.2 Gen 1); 5 x USB 3.2 Gen 1 (3 Back, 2 Internal); 7 x USB 2.0/1.1 |
| Audio & Networking | Realtek® Audio CODEC (7.1-channel); Realtek® GbE LAN chip (1 Gbps) |
| Internal I/O | 2 x ARGB Gen2, 1 x RGB header, 2 x Water cooling pump headers, Q-Flash button |
| Back Panel I/O | DisplayPort, HDMI, RJ-45, 3 x USB 3.2, 3 x USB 2.0, PS/2 Port, 3 x Audio Jacks |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
