GIGABYTE B860 GAMING X WIFI6E MOTHERBOARD
HomeStore

GIGABYTE B860 GAMING X WIFI6E MOTHERBOARD

GIGABYTE B860 GAMING X WIFI6E MOTHERBOARD

$61.27

Original: $204.22

-70%
GIGABYTE B860 GAMING X WIFI6E MOTHERBOARD—

$204.22

$61.27

The Story

Category Specification Details
CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset Intel® B860 Express Chipset
Memory 4 x DDR5 DIMM (Up to 256GB); Supports up to DDR5 9066(O.C); Dual Channel; XMP Support
Onboard Graphics 1 x USB4® Type-C (DP 2.1), 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 2.1 (4K@144Hz)
Audio Realtek® High Definition Audio (2/4/5.1/7.1-channel); S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps)
Wireless Intel® Wi-Fi 6E AX211 / Realtek® Wi-Fi 6E; Bluetooth 5.3
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x1 (Chipset)
Storage 1 x M.2 PCIe 5.0 x4/x2; 2 x M.2 PCIe 4.0 x4/x2; 4 x SATA 6Gb/s; RAID 0/1/5/10
USB (Back Panel) 1 x USB4® Type-C; 1 x USB 3.2 Gen 2 Type-A; 2 x USB 3.2 Gen 1; 5 x USB 2.0/1.1
Internal I/O 1 x USB 3.2 Gen 2 Type-C; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers; 4 x RGB/ARGB headers
Special Features Q-Flash Plus; GIGABYTE Control Center (GCC); Smart Backup
Form Factor ATX Form Factor (30.5cm x 24.4cm)

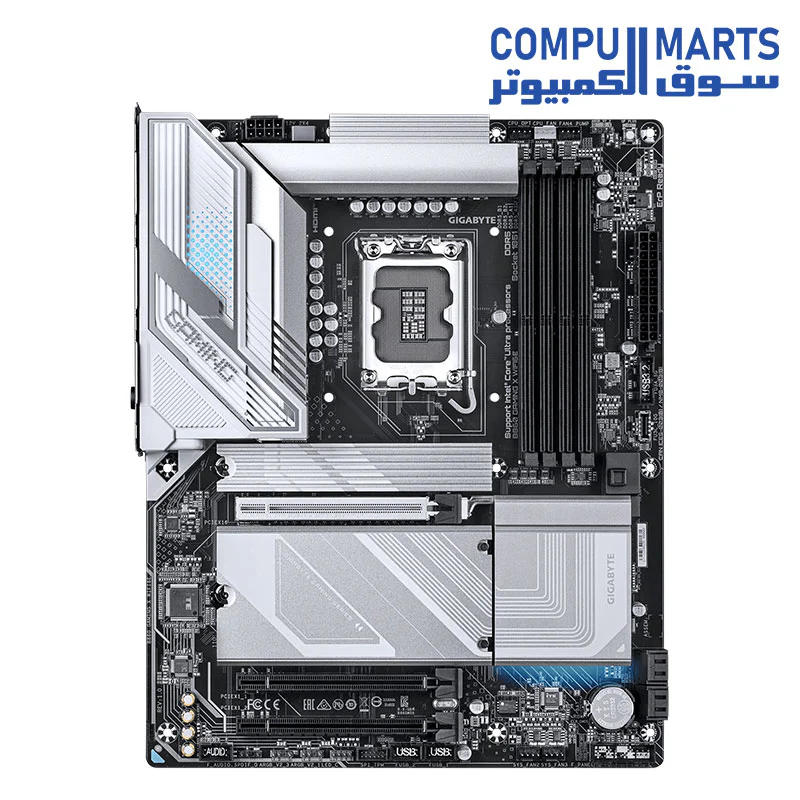

GIGABYTE B860 GAMING X WIFI6E MOTHERBOARD - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

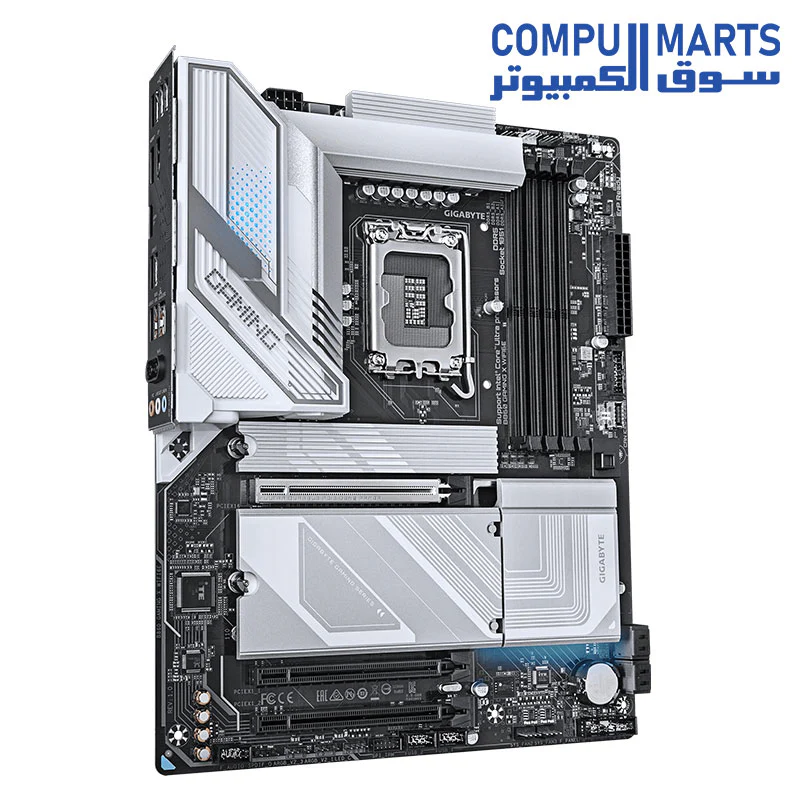

GIGABYTE B860 GAMING X WIFI6E MOTHERBOARD - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

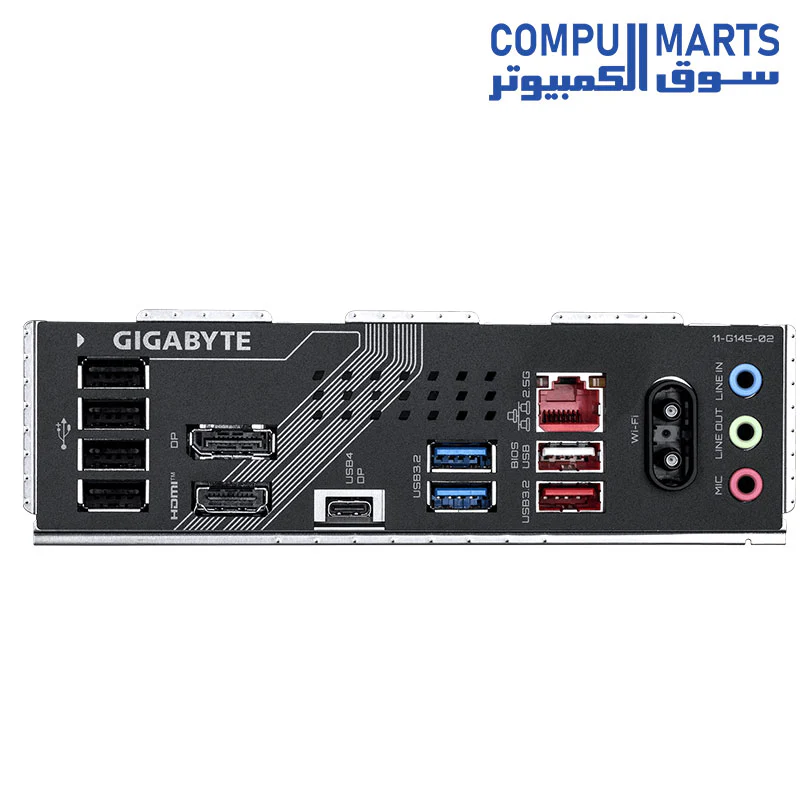

GIGABYTE B860 GAMING X WIFI6E MOTHERBOARD - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset Intel® B860 Express Chipset
Memory 4 x DDR5 DIMM (Up to 256GB); Supports up to DDR5 9066(O.C); Dual Channel; XMP Support
Onboard Graphics 1 x USB4® Type-C (DP 2.1), 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 2.1 (4K@144Hz)
Audio Realtek® High Definition Audio (2/4/5.1/7.1-channel); S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps)
Wireless Intel® Wi-Fi 6E AX211 / Realtek® Wi-Fi 6E; Bluetooth 5.3
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x1 (Chipset)
Storage 1 x M.2 PCIe 5.0 x4/x2; 2 x M.2 PCIe 4.0 x4/x2; 4 x SATA 6Gb/s; RAID 0/1/5/10
USB (Back Panel) 1 x USB4® Type-C; 1 x USB 3.2 Gen 2 Type-A; 2 x USB 3.2 Gen 1; 5 x USB 2.0/1.1
Internal I/O 1 x USB 3.2 Gen 2 Type-C; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers; 4 x RGB/ARGB headers
Special Features Q-Flash Plus; GIGABYTE Control Center (GCC); Smart Backup
Form Factor ATX Form Factor (30.5cm x 24.4cm)
