$54.39
Original: $181.30

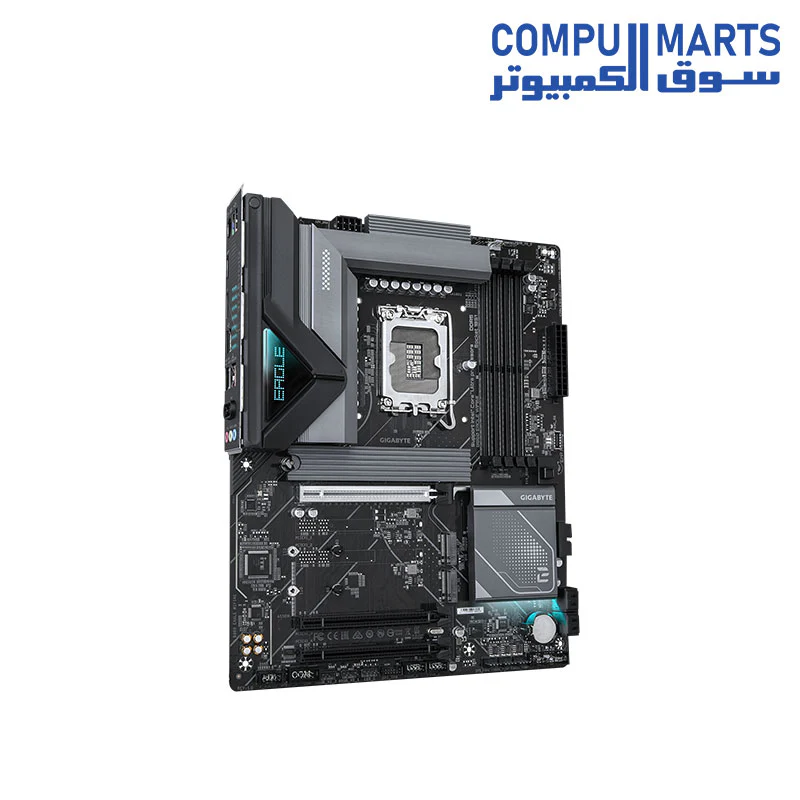

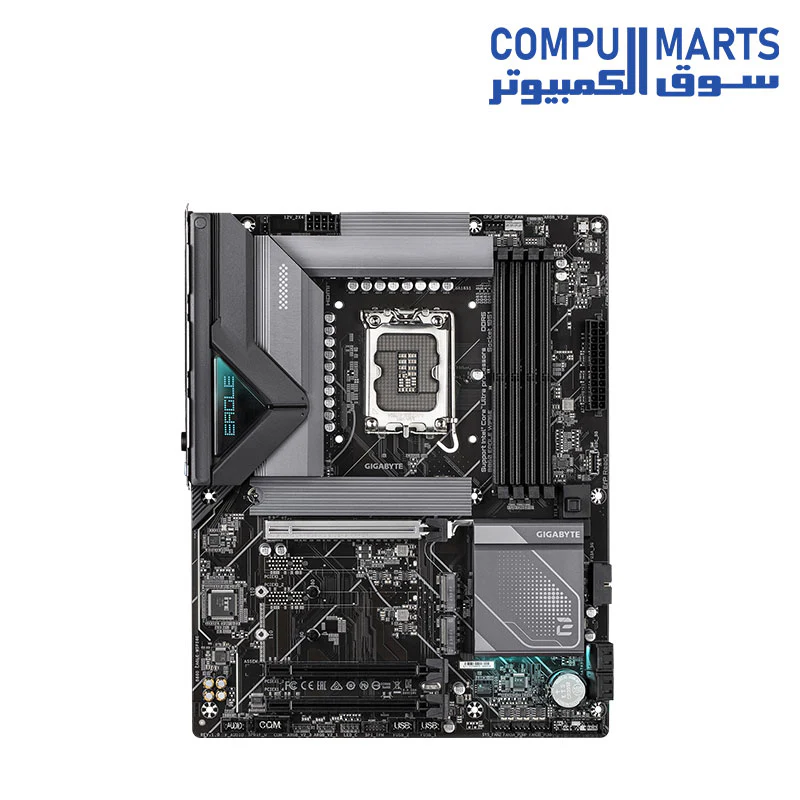

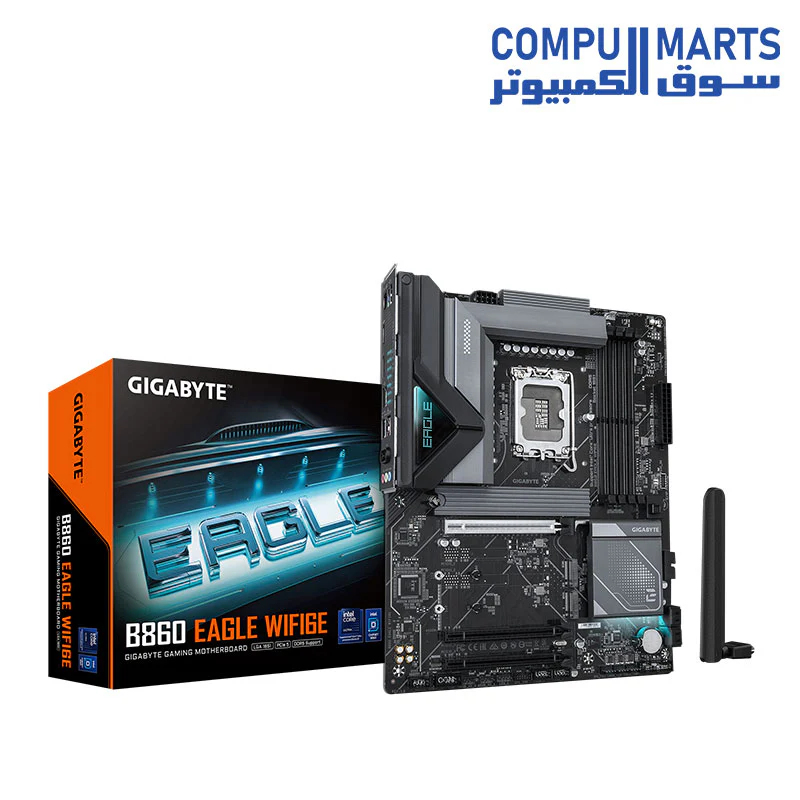

-70%GIGABYTE B860 EAGLE WiFi6E Motherboard – Intel LGA1851 – ATX – DDR5 – PCIe 5.0 – M.2 – WiFi 6E – USB 3.2 – For Intel Core Ultra Processors—
$181.30
$54.39The Story
| Category | Specification Details |
|---|---|
| CPU Support | Socket LGA1851: Supports Intel Core Ultra Processors |
| Chipset | Intel B860 Express Chipset |
| Memory | 4 x DDR5 DIMM (up to 256 GB); Supports up to 9066 MT/s (O.C); Dual-channel; XMP Support |
| Graphics | HDMI 2.1 (4K@60Hz); DisplayPort 2.1 (3840x2160@144Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out |
| Networking | Realtek 2.5GbE LAN; Wi-Fi 6E; Bluetooth 5.3 (2.4/5/6 GHz Dual-band) |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot; 2 x PCIe 4.0 x1 Slots |
| Storage | 1 x M.2 (PCIe 5.0); 2 x M.2 (PCIe 4.0); 4 x SATA 6Gb/s; RAID 0/1/5/10 |
| USB (Rear) | 1 x USB-C (3.2 Gen 2x2); 1 x USB 3.2 Gen 2 (Type-A); 4 x USB 2.0/1.1 |
| Internal Headers | USB-C (3.2 Gen 1); 2x USB 3.2 Gen 1; 4x USB 2.0; 3x ARGB Gen2; 1x RGB |

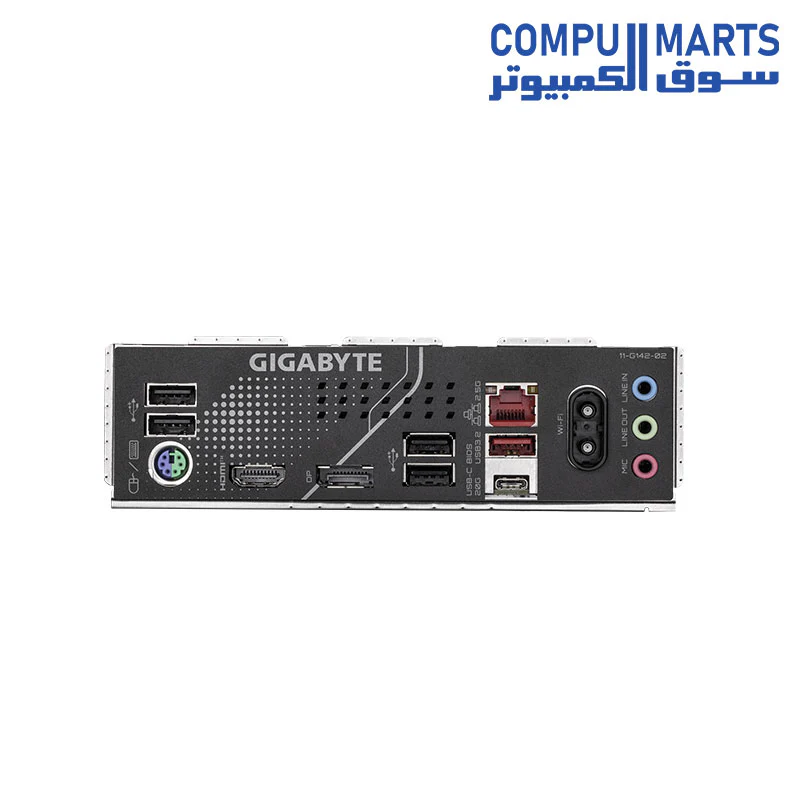

| Back Panel I/O | PS/2 Port; HDMI; DP; RJ-45 LAN; 2x Antenna; 3x Audio Jacks |
| Special Features | Gigabyte Control Center (GCC); Q-Flash / Q-Flash Plus; Smart Backup |
| Form Factor | ATX Form Factor; 30.5 cm x 24.4 cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | Socket LGA1851: Supports Intel Core Ultra Processors |
| Chipset | Intel B860 Express Chipset |
| Memory | 4 x DDR5 DIMM (up to 256 GB); Supports up to 9066 MT/s (O.C); Dual-channel; XMP Support |
| Graphics | HDMI 2.1 (4K@60Hz); DisplayPort 2.1 (3840x2160@144Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out |
| Networking | Realtek 2.5GbE LAN; Wi-Fi 6E; Bluetooth 5.3 (2.4/5/6 GHz Dual-band) |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot; 2 x PCIe 4.0 x1 Slots |
| Storage | 1 x M.2 (PCIe 5.0); 2 x M.2 (PCIe 4.0); 4 x SATA 6Gb/s; RAID 0/1/5/10 |
| USB (Rear) | 1 x USB-C (3.2 Gen 2x2); 1 x USB 3.2 Gen 2 (Type-A); 4 x USB 2.0/1.1 |
| Internal Headers | USB-C (3.2 Gen 1); 2x USB 3.2 Gen 1; 4x USB 2.0; 3x ARGB Gen2; 1x RGB |
| Back Panel I/O | PS/2 Port; HDMI; DP; RJ-45 LAN; 2x Antenna; 3x Audio Jacks |
| Special Features | Gigabyte Control Center (GCC); Q-Flash / Q-Flash Plus; Smart Backup |
| Form Factor | ATX Form Factor; 30.5 cm x 24.4 cm |
