$148.87
GIGABYTE B760M GAMING X GEN5 – AM5/Intel LGA 1700 DDR5 Micro‑ATX Motherboard—
$148.87
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (Up to 256 GB); Supports up to DDR5 7600(O.C.), Dual Channel, XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz), 1 x DisplayPort 1.2 (4096x2304@60 Hz) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 3.0 x4 (Chipset) |
| Storage Interface | 2 x M.2 Connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 Support |
| USB | 1 x USB Type-C® (Gen 2), 5 x USB 3.2 Gen 1, 9 x USB 2.0/1.1 (Total internal + back panel) |
| Internal I/O | 3 x Addressable LED, 1 x RGB LED, 2 x Thunderbolt™ headers, Q-Flash Plus button, TPM header |

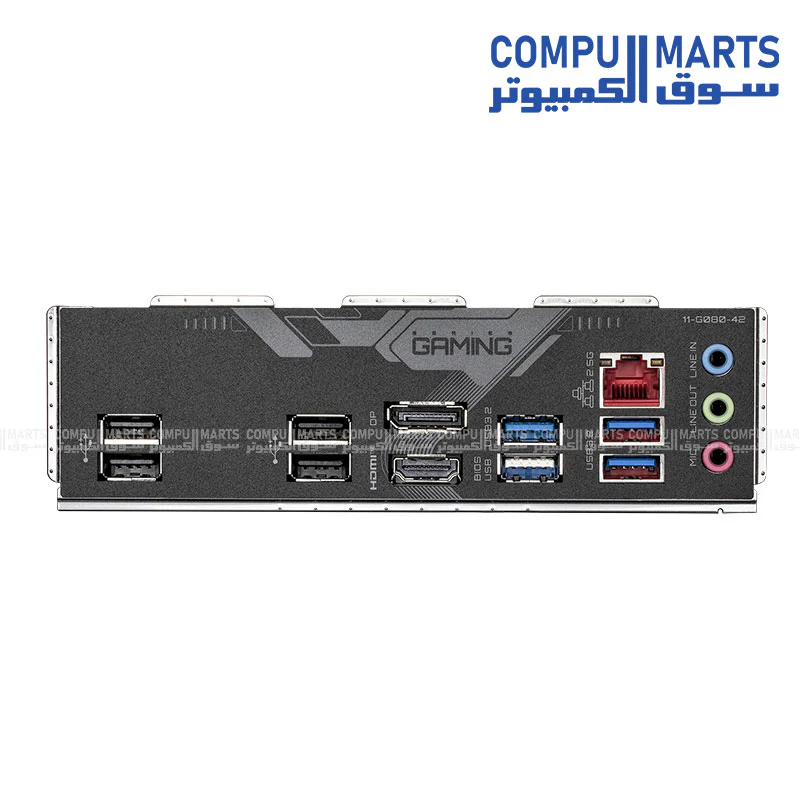

| Back Panel | 3 x USB 3.2 Gen 1, 5 x USB 2.0, 1 x HDMI, 1 x DP, 1 x RJ-45, 3 x Audio Jacks |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets (Up to 256 GB); Supports up to DDR5 7600(O.C.), Dual Channel, XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz), 1 x DisplayPort 1.2 (4096x2304@60 Hz) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 3.0 x4 (Chipset) |
| Storage Interface | 2 x M.2 Connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/5/10 Support |
| USB | 1 x USB Type-C® (Gen 2), 5 x USB 3.2 Gen 1, 9 x USB 2.0/1.1 (Total internal + back panel) |
| Internal I/O | 3 x Addressable LED, 1 x RGB LED, 2 x Thunderbolt™ headers, Q-Flash Plus button, TPM header |
| Back Panel | 3 x USB 3.2 Gen 1, 5 x USB 2.0, 1 x HDMI, 1 x DP, 1 x RJ-45, 3 x Audio Jacks |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
