$31.49
Original: $104.97

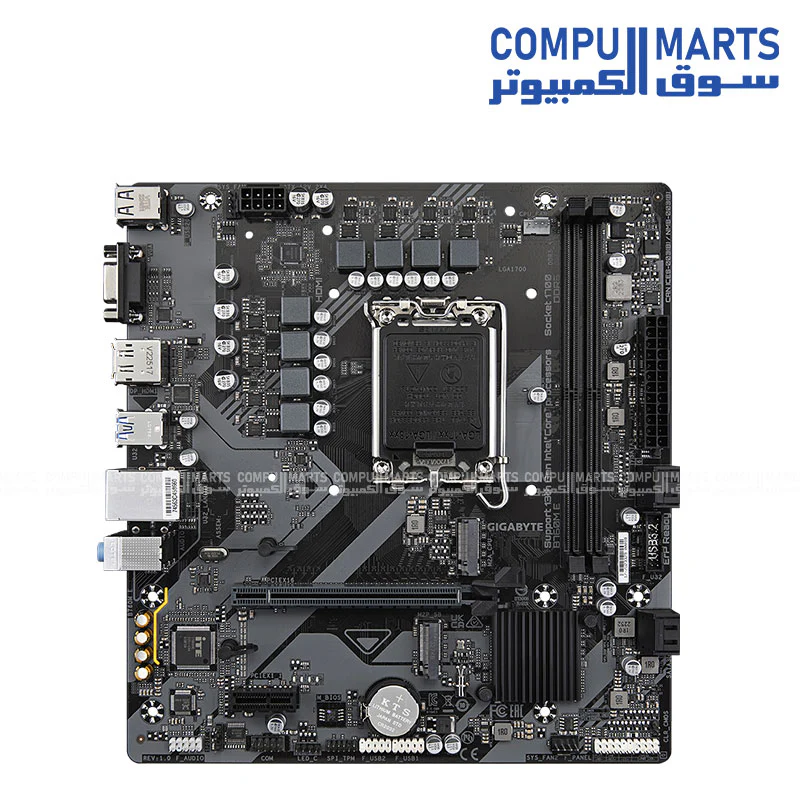

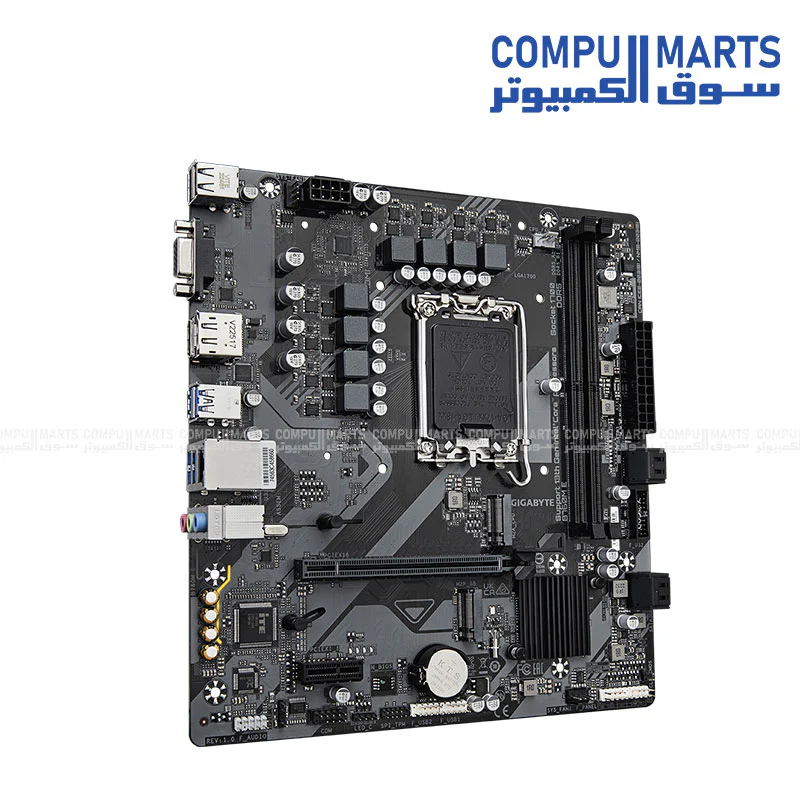

-70%GIGABYTE B760M E DDR5 Motherboard – LGA1700, Intel B760, PCIe 4.0, Dual M.2—
$104.97
$31.49The Story
| Category | Specification Details |
|---|---|
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | Support for DDR5 7200(O.C.) to 4000 MT/s; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity); Dual channel architecture; Support for ECC Un-buffered and non-ECC Un-buffered DIMM; Support for XMP modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub (1920x1200@60 Hz), 1 x DisplayPort 1.2 (4096x2304@60 Hz), 1 x HDMI 2.1 (4096x2160@60 Hz); Support for up to triple-display |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot (PCIe 4.0 x16); Chipset: 1 x PCI Express x1 slot (PCIe 3.0 x1) |
| Storage Interface | CPU: 1 x M.2 (PCIe 4.0 x4/x2); Chipset: 1 x M.2 (PCIe 4.0 x4/x2) and 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support for SATA |
| USB | Chipset: 6 x USB 3.2 Gen 1 (4 back, 2 internal), 6 x USB 2.0/1.1 (2 back, 4 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 1 x RGB LED, 2 x M.2, 4 x SATA, Front panel headers (Audio, USB 3.2, USB 2.0), S/PDIF Out, TPM header, Serial port, Clear CMOS |

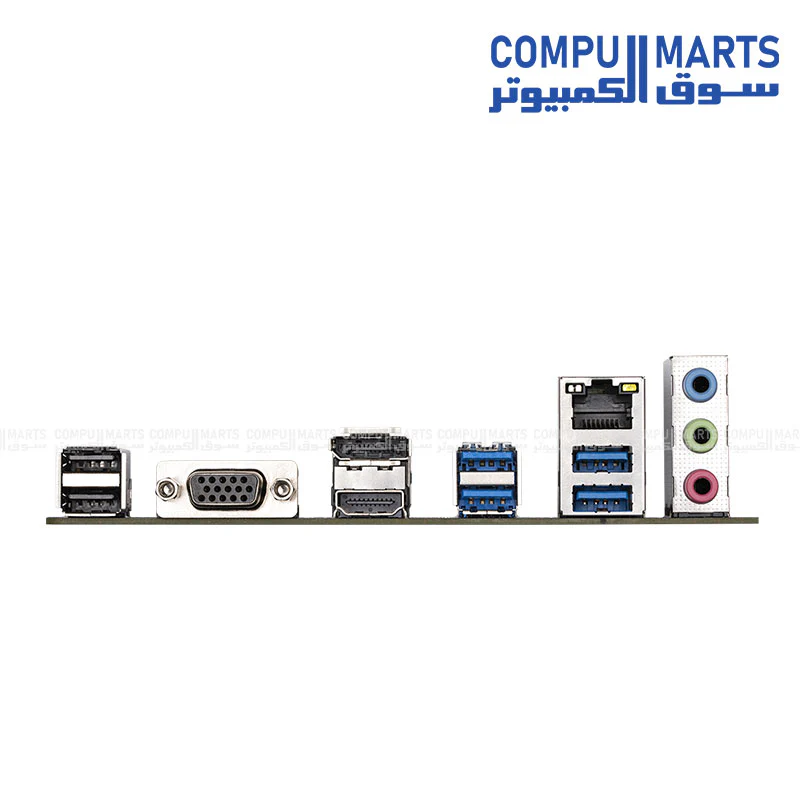

| Back Panel Connectors | 2 x USB 2.0/1.1, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection; Fan fail warning; Fan speed control |
| BIOS | 1 x 128 Mbit flash; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC); Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version); LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit; Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
