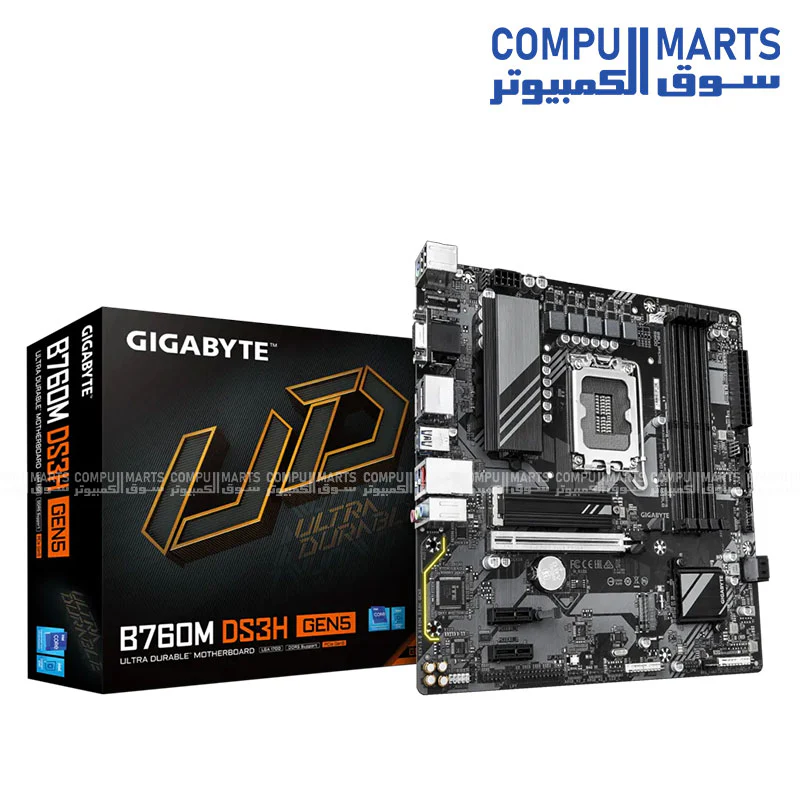

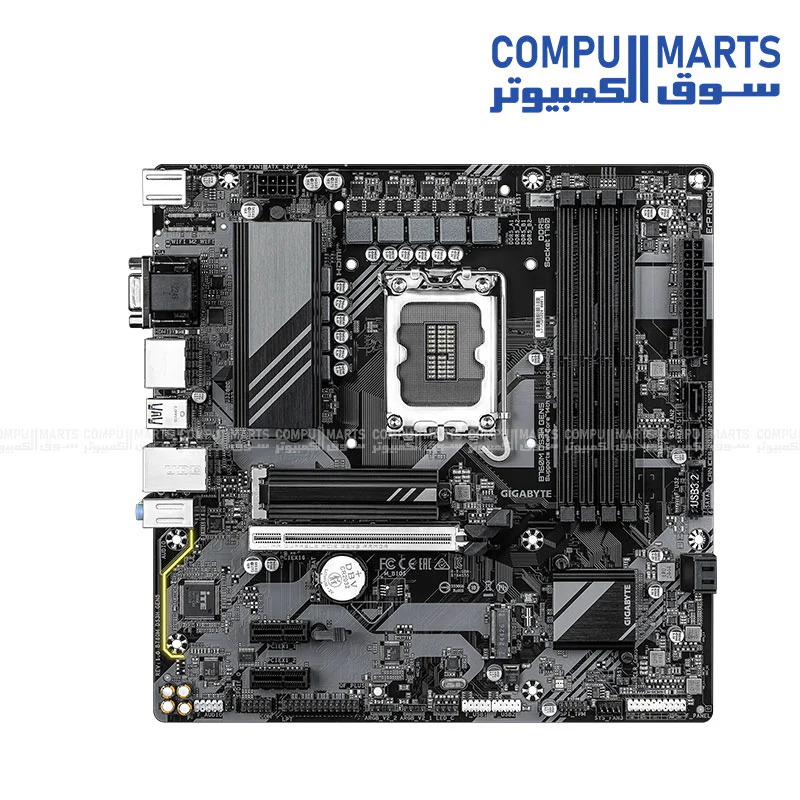

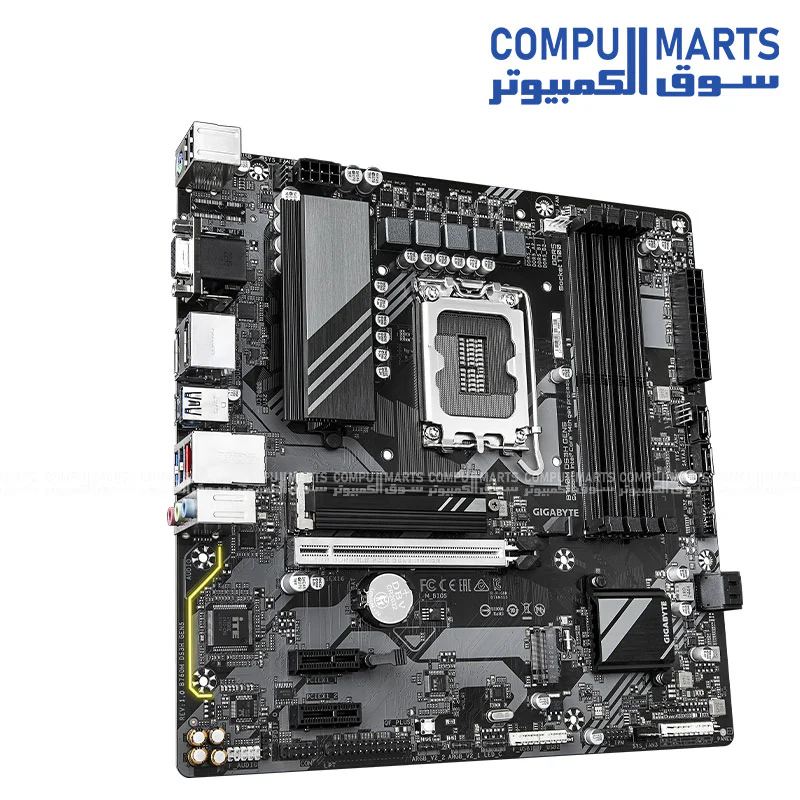

GIGABYTE B760M DS3H GEN5 – LGA1700 DDR5 Micro‑ATX Motherboard (Intel 12/13/14‑Gen)—
$118.33
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support for up to DDR5 7600(O.C.); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x HDMI 2.1, 2 x DisplayPort 1.2, 1 x D-Sub (Supports up to quad-display) |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel; High Definition Audio; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB Ports | 1 x USB Type-C® (USB 3.2 Gen 2); 5 x USB 3.2 Gen 1; 6 x USB 2.0/1.1 |
| Internal I/O | 24-pin ATX, 8-pin 12V, 1 x CPU Fan, 3 x System Fan, 2 x ARGB Gen2, 1 x RGB, Q-Flash Plus button |

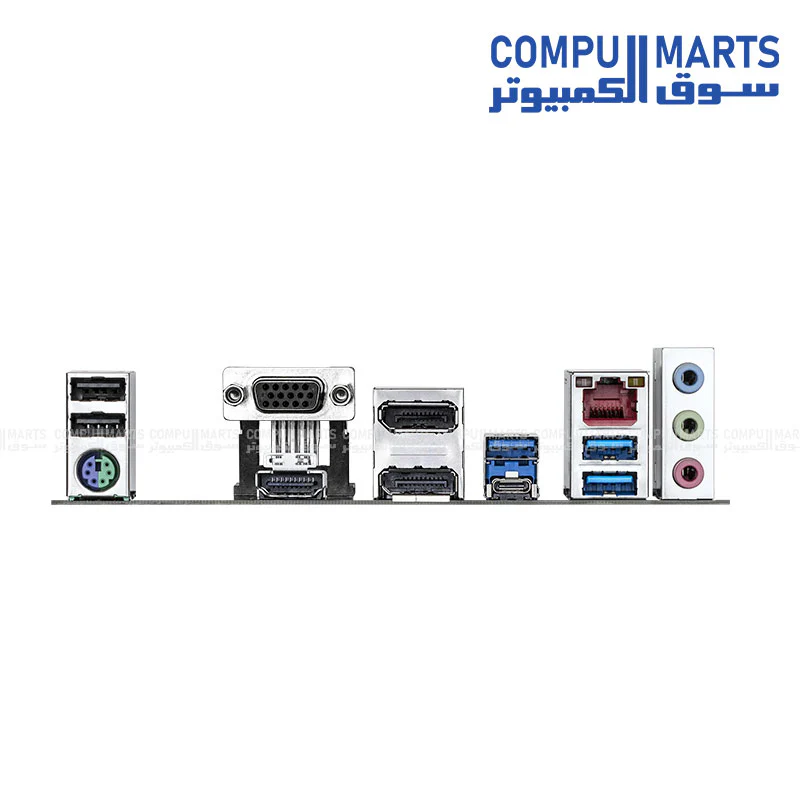

| Back Panel I/O | USB-C, 3 x USB 3.2, 2 x USB 2.0, HDMI, 2 x DP, D-Sub, RJ-45, 3 x Audio Jacks, PS/2 port |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support for up to DDR5 7600(O.C.); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x HDMI 2.1, 2 x DisplayPort 1.2, 1 x D-Sub (Supports up to quad-display) |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel; High Definition Audio; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage Interface | 2 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB Ports | 1 x USB Type-C® (USB 3.2 Gen 2); 5 x USB 3.2 Gen 1; 6 x USB 2.0/1.1 |
| Internal I/O | 24-pin ATX, 8-pin 12V, 1 x CPU Fan, 3 x System Fan, 2 x ARGB Gen2, 1 x RGB, Q-Flash Plus button |
| Back Panel I/O | USB-C, 3 x USB 3.2, 2 x USB 2.0, HDMI, 2 x DP, D-Sub, RJ-45, 3 x Audio Jacks, PS/2 port |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
