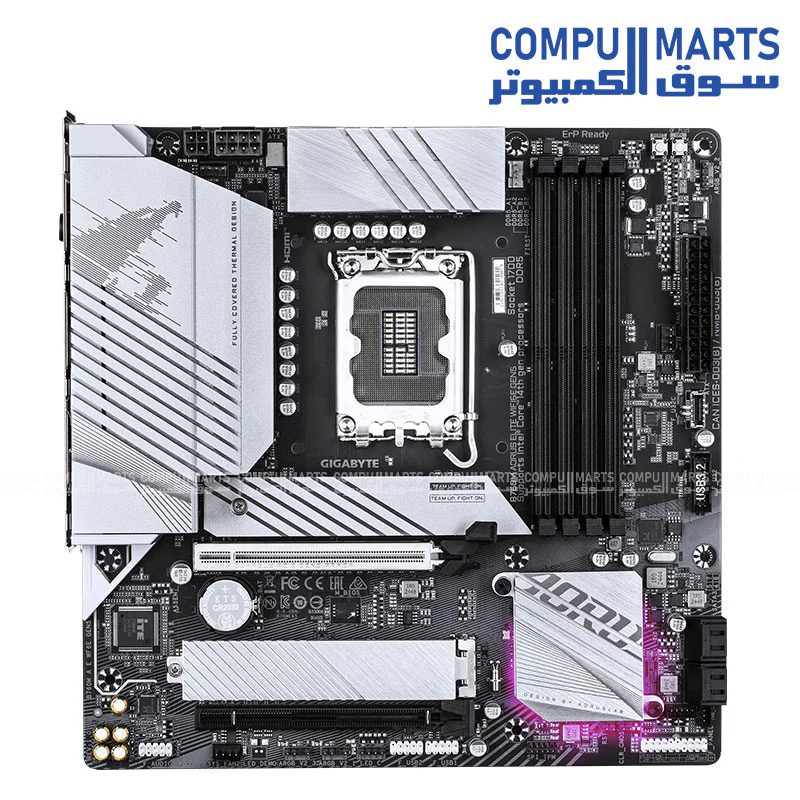

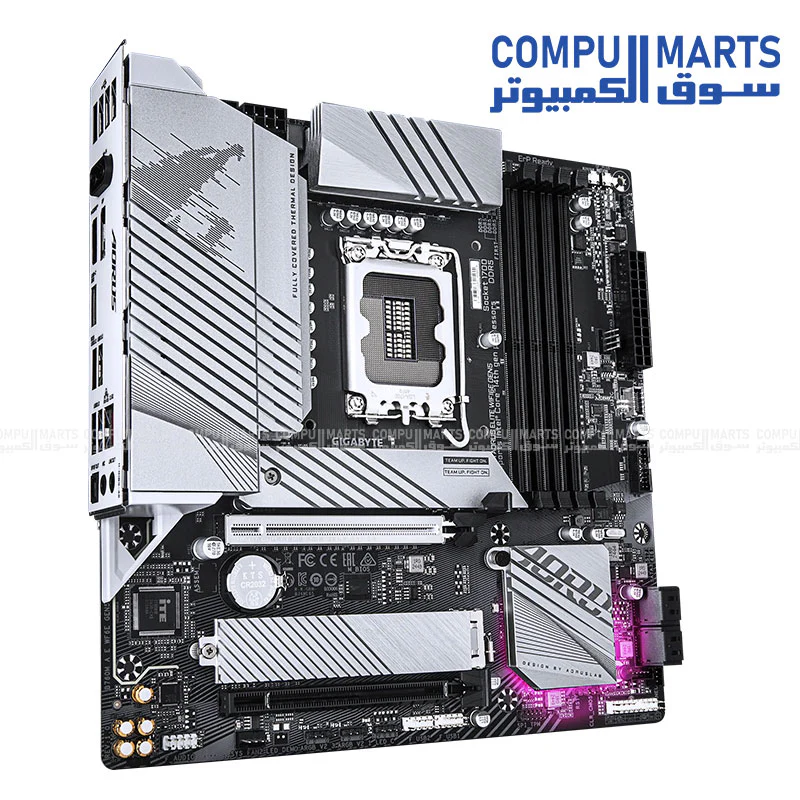

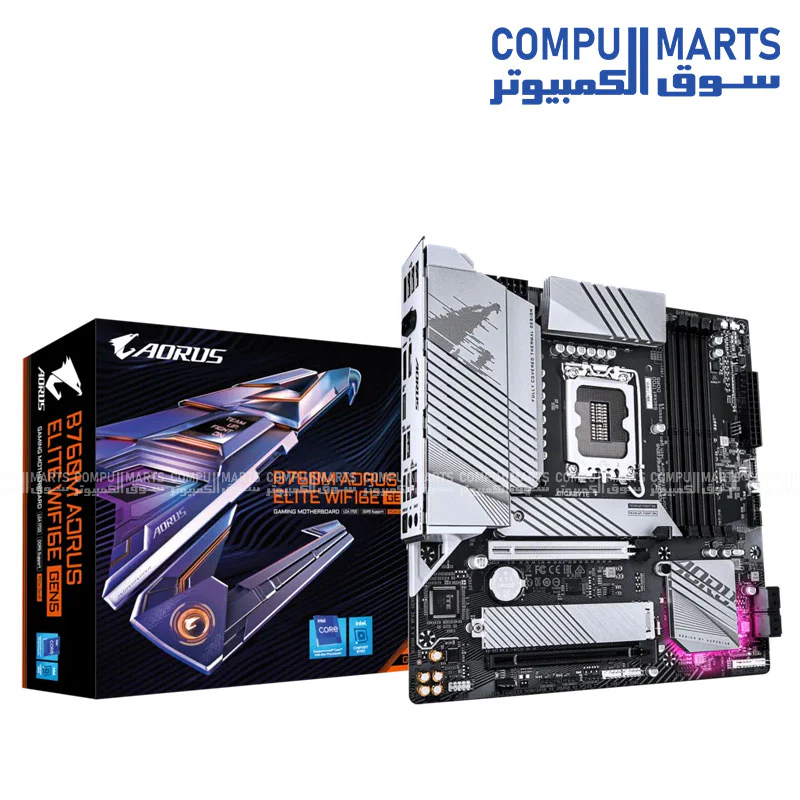

GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard – Intel LGA1700 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – WiFi 6E – USB 3.2 – Supports Intel 14th / 13th / 12th Gen
GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard – Intel LGA1700 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – WiFi 6E – USB 3.2 – Supports Intel 14th / 13th / 12th Gen
$54.40
Original: $181.32
-70%GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard – Intel LGA1700 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – WiFi 6E – USB 3.2 – Supports Intel 14th / 13th / 12th Gen—
$181.32
$54.40The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DDR5 DIMM slots (Up to 256GB); Support for Dual Channel & XMP; Speeds up to 5600 MT/s (depending on CPU) |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz), 1 x DisplayPort 1.2 (4096x2304@60Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel Wi-Fi 6E AX210 (2.4/5/6 GHz); Bluetooth 5.3; 11ax 160MHz support |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 @ x4 (Chipset) |
| Storage Interface | 2 x M.2 Socket 3 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |

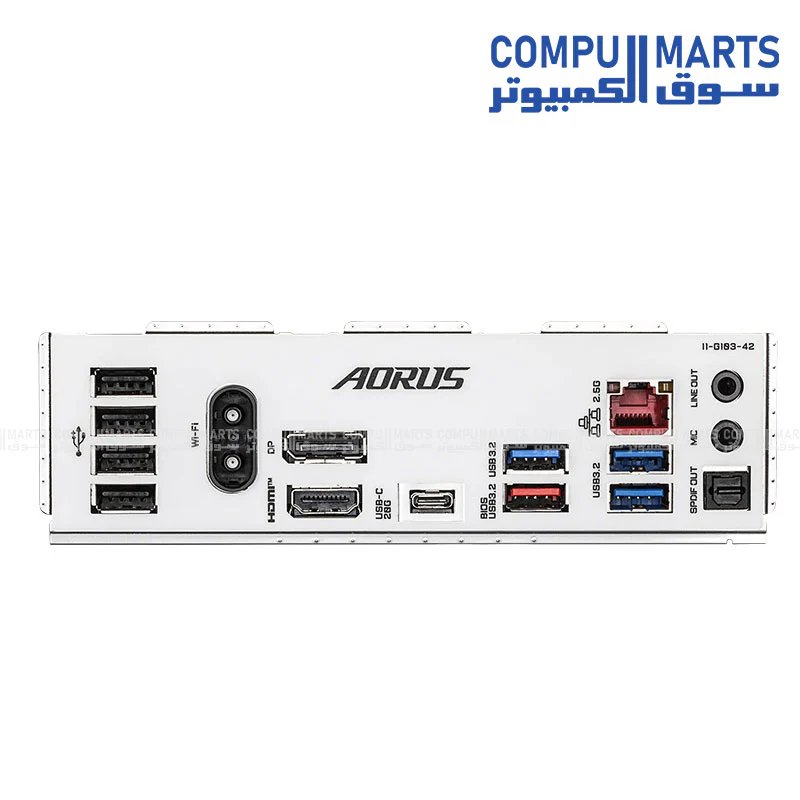

| USB (Back Panel) | 1 x USB-C (3.2 Gen 2x2); 1 x USB 3.2 Gen 2 (Red); 3 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB-C (3.2 Gen 2); 1 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| Internal I/O | Q-Flash Plus button, Reset button, 3 x ARGB Gen2 headers, 2 x Thunderbolt headers |
| Hardware Monitoring | Voltage, Temperature, Fan speed, and Water cooling flow rate detection |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| Operating System | Windows 11 64-bit / Windows 10 64-bit support |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DDR5 DIMM slots (Up to 256GB); Support for Dual Channel & XMP; Speeds up to 5600 MT/s (depending on CPU) |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz), 1 x DisplayPort 1.2 (4096x2304@60Hz) |
| Audio | Realtek Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel Wi-Fi 6E AX210 (2.4/5/6 GHz); Bluetooth 5.3; 11ax 160MHz support |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x16 @ x4 (Chipset) |
| Storage Interface | 2 x M.2 Socket 3 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB (Back Panel) | 1 x USB-C (3.2 Gen 2x2); 1 x USB 3.2 Gen 2 (Red); 3 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB-C (3.2 Gen 2); 1 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| Internal I/O | Q-Flash Plus button, Reset button, 3 x ARGB Gen2 headers, 2 x Thunderbolt headers |
| Hardware Monitoring | Voltage, Temperature, Fan speed, and Water cooling flow rate detection |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| Operating System | Windows 11 64-bit / Windows 10 64-bit support |
