$50.96
Original: $169.87

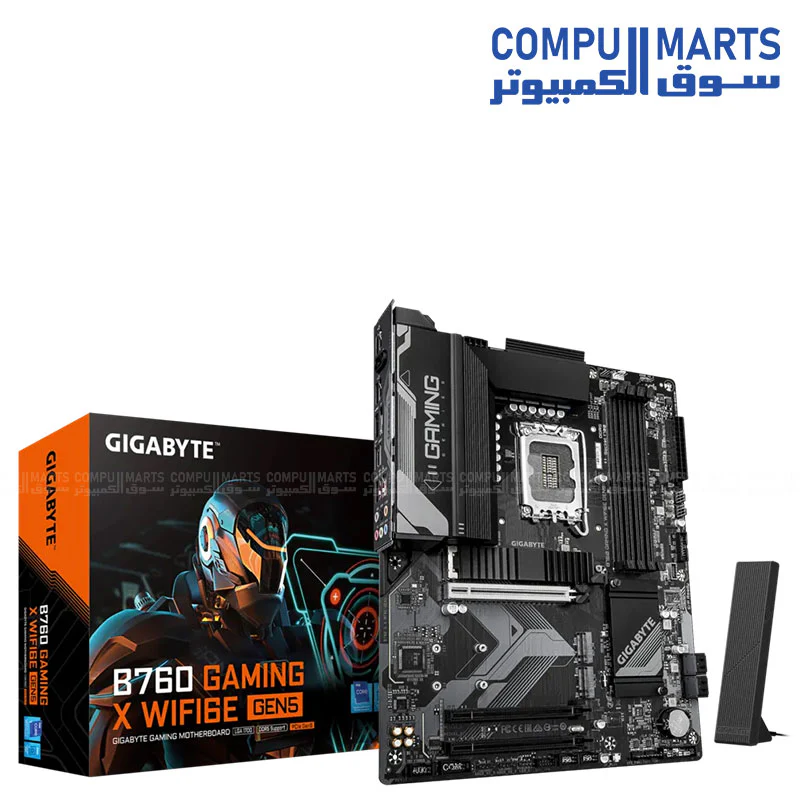

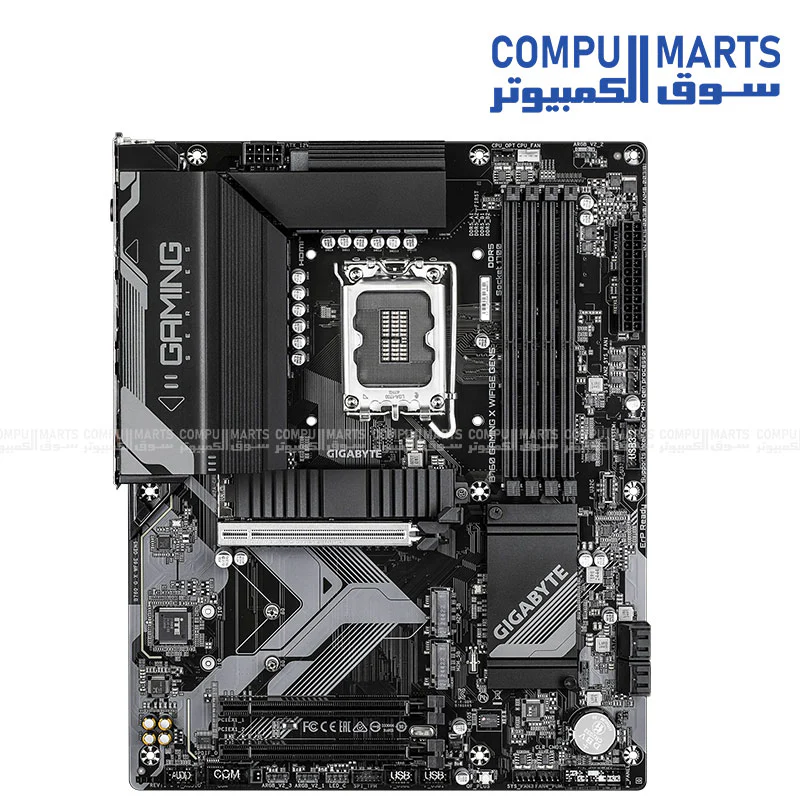

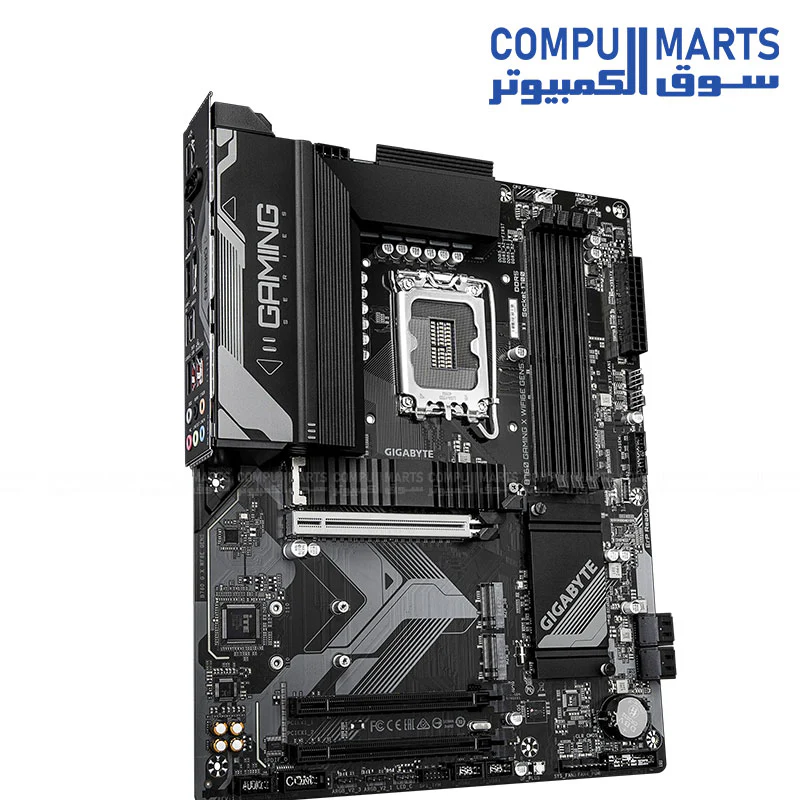

-70%GIGABYTE B760 GAMING X WIFI6E GEN5 – Intel LGA 1700 ATX DDR5 Motherboard—
$169.87
$50.96The Story
| Category | Specification Details |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5; Support for up to 5600 MT/s (varies by CPU); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x DisplayPort (4096x2304@60 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel Wi-Fi 6E AX210; 802.11 a/b/g/n/ac/ax (2.4/5/6 GHz); Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x16 (running at x1, Chipset) |
| Storage Interface | 3 x M.2 Socket 3 (PCIe 4.0 x4/x2 support); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support for SATA |
| USB (Back Panel) | 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C (Gen 1), 1 x USB 3.2 Gen 1, 5 x USB 2.0/1.1 |
| Internal I/O | 1 x USB Type-C header (Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable RGB Gen2 headers, 1 x RGB LED strip header |
| Special Features | Q-Flash Plus, GIGABYTE Control Center (GCC), Smart Backup |

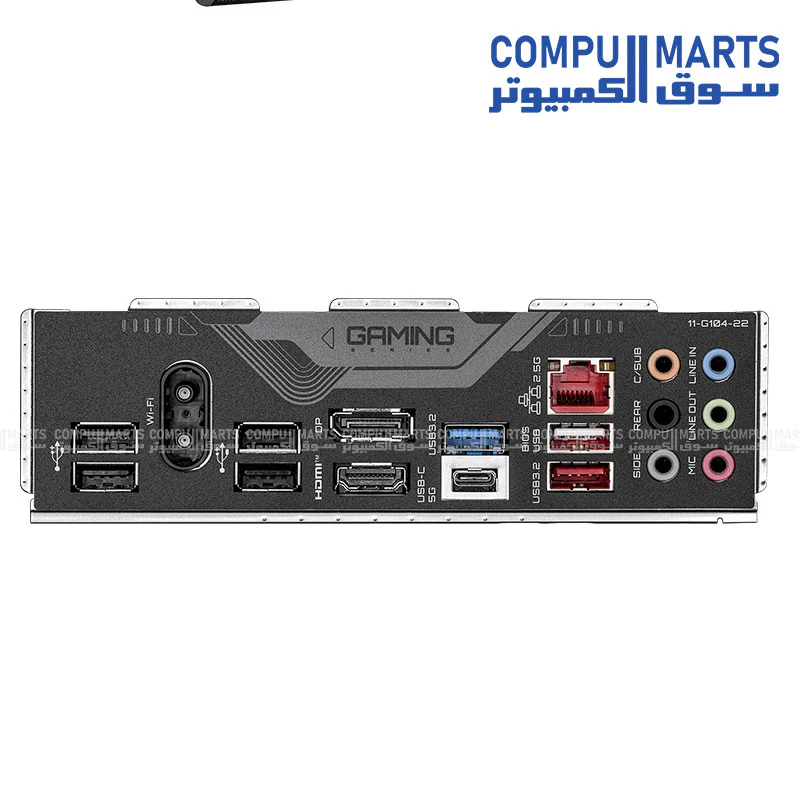

| Back Panel I/O | 2 x antenna connectors (2T2R), 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 6 x audio jacks, multiple USB ports |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11 64-bit and Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5; Support for up to 5600 MT/s (varies by CPU); Dual channel architecture; XMP support |
| Onboard Graphics | 1 x DisplayPort (4096x2304@60 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel Wi-Fi 6E AX210; 802.11 a/b/g/n/ac/ax (2.4/5/6 GHz); Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x16 (running at x1, Chipset) |
| Storage Interface | 3 x M.2 Socket 3 (PCIe 4.0 x4/x2 support); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support for SATA |
| USB (Back Panel) | 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C (Gen 1), 1 x USB 3.2 Gen 1, 5 x USB 2.0/1.1 |
| Internal I/O | 1 x USB Type-C header (Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable RGB Gen2 headers, 1 x RGB LED strip header |
| Special Features | Q-Flash Plus, GIGABYTE Control Center (GCC), Smart Backup |
| Back Panel I/O | 2 x antenna connectors (2T2R), 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 6 x audio jacks, multiple USB ports |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11 64-bit and Windows 10 64-bit |
