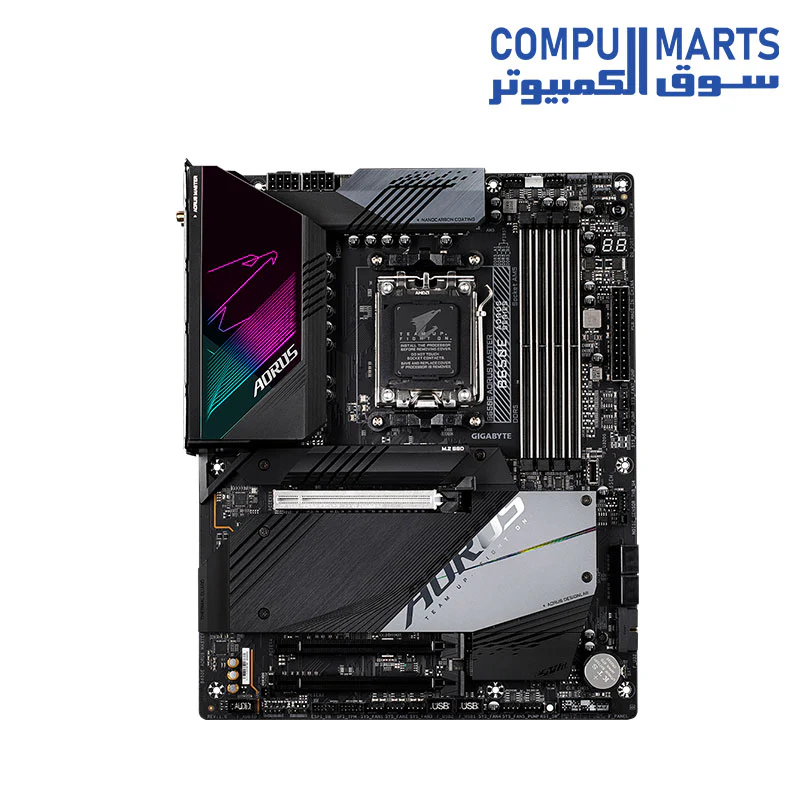

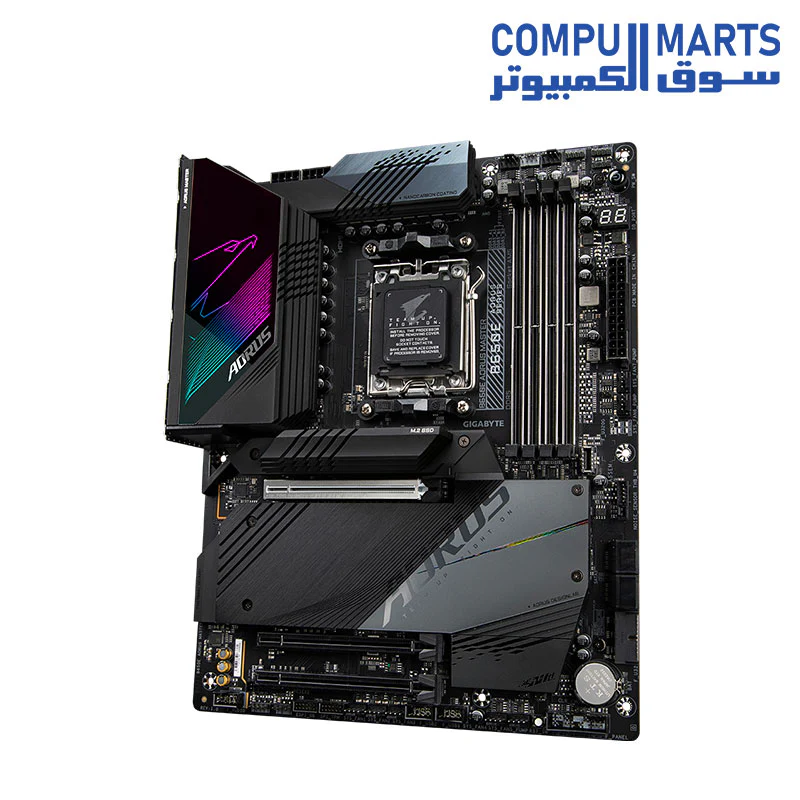

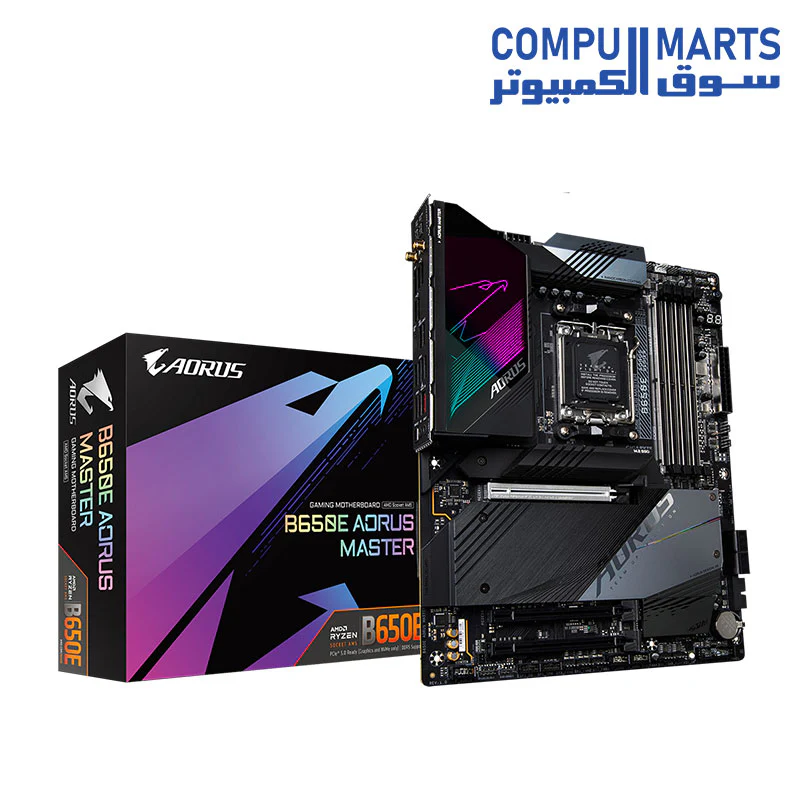

GIGABYTE B650E AORUS MASTER Motherboard—
$410.35
The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5, support for AMD Ryzen™ 7000 / 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM (Up to 192GB), Supports up to DDR5 8000(OC), AMD EXPO™ & Intel® XMP |
| Onboard Graphics | 1 x HDMI 2.1 (7680x4320 @ 60 Hz), HDR & HDCP 2.3 Support |
| Audio | Realtek® ALC1220-VB CODEC + ESS ES9118 DAC, DTS:X® Ultra, S/PDIF Out |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | AMD Wi-Fi 6E RZ616, Bluetooth 5.2, Supports 2.4/5/6 GHz bands |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 7000), 2 x PCIe 4.0 x16 (running @ x4 and x2) |
| Storage | 4 x M.2 Sockets (PCIe 5.0/4.0 support depending on CPU), 4 x SATA 6Gb/s, RAID 0/1/10 |

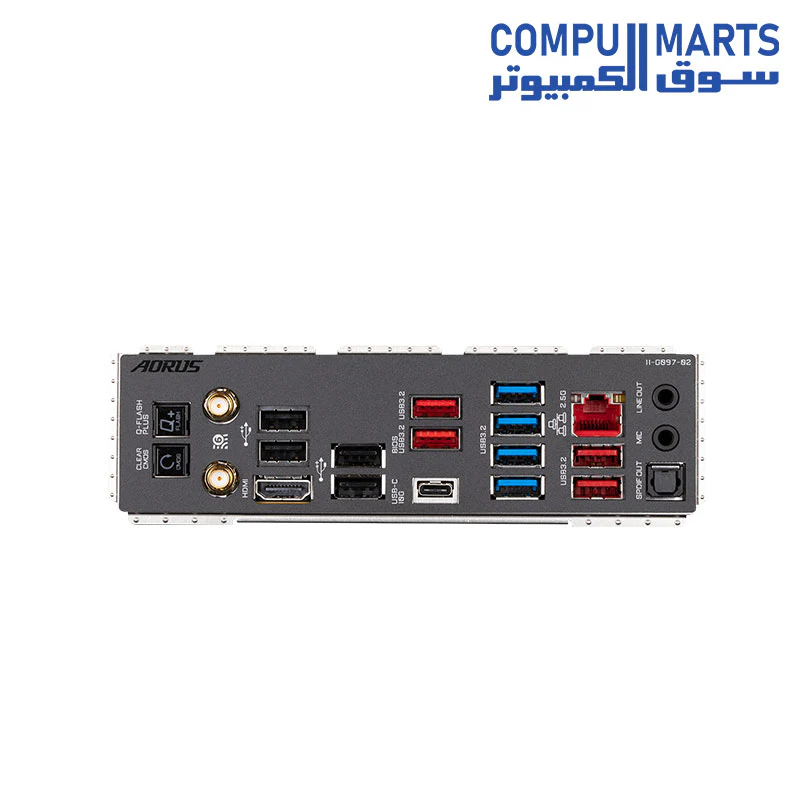

| USB (Back Panel) | 1 x USB-C (3.2 Gen 2), 4 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | 1 x Front USB-C (3.2 Gen 2x2), 2 x ARGB & 2 x RGB headers, Q-Flash Plus & Clear CMOS buttons |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5, support for AMD Ryzen™ 7000 / 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM (Up to 192GB), Supports up to DDR5 8000(OC), AMD EXPO™ & Intel® XMP |
| Onboard Graphics | 1 x HDMI 2.1 (7680x4320 @ 60 Hz), HDR & HDCP 2.3 Support |
| Audio | Realtek® ALC1220-VB CODEC + ESS ES9118 DAC, DTS:X® Ultra, S/PDIF Out |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | AMD Wi-Fi 6E RZ616, Bluetooth 5.2, Supports 2.4/5/6 GHz bands |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 7000), 2 x PCIe 4.0 x16 (running @ x4 and x2) |
| Storage | 4 x M.2 Sockets (PCIe 5.0/4.0 support depending on CPU), 4 x SATA 6Gb/s, RAID 0/1/10 |
| USB (Back Panel) | 1 x USB-C (3.2 Gen 2), 4 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | 1 x Front USB-C (3.2 Gen 2x2), 2 x ARGB & 2 x RGB headers, Q-Flash Plus & Clear CMOS buttons |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
