$80.16
Original: $267.20

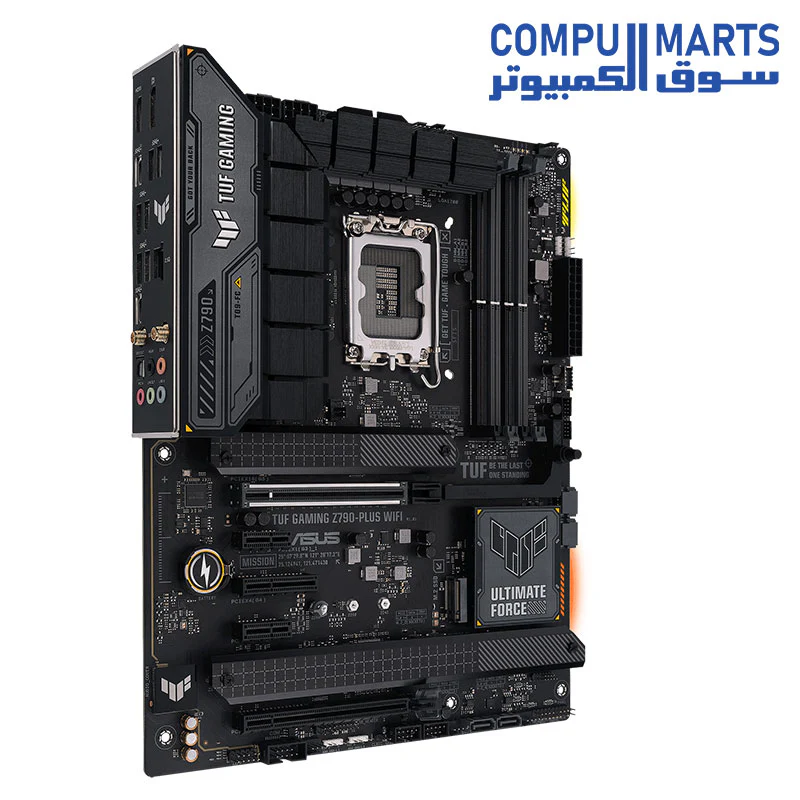

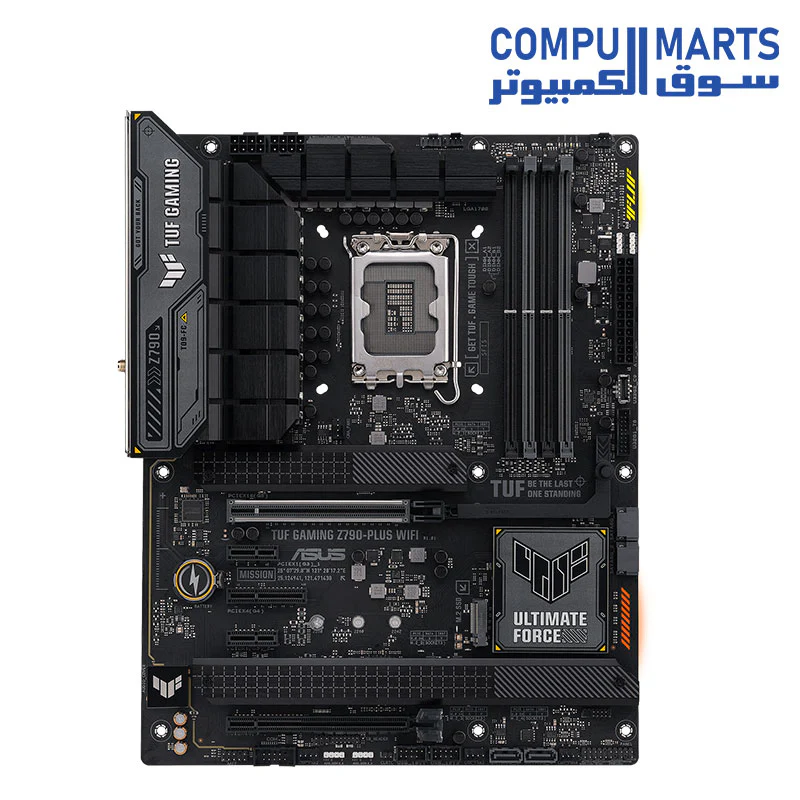

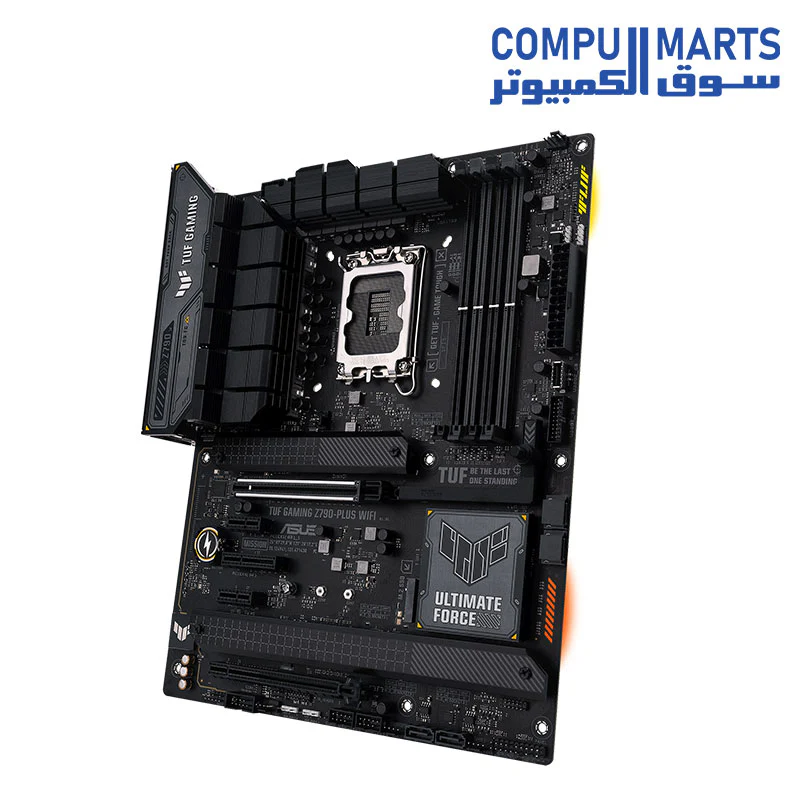

-70%ASUS TUF Gaming Z790-Plus WiFi LGA 1700 DDR5—
$267.20
$80.16The Story
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING Z790-PLUS WIFI |
| CPU Support | Intel Socket LGA1700 for Intel Core 14th, 13th & 12th Gen Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200(OC) to 4800 Non-ECC, Un-buffered Memory, Dual Channel, Intel Extreme Memory Profile (XMP), OptiMem II |
| Graphics | 1 x DisplayPort, 1 x HDMI port |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU), 1 x PCIe 4.0 x16 slot (x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 3.0 x1 slots (Chipset) |
| Storage | 4 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports, Supports NVMe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Ethernet | 1 x Intel 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2.4/5/6GHz), Bluetooth v5.3 |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 3 x USB 3.2 Gen 2 (2 x Type-A + 1 x Type-C), 4 x USB 3.2 Gen 1 (4 x Type-A) |
| Front USB Ports | 1 x USB 3.2 Gen 2 (Type-C), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, 120 dB SNR playback, 113 dB SNR recording, Up to 32-Bit/192 kHz |
| Power Design | 16(60A)+1(60A)+1 Power Stages, Digi+ VRM, 8+8 PIN ProCool Power Connectors |
| Thermal Features | AI Cooling II, VRM Heatsinks, M.2 Heatsinks, 6-Layer PCB, 4-pin Chassis/CPU/AIO Fan headers |
| Special Features | PCIe Q-Release, M.2 Q-Latch, Q-LED Troubleshooting, Two-Way AI Noise Cancelation, Aura Sync RGB |
| Back Panel I/O | USB ports, DisplayPort, HDMI, Wi-Fi Module, 2.5Gb Ethernet, 5 x Audio jacks, Optical S/PDIF out |
| Internal I/O | Thunderbolt 4 (USB4) header, Addressable Gen 2 headers, Aura RGB header, COM Port header |
| Accessories | 2 x SATA 6Gb/s cables, ASUS Wi-Fi moving antenna, TUF GAMING sticker, M.2 Screw/Rubber packages |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING Z790-PLUS WIFI |
| CPU Support | Intel Socket LGA1700 for Intel Core 14th, 13th & 12th Gen Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200(OC) to 4800 Non-ECC, Un-buffered Memory, Dual Channel, Intel Extreme Memory Profile (XMP), OptiMem II |
| Graphics | 1 x DisplayPort, 1 x HDMI port |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU), 1 x PCIe 4.0 x16 slot (x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 3.0 x1 slots (Chipset) |
| Storage | 4 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports, Supports NVMe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Ethernet | 1 x Intel 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2.4/5/6GHz), Bluetooth v5.3 |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 3 x USB 3.2 Gen 2 (2 x Type-A + 1 x Type-C), 4 x USB 3.2 Gen 1 (4 x Type-A) |
| Front USB Ports | 1 x USB 3.2 Gen 2 (Type-C), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, 120 dB SNR playback, 113 dB SNR recording, Up to 32-Bit/192 kHz |
| Power Design | 16(60A)+1(60A)+1 Power Stages, Digi+ VRM, 8+8 PIN ProCool Power Connectors |
| Thermal Features | AI Cooling II, VRM Heatsinks, M.2 Heatsinks, 6-Layer PCB, 4-pin Chassis/CPU/AIO Fan headers |
| Special Features | PCIe Q-Release, M.2 Q-Latch, Q-LED Troubleshooting, Two-Way AI Noise Cancelation, Aura Sync RGB |
| Back Panel I/O | USB ports, DisplayPort, HDMI, Wi-Fi Module, 2.5Gb Ethernet, 5 x Audio jacks, Optical S/PDIF out |
| Internal I/O | Thunderbolt 4 (USB4) header, Addressable Gen 2 headers, Aura RGB header, COM Port header |
| Accessories | 2 x SATA 6Gb/s cables, ASUS Wi-Fi moving antenna, TUF GAMING sticker, M.2 Screw/Rubber packages |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
