$171.77

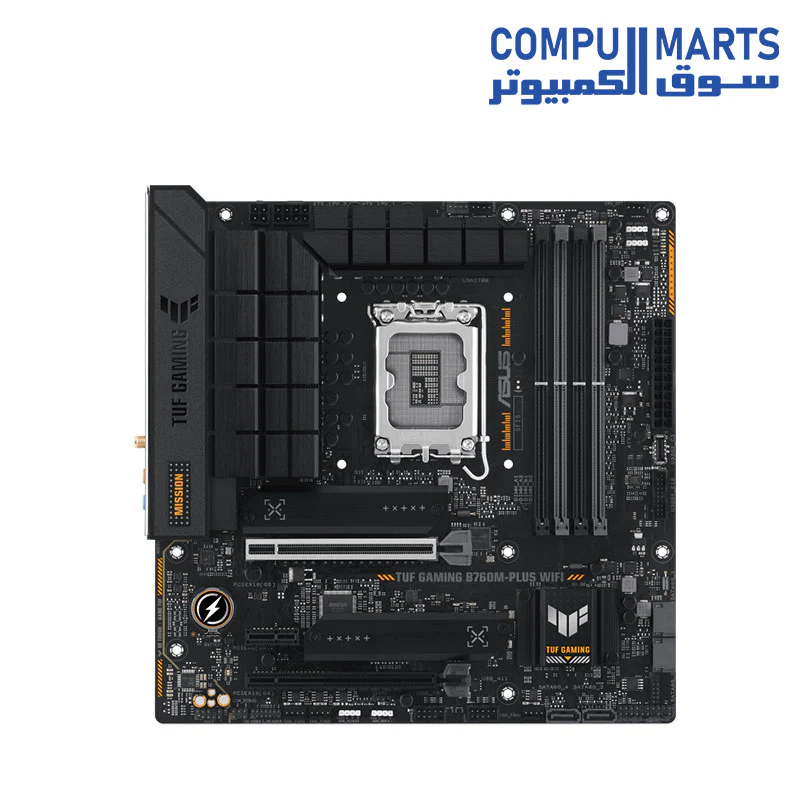

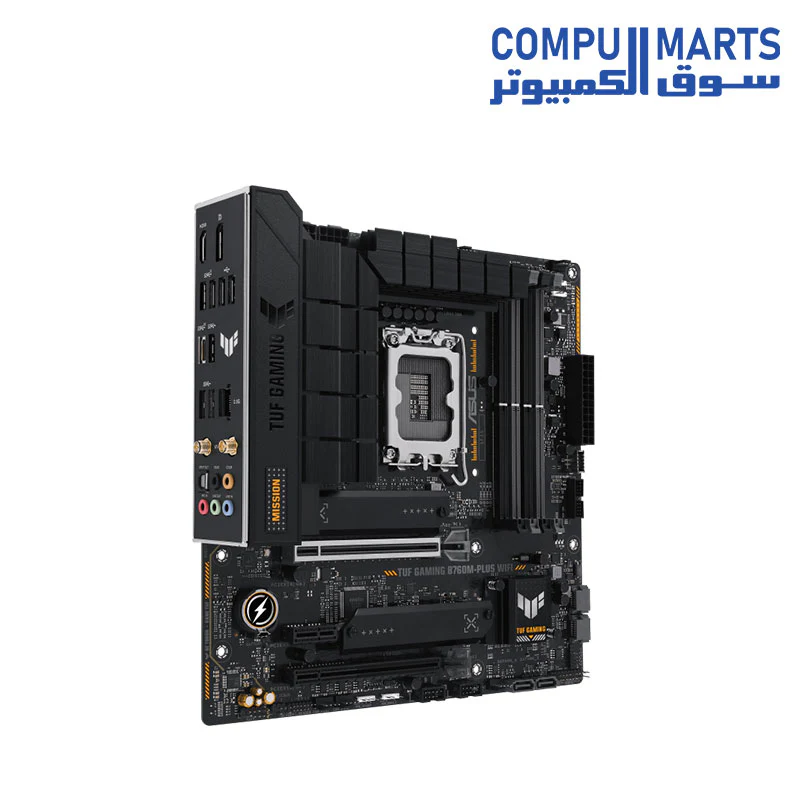

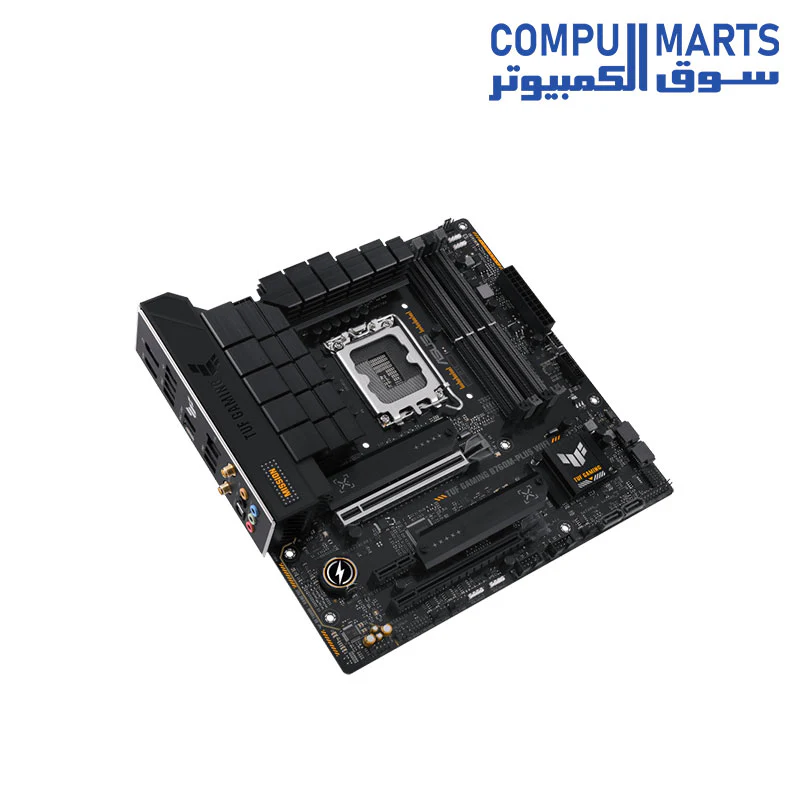

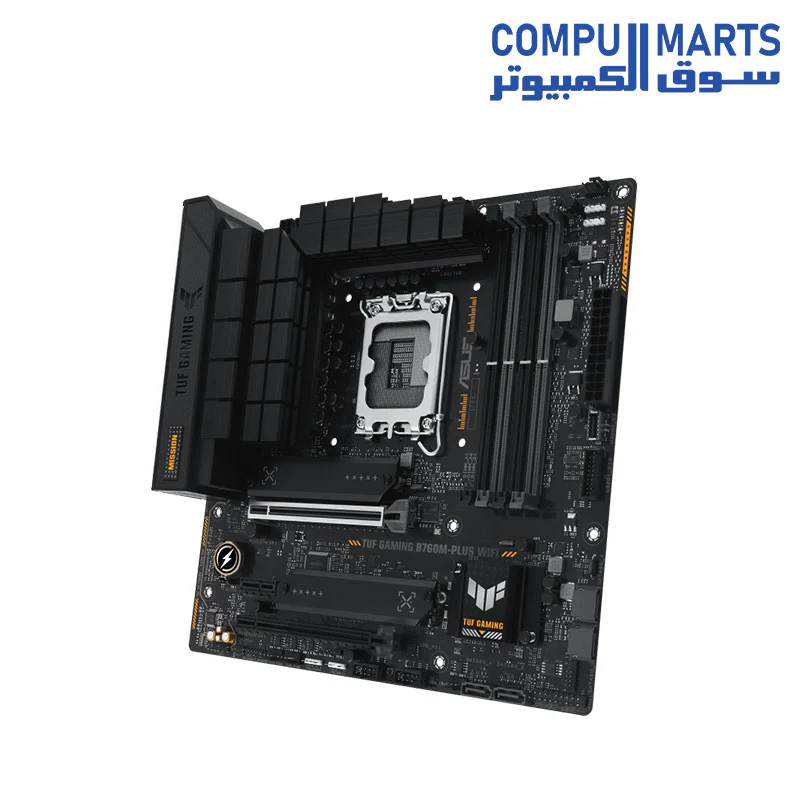

ASUS TUF GAMING B760M-PLUS WIFI—
$171.77
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B760M-PLUS WIFI |
| CPU | Intel Socket LGA1700 for 13 Gen Intel Core & 12 Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | Intel 13 & 12 Gen Processors: 1 x PCIe 5.0 x16 slot; Intel B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel 13 & 12 Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet; TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2x2; Supports 2.4/5GHz frequency band; Bluetooth v5.2 |
| USB | Rear USB: 1 x USB 3.2 Gen 2x2 (Type-C), 2 x USB 3.2 Gen 2 (Type-A), 3 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A); Front USB: 1 x USB 3.2 Gen 2 connector (Type-C), 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Audio Shielding; Rear optical S/PDIF out port; Premium audio capacitors; Dedicated audio PCB layers; Supports up to 24-Bit/192 kHz playback |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 2 x USB 3.2 Gen 2 (Type-A), 3 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 1 x 8-pin +12V Power, 1 x 4-pin +12V Power, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 2 connector (Type-C), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header, 1 x Thunderbolt (USB4) header |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O); ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot); ASUS Thermal Solution (M.2 heatsink, VRM heatsink design); ASUS EZ DIY (CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM); AURA Sync |
| Software Features | Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancelation); AI Suite 3 (DIGI+ VRM, PC Cleaner); TUF GAMING CPU-Z; DTS Audio Processing; MyASUS; Norton 360 for Gamers; WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS; ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, EZ Mode) |
| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x TUF Gaming sticker, 1 x TUF Certification card, 1 x User guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
