ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard

$171.77
ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard—
$171.77

The Story

Category Specification Details
Model TUF GAMING B760M-PLUS WIFI II
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B760 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)
Expansion Slots Intel® CoreTM Processors (14th & 13th & 12th Gen): 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset: 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot
Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Ethernet 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
Wireless & Bluetooth Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band; Bluetooth® v5.3
USB Rear USB (Total 8 ports): 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A); Front USB (Total 8 ports): 1 x USB 10Gbps connector (Type-C®), 1 x USB 5Gbps header (2 additional ports), 3 x USB 2.0 headers (5 additional ports)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC; Audio Shielding; Rear optical S/PDIF out port; Premium audio capacitors; Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port
Internal I/O Connectors 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 2 x 8-pin +12V Power, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s, 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 3 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header, 1 x Thunderbolt™ (USB4®) header
Special Features ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, SafeSlot Core+, etc.); ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-LED); ASUS Thermal Solution (M.2 heatsinks, VRM heatsink); ASUS EZ DIY; AURA Sync
Software Features Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation); AI Suite 3; TUF GAMING CPU-Z; DTS Audio Processing; MyASUS; Norton 360 for Gamers (60 Days Trial); WinRAR (40 Days Trial)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS; ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, EZ Mode)
Accessories 2 x SATA 6Gb/s cables, 1 x ASUS Q-Antenna, 1 x M.2 Rubber Package, 1 x TUF Gaming sticker, 2 x Screw packages for M.2 SSD, 1 x TUF Certification card, 1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

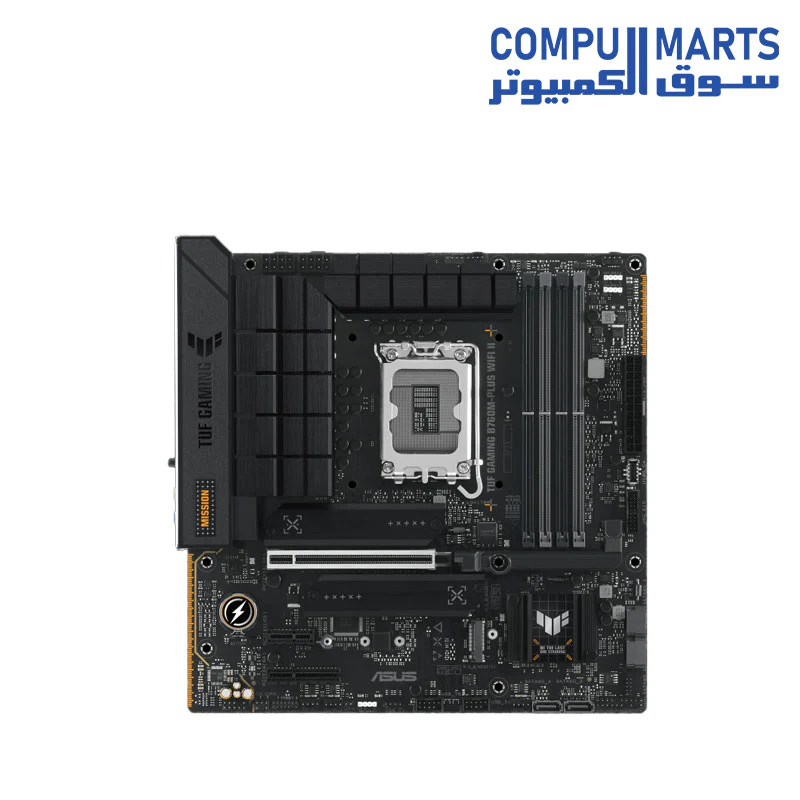

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

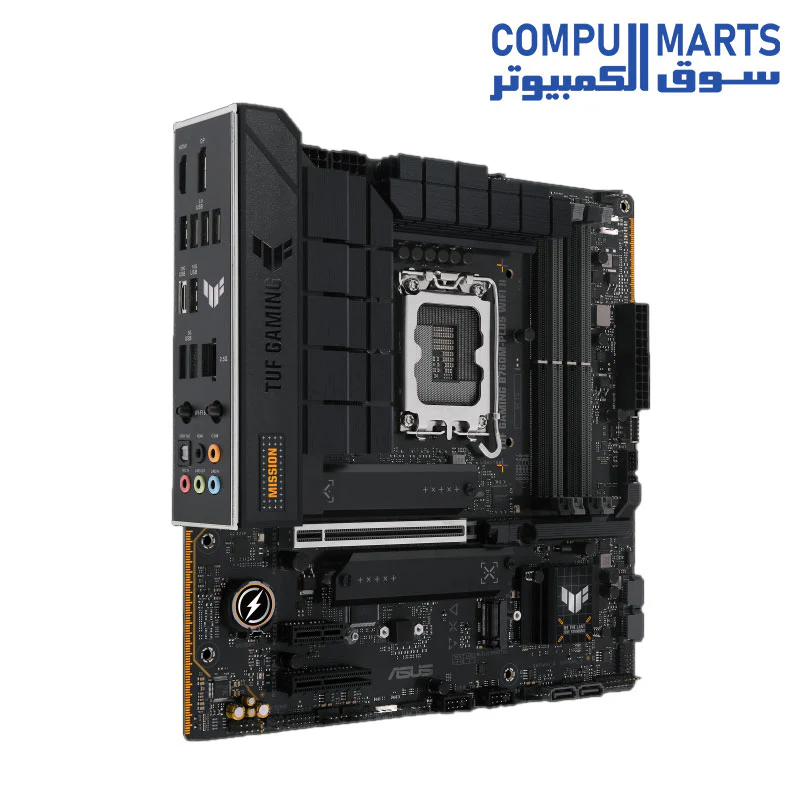

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

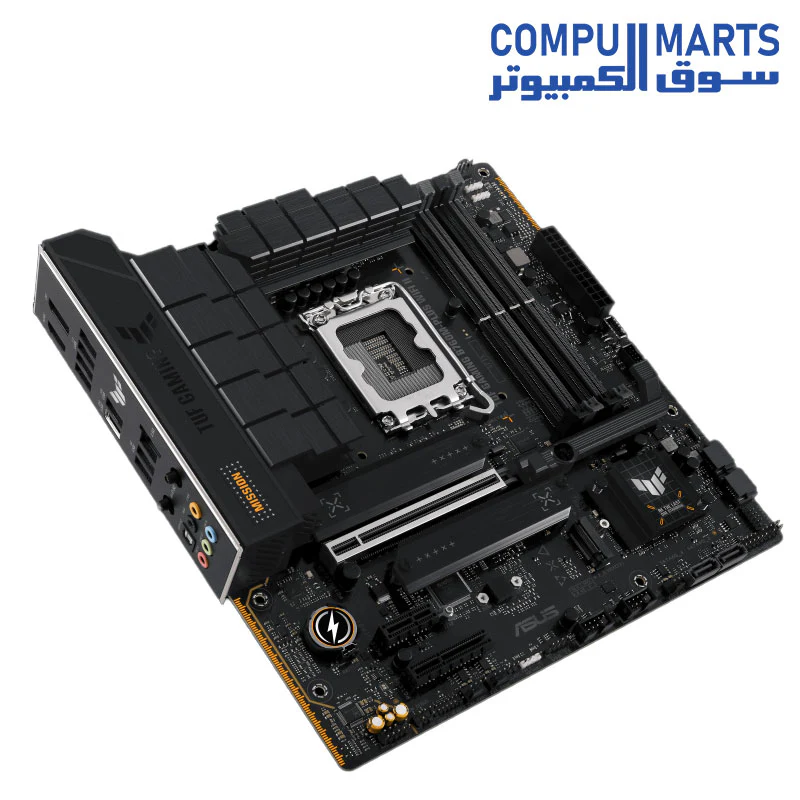

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
Model TUF GAMING B760M-PLUS WIFI II
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B760 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)
Expansion Slots Intel® CoreTM Processors (14th & 13th & 12th Gen): 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset: 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot
Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Ethernet 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
Wireless & Bluetooth Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band; Bluetooth® v5.3
USB Rear USB (Total 8 ports): 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A); Front USB (Total 8 ports): 1 x USB 10Gbps connector (Type-C®), 1 x USB 5Gbps header (2 additional ports), 3 x USB 2.0 headers (5 additional ports)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC; Audio Shielding; Rear optical S/PDIF out port; Premium audio capacitors; Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port
Internal I/O Connectors 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 2 x 8-pin +12V Power, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s, 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 3 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header, 1 x Thunderbolt™ (USB4®) header
Special Features ASUS TUF PROTECTION (DIGI+ VRM, ESD Guards, SafeSlot Core+, etc.); ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-LED); ASUS Thermal Solution (M.2 heatsinks, VRM heatsink); ASUS EZ DIY; AURA Sync
Software Features Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation); AI Suite 3; TUF GAMING CPU-Z; DTS Audio Processing; MyASUS; Norton 360 for Gamers (60 Days Trial); WinRAR (40 Days Trial)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS; ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, EZ Mode)
Accessories 2 x SATA 6Gb/s cables, 1 x ASUS Q-Antenna, 1 x M.2 Rubber Package, 1 x TUF Gaming sticker, 2 x Screw packages for M.2 SSD, 1 x TUF Certification card, 1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
