$171.77

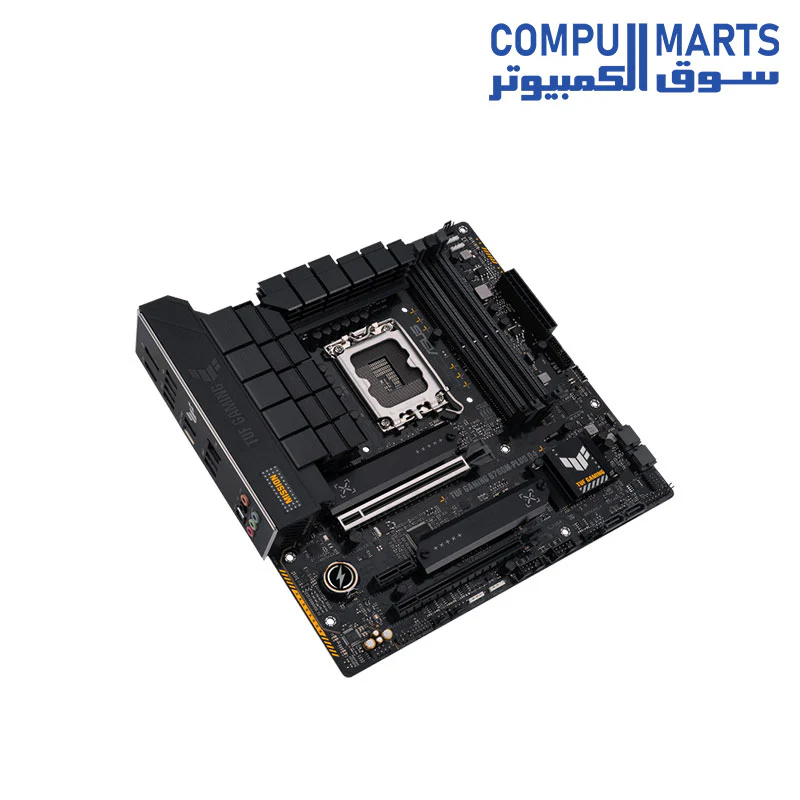

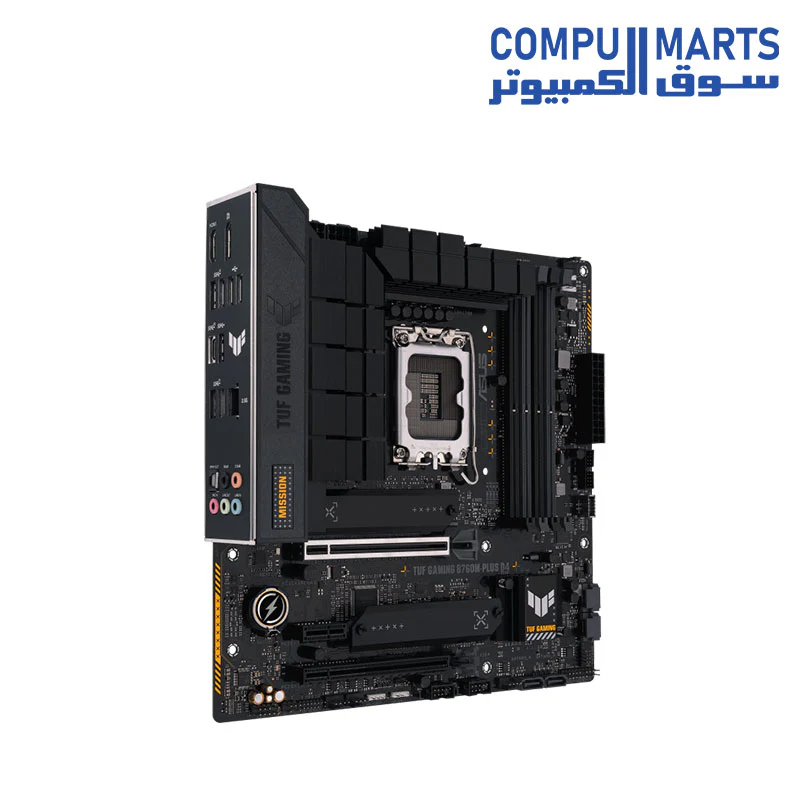

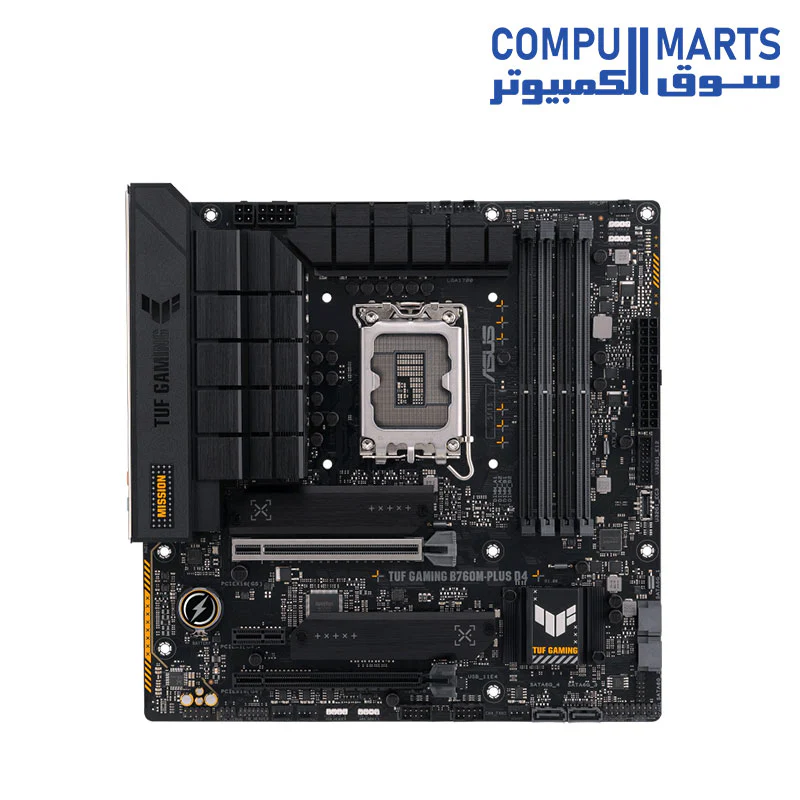

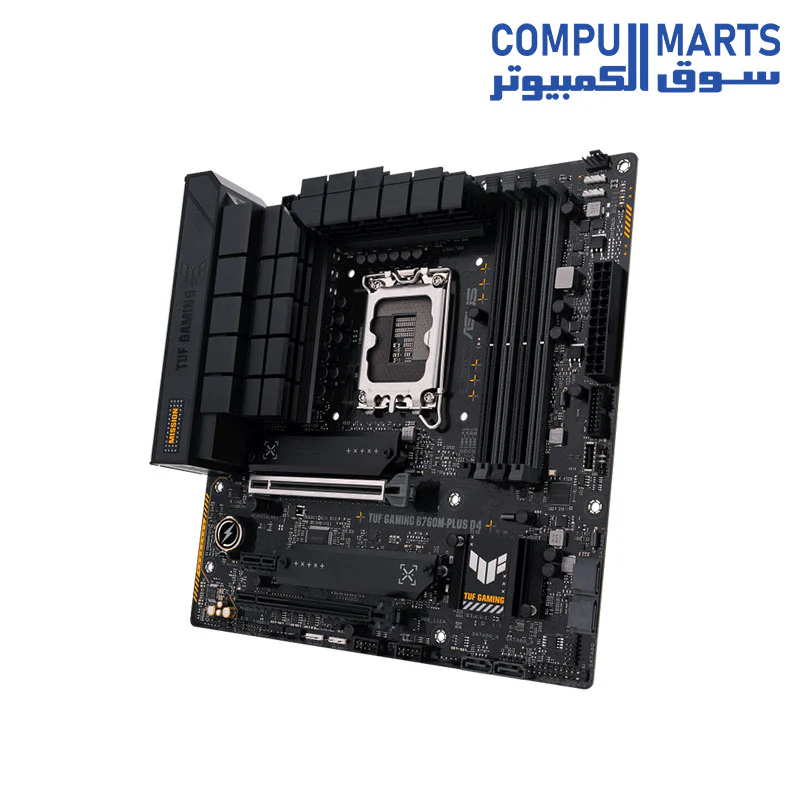

ASUS TUF GAMING B760M-PLUS D4 PCI 5—
$171.77
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B760M-PLUS D4 |
| CPU | Intel Socket LGA1700 for 13 Gen & 12 Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(OC); Non-ECC, Un-buffered Memory; Dual Channel Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II |
| Graphics | 1 x DisplayPort; 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | Intel 13 & 12 Gen: 1 x PCIe 5.0 x16 slot; Intel B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; M.2_1 (CPU): PCIe 4.0 x4 mode (2242/2260/2280); M.2_2 (Chipset): PCIe 4.0 x4 mode (2242/2260/2280); Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet; TUF LANGuard |
| USB (Rear) | 1 x USB 3.2 Gen 2x2 (Type-C), 4 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 connector (Type-C), 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Audio Shielding; Rear optical S/PDIF out; Premium audio capacitors; Dedicated audio PCB layers |

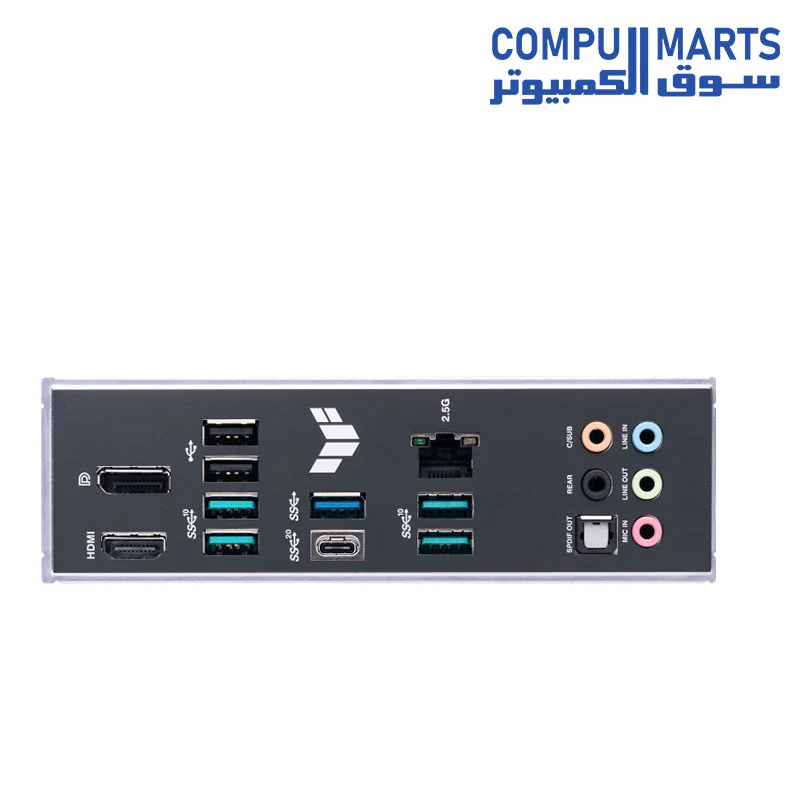

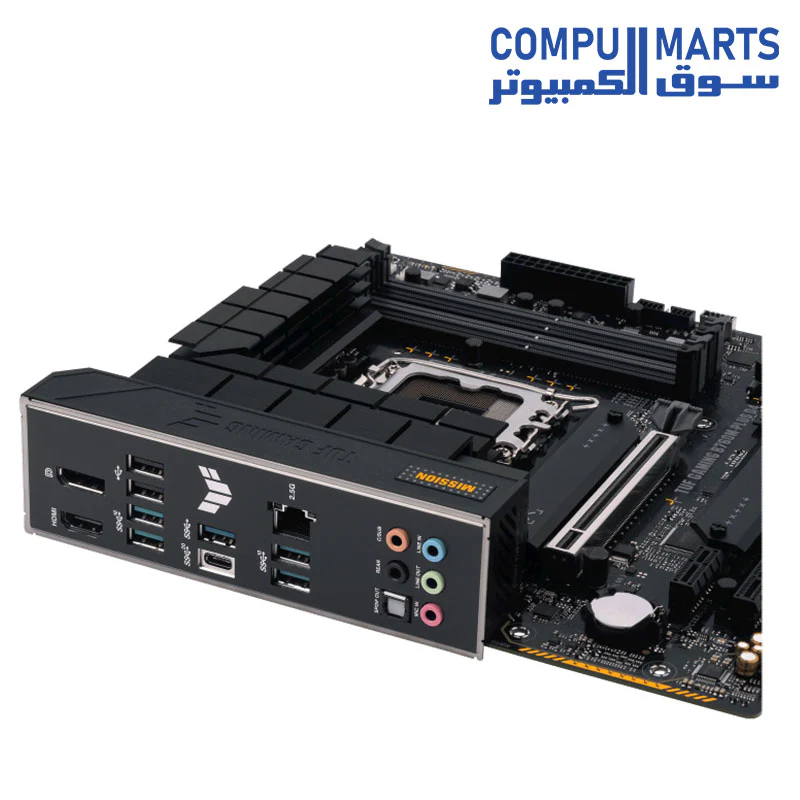

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 4 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF out |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 1 x 8-pin +12V Power, 1 x 4-pin +12V Power, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s, 1 x Thunderbolt (USB4) header |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM, SafeSlot Core+, etc.); ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot); Thermal Solution (M.2 heatsink, VRM heatsink); AURA Sync |
| Software | Armoury Crate, AI Suite 3, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers, WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS; ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3) |
| Form Factor | mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B760M-PLUS D4 |
| CPU | Intel Socket LGA1700 for 13 Gen & 12 Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(OC); Non-ECC, Un-buffered Memory; Dual Channel Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II |
| Graphics | 1 x DisplayPort; 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | Intel 13 & 12 Gen: 1 x PCIe 5.0 x16 slot; Intel B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; M.2_1 (CPU): PCIe 4.0 x4 mode (2242/2260/2280); M.2_2 (Chipset): PCIe 4.0 x4 mode (2242/2260/2280); Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet; TUF LANGuard |
| USB (Rear) | 1 x USB 3.2 Gen 2x2 (Type-C), 4 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 connector (Type-C), 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Audio Shielding; Rear optical S/PDIF out; Premium audio capacitors; Dedicated audio PCB layers |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 4 x USB 3.2 Gen 2 (Type-A), 1 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF out |
| Internal I/O Connectors | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 1 x 8-pin +12V Power, 1 x 4-pin +12V Power, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s, 1 x Thunderbolt (USB4) header |
| Special Features | ASUS TUF PROTECTION (DIGI+ VRM, SafeSlot Core+, etc.); ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot); Thermal Solution (M.2 heatsink, VRM heatsink); AURA Sync |
| Software | Armoury Crate, AI Suite 3, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers, WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS; ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3) |
| Form Factor | mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
