$99.62
Original: $332.08

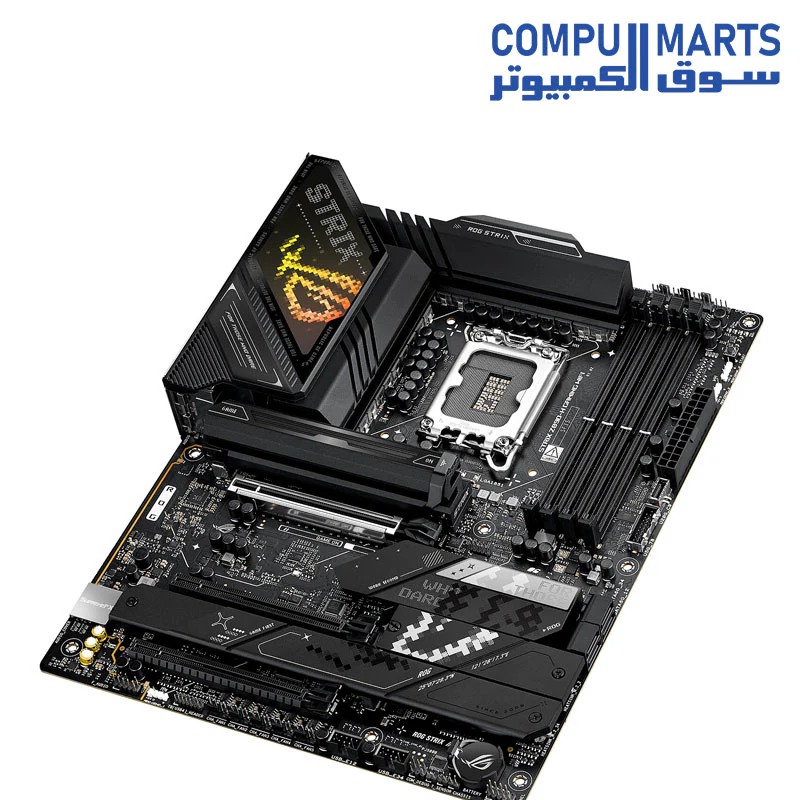

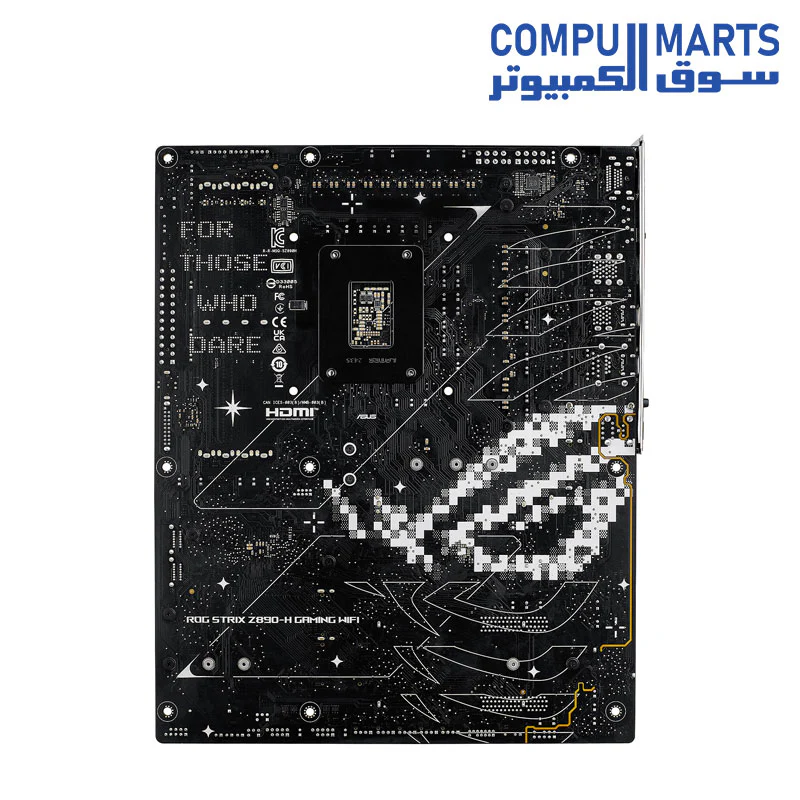

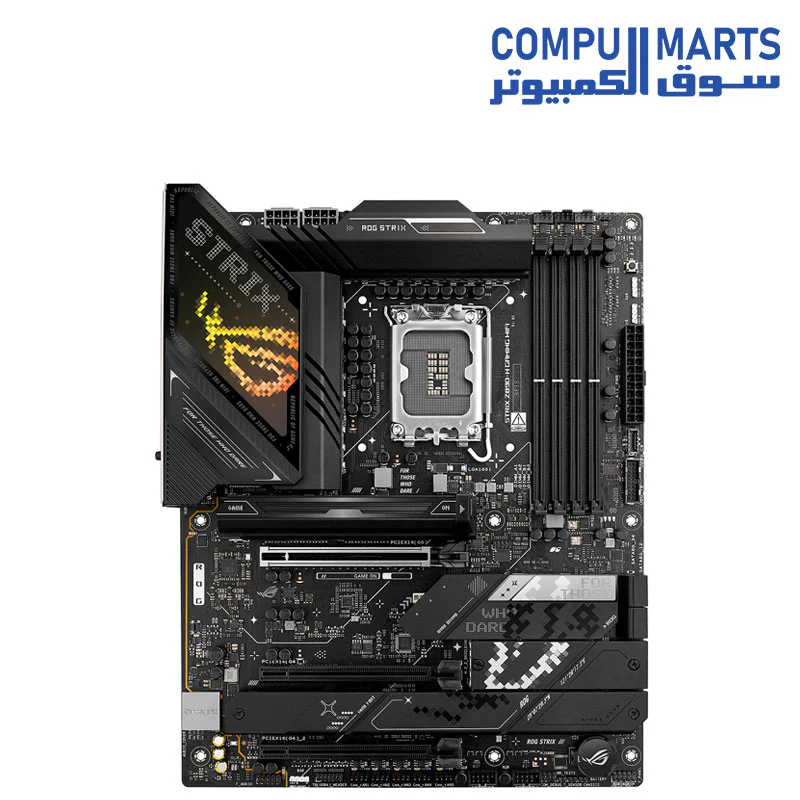

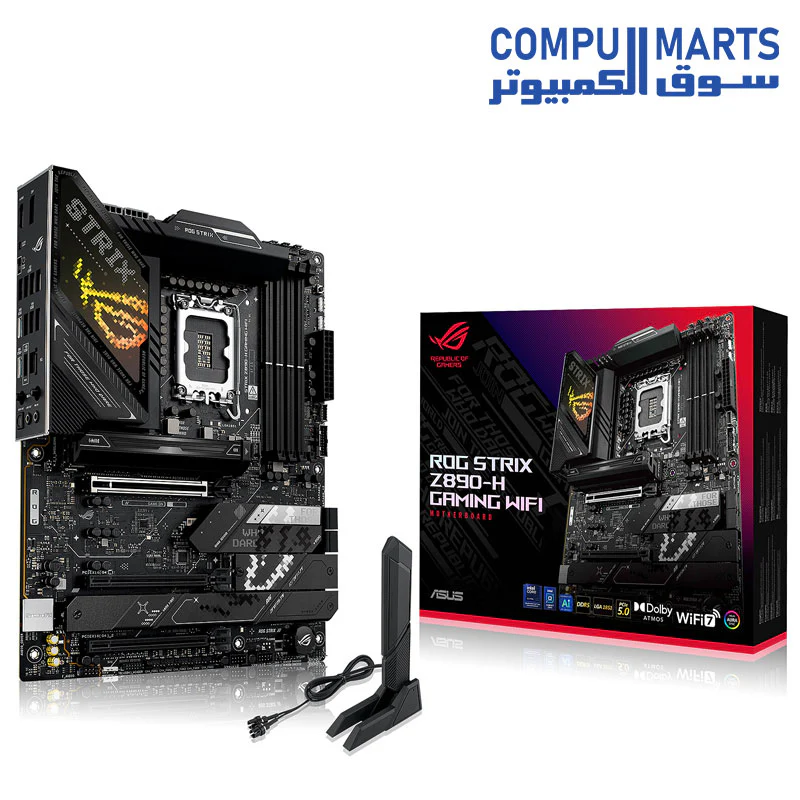

-70%ASUS ROG STRIX Z890-H GAMING WIFI Motherboard—
$332.08
$99.62The Story
| Category | Specification Details |
|---|---|
| Model | ROG STRIX Z890-H GAMING WIFI |
| CPU Support | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Supports Turbo Boost 2.0 / Max 3.0 |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5 up to 9066+MT/s (OC); Supports CUDIMM, XMP, AEMP III, and DIMM Flex |
| Graphics | 1 x DisplayPort 1.4 (8K@60Hz); 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 or x8/x4/x4); 2 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x M.2 slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4); 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2; 2.4/5/6GHz bands; Bluetooth® v5.4 |
| Rear USB Ports | 2 x USB 20Gbps (Type-C®, 1 w/ 30W PD); 4 x USB 10Gbps (Type-A); 4 x USB 5Gbps (Type-A) |
| Front USB Ports | 1 x USB 20Gbps (Type-C®); 1 x USB 5Gbps header (2 ports); 2 x USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1 Realtek ALC1220P; Savitech SV3H712 AMP; 120dB SNR playback; 32-Bit/192kHz |
| Special Features | Extreme Engine Digi+; PCIe Slot Q-Release Slim; M.2 Q-Latch/Release; Q-Antenna; AI Overclocking |
| Internal I/O | 1 x Thunderbolt™ (USB4®) header; 3 x Addressable Gen 2 headers; 1 x AIO Pump header; Start button |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ROG STRIX Z890-H GAMING WIFI |
| CPU Support | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Supports Turbo Boost 2.0 / Max 3.0 |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM, Max. 256GB, DDR5 up to 9066+MT/s (OC); Supports CUDIMM, XMP, AEMP III, and DIMM Flex |
| Graphics | 1 x DisplayPort 1.4 (8K@60Hz); 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 or x8/x4/x4); 2 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x M.2 slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4); 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2; 2.4/5/6GHz bands; Bluetooth® v5.4 |
| Rear USB Ports | 2 x USB 20Gbps (Type-C®, 1 w/ 30W PD); 4 x USB 10Gbps (Type-A); 4 x USB 5Gbps (Type-A) |
| Front USB Ports | 1 x USB 20Gbps (Type-C®); 1 x USB 5Gbps header (2 ports); 2 x USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1 Realtek ALC1220P; Savitech SV3H712 AMP; 120dB SNR playback; 32-Bit/192kHz |
| Special Features | Extreme Engine Digi+; PCIe Slot Q-Release Slim; M.2 Q-Latch/Release; Q-Antenna; AI Overclocking |
| Internal I/O | 1 x Thunderbolt™ (USB4®) header; 3 x Addressable Gen 2 headers; 1 x AIO Pump header; Start button |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
