$334.96
Original: $1,116.53

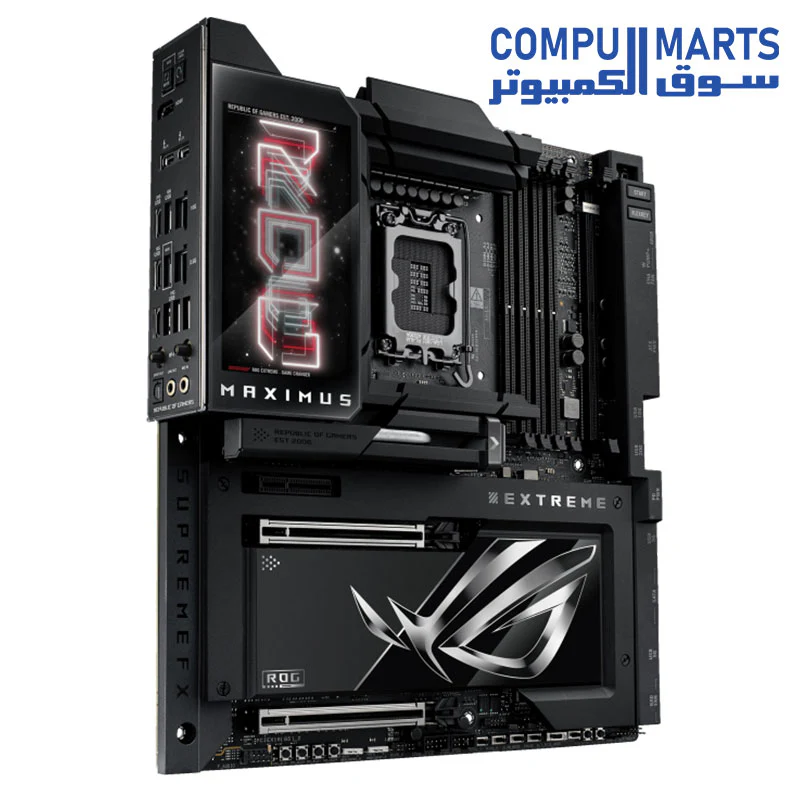

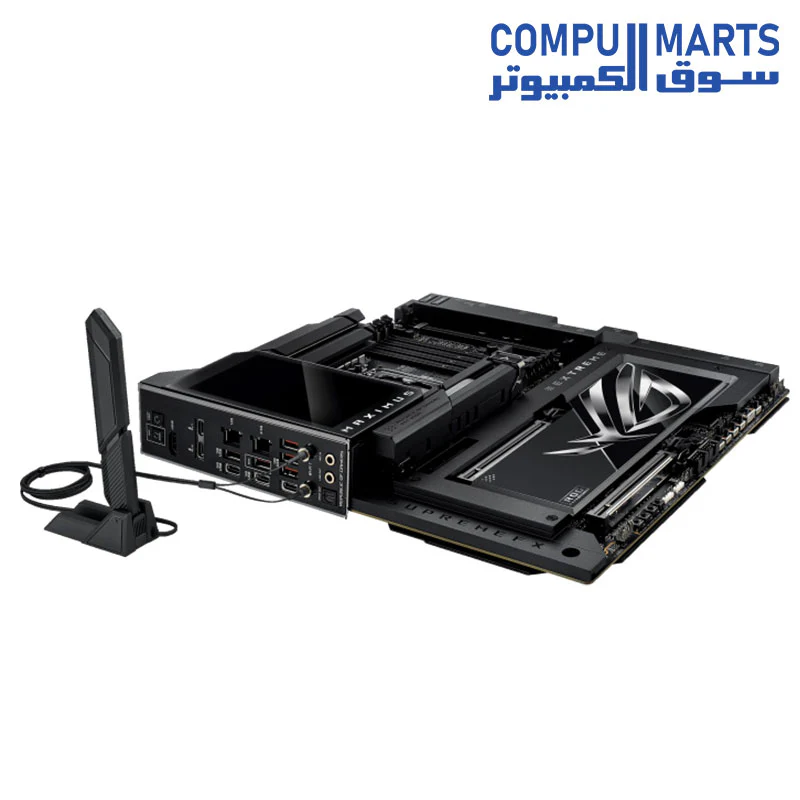

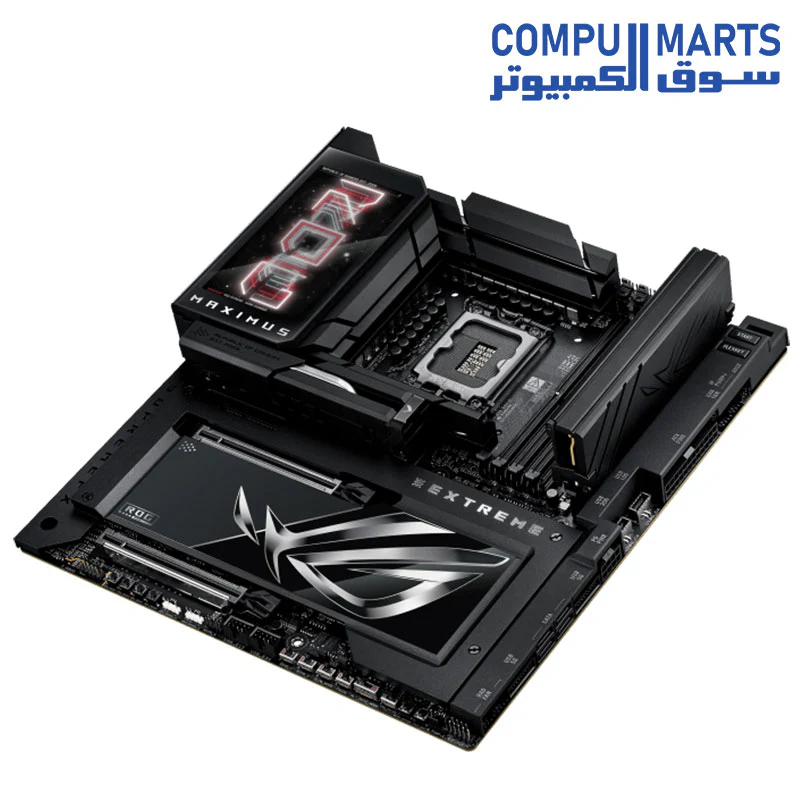

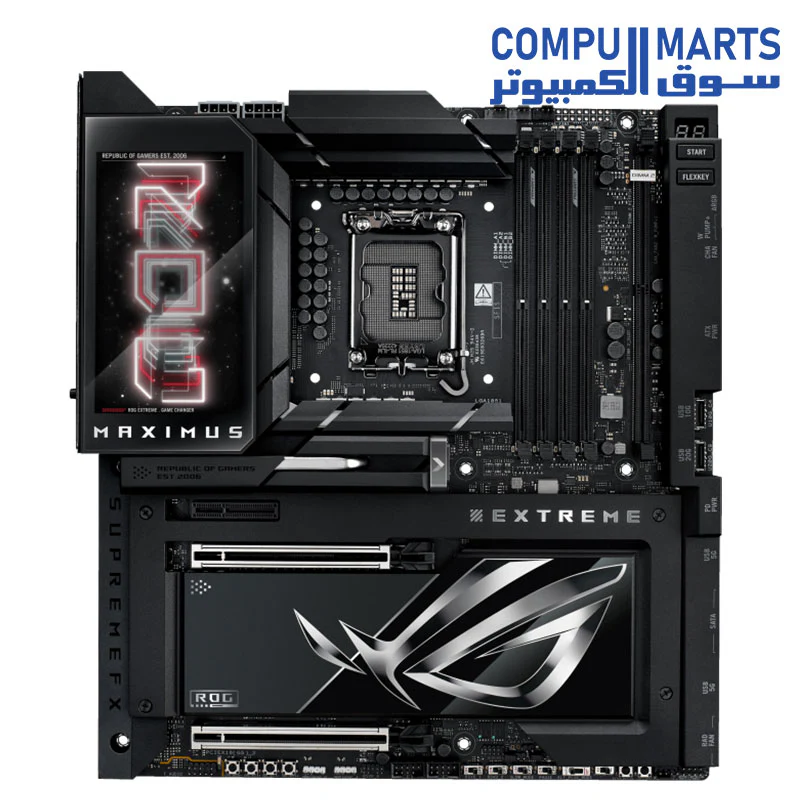

-70%ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 E-ATX Motherboard—
$1,116.53
$334.96The Story
| Category | Specification Details |
|---|---|
| CPU Socket | LGA1851 for Intel Core Ultra Processors (Series 2) |
| Turbo Boost | Supports Intel Turbo Boost Technology 2.0 and 3.0 |
| Chipset | Intel Z890 Chipset |
| Memory Slots | 4 x DIMM |
| Max Memory Capacity | 192GB DDR5 |
| Data Rates | Supports up to 9200+MT/s (OC) |
| Memory Architecture | Dual Channel |
| XMP Support | Yes |
| AEMPIII Support | Yes |
| DIMM Flex Support | Yes |
| NitroPath DRAM Technology | Yes |
| ECC Support | Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Graphics Ports | 1 x HDMI (max. 8K@60Hz with DSC), 2 x Thunderbolt 5 (USB Type-C, supports DisplayPort and Thunderbolt video outputs) |
| PCIe Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8 or x8/x4/x4 modes), 1 x PCIe 4.0 x4 |
| Storage | Up to 6 x M.2 (PCIe 5.0 x4 and PCIe 4.0 x4), 4 x SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Ethernet | 1 x Intel 2.5Gb, 1 x Marvell AQtion 10Gb with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), up to 5.8Gbps; Bluetooth v5.4 |
| USB Ports | Rear: 2 x Thunderbolt 5, 1 x USB 20Gbps Type-C, 7 x USB 10Gbps; Front: 1 x USB 20Gbps Type-C, 1 x USB 10Gbps, 2 x USB 5Gbps headers, 2 x USB 2.0 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4082, Up to 32-Bit/384 kHz, Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, SupremeFX Shielding, ESS ES9219 QUAD DAC |
| Back Panel I/O | 2 x Thunderbolt 5, 1 x USB 20Gbps Type-C, 7 x USB 10Gbps, 1 x HDMI, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet, 1 x Marvell AQtion 10Gb Ethernet, 2 x LED audio jacks, 1 x Optical S/PDIF, BIOS FlashBack, Clear CMOS |
| Internal I/O Connectors | Fan Headers: 1 x CPU, 1 x CPU OPT, 2 x Chassis, 2 x Radiator, 2 x W_PUMP+, 1 x WB_SENSOR; Power: 1 x 24-pin, 2 x 8-pin +12V CPU, 1 x 8-pin PCIe; Storage: 4 x M.2, 1 x DIMM.2, 4 x SATA; USB: 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-C, 2 x USB 5Gbps headers, 2 x USB 2.0 headers |
| Miscellaneous | 1 x 6-pin ARGB Gen 2 header, 2 x Addressable Gen 2 headers, PCIe mode switch, FlexKey button, Front Panel Audio header, LN2 Mode jumper, 18 x ProbeIt, ReTry button, Safe Boot, Slow Mode, Start, 10-1 pin System Panel header, Thermal Sensor header |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ROG Exclusive Software, ASUS Exclusive Software |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |
| Accessories | Various ARGB/fan cables, SATA cables, ASUS WiFi Q-Antenna, ROG logo plate, ROG screwdriver, USB drive, Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | E-ATX, 12 x 10.9 inches (30.5 x 27.7 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Socket | LGA1851 for Intel Core Ultra Processors (Series 2) |
| Turbo Boost | Supports Intel Turbo Boost Technology 2.0 and 3.0 |
| Chipset | Intel Z890 Chipset |
| Memory Slots | 4 x DIMM |
| Max Memory Capacity | 192GB DDR5 |
| Data Rates | Supports up to 9200+MT/s (OC) |
| Memory Architecture | Dual Channel |
| XMP Support | Yes |
| AEMPIII Support | Yes |
| DIMM Flex Support | Yes |
| NitroPath DRAM Technology | Yes |
| ECC Support | Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Graphics Ports | 1 x HDMI (max. 8K@60Hz with DSC), 2 x Thunderbolt 5 (USB Type-C, supports DisplayPort and Thunderbolt video outputs) |
| PCIe Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8 or x8/x4/x4 modes), 1 x PCIe 4.0 x4 |
| Storage | Up to 6 x M.2 (PCIe 5.0 x4 and PCIe 4.0 x4), 4 x SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Ethernet | 1 x Intel 2.5Gb, 1 x Marvell AQtion 10Gb with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), up to 5.8Gbps; Bluetooth v5.4 |
| USB Ports | Rear: 2 x Thunderbolt 5, 1 x USB 20Gbps Type-C, 7 x USB 10Gbps; Front: 1 x USB 20Gbps Type-C, 1 x USB 10Gbps, 2 x USB 5Gbps headers, 2 x USB 2.0 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4082, Up to 32-Bit/384 kHz, Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, SupremeFX Shielding, ESS ES9219 QUAD DAC |
| Back Panel I/O | 2 x Thunderbolt 5, 1 x USB 20Gbps Type-C, 7 x USB 10Gbps, 1 x HDMI, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet, 1 x Marvell AQtion 10Gb Ethernet, 2 x LED audio jacks, 1 x Optical S/PDIF, BIOS FlashBack, Clear CMOS |
| Internal I/O Connectors | Fan Headers: 1 x CPU, 1 x CPU OPT, 2 x Chassis, 2 x Radiator, 2 x W_PUMP+, 1 x WB_SENSOR; Power: 1 x 24-pin, 2 x 8-pin +12V CPU, 1 x 8-pin PCIe; Storage: 4 x M.2, 1 x DIMM.2, 4 x SATA; USB: 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-C, 2 x USB 5Gbps headers, 2 x USB 2.0 headers |
| Miscellaneous | 1 x 6-pin ARGB Gen 2 header, 2 x Addressable Gen 2 headers, PCIe mode switch, FlexKey button, Front Panel Audio header, LN2 Mode jumper, 18 x ProbeIt, ReTry button, Safe Boot, Slow Mode, Start, 10-1 pin System Panel header, Thermal Sensor header |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ROG Exclusive Software, ASUS Exclusive Software |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |
| Accessories | Various ARGB/fan cables, SATA cables, ASUS WiFi Q-Antenna, ROG logo plate, ROG screwdriver, USB drive, Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | E-ATX, 12 x 10.9 inches (30.5 x 27.7 cm) |
