$190.84

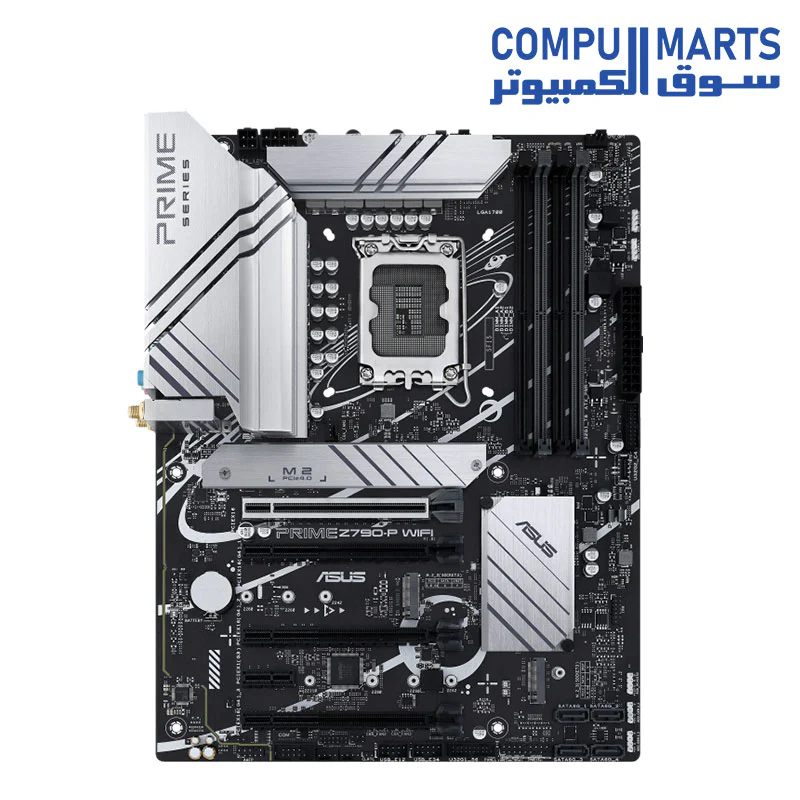

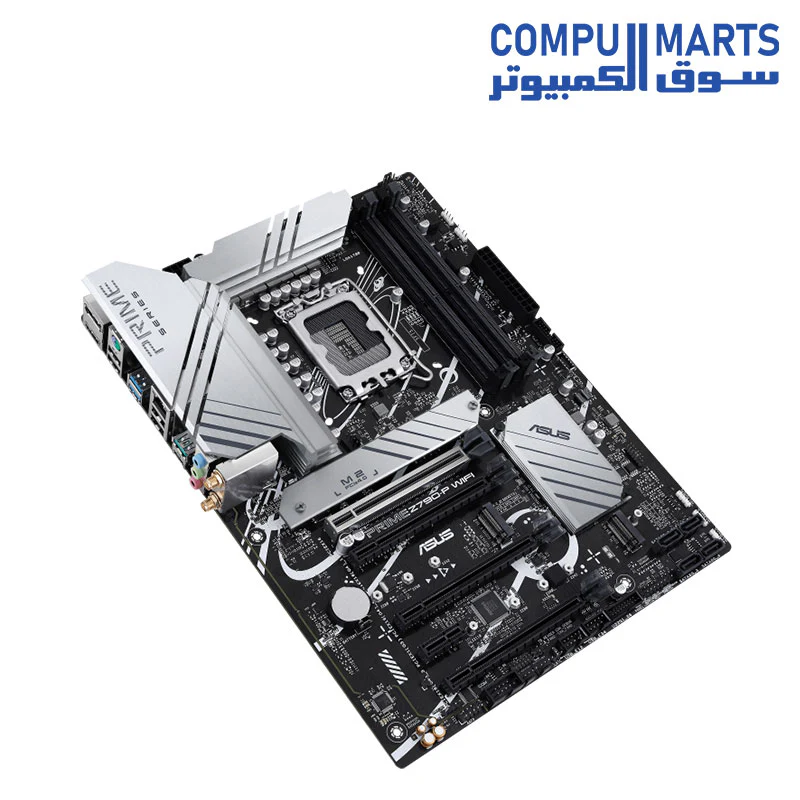

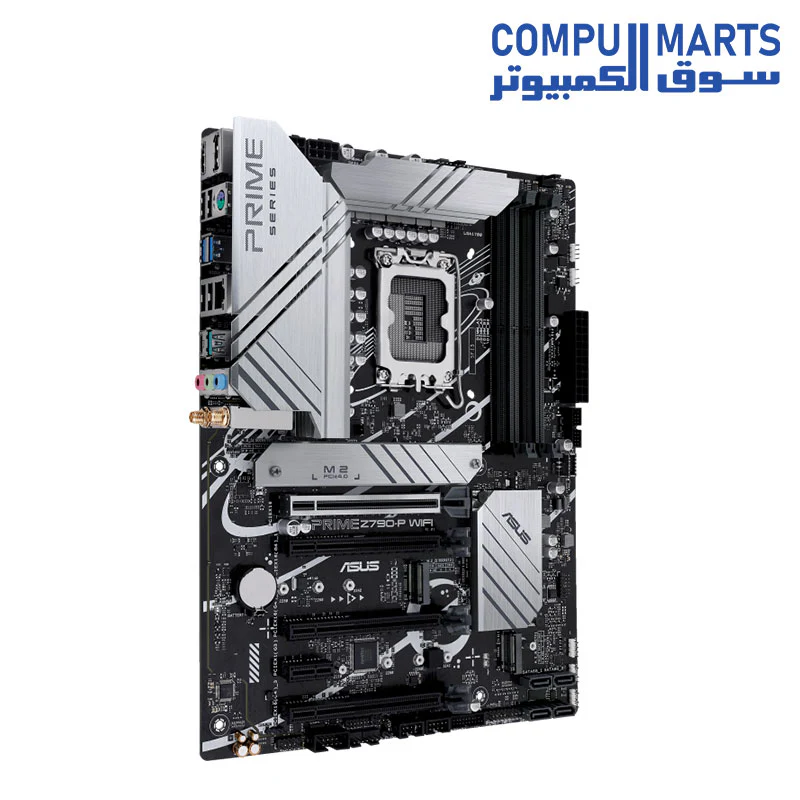

ASUS PRIME Z790-P WIFI Motherboard—
$190.84
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME Z790-P WIFI |
| CPU Support | Intel Socket LGA1700 for 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200+(OC) to 4800 MT/s, Dual Channel, Intel XMP, OptiMem II, AEMP II |
| Graphics | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 3 x PCIe 4.0 x16 (support x4 mode), 1 x PCIe 3.0 x1 (Chipset) |
| Storage | 3 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports, Supports NVMe/SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 ax) 2x2, Bluetooth v5.2 |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 1 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB Ports | 1 x USB 3.2 Gen 2 (Type-C), 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio, 24-Bit/192 kHz playback, Audio Shielding, Premium Capacitors |
| Thermal Design | VRM Heatsinks, Flexible M.2 Heatsink, AI Cooling II, Fan Xpert 4 |
| Special Features | ASUS 5X PROTECTION III, DIGI+ VRM, SafeSlot Core+, Q-LED Core, Thunderbolt (USB4) Header |

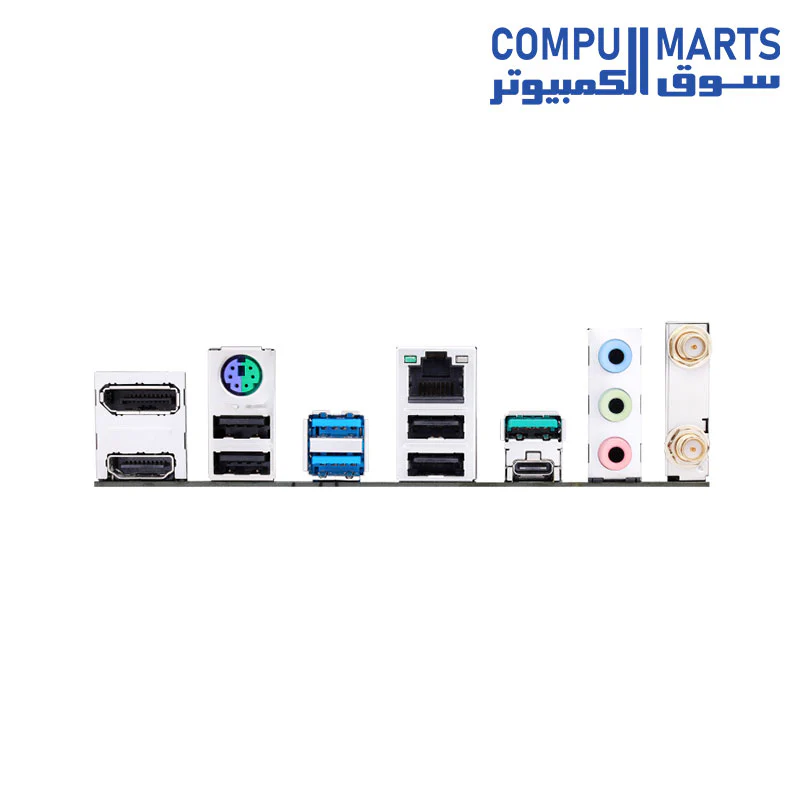

| Back Panel I/O | USB ports, DisplayPort, HDMI, Wi-Fi Module, 2.5Gb Ethernet, 3 x Audio jacks, PS/2 Combo port |
| Software | Armoury Crate (Aura Sync), AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe (Trial) |

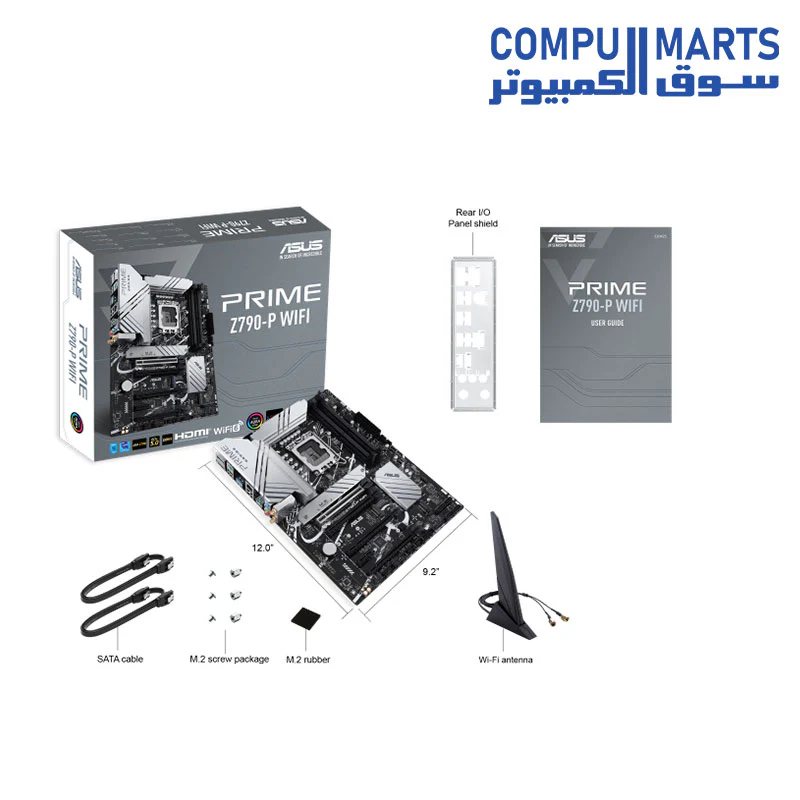

| Accessories | 2 x SATA 6Gb/s cables, ASUS Wi-Fi moving antennas, I/O Shield, M.2 screw/rubber packages |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 23.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME Z790-P WIFI |
| CPU Support | Intel Socket LGA1700 for 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200+(OC) to 4800 MT/s, Dual Channel, Intel XMP, OptiMem II, AEMP II |
| Graphics | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 3 x PCIe 4.0 x16 (support x4 mode), 1 x PCIe 3.0 x1 (Chipset) |
| Storage | 3 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports, Supports NVMe/SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 ax) 2x2, Bluetooth v5.2 |
| Rear USB Ports | 1 x USB 3.2 Gen 2x2 (Type-C), 1 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB Ports | 1 x USB 3.2 Gen 2 (Type-C), 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio, 24-Bit/192 kHz playback, Audio Shielding, Premium Capacitors |
| Thermal Design | VRM Heatsinks, Flexible M.2 Heatsink, AI Cooling II, Fan Xpert 4 |
| Special Features | ASUS 5X PROTECTION III, DIGI+ VRM, SafeSlot Core+, Q-LED Core, Thunderbolt (USB4) Header |
| Back Panel I/O | USB ports, DisplayPort, HDMI, Wi-Fi Module, 2.5Gb Ethernet, 3 x Audio jacks, PS/2 Combo port |
| Software | Armoury Crate (Aura Sync), AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe (Trial) |
| Accessories | 2 x SATA 6Gb/s cables, ASUS Wi-Fi moving antennas, I/O Shield, M.2 screw/rubber packages |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 23.4 cm) |
