$177.50

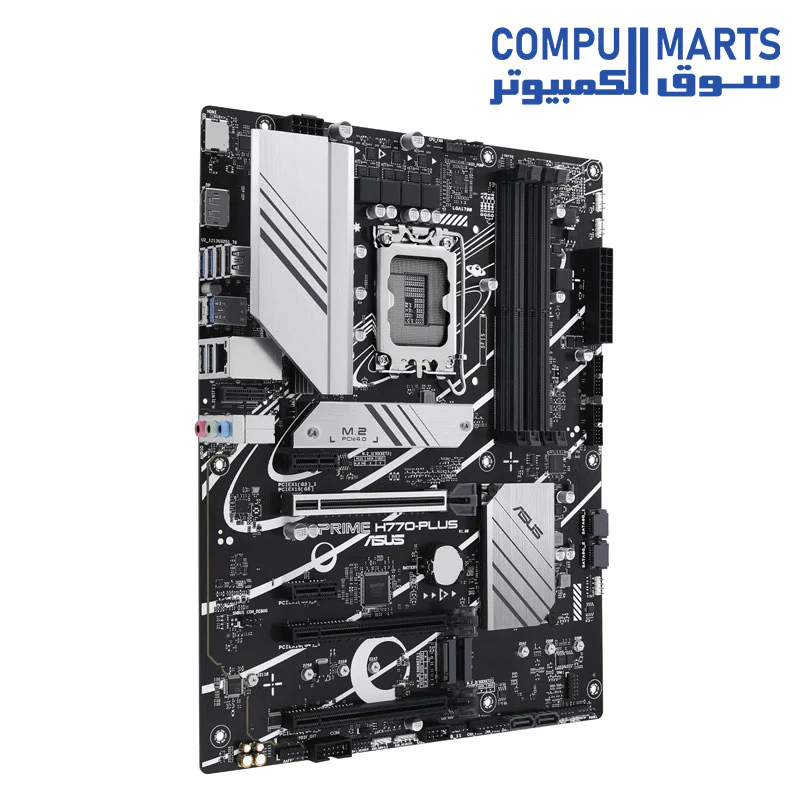

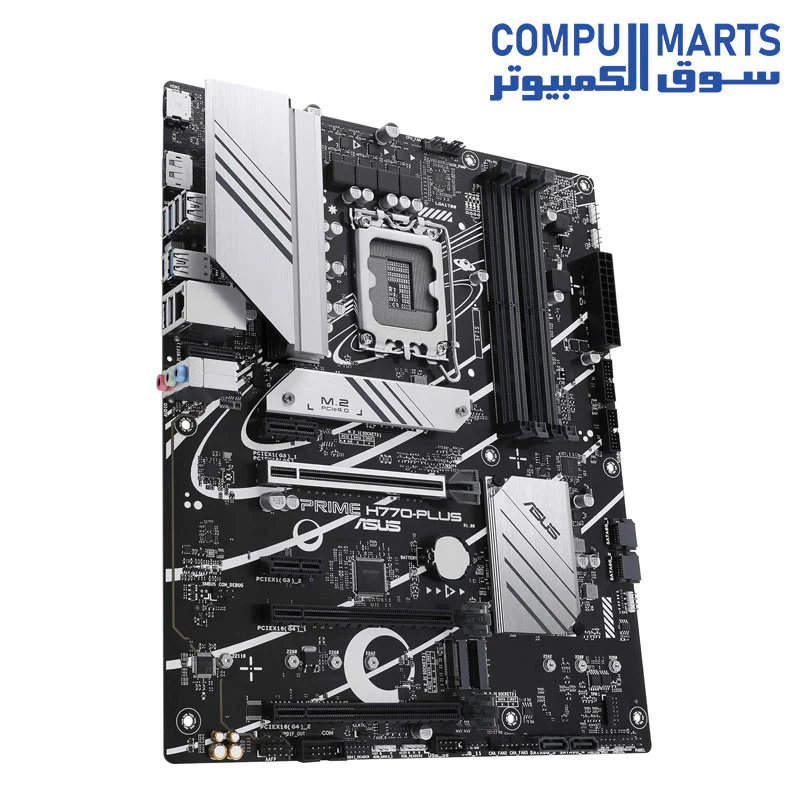

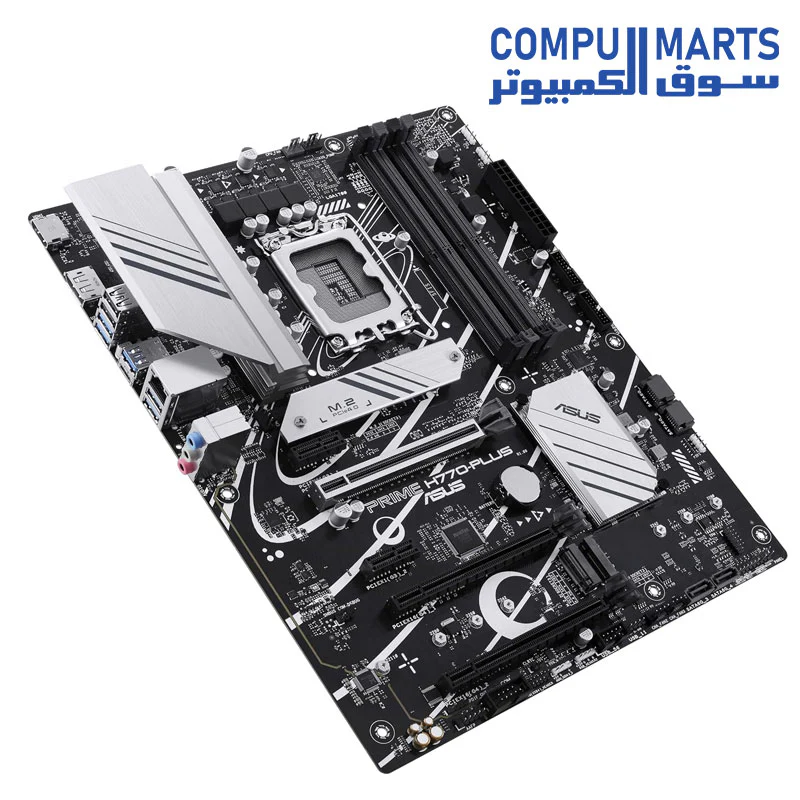

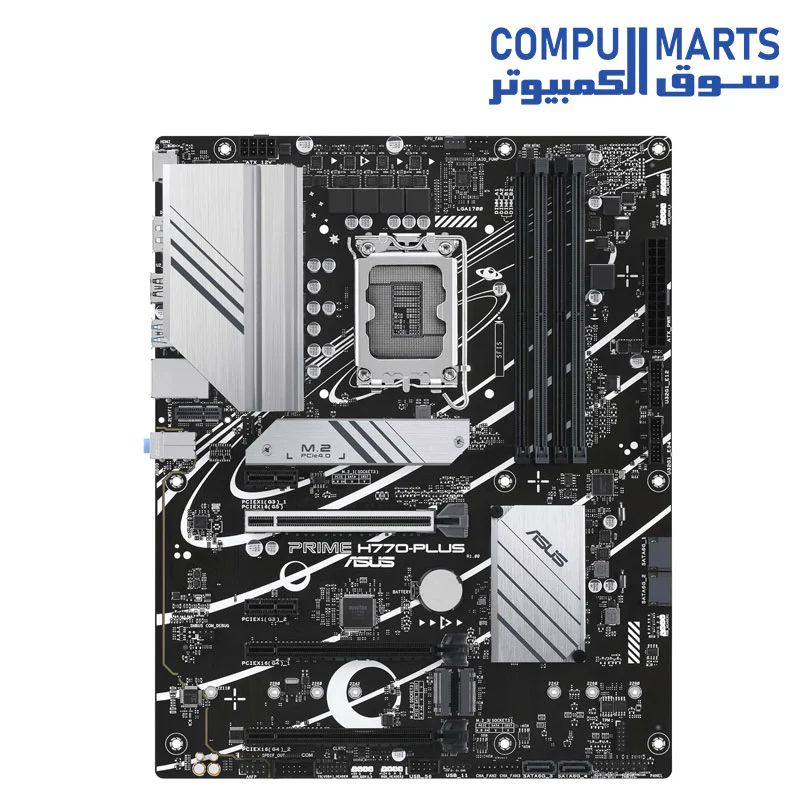

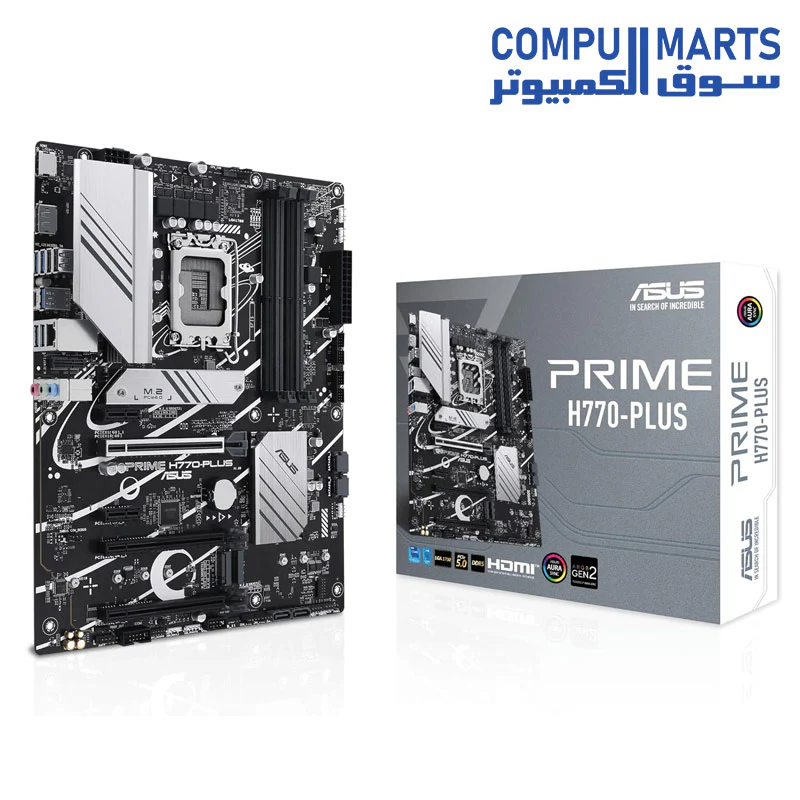

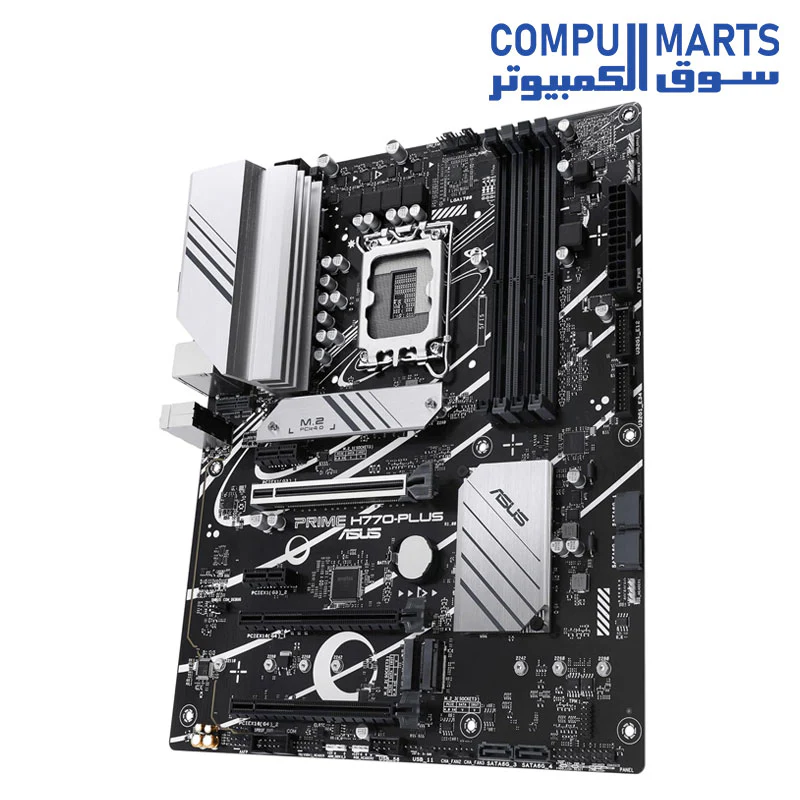

ASUS Prime H770-Plus Motherboard—
$177.50
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME H770-PLUS |
| CPU Support | Intel® Socket LGA1700 for 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® H770 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200+(OC) to 4800 Non-ECC, Un-buffered Memory, Dual Channel, XMP Support |
| Graphics | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports (Supports RAID 0/1/5/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless | Vertical M.2 slot only (Key E, CNVi & PCIe) - Wi-Fi module sold separately |

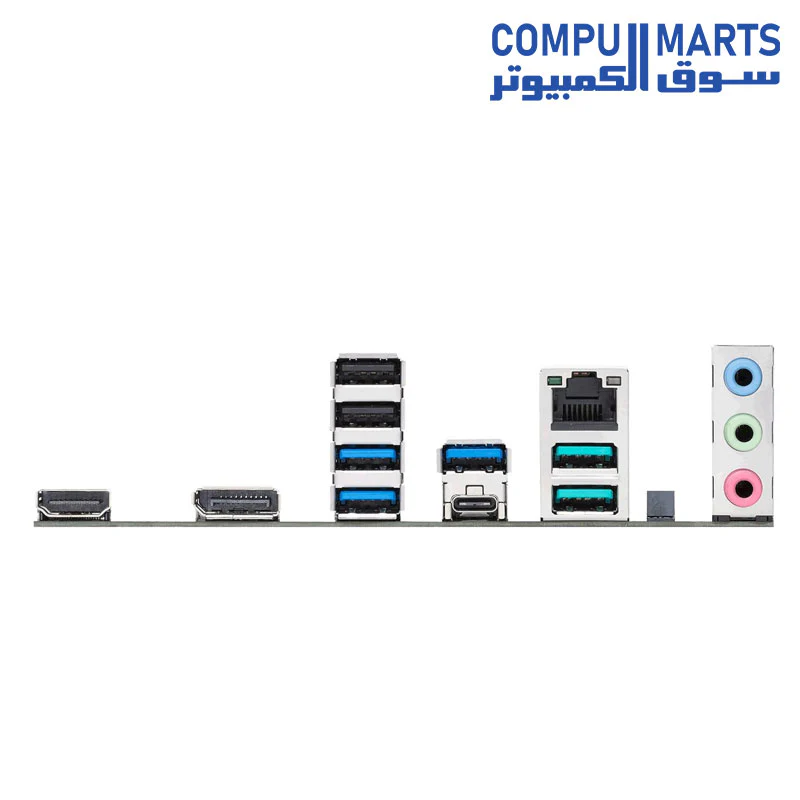

| USB (Rear) | 8 Ports: 3 x USB 3.2 Gen 2 (2xA + 1xC), 3 x USB 3.2 Gen 1 (3xA), 2 x USB 2.0 |
| USB (Front) | 7 Ports: 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (3 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium Capacitors |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-LED, Q-Slot), M.2 & VRM Heatsinks, Aura Sync RGB |
| Form Factor | ATX Form Factor (12" x 9.6") |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME H770-PLUS |
| CPU Support | Intel® Socket LGA1700 for 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® H770 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200+(OC) to 4800 Non-ECC, Un-buffered Memory, Dual Channel, XMP Support |
| Graphics | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports (Supports RAID 0/1/5/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless | Vertical M.2 slot only (Key E, CNVi & PCIe) - Wi-Fi module sold separately |
| USB (Rear) | 8 Ports: 3 x USB 3.2 Gen 2 (2xA + 1xC), 3 x USB 3.2 Gen 1 (3xA), 2 x USB 2.0 |
| USB (Front) | 7 Ports: 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (3 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium Capacitors |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-LED, Q-Slot), M.2 & VRM Heatsinks, Aura Sync RGB |
| Form Factor | ATX Form Factor (12" x 9.6") |
