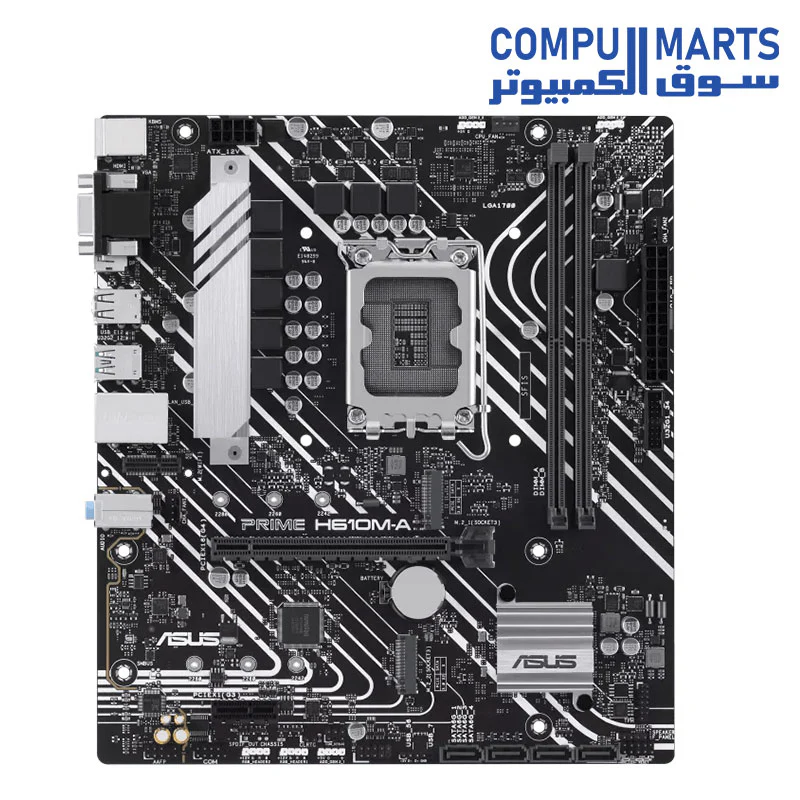

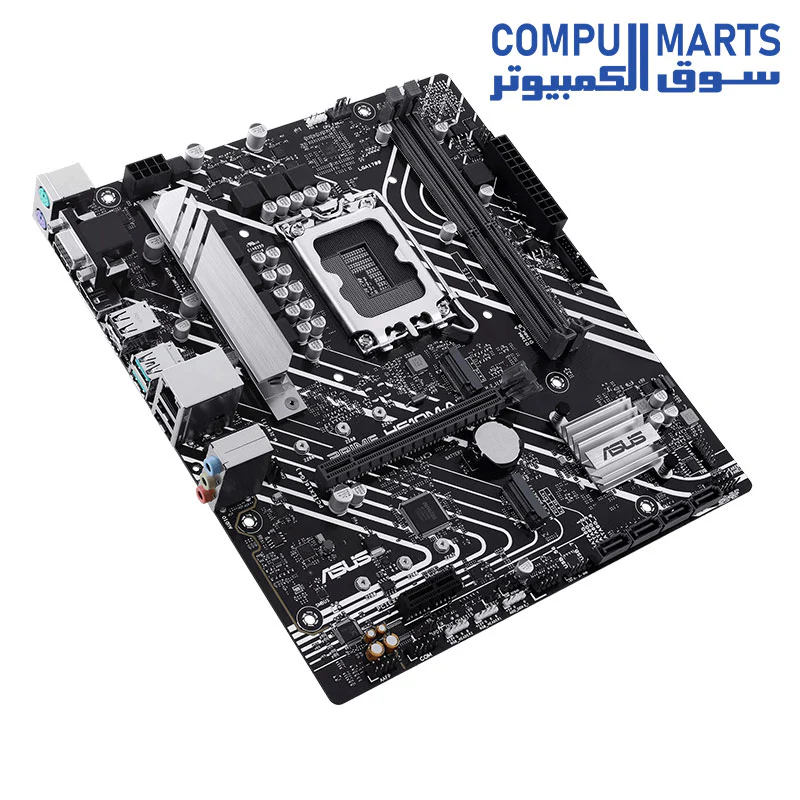

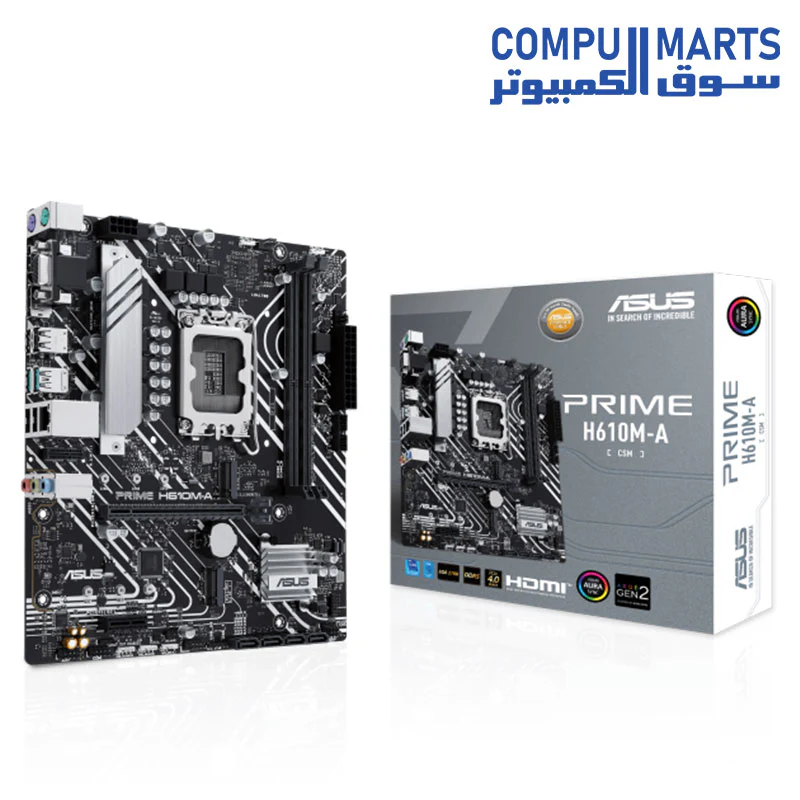

ASUS PRIME H610M-A-CSM MOTHERBOARD—
$83.98
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME H610M-A-CSM |
| CPU Socket | Intel® Socket LGA1700 (Supports 14th, 13th & 12th Gen Core™) |
| Chipset | Intel® H610 Chipset |
| Memory | 2x DIMM, Max. 96GB, DDR5 (Up to 5600MHz), XMP Supported |

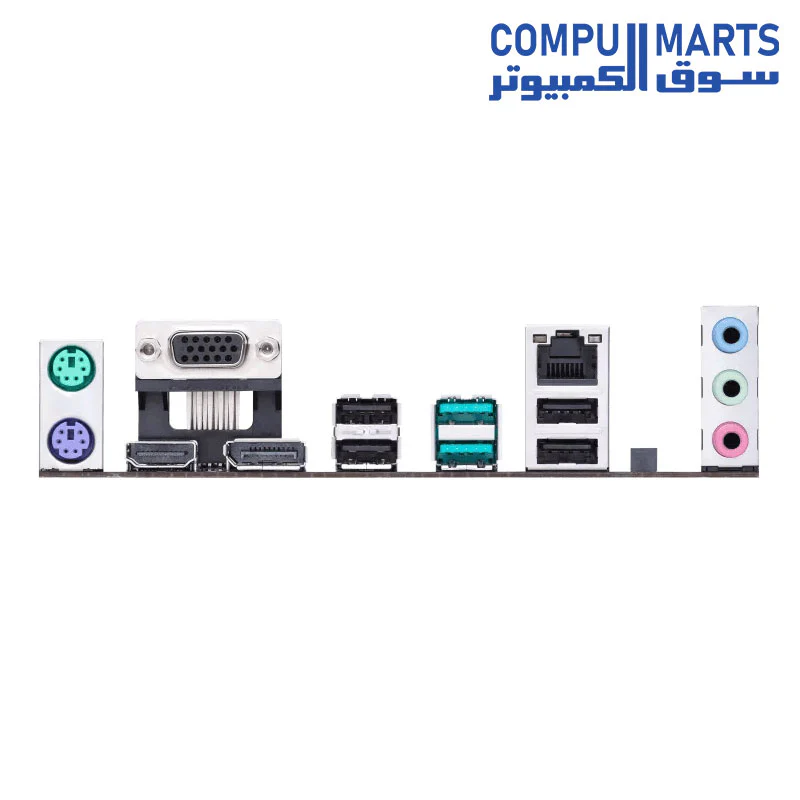

| Graphics Outputs | 1x HDMI™ (4K@60Hz), 1x DisplayPort (4K@60Hz), 1x VGA |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (H610) |
| Storage | 1x M.2 (PCIe 3.0 x4), 1x M.2 (PCIe 3.0 x2), 4x SATA 6Gb/s |
| Ethernet | Intel® 1Gb Ethernet with ASUS LANGuard |
| USB (Rear) | 2x USB 3.2 Gen 2 (10G), 4x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio |
| Special Features | ASUS 5X PROTECTION III, AURA Sync RGB, Q-Design, VRM Heatsink |
| Internal I/O | 3x Addressable Gen 2 headers, 2x AURA RGB headers, 1x COM Port |
| Form Factor | mATX (24.4 cm x 21.6 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME H610M-A-CSM |
| CPU Socket | Intel® Socket LGA1700 (Supports 14th, 13th & 12th Gen Core™) |
| Chipset | Intel® H610 Chipset |
| Memory | 2x DIMM, Max. 96GB, DDR5 (Up to 5600MHz), XMP Supported |
| Graphics Outputs | 1x HDMI™ (4K@60Hz), 1x DisplayPort (4K@60Hz), 1x VGA |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (H610) |
| Storage | 1x M.2 (PCIe 3.0 x4), 1x M.2 (PCIe 3.0 x2), 4x SATA 6Gb/s |
| Ethernet | Intel® 1Gb Ethernet with ASUS LANGuard |
| USB (Rear) | 2x USB 3.2 Gen 2 (10G), 4x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio |
| Special Features | ASUS 5X PROTECTION III, AURA Sync RGB, Q-Design, VRM Heatsink |
| Internal I/O | 3x Addressable Gen 2 headers, 2x AURA RGB headers, 1x COM Port |
| Form Factor | mATX (24.4 cm x 21.6 cm) |
