ASUS PRIME B860M-A WIFI Intel Micro-ATX Motherboard
HomeStore

ASUS PRIME B860M-A WIFI Intel Micro-ATX Motherboard

ASUS PRIME B860M-A WIFI Intel Micro-ATX Motherboard

$52.97

Original: $176.55

-70%
ASUS PRIME B860M-A WIFI Intel Micro-ATX Motherboard—

$176.55

$52.97

The Story

Category Specification Details
Model PRIME B860M-A WIFI
CPU Support Intel® Core™ Ultra Processors (Series 2) , LGA1851; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B860 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5; Supports up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMPIII)
Graphics 2 x DisplayPort (Max. 4K@60Hz/120Hz depending on port); 1 x HDMI™ port (4K@60Hz); 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output (Max 4K@60Hz)
Expansion Slots Intel® Core™ Ultra Processors (series 2): 1 x PCIe 5.0 x16 slot; Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes); 4 x SATA 6Gb/s ports (SATA RAID 0/1/5/10)
Ethernet 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E (802.11ax) 2x2; Supports 2.4/5/6GHz frequency band; Bluetooth® v5.3
USB Rear: 1 x USB 20Gbps (Type-C® w/ DP Alt mode), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A); Front: 1 x USB 10Gbps connector (Type-C®), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 2 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks
Internal I/O Connectors 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 1 x 8-pin +12V CPU Power, 2 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 1 x USB 2.0 header, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x COM Port header, 1 x Thunderbolt™ (USB4®) header
Special Features ASUS 5X PROTECTION III; ASUS Q-Design (Q-Antenna, Q-LED Core, Q-Slot, etc.); ASUS Thermal Solution (M.2 heatsink, VRM heatsink); ASUS EZ DIY; Aura Sync
Software Features Armoury Crate, ASUS DriverHub, ASUS GlideX, ASUS CPU-Z, Norton 360 for Deluxe (60 Days Trial), WinRAR (40 Days Trial)
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Accessories 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 1 x Screw package for M.2 SSD, 1 x Quick start guide
Operating System Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

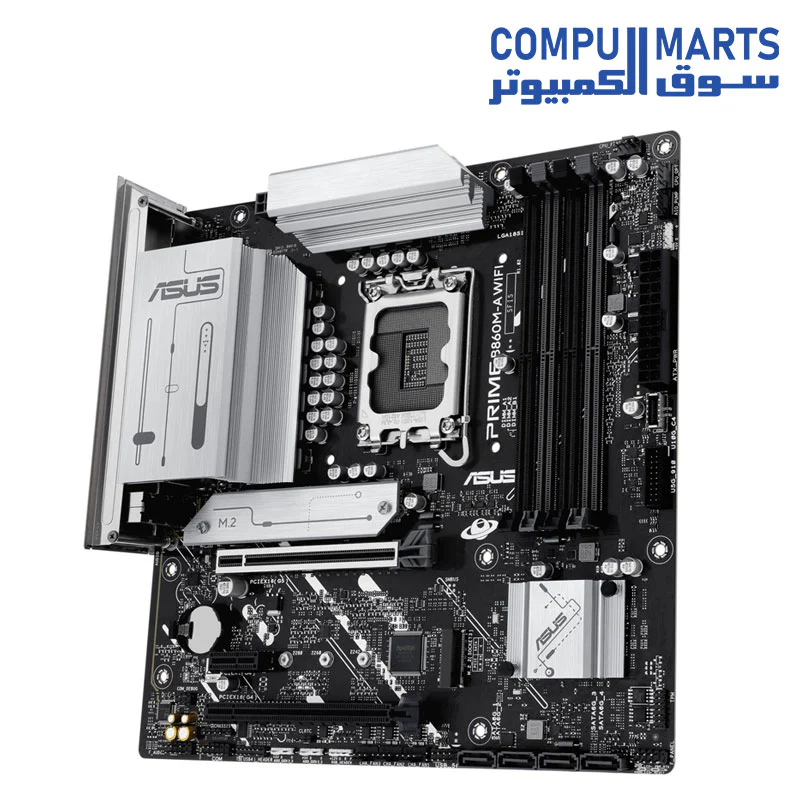

ASUS PRIME B860M-A WIFI Intel Micro-ATX Motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

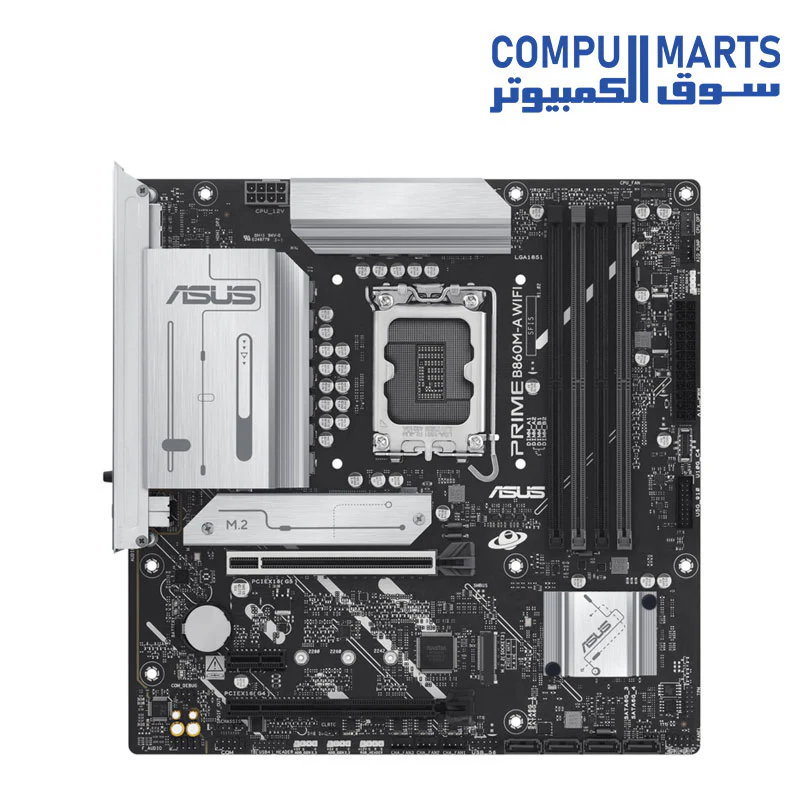

ASUS PRIME B860M-A WIFI Intel Micro-ATX Motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
Model PRIME B860M-A WIFI
CPU Support Intel® Core™ Ultra Processors (Series 2) , LGA1851; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B860 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5; Supports up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMPIII)
Graphics 2 x DisplayPort (Max. 4K@60Hz/120Hz depending on port); 1 x HDMI™ port (4K@60Hz); 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output (Max 4K@60Hz)
Expansion Slots Intel® Core™ Ultra Processors (series 2): 1 x PCIe 5.0 x16 slot; Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes); 4 x SATA 6Gb/s ports (SATA RAID 0/1/5/10)
Ethernet 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E (802.11ax) 2x2; Supports 2.4/5/6GHz frequency band; Bluetooth® v5.3
USB Rear: 1 x USB 20Gbps (Type-C® w/ DP Alt mode), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A); Front: 1 x USB 10Gbps connector (Type-C®), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 2 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks
Internal I/O Connectors 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 1 x 8-pin +12V CPU Power, 2 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header, 1 x USB 2.0 header, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x COM Port header, 1 x Thunderbolt™ (USB4®) header
Special Features ASUS 5X PROTECTION III; ASUS Q-Design (Q-Antenna, Q-LED Core, Q-Slot, etc.); ASUS Thermal Solution (M.2 heatsink, VRM heatsink); ASUS EZ DIY; Aura Sync
Software Features Armoury Crate, ASUS DriverHub, ASUS GlideX, ASUS CPU-Z, Norton 360 for Deluxe (60 Days Trial), WinRAR (40 Days Trial)
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Accessories 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 1 x Screw package for M.2 SSD, 1 x Quick start guide
Operating System Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
