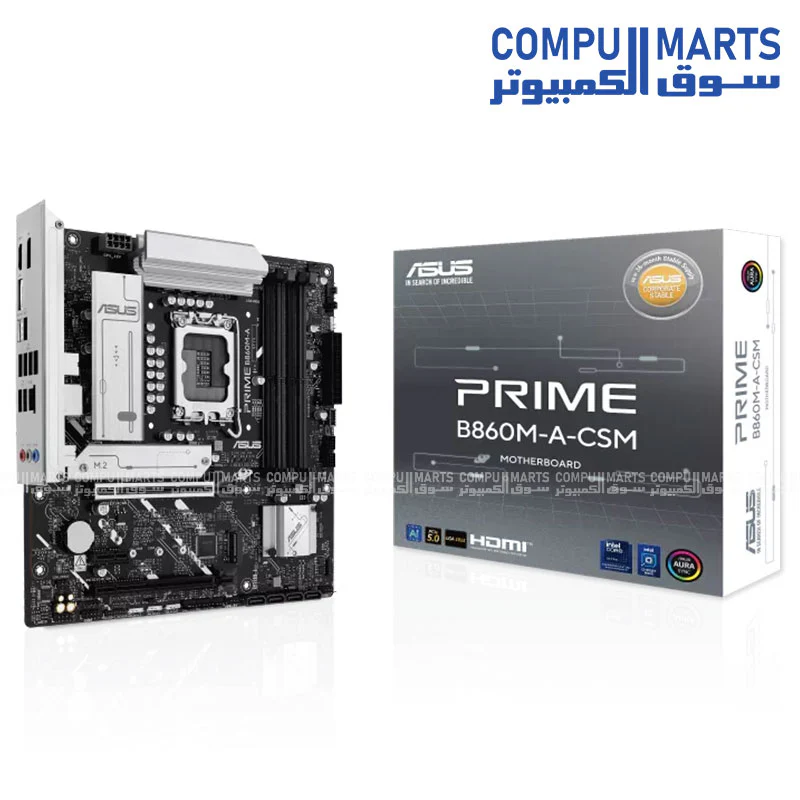

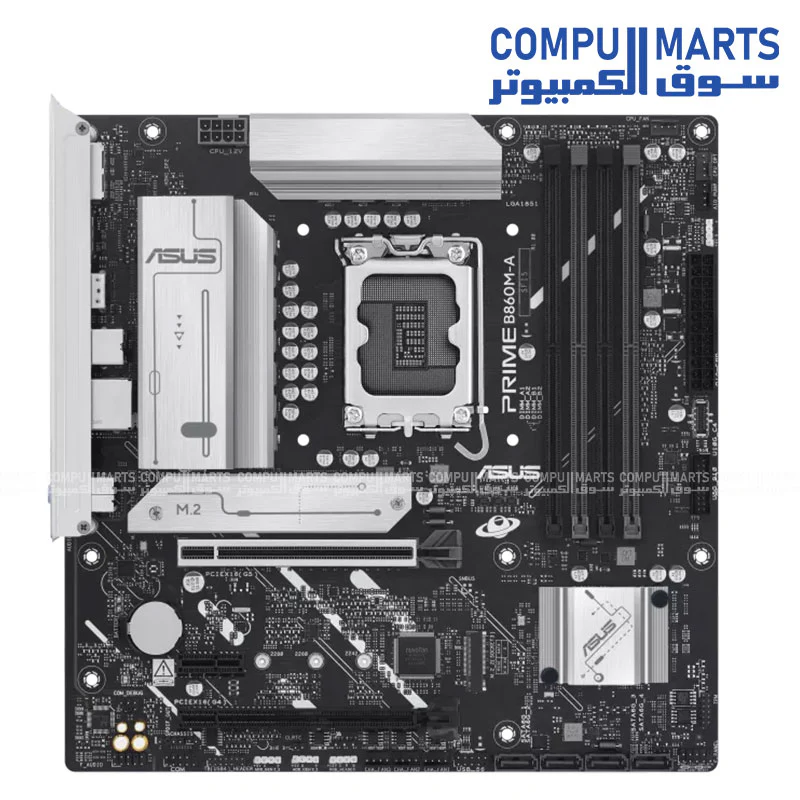

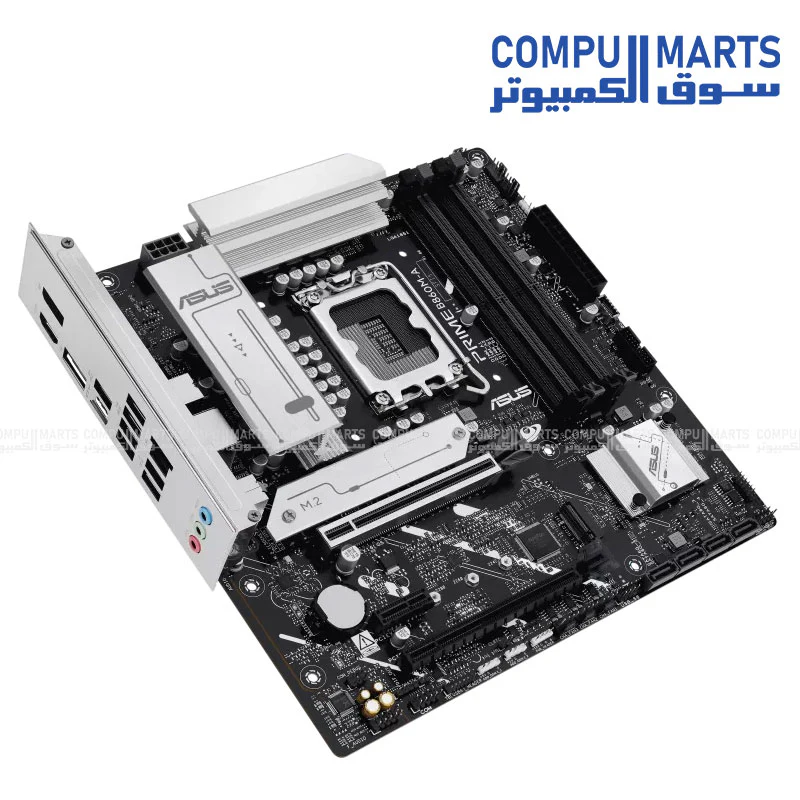

ASUS PRIME B860M-A-CSM Intel LGA1851 DDR5 Micro-ATX Motherboard—
$146.01
The Story
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B860M-A-CSM |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 Socket |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, Max. 256GB, DDR5 up to 8666+ MT/s (OC); Dual Channel; Supports Intel® XMP & ASUS AEMP |

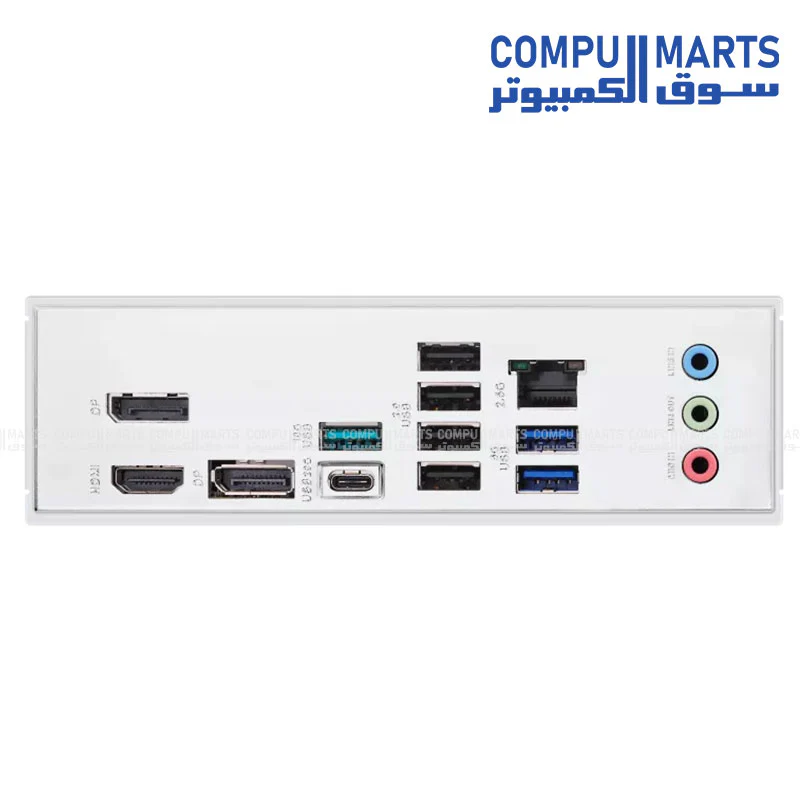

| Graphics Ports | 2 x DisplayPort; 1 x HDMI®; USB Type-C® with DP Alt-Mode support |
| Expansion Slots | 1 x PCIe 5.0 x16 slot; 1 x PCIe 4.0 x16 slot (x4 mode); 1 x PCIe 4.0 x1 slot |
| Storage | 2 x M.2 slots (Supports PCIe Gen5 & Gen4); 4 x SATA 6Gb/s ports |
| Networking | Realtek® 2.5Gb Ethernet; ASUS LANGuard |
| USB (Rear) | 1 x USB-C® 20Gbps, 1 x USB-A 10Gbps, 2 x USB-A 5Gbps, 4 x USB 2.0 |
| USB (Front) | 1 x USB-C® 10Gbps, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header |
| Audio | Realtek® 7.1 Surround Sound High Definition Audio |
| Cooling & RGB | CPU Fan/OPT, AIO Pump, 3 x Chassis Fan headers; Aura Sync with ARGB Gen2 headers |
| Special Features | ASUS Corporate Stable Model (CSM); ASUS Control Center Express; 5X Protection III; Q-LED Core |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B860M-A-CSM |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 Socket |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, Max. 256GB, DDR5 up to 8666+ MT/s (OC); Dual Channel; Supports Intel® XMP & ASUS AEMP |
| Graphics Ports | 2 x DisplayPort; 1 x HDMI®; USB Type-C® with DP Alt-Mode support |
| Expansion Slots | 1 x PCIe 5.0 x16 slot; 1 x PCIe 4.0 x16 slot (x4 mode); 1 x PCIe 4.0 x1 slot |
| Storage | 2 x M.2 slots (Supports PCIe Gen5 & Gen4); 4 x SATA 6Gb/s ports |
| Networking | Realtek® 2.5Gb Ethernet; ASUS LANGuard |
| USB (Rear) | 1 x USB-C® 20Gbps, 1 x USB-A 10Gbps, 2 x USB-A 5Gbps, 4 x USB 2.0 |
| USB (Front) | 1 x USB-C® 10Gbps, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header |
| Audio | Realtek® 7.1 Surround Sound High Definition Audio |
| Cooling & RGB | CPU Fan/OPT, AIO Pump, 3 x Chassis Fan headers; Aura Sync with ARGB Gen2 headers |
| Special Features | ASUS Corporate Stable Model (CSM); ASUS Control Center Express; 5X Protection III; Q-LED Core |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm) |
