$37.22
Original: $124.06

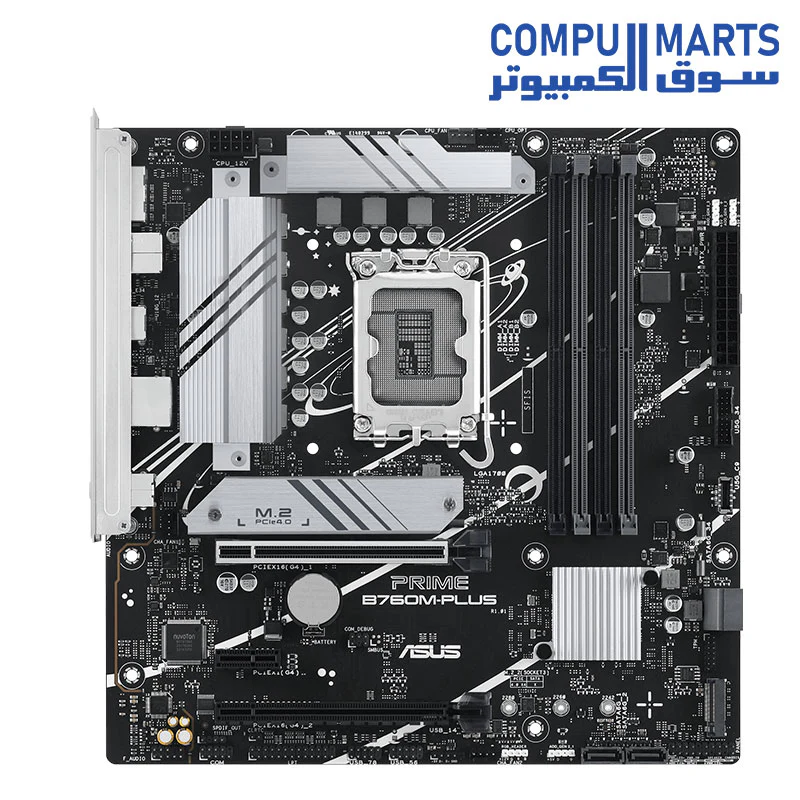

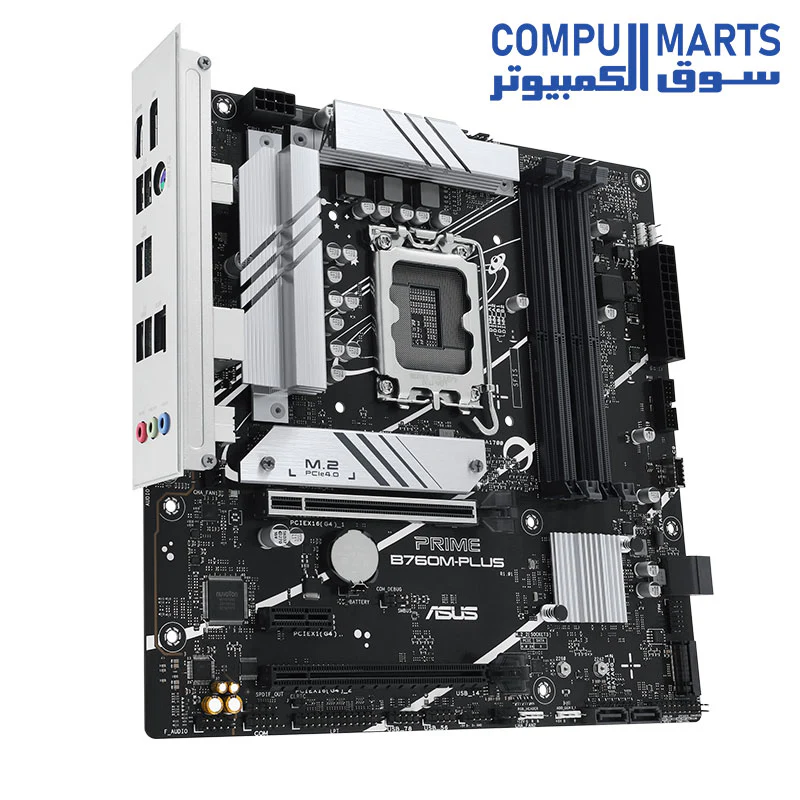

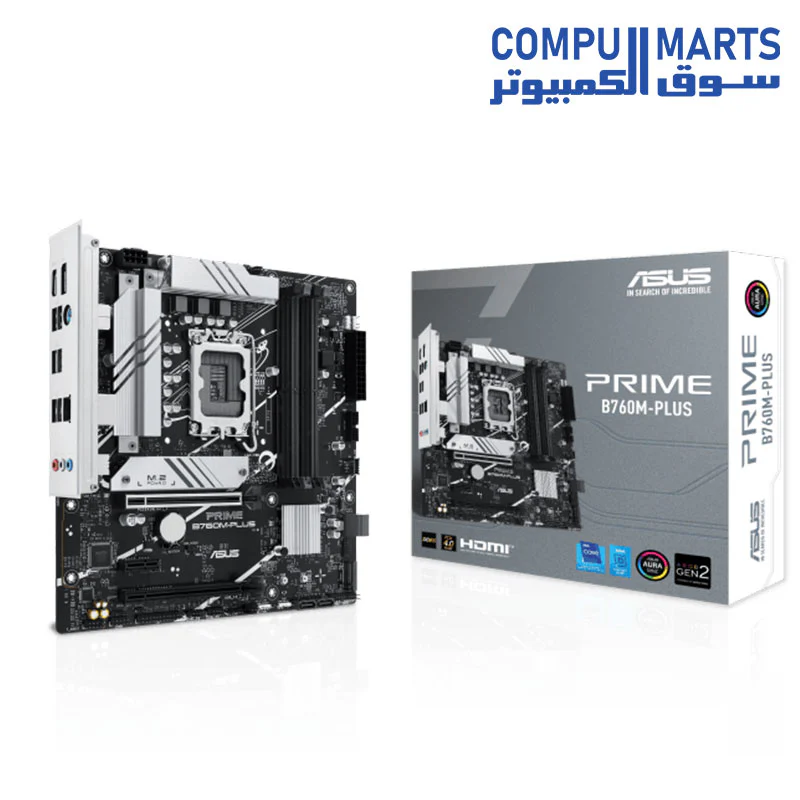

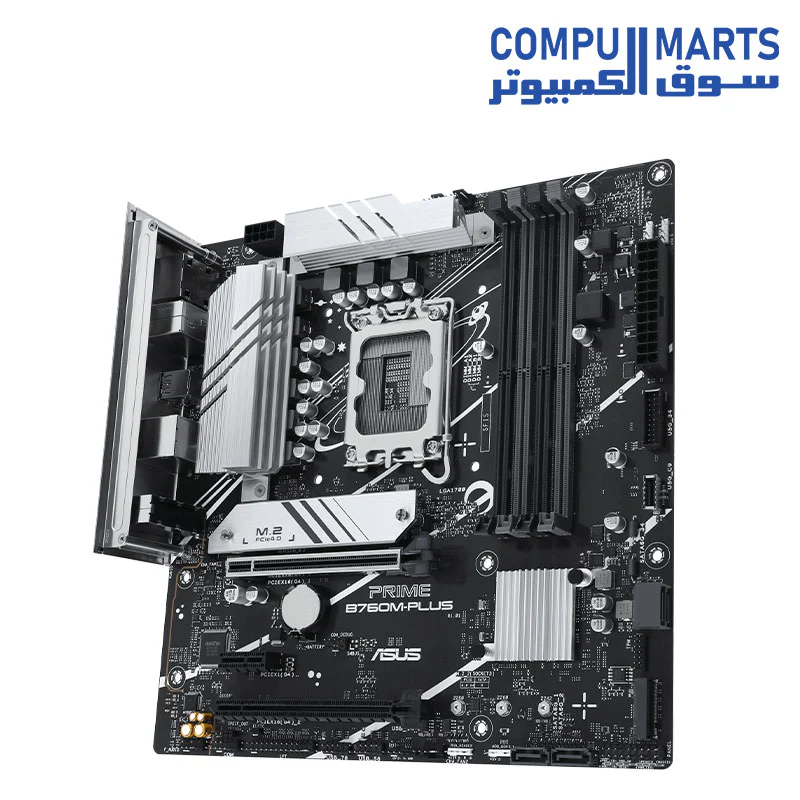

-70%ASUS Prime B760M-PLUS motherboard—
$124.06
$37.22The Story
| Category | Specification Details |
|---|---|
| Model | PRIME B760M-PLUS |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen Processors, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Architecture; Supports Intel® XMP & ASUS Enhanced Memory Profile II (AEMP II) |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DP 1.4); 1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (Intel® Core™ Processors); 1 x PCIe 4.0 x16 slot (supports x4 mode, B760 Chipset); 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; M.2_1 (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode); M.2_2 (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode); Supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard |
| Rear USB | 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A) |
| Front USB | 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports); 3 x USB 2.0 headers (support 5 additional USB 2.0 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Jack-detection, Multi-streaming, Front Panel Jack-retasking; Up to 24-Bit/192 kHz playback; Audio Shielding; Premium capacitors |
| Back Panel Ports | 2 x USB 10Gbps (Type-A), 4 x USB 2.0, 1 x DisplayPort, 1 x HDMI™, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Fan & Cooling | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan headers; VRM & M.2 heatsink design |
| Power | 1 x 24-pin Main Power, 1 x 8-pin +12V Power connector |
| Miscellaneous | 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x COM Port header, 1 x LPT header, 1 x S/PDIF Out, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel |
| Special Features | Ready for Advanced AI PC; ASUS 5X PROTECTION III (DIGI+ VRM, ESD Guards, SafeSlot Core+); ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot); Aura Sync |
| Software | Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation); AI Suite 3; ASUS CPU-Z; Norton 360 Deluxe; WinRAR |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor; 24.4 cm x 24.4 cm (9.6 inch x 9.6 inch) |
| Accessories | 2 x SATA 6Gb/s cables, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x Quick start guide |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | PRIME B760M-PLUS |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen Processors, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Architecture; Supports Intel® XMP & ASUS Enhanced Memory Profile II (AEMP II) |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DP 1.4); 1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (Intel® Core™ Processors); 1 x PCIe 4.0 x16 slot (supports x4 mode, B760 Chipset); 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; M.2_1 (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode); M.2_2 (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode); Supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard |
| Rear USB | 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A) |
| Front USB | 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports); 3 x USB 2.0 headers (support 5 additional USB 2.0 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; Jack-detection, Multi-streaming, Front Panel Jack-retasking; Up to 24-Bit/192 kHz playback; Audio Shielding; Premium capacitors |
| Back Panel Ports | 2 x USB 10Gbps (Type-A), 4 x USB 2.0, 1 x DisplayPort, 1 x HDMI™, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Fan & Cooling | 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan headers; VRM & M.2 heatsink design |
| Power | 1 x 24-pin Main Power, 1 x 8-pin +12V Power connector |
| Miscellaneous | 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x COM Port header, 1 x LPT header, 1 x S/PDIF Out, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel |
| Special Features | Ready for Advanced AI PC; ASUS 5X PROTECTION III (DIGI+ VRM, ESD Guards, SafeSlot Core+); ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot); Aura Sync |
| Software | Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation); AI Suite 3; ASUS CPU-Z; Norton 360 Deluxe; WinRAR |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor; 24.4 cm x 24.4 cm (9.6 inch x 9.6 inch) |
| Accessories | 2 x SATA 6Gb/s cables, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x Quick start guide |
