$162.23

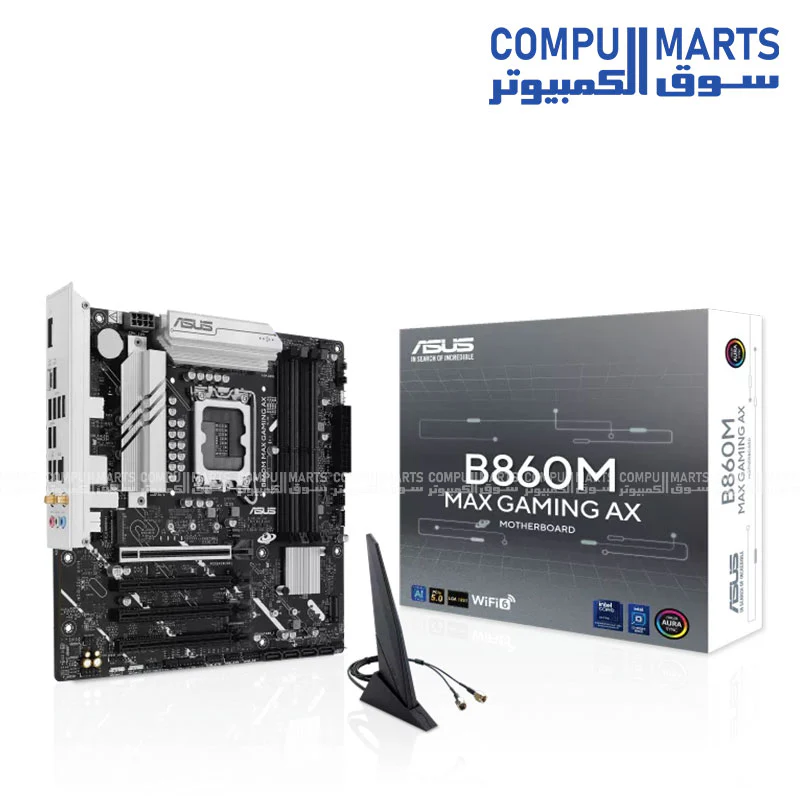

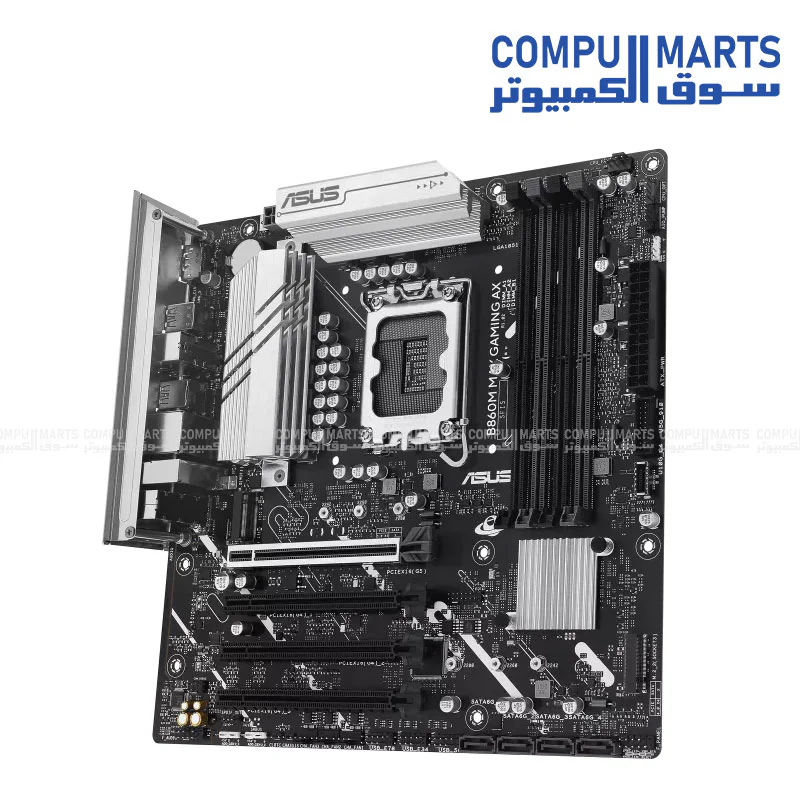

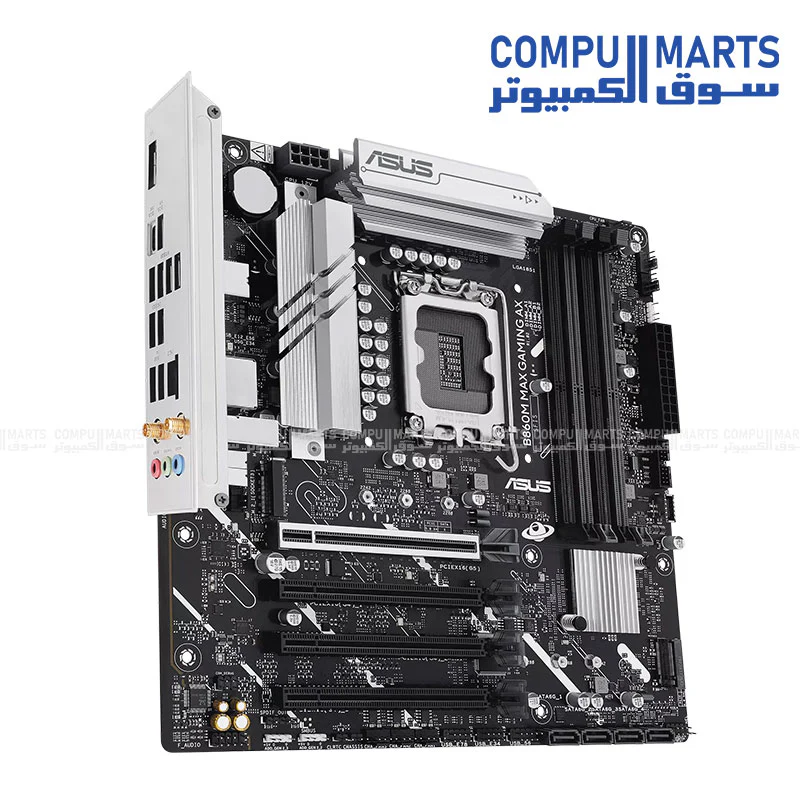

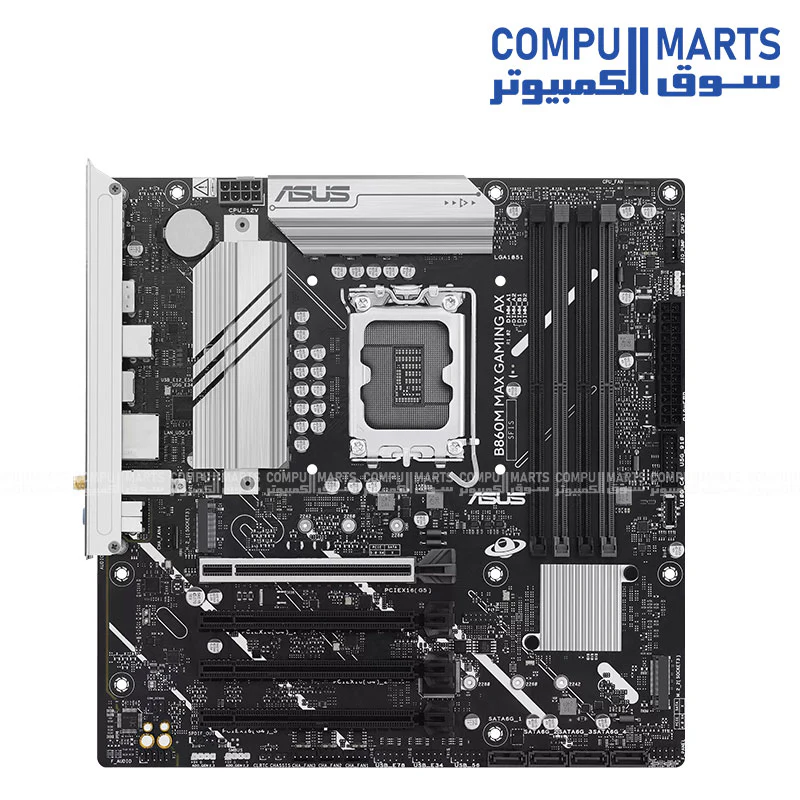

ASUS B860M MAX GAMING AX Motherboard – DDR5, PCIe 5.0, WiFi 6, 2.5Gb LAN, LGA1851—
$162.23
The Story
| Category | Specification Details |
|---|---|
| Model | B860M MAX GAMING AX |
| Chipset | Intel® B860 Chipset |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 Socket; Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 |
| Memory | 4 x DIMM slots, Max. 256GB, DDR5 8666+(OC) MT/s; Dual-channel Architecture; Supports Intel® XMP & ASUS AEMP III |
| Graphics Output | 1 x DisplayPort (Up to 4K@60Hz); 1 x USB-C® (DP Alt Mode, up to 4K@120Hz) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16; Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x2); 4 x SATA 6Gb/s ports |
| Networking | Realtek 2.5Gb Ethernet; ASUS LANGuard; Wi-Fi 6 (802.11ax) 1x1; Bluetooth® 5.4 |
| USB (Rear) | 1 x USB-C® 20Gbps, 1 x USB-A 10Gbps, 4 x USB-A 5Gbps, 4 x USB-A 2.0 |
| USB (Front) | 1 x USB-C® 10Gbps, 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio; 24-bit/192kHz playback; Audio shielding; Premium capacitors |
| Back Panel I/O | DisplayPort, Ethernet, Wi-Fi module, 3 x Audio jacks, 10 x USB ports total |
| Special Features | ASUS 5X Protection III, Q-Design, VRM Heatsink, ProCool, Pre-mounted I/O Shield, Aura Sync RGB |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm / 9.6" x 9.6") |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | B860M MAX GAMING AX |
| Chipset | Intel® B860 Chipset |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 Socket; Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 |
| Memory | 4 x DIMM slots, Max. 256GB, DDR5 8666+(OC) MT/s; Dual-channel Architecture; Supports Intel® XMP & ASUS AEMP III |
| Graphics Output | 1 x DisplayPort (Up to 4K@60Hz); 1 x USB-C® (DP Alt Mode, up to 4K@120Hz) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16; Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x2); 4 x SATA 6Gb/s ports |
| Networking | Realtek 2.5Gb Ethernet; ASUS LANGuard; Wi-Fi 6 (802.11ax) 1x1; Bluetooth® 5.4 |
| USB (Rear) | 1 x USB-C® 20Gbps, 1 x USB-A 10Gbps, 4 x USB-A 5Gbps, 4 x USB-A 2.0 |
| USB (Front) | 1 x USB-C® 10Gbps, 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio; 24-bit/192kHz playback; Audio shielding; Premium capacitors |
| Back Panel I/O | DisplayPort, Ethernet, Wi-Fi module, 3 x Audio jacks, 10 x USB ports total |
| Special Features | ASUS 5X Protection III, Q-Design, VRM Heatsink, ProCool, Pre-mounted I/O Shield, Aura Sync RGB |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm / 9.6" x 9.6") |
