$77.30
Original: $257.66

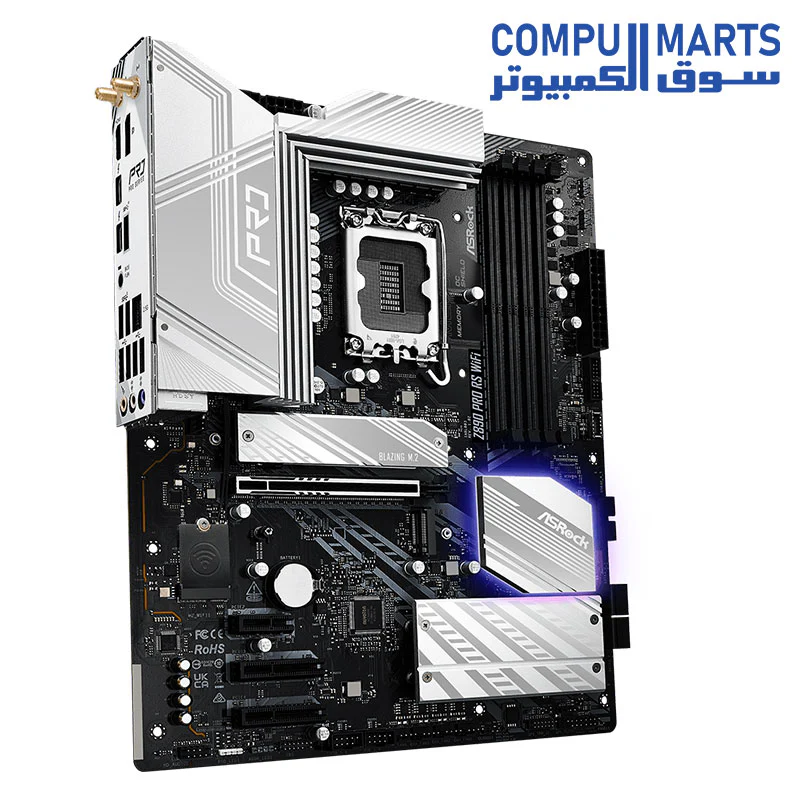

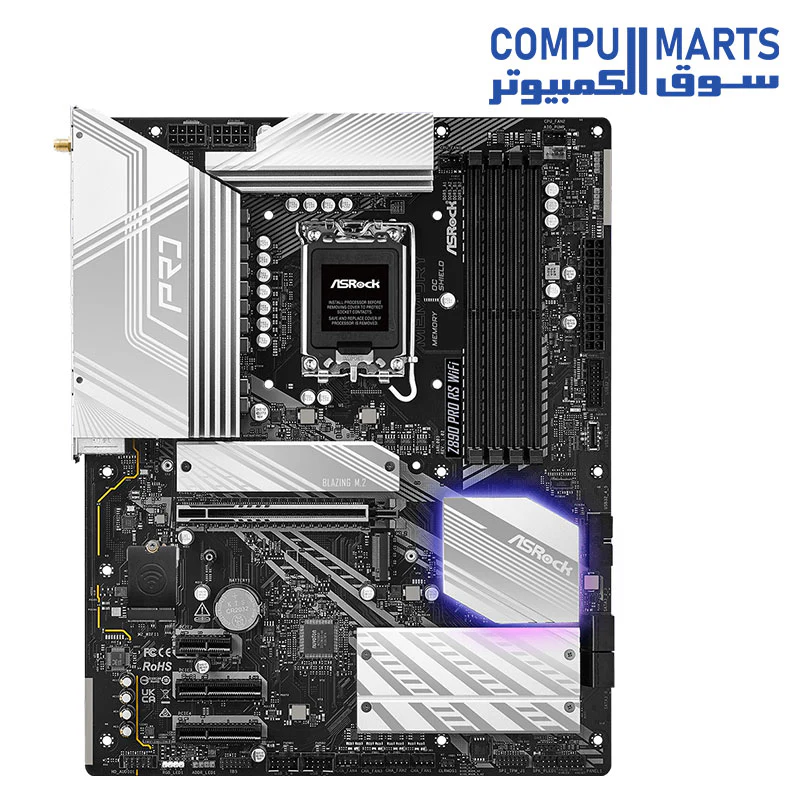

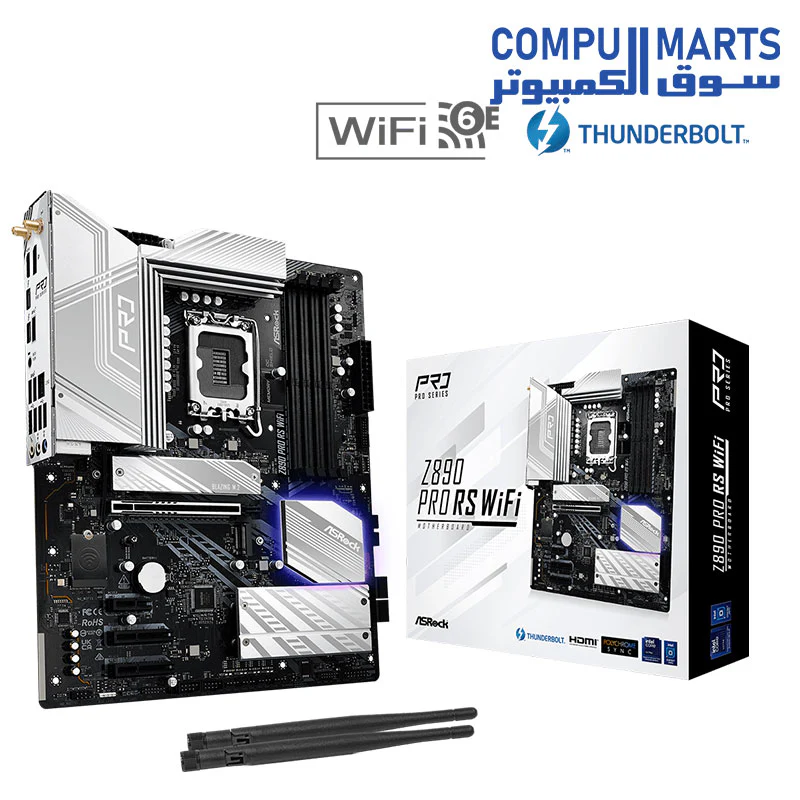

-70%Asrock Z890 Pro RS WiFi Motherboard—
$257.66
$77.30The Story
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Core™ Ultra Processors (Series 2) (LGA1851); Supports Hybrid Tech, Turbo Boost Max 3.0 & AI NPU |
| Chipset | Intel® Z890 |
| Memory | 4 x DDR5 DIMM; Dual Channel up to 9066+(OC); Max Capacity 256GB; Supports XMP 3.0 & CUDIMM |
| Graphics Output | 1 x HDMI 2.1 (4K 120Hz), 1 x DisplayPort 1.4 (8K 60Hz), 2 x Intel® Thunderbolt™ 4 (8K 60Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio |
| Expansion Slots | 1 x PCIe 5.0 x16; 2 x PCIe 4.0 x4; 1 x PCIe 4.0 x1; 1 x M.2 Key E for WiFi |
| Storage | 1 x Blazing M.2 (Gen5x4), 3 x Hyper M.2 (Gen4x4), 4 x SATA3 6.0 Gb/s; Supports RAID 0/1/5/10 |
| Thunderbolt™ | 2 x Thunderbolt™ 4 Type-C (40 Gb/s) with USB PD 3.0 (15W Charging) |
| Ethernet | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Wireless | 802.11axe Wi-Fi 6E Module; Dual-Band 2x2; Bluetooth 5.3 |

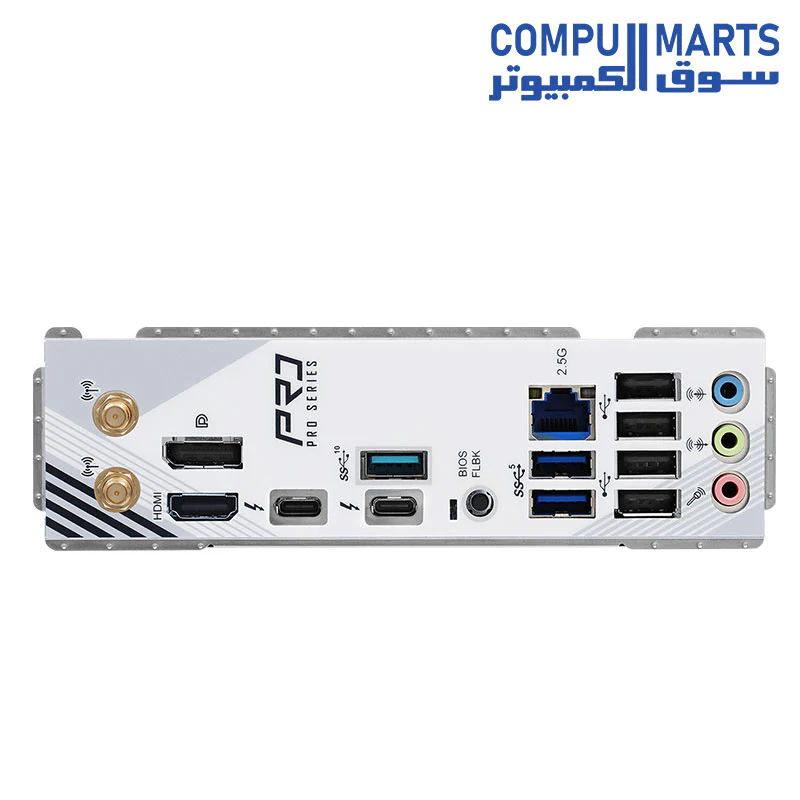

| USB (Rear) | 2 x Thunderbolt™ 4, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| USB (Front) | 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1, 4 x USB 2.0 |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm); 2oz Copper PCB |
| Special Features | 16+1+1+1+1 Power Phase (Dr.MOS), BIOS Flashback, ASRock Auto Driver Installer |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | Intel® Core™ Ultra Processors (Series 2) (LGA1851); Supports Hybrid Tech, Turbo Boost Max 3.0 & AI NPU |
| Chipset | Intel® Z890 |
| Memory | 4 x DDR5 DIMM; Dual Channel up to 9066+(OC); Max Capacity 256GB; Supports XMP 3.0 & CUDIMM |
| Graphics Output | 1 x HDMI 2.1 (4K 120Hz), 1 x DisplayPort 1.4 (8K 60Hz), 2 x Intel® Thunderbolt™ 4 (8K 60Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio |
| Expansion Slots | 1 x PCIe 5.0 x16; 2 x PCIe 4.0 x4; 1 x PCIe 4.0 x1; 1 x M.2 Key E for WiFi |
| Storage | 1 x Blazing M.2 (Gen5x4), 3 x Hyper M.2 (Gen4x4), 4 x SATA3 6.0 Gb/s; Supports RAID 0/1/5/10 |
| Thunderbolt™ | 2 x Thunderbolt™ 4 Type-C (40 Gb/s) with USB PD 3.0 (15W Charging) |
| Ethernet | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Wireless | 802.11axe Wi-Fi 6E Module; Dual-Band 2x2; Bluetooth 5.3 |
| USB (Rear) | 2 x Thunderbolt™ 4, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| USB (Front) | 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1, 4 x USB 2.0 |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm); 2oz Copper PCB |
| Special Features | 16+1+1+1+1 Power Phase (Dr.MOS), BIOS Flashback, ASRock Auto Driver Installer |
