$27.77
Original: $92.57

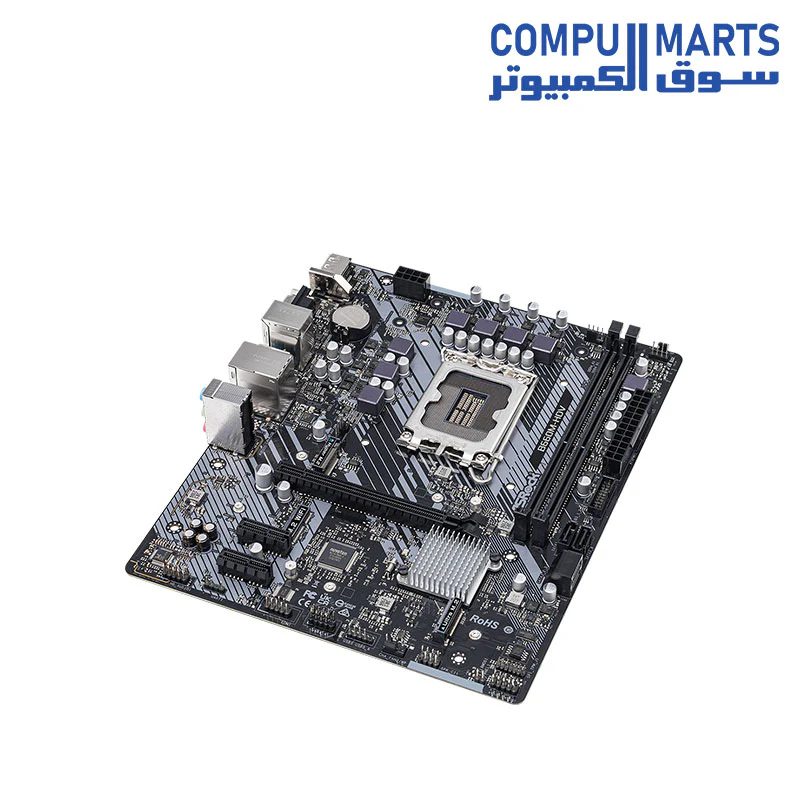

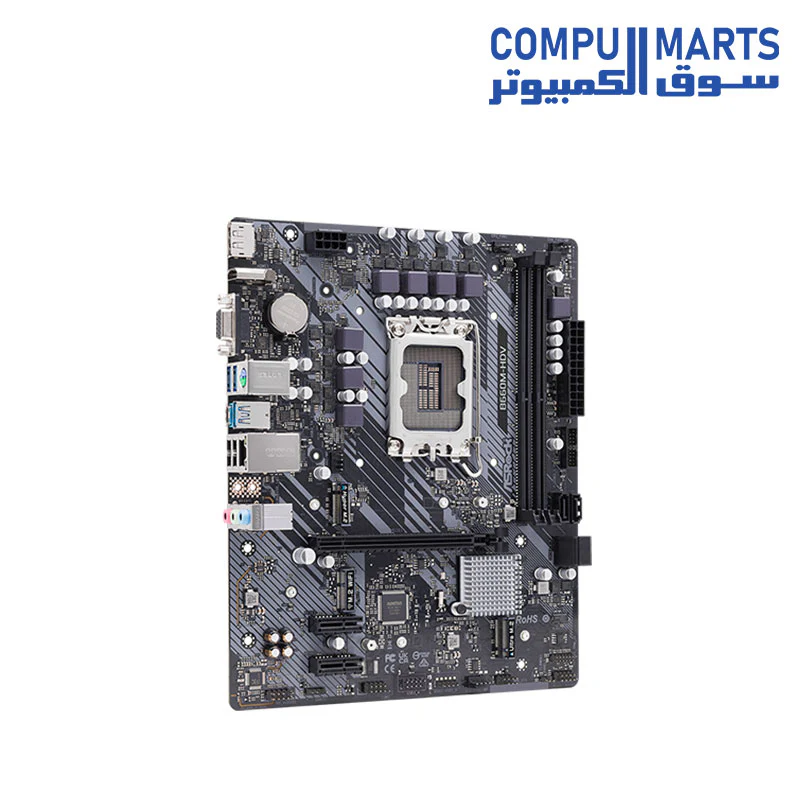

-70%ASRock B660M-HDV Intel (LGA1700) Micro ATX Motherboard—
$92.57
$27.77The Story
| Category | Specification Details |
|---|---|
| CPU Support | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); 6 Phase Power Design |
| Chipset | Intel® B660 |
| Memory | 2 x DDR4 DIMM Slots; Supports up to 5066+(OC) / 3200 Native; Max. 64GB; Intel® XMP 2.0 |
| Graphics Output | 1 x HDMI 2.1 TMDS (4K@60Hz); 1 x DisplayPort 1.4 (8K@60Hz); 1 x D-Sub |
| Storage | 1 x Hyper M.2 (PCIe Gen4x4); 1 x Ultra M.2 (PCIe Gen3x4 & SATA3); 4 x SATA3 6.0 Gb/s |
| Expansion Slots | 1 x PCIe 4.0 x16; 2 x PCIe 3.0 x1; 1 x M.2 Key-E for WiFi |
| Ethernet | Intel® I219V Gigabit LAN (10/100/1000 Mb/s) |
| Rear I/O Ports | 1 x USB 3.2 Gen1 Type-C; 3 x USB 3.2 Gen1 Type-A; 2 x USB 2.0; PS/2 Port; 3 Audio Jacks |
| Audio | 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) with Surge Protection |
| Internal Headers | 1 x USB 3.2 Gen1 (2 ports); 2 x USB 2.0 (3 ports); 1 x COM Port; 4 x Fan Connectors |
| Form Factor | Micro ATX: 9.6-in x 7.9-in (24.4 cm x 20.1 cm) |
| Unique Features | ASRock Super Alloy (Sapphire Black PCB, Premium Choke); Full Spike Protection |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); 6 Phase Power Design |
| Chipset | Intel® B660 |
| Memory | 2 x DDR4 DIMM Slots; Supports up to 5066+(OC) / 3200 Native; Max. 64GB; Intel® XMP 2.0 |
| Graphics Output | 1 x HDMI 2.1 TMDS (4K@60Hz); 1 x DisplayPort 1.4 (8K@60Hz); 1 x D-Sub |
| Storage | 1 x Hyper M.2 (PCIe Gen4x4); 1 x Ultra M.2 (PCIe Gen3x4 & SATA3); 4 x SATA3 6.0 Gb/s |
| Expansion Slots | 1 x PCIe 4.0 x16; 2 x PCIe 3.0 x1; 1 x M.2 Key-E for WiFi |
| Ethernet | Intel® I219V Gigabit LAN (10/100/1000 Mb/s) |
| Rear I/O Ports | 1 x USB 3.2 Gen1 Type-C; 3 x USB 3.2 Gen1 Type-A; 2 x USB 2.0; PS/2 Port; 3 Audio Jacks |
| Audio | 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) with Surge Protection |
| Internal Headers | 1 x USB 3.2 Gen1 (2 ports); 2 x USB 2.0 (3 ports); 1 x COM Port; 4 x Fan Connectors |
| Form Factor | Micro ATX: 9.6-in x 7.9-in (24.4 cm x 20.1 cm) |
| Unique Features | ASRock Super Alloy (Sapphire Black PCB, Premium Choke); Full Spike Protection |
