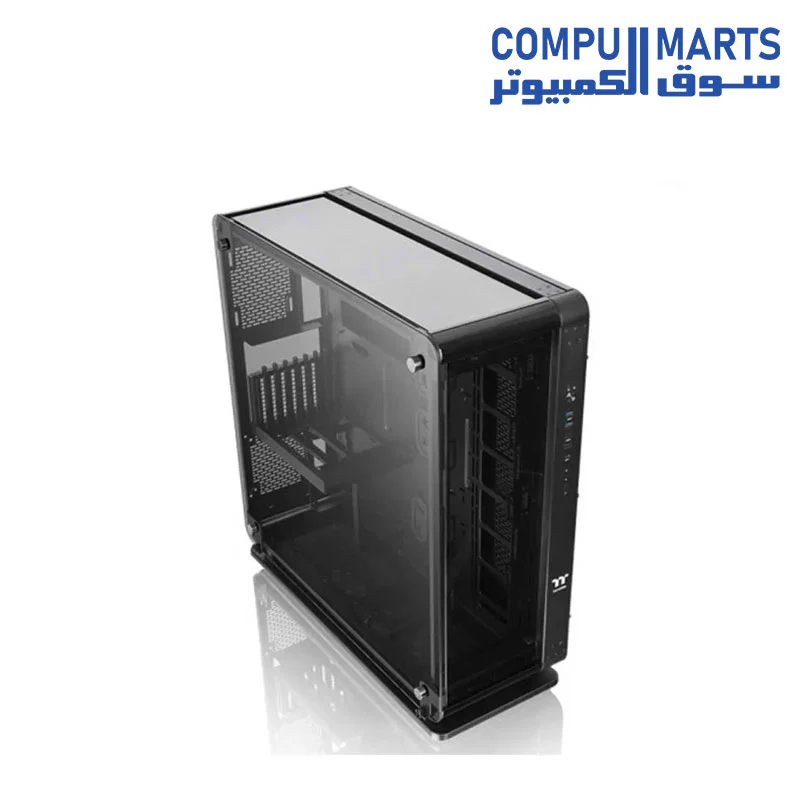

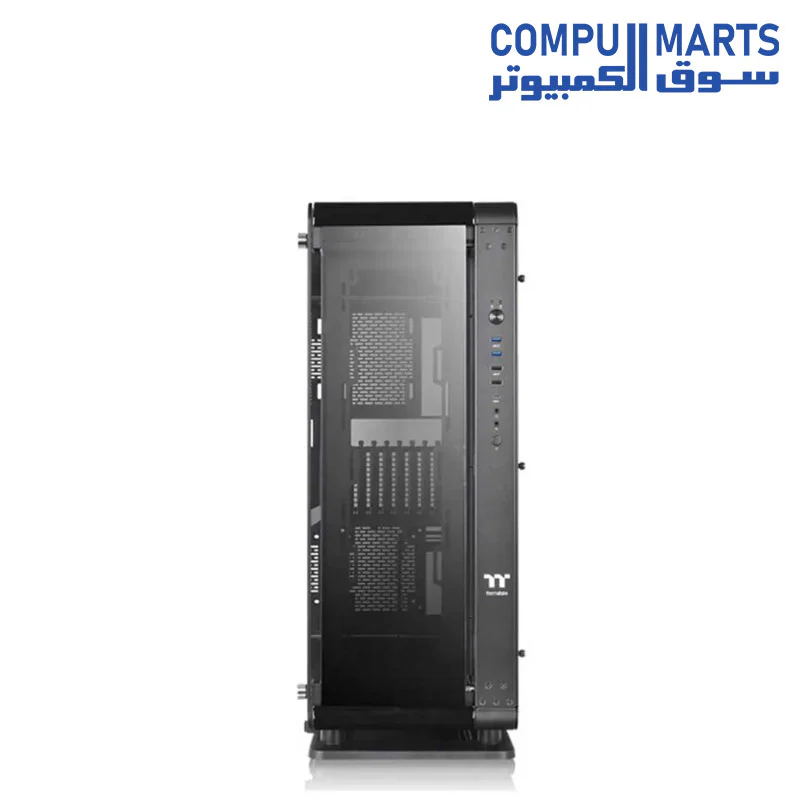

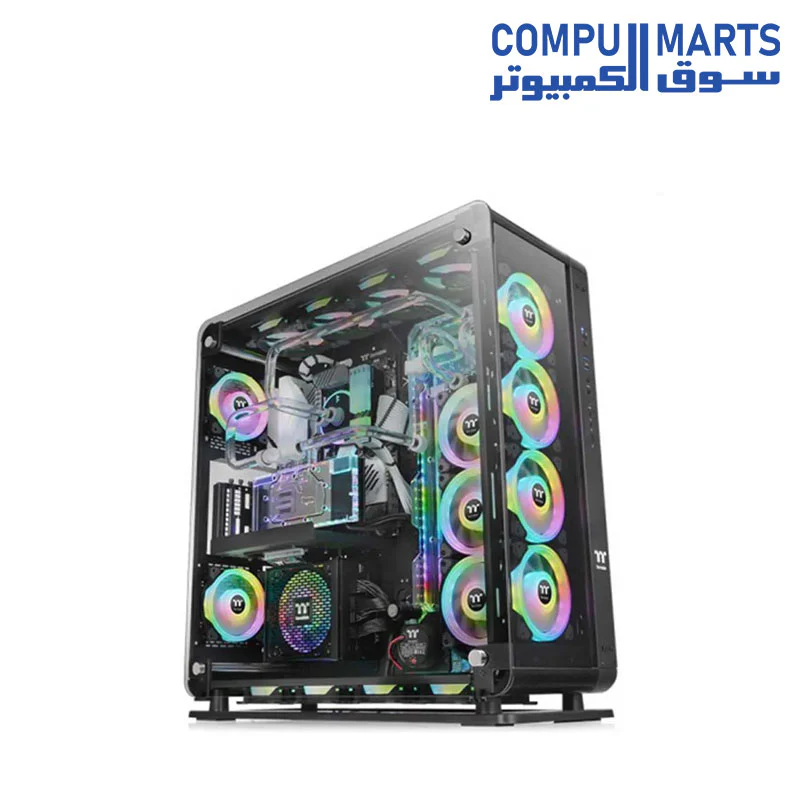

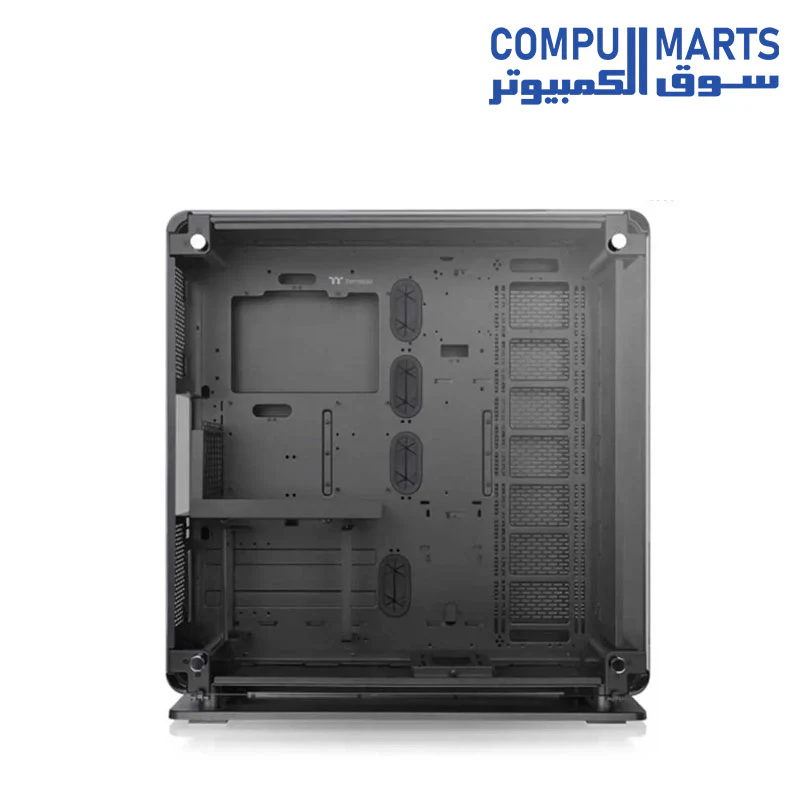

Thermaltake Core P8 Tempered Glass Full Tower Chassis (CA-1Q2-00M1WN-00)

Thermaltake Core P8 Tempered Glass Full Tower Chassis

P/N

SERIES

Core

MODEL

Core P8 TG

CASE TYPE

Full Tower

DIMENSION (H X W X D)

660 x 260 x 626 mm
(26 x 10.24 x 24.65 inch)

NET WEIGHT

22.6 kg / 49.8 lbs

SIDE PANEL

Tempered Glass x 3 (4mm thickness)

COLOR

Black

MATERIAL

SPCC

DRIVE BAYS

-ACCESSIBLE
-HIDDEN

1 x 2.5’’ (with Pump Bracket)
3 x 3.5’’ or 6 x 2.5’’ (With HDD Bracket)

EXPANSION SLOTS

8

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13”(E-ATX)

I/O PORT

1 x USB 3.1 (Gen 2) Type C, 2 x USB 3.0, x 2 USB 2.0, 1 x HD Audio

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Top: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Rear: 1 x 120mm or 2 x 120mm ,
Right: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Bottom: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm

RADIATOR SUPPORT

Front: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Top: 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Right: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Bottom: 1 x 240mm or 1 x 120mm (With P5 DP-D5 ) ,

CLEARANCE

CPU cooler height limitation: 180mm
VGA length limitation: 520mm
280mm (with Reservoir)
PSU length limitation: 200mm
