CASE DEEPCOOL MATREXX 50 MESH 4FS TEMPERED SIDE PANEL 4 X 120MM LED FAN PRE-INSTALLED RGB +Power Supply EVGA 500 W1, 80+ WHITE 500W, 100-W1-0500-K2 (EU)

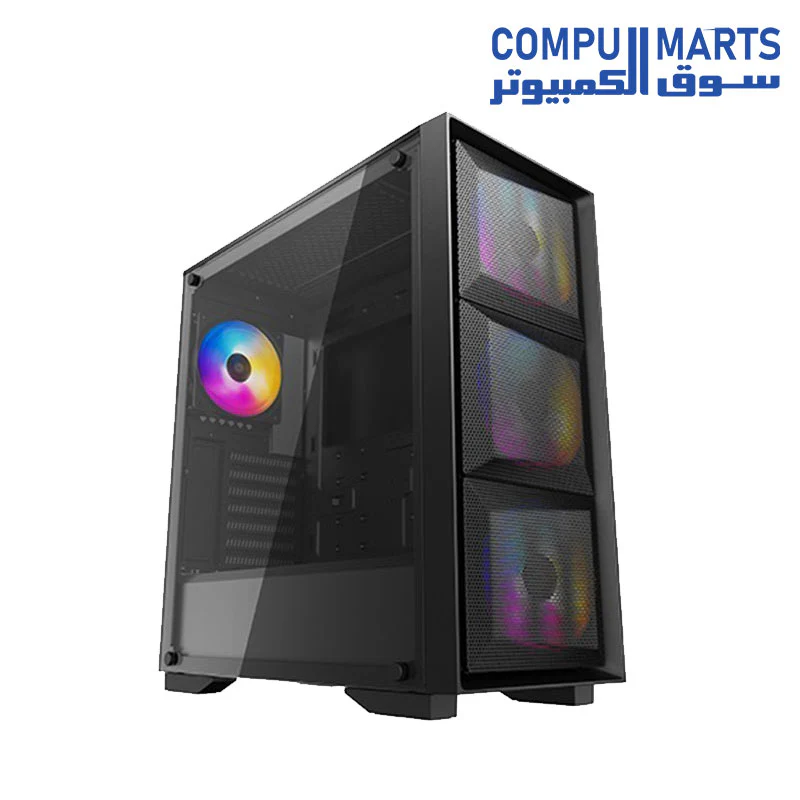

CASE DEEPCOOL MATREXX 50 MESH 4FS TEMPERED SIDE PANEL 4 X 120MM LED FAN PRE-INSTALLED RGB



CASE DEEPCOOL MATREXX 50

MATREXX 50 MESH 4FSMATREXX 50 MESH 4FS is a high airflow case that comes with four tri-color LED fans, a solid tempered glass panel, and supports up to E-ATX motherboard

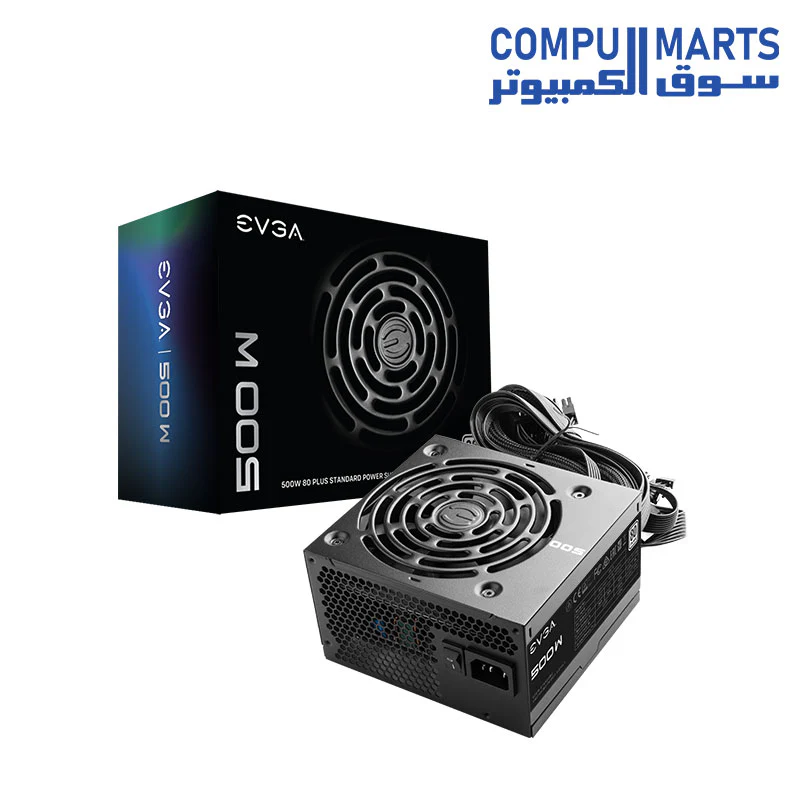

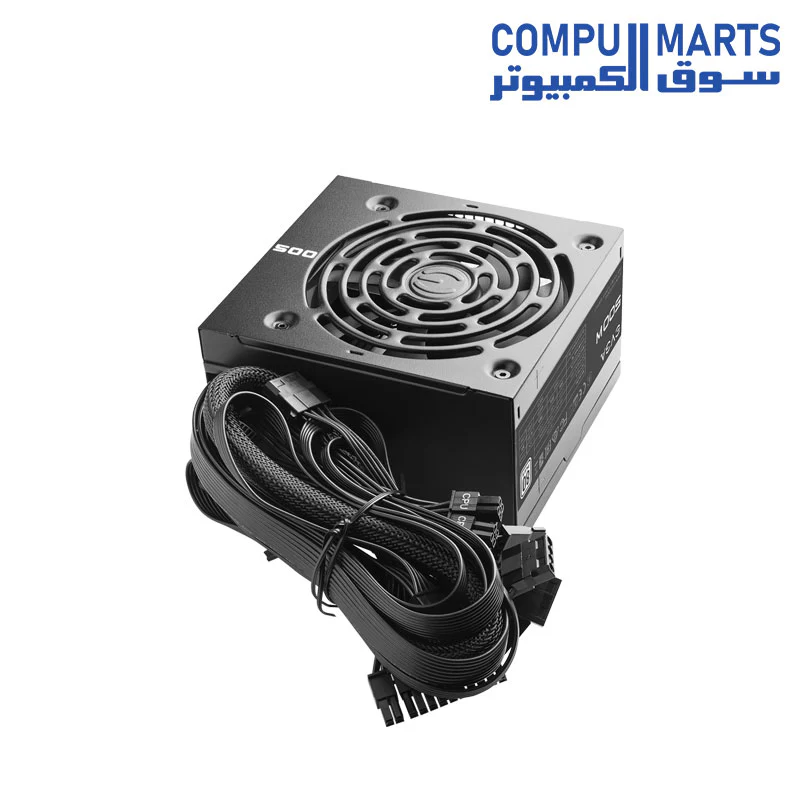

Power Supply EVGA 500 W1, 80+ WHITE 500W

When building on a budget, the EVGA 500W 80 PLUS is a great choice at a low cost. Supporting 40A on a single +12V rail provides more options without having to reduce your component requirements. Save space with the 500W’s compact design, well-placed power switch and fully sleeved cables. The 500W offers the connections and protections needed for basic system builds. With a standard and ultra quiet fan design the 500W will be a great asset for your next build on a budget

CASE DEEPCOOL MATREXX 50 MESH 4FS TEMPERED SIDE PANEL 4 X 120MM LED FAN PRE-INSTALLED RGB

Power Supply EVGA 500 W1, 80+ WHITE 500W

CABLE LENGTH

ATX Cable 1x 550mm

EPS Cable 1x 600mm

PCIe Cable 1x 550mm, 670mm

SATA Cable 2x 450mm, 570mm, 690mm

Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm (f)

Floppy Adapter 1x 120mm

AC Power 1x 1200mm (m)

Modular Cable Type No

CONNECTOR QUANTITY

24 Pin ATX 1x

EPS (CPU) 1x 8pin (4+4)

PCIe 2x 8pin (6+2)

SATA 6x

Four-Pin Peripheral 3x

Floppy 1x

INPUT

Input Voltage 100 – 240 VAC

AC Input 8-4A

Input Frequency Range 50 – 60 Hz

Efficiency 80% Typical

OUTPUT

Rail +3.3V +5V +12V -12V +5Vsb

Max output 24A 20A 40A 0.3A 3A

40A

120W 480W 3.6W 15W

Total 500W @ +40C

ADDITIONAL DETAILS

Operating Temperature 0° to 40° C

Japanese Capacitors No

ECO Mode No

MTBF 100,000 Hours

Net Weight 3 lbs

Size 85mm (H) x 0mm (W) x 140mm (L)

Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS

Compliance with ErP Lot 6 2013 Requirement

Fan Size / Bearing 120mm Sleeve Bearing

UPC 843368029975

EAN 4250812404671
